Description:

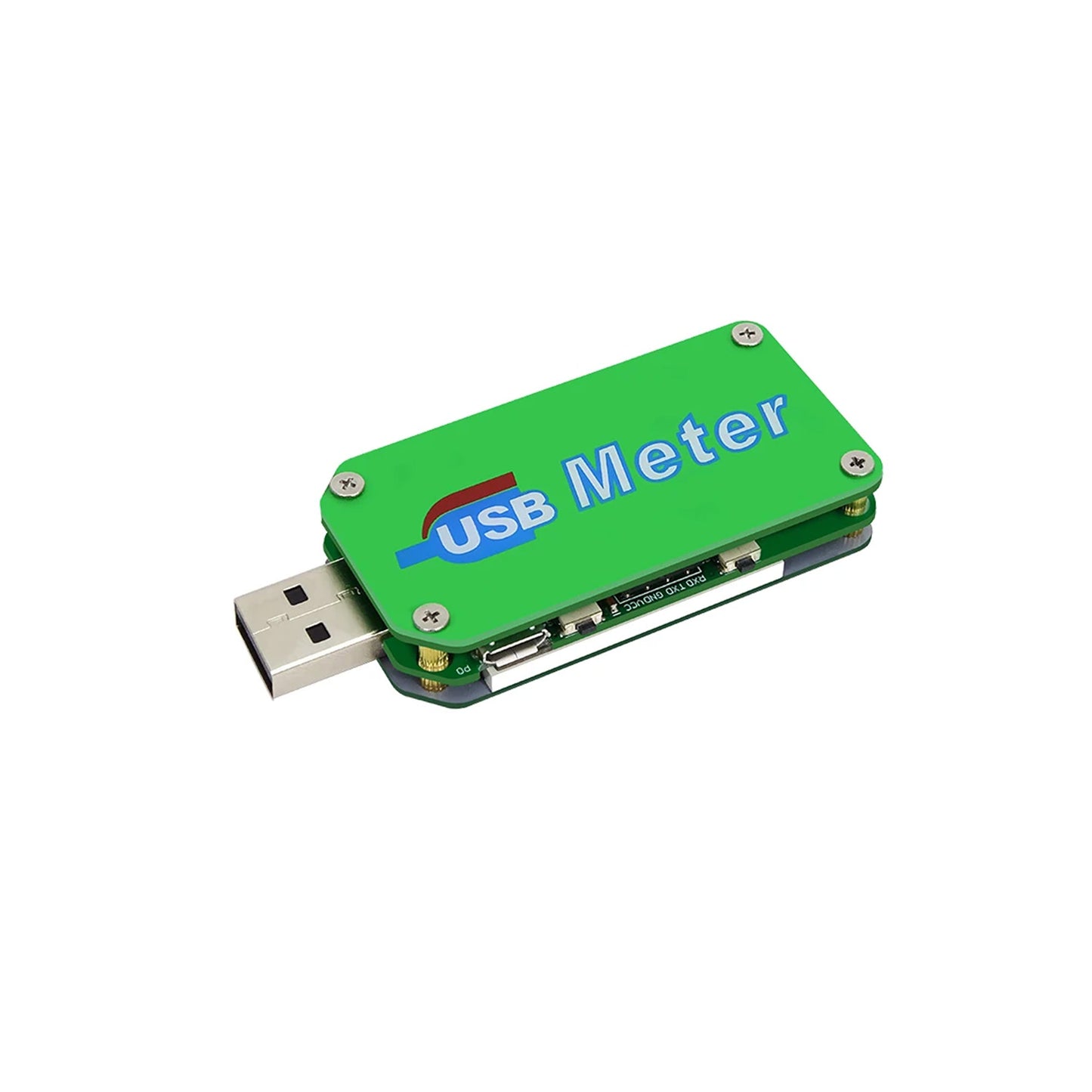

The UM24 USB meter comes in two different versions: the UM24 and UM24C. The UM24C is slightly more expensive because it has a built-in Bluetooth board that you can use to connect to an Android App or Windows PC software.
Specification:
- Voltage range: 4.50 – 24.00V
- Voltage resolution: 0.01V
- Voltage accuracy: ±(0.2%+1 digit)
- Current range: 0.0 – 3.000A
- Current resolution: 0.001A
- Current accuracy: ±(0.8%+3 digit)
- Capacity accumulation range: 0 – 99999mAh
- Energy accumulation range: 0 – 99999mWh
- Load impedance range: 1.5 – 9999.9Ω
- Temperature range: -10ºC~100ºC / 0ºF~200ºF
- Temperature error: ±3ºC/±6ºF
- Screen brightness: 0-5 level
- Auto screen off time: 1 – 9 minutes
- Voltage graphing range: 4.5 – 24.0V
- Current graphing range: 0.0 – 3.0A
- Screen: 1.44-inch color LCD
- Quick charge recognition mode: QC2.0/QC3.0
- Refresh rate: 2Hz
Package Included:

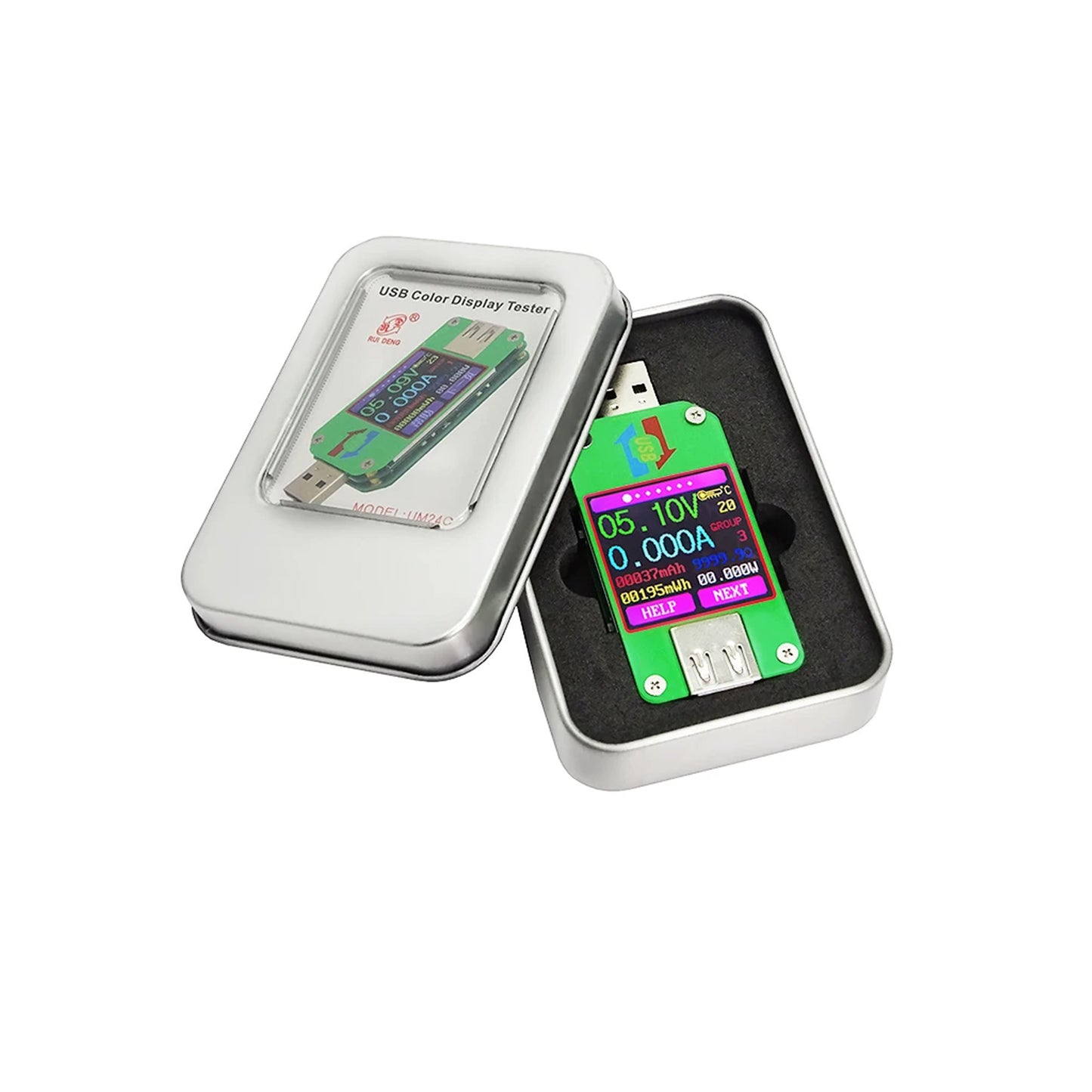

1 x UM24/UM24C USB 2.0 Color LCD Display Tester Voltage Current Meter Voltmeter Amperimetro - UM24
