- Output current 500 mA per output (600 mA peak)
- High-voltage outputs: 50V
- Integrated suppression diodes for inductive loads
- TTL/CMOS/PMOS/DTL compatible inputs
Description:
The ULN2003 is a monolithic IC that consists of seven NPN Darlington transistor pairs with high voltage and current capability. It is commonly used for applications such as relay drivers, motor, display drivers, led lamp drivers, logic buffers, line drivers, hammer drivers and other high voltage current applications. High voltage, high current Darlington arrays each containing seven open collectors Darlington pairs with common emitters. Each channel is rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.
Features:
- Output current 500 mA per output (600 mA peak)
- High-voltage outputs: 50V
- Integrated suppression diodes for inductive loads
- TTL/CMOS/PMOS/DTL compatible inputs
Pin Description:
Package Included:

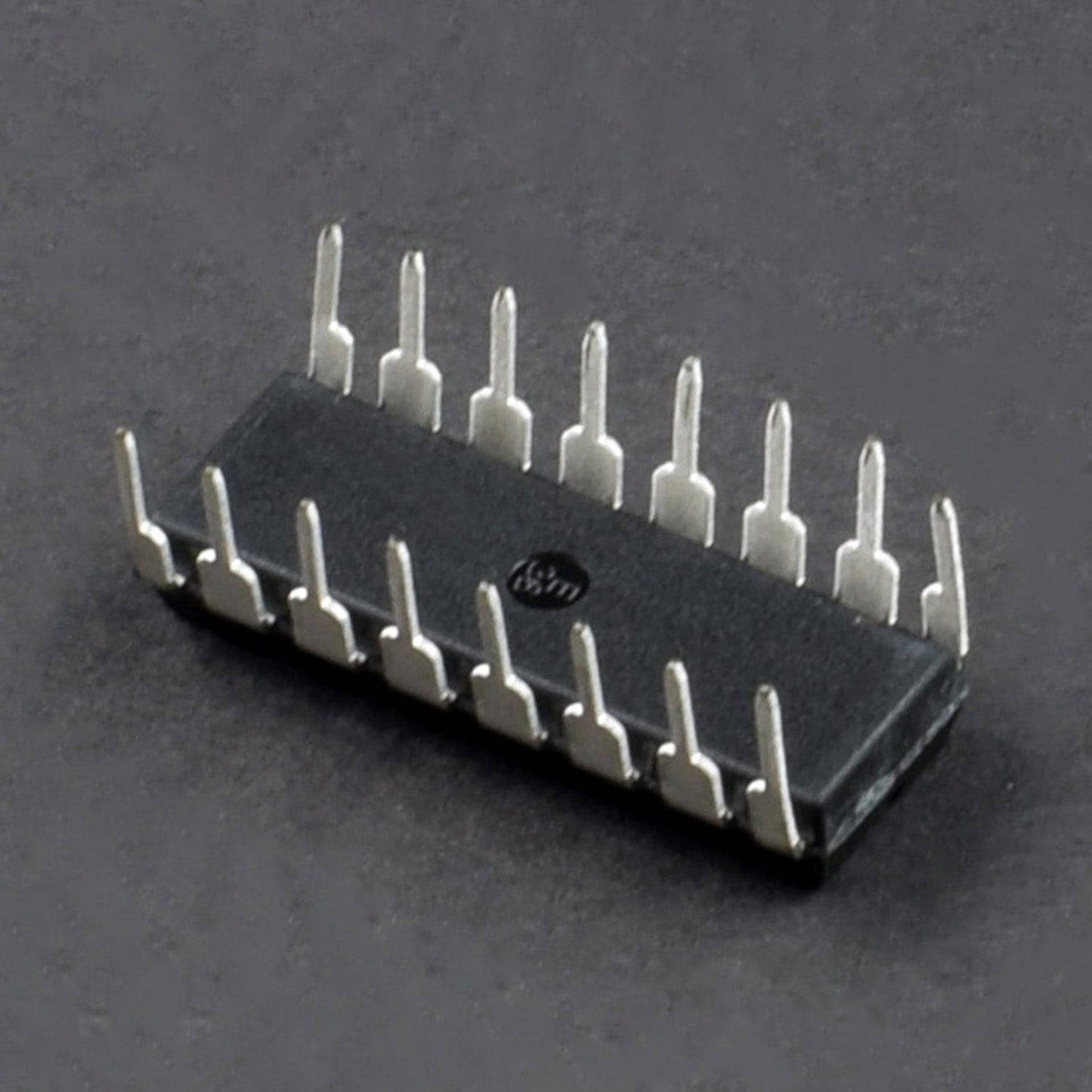

1 x ULN2003 High-Voltage, High-Current Seven Darlington Driver Transistor Arrays For Motor Driver
