Description:
The DWIN 10.1-inch SMART HMI Screen (pre-loaded with TA/DGUS II) offers a versatile platform for custom UI development. Design interactive elements such as buttons, sliders, graphs, and text displays using the included software. Featuring a vibrant 16.7M color RGB display and 250 nit brightness for daylight visibility.
Specifications:
- Size: 10.1″
- Model No.: DMG10600C101
- Touch Type: Resistive
- Model Type: DWIN HMI Display
- RAM: 128Kb
- Flash Memory: 16Mb
- Active Area: 222.7 mm (W) × 125.3 mm (H)
- Interface: UART, I2C
- LED Brightness: 250 nit
- Display Format – 1024 × 600 Pixel Matrix
Features:
- Comes with pre-installed TA/DGUS II software for easy UI creation.
- Measures 257.8mm (W) x 148.1mm (H) x 15.2mm (T) for space-conscious integration.
- Efficiently manages and processes your application data.
- Powered by built-in DGUS II smart software for enhanced functionality.
- Features a responsive capacitive touch panel and integrated buzzer.
- Includes an interface for optional WIFI module integration.

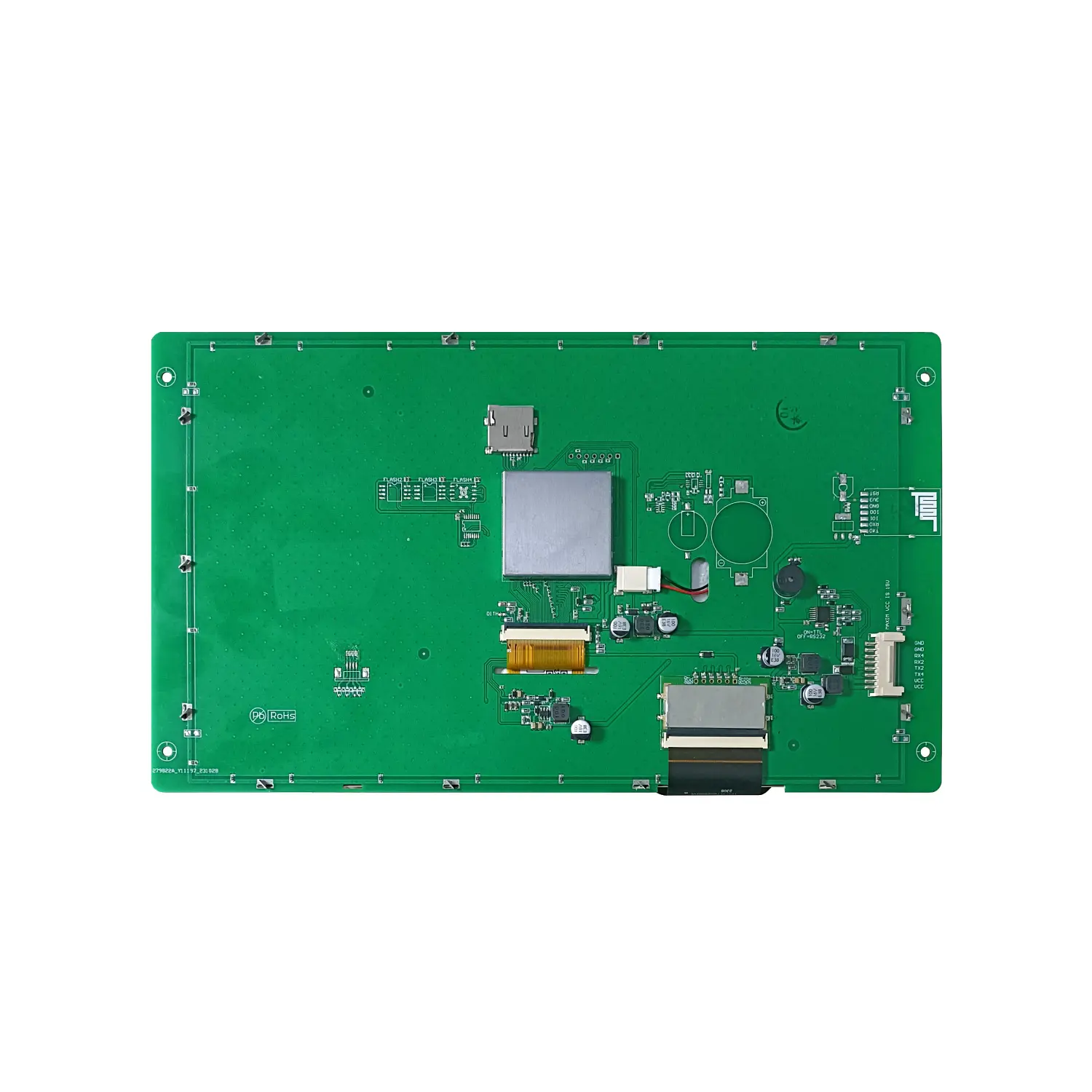

Product Interface:
Useful Links:
Package Included:

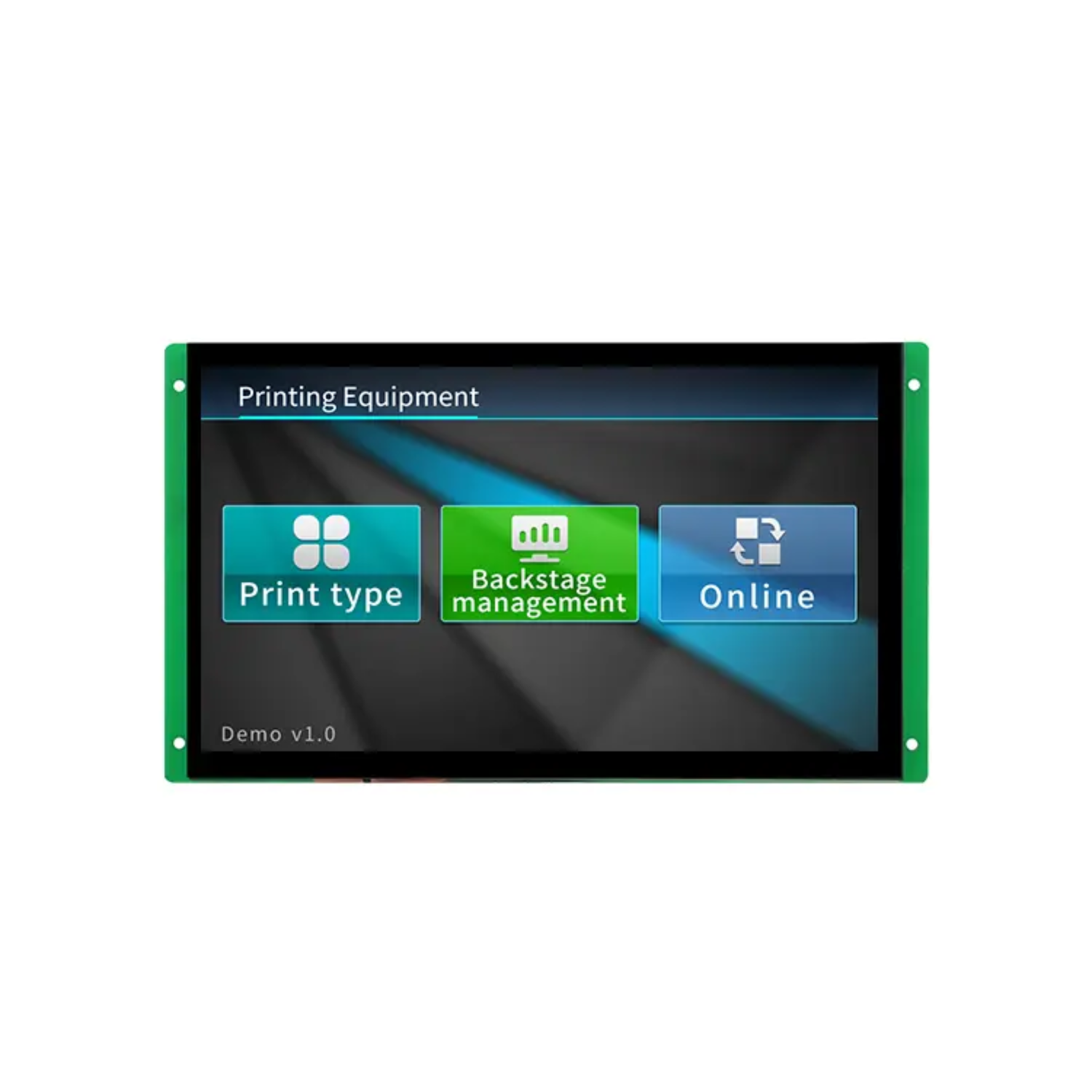

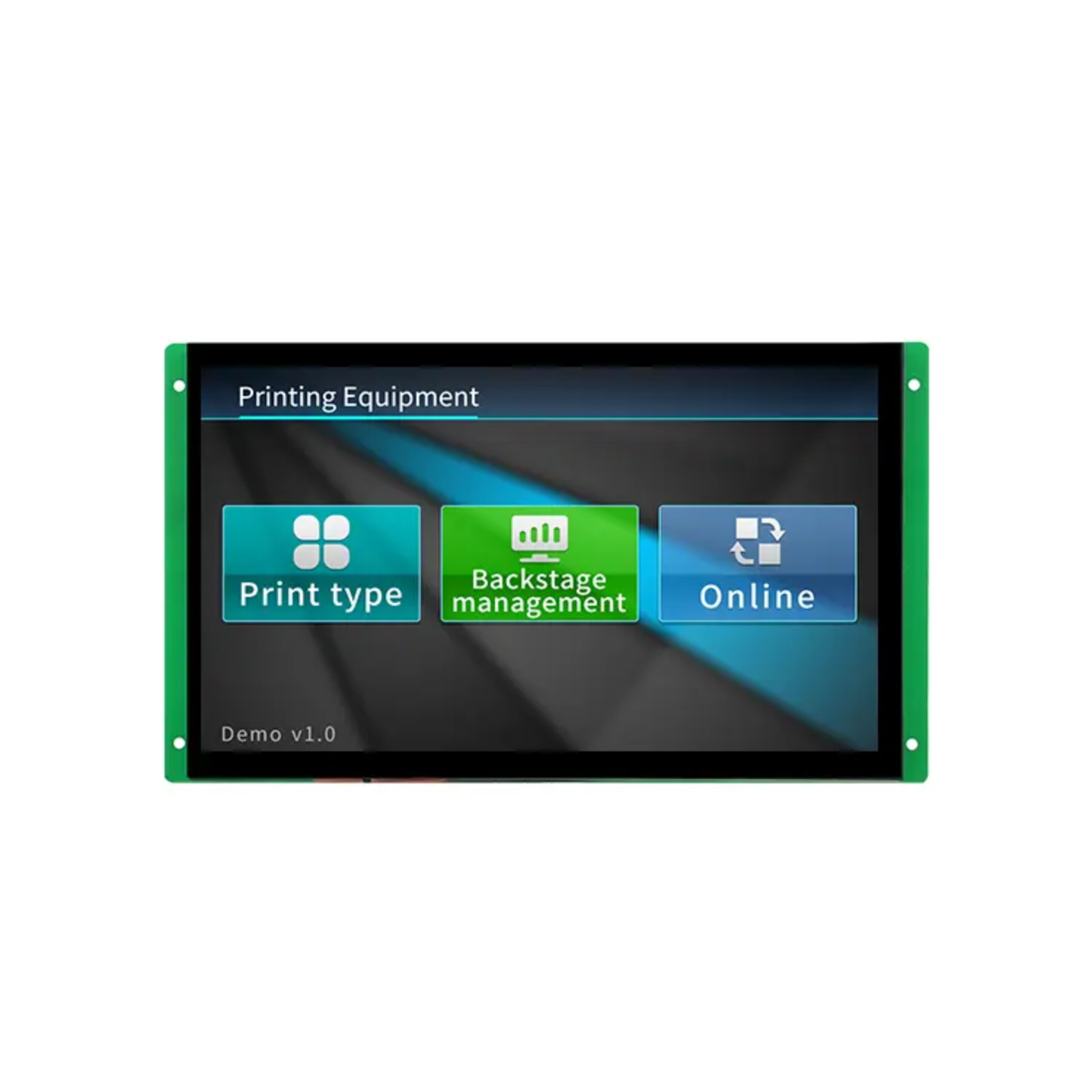

1 x DWIN DMG10600C101_03WTR IPS LCD HMI Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
