Description:

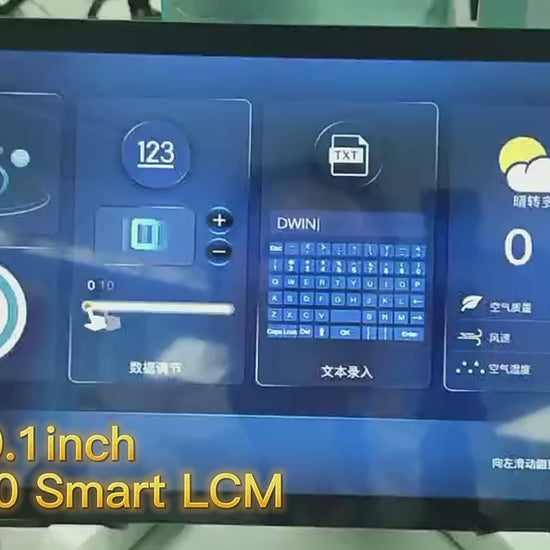

The DWIN 10.1-inch SMART Screen offers a powerful and user-friendly solution for implementing sophisticated graphical interfaces. This feature-laden display comes equipped with the pre-installed TA/DGUS II UI development software, enabling users to design and implement custom UIs with ease.
Leverage a rich set of design elements, including buttons, sliders, graphs, and text displays, to create intuitive interactions. Experience vivid visuals with full RGB color support and an expansive 16.7 million color depth.
The integrated 250-nit brightness ensures excellent visibility even in brightly lit environments. Designed for broad compatibility, this SMART Screen interfaces seamlessly with all microcontroller boards via I2C communication, providing a versatile display solution for diverse applications.
Specifications:
- Model Type: DWIN HMI Display
- Model No.: DMG10600C101
- Size:10.1″
- Display Format: 1024 × 600 Pixel Matrix
- Colour: 24-bit colour 8R8G8B
- Operating Voltage: MIN: 6V, MAX: 15V
- Touch Type: Capacitive
- Flash Memory: 16MB
- RAM: 128KB
- LED Brightness: 250 nit
- Interface: UART, I2C
Features:
- Download via SD card or online serial port
- No/Resistive/Capacitive touch screen Optional
- 8Pin_2.0mm connection wire, TTL/COMS available
- Dual Development System: DGUS II/ TA(Instruction set)
- Widely used with Arduino, STM32, Microchip, ESP8266, and so on
- No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development

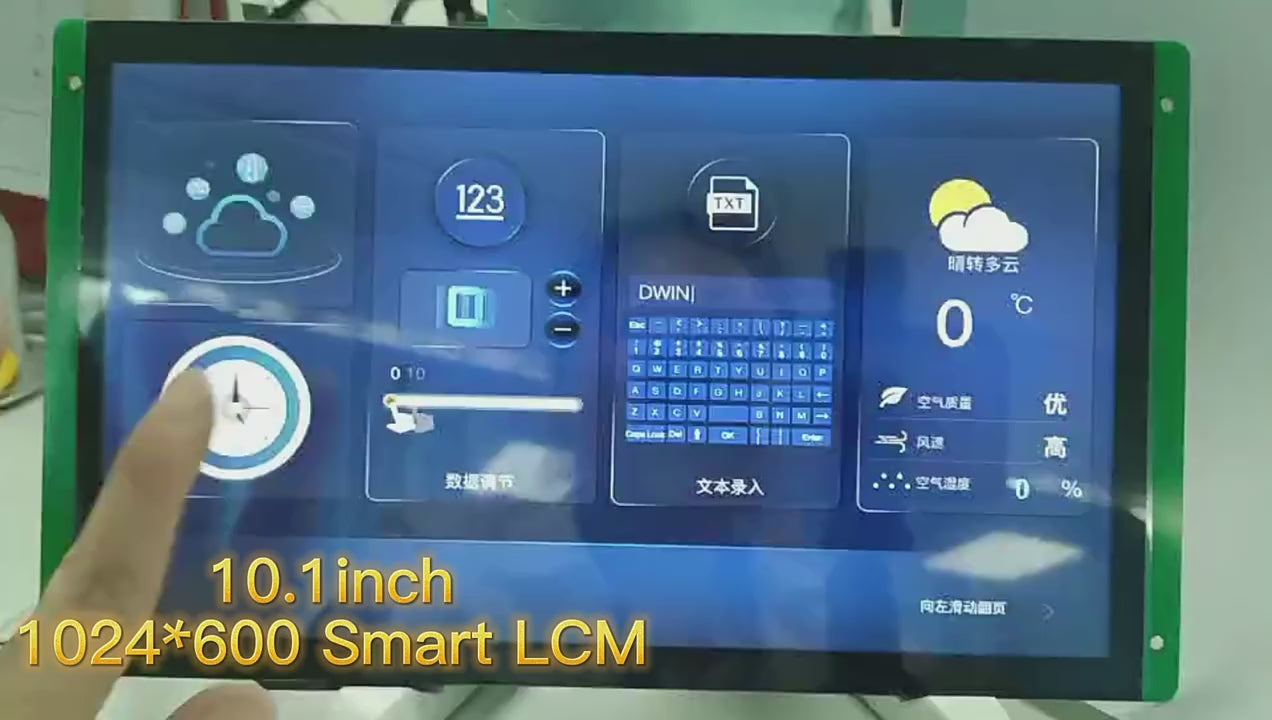

- 10.1-inch, 1024*600 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle

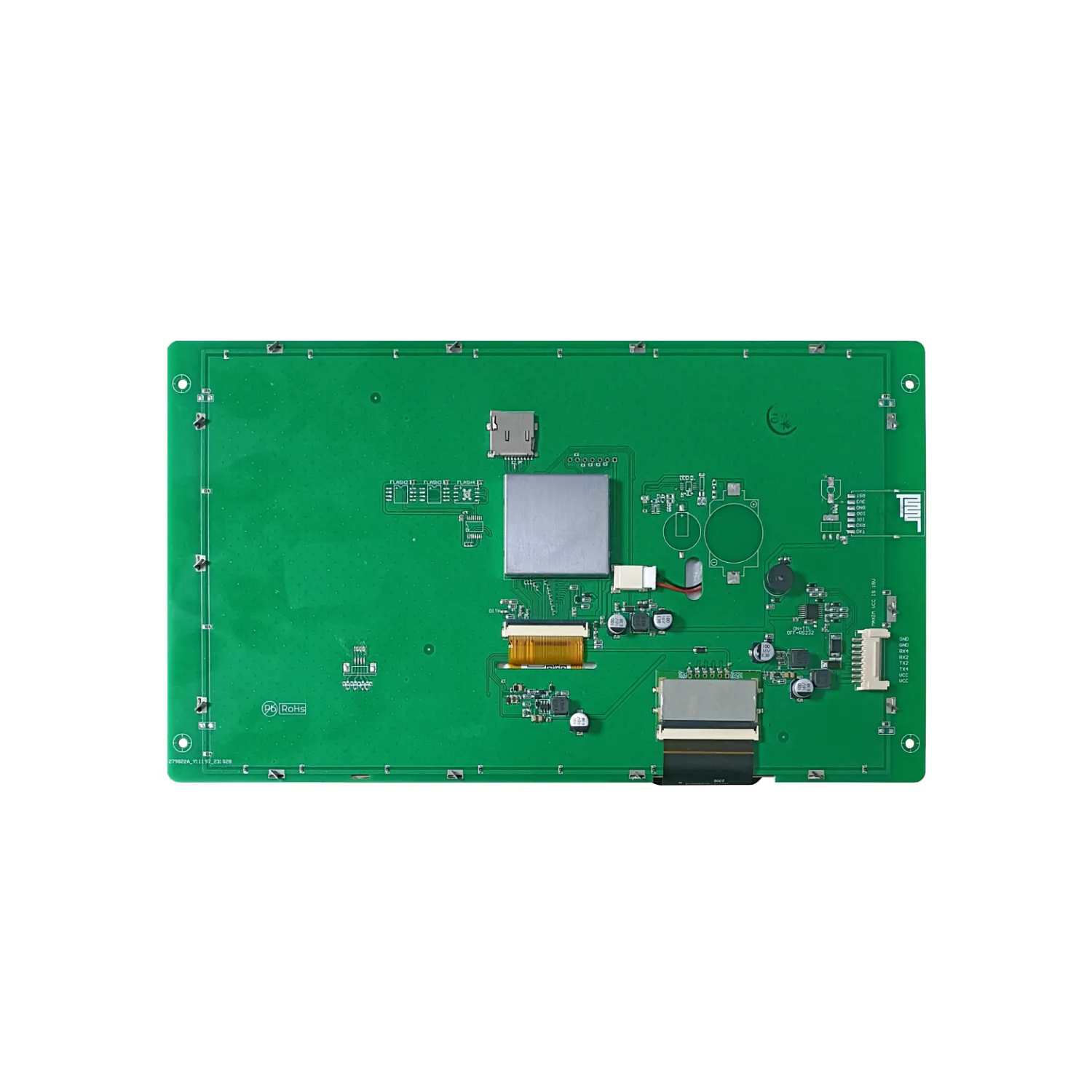

- Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024*600 Pixel TFT LCD
Product Interface:
Useful Link:
DWIN DMG10600C101_03WTC HMI 10.1 Inch IPS LCD Display
Package Included:

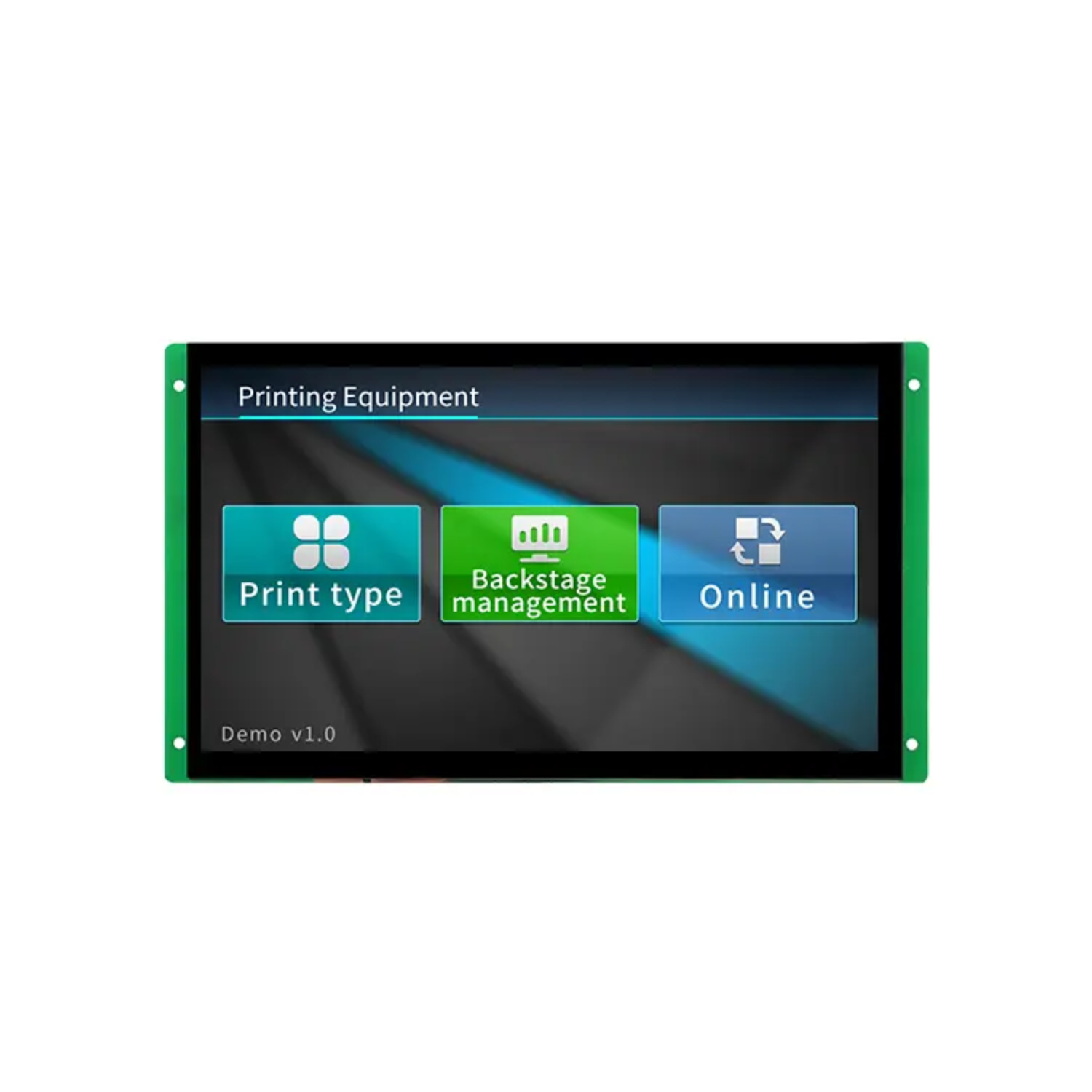

1 x DWIN DMG10600C101-03WTC 10.1" Intelligent HMI Touch Display
