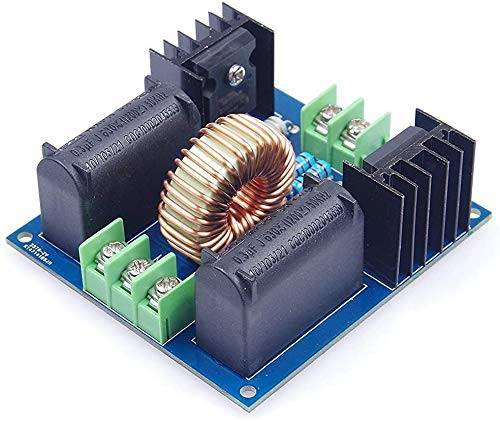

ZVS Driver Board ZVS Induction Heating Circuit DC12-30V Zero Voltage Switch Power Supply Driver Board- RS2538

ZVS Driver Board ZVS Induction Heating Circuit DC12-30V Zero Voltage Switch Power Supply Driver Board- RS2538

SKU:RS2538

24 in stock

Regular price Rs. 1,200.00
Regular price Sale price Rs. 1,200.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Voltage: DC 12V-30V
  • Output: HVDC, About 800 times of input voltage
  • Power Requirements: Less than 12V ≥ 5A, above 15V ≥ 15A
  • Operating Frequency: 30kHz-50kHz adaptive

Description:

This is a ZVS Driver Board ZVS Induction Heating Circuit DC12-30V Zero Voltage Switch Power Supply Driver Board. Using military FR4-A material 1.6mm double-board circuit board, power line extra add tin and optimizes line width of MOS tube drive circuit. Using two IRFP250N power field pipe, large current, small internal resistance, super-power. Using 1.25 copper wire large inductance, more stable performance.

Specification:

  • Input Voltage: DC 12V-30V
  • Output: HVDC, About 800 times of input voltage
  • Power Requirements: Less than 12V ≥ 5A, above 15V ≥ 15A
  • Operating Frequency: 30kHz-50kHz adaptive
  • Secondary Parameters: 5T + 5T
  • Output Voltage / Power:
    • Input 12V / 5A, the output of about 10000V / 60W
    • Input 24V / 10A, the output of about 20000V / 200W
  • Arc Length: 1-5cm
  • Power Range: 180-360W

Features:

  • Using two IRFP250N power field pipe, large current, small internal resistance, super-power!
  • Using 1.25 copper wire large inductance, more stable performance.
  • Using 1% precision metal film resistors!
  • Use 25 * 24 * 16mm thick anti-static cooling!
  • Using MKP 0.33UF 1200V two parallel resonant capacitor for high frequency.

Precautions:

  • After finish the installation, carefully check it and verify that all components soldered correctly
  • Please note that the positive and negative signs of input power, carefully check to prevent reverse burning plate
  • The test voltage is recommended for the low power 12v, prevent mis-wiring problems or cause burning plate
  • Drive board limit input is DC 30v, current 10A, not recommended using limits, do not long working under overvoltage and overcurrent conditions. Driver board is not suitable for induction heating, if you need induction heating, it is recommended input voltage 15v or less. For induction heating or long use high-power must need to add the cooling fan, if poor heat dissipation, it will result in MOS tube temperature is too high, will accelerate the aging of MOS tube even burn and other issues.

Package Included:

1 x ZVS Driver Board ZVS Induction Heating Circuit DC12-30V Zero Voltage Switch Power Supply Driver Board
