Description:

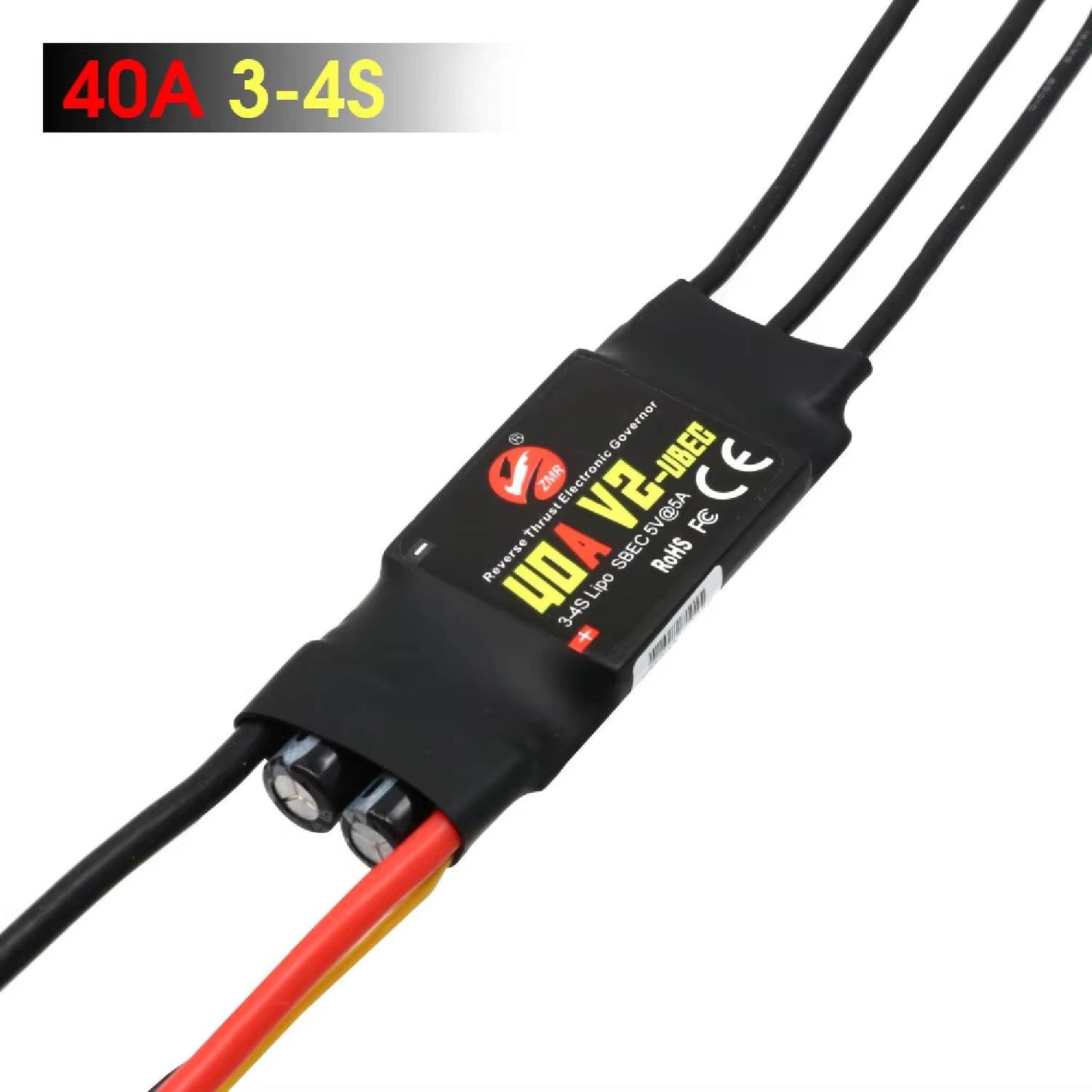

ZMR 40A V2 Brushless ESC:
This high-performance 40A ESC is designed for demanding applications in RC multirotor aircraft. It supports 3-4S LiPo batteries and delivers a continuous current of 40A with a peak current of 60A, providing ample power for powerful flight.

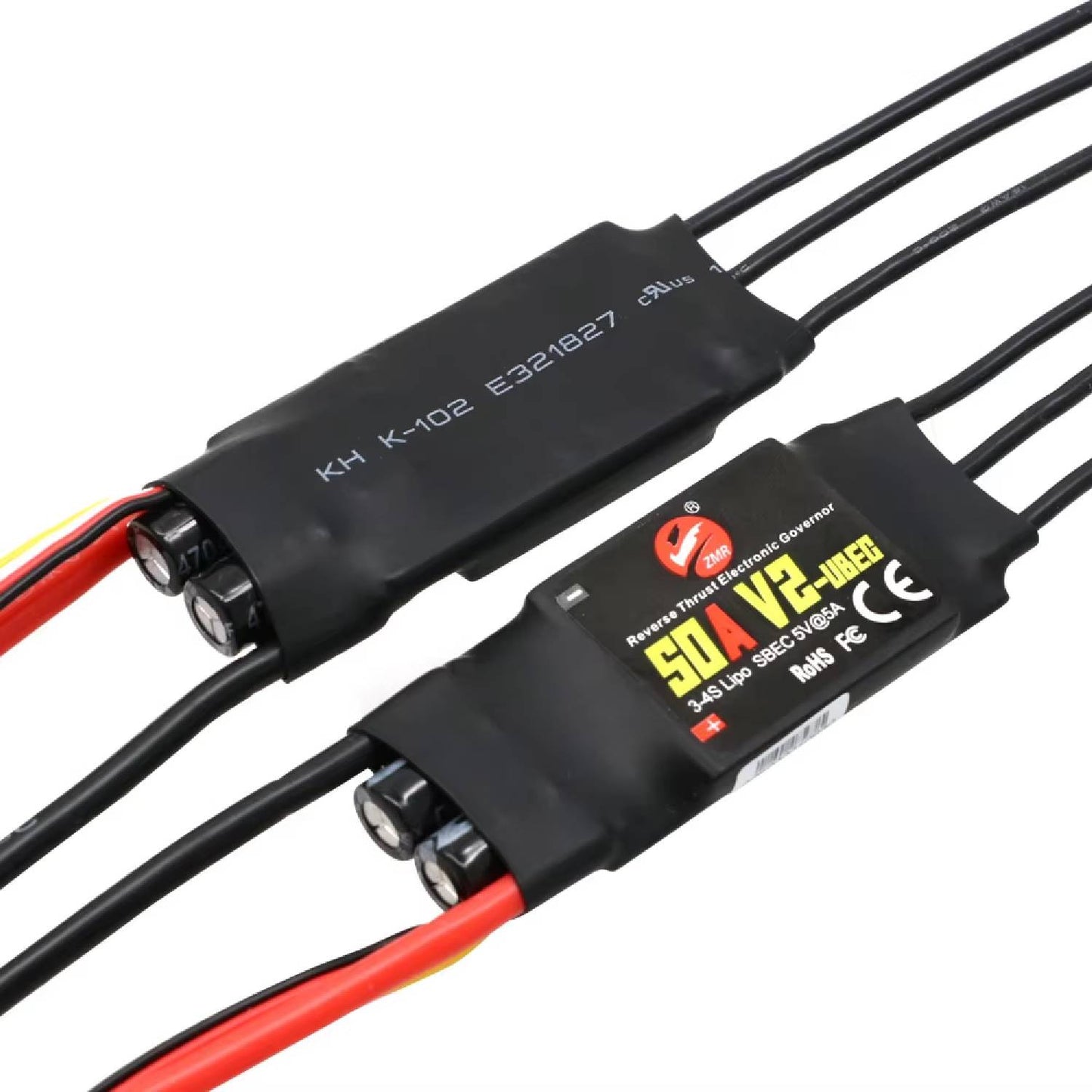

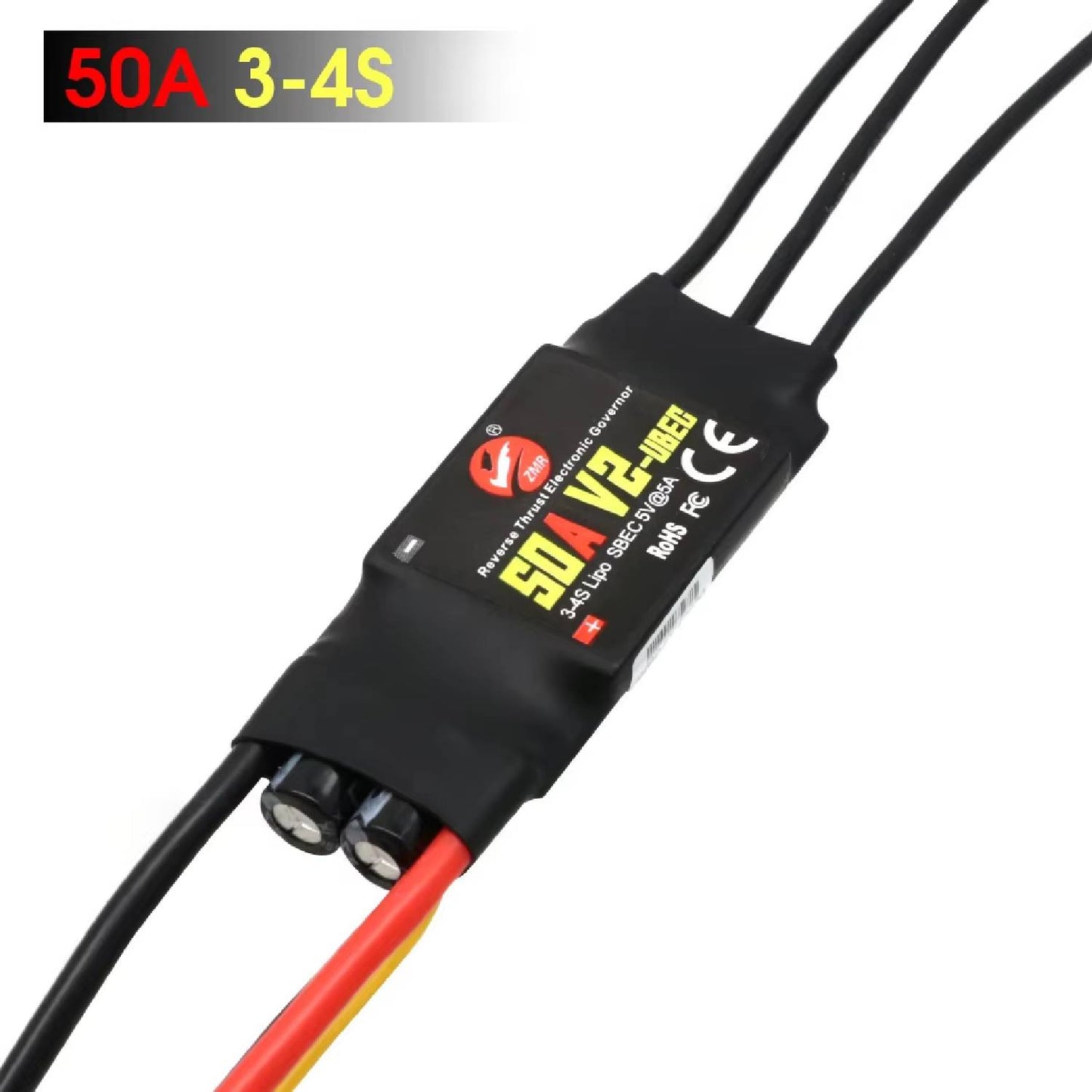

ZMR 50A V2 Brushless ESC:
The ZMR 50A V2, a high-performance Electronic Speed Controller (ESC) designed for demanding flight applications. This robust ESC is engineered to handle 3-4S LiPo batteries, delivering a continuous current of 50A and a peak current of 70A for powerful and aggressive flight maneuvers.

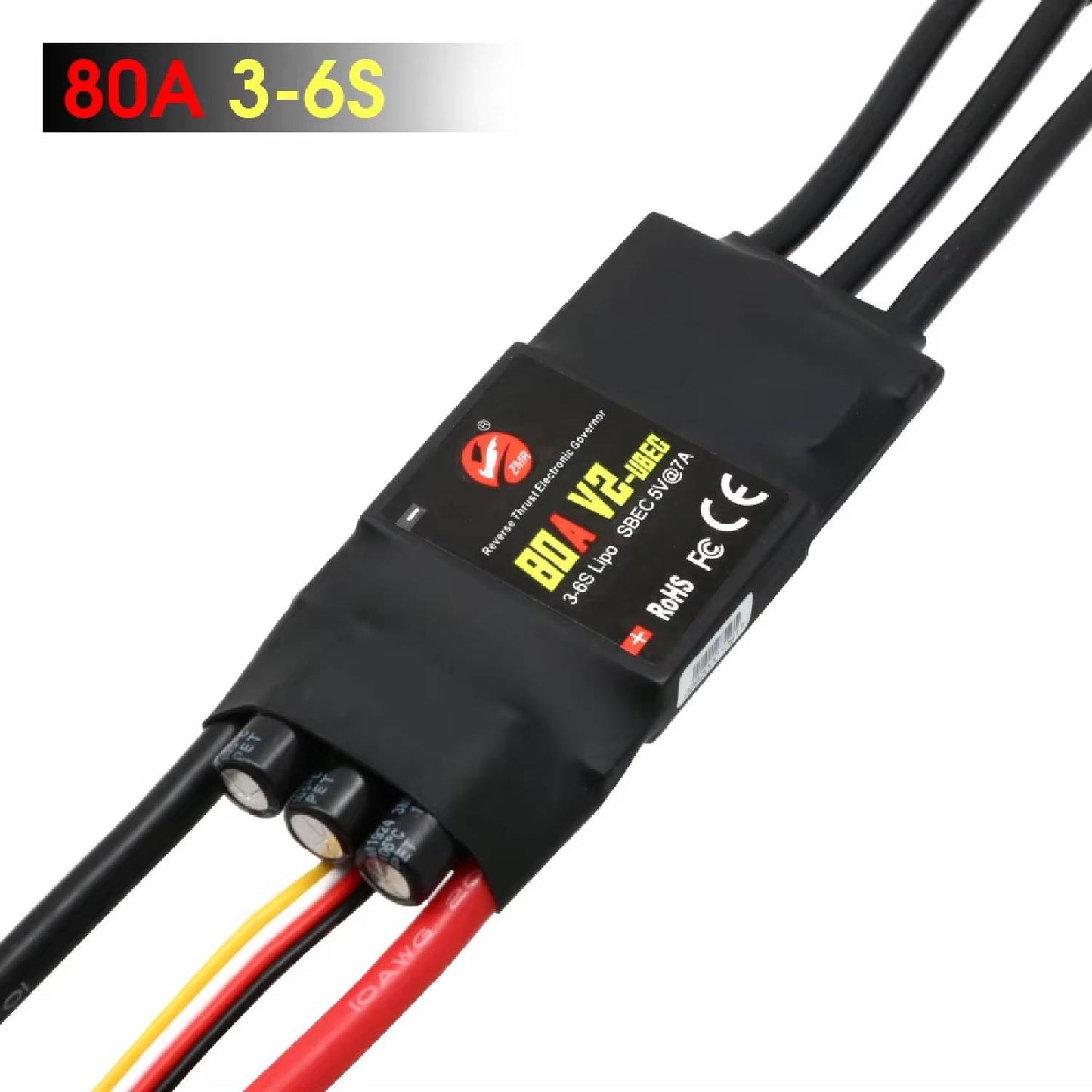

ZMR 80A V2 Brushless ESC:
This high-performance 80A ESC is designed for demanding applications in high-powered RC multirotor aircraft. It supports 3-6S LiPo batteries and delivers a continuous current of 80A with a peak current of 100A, providing ample power for powerful flight.

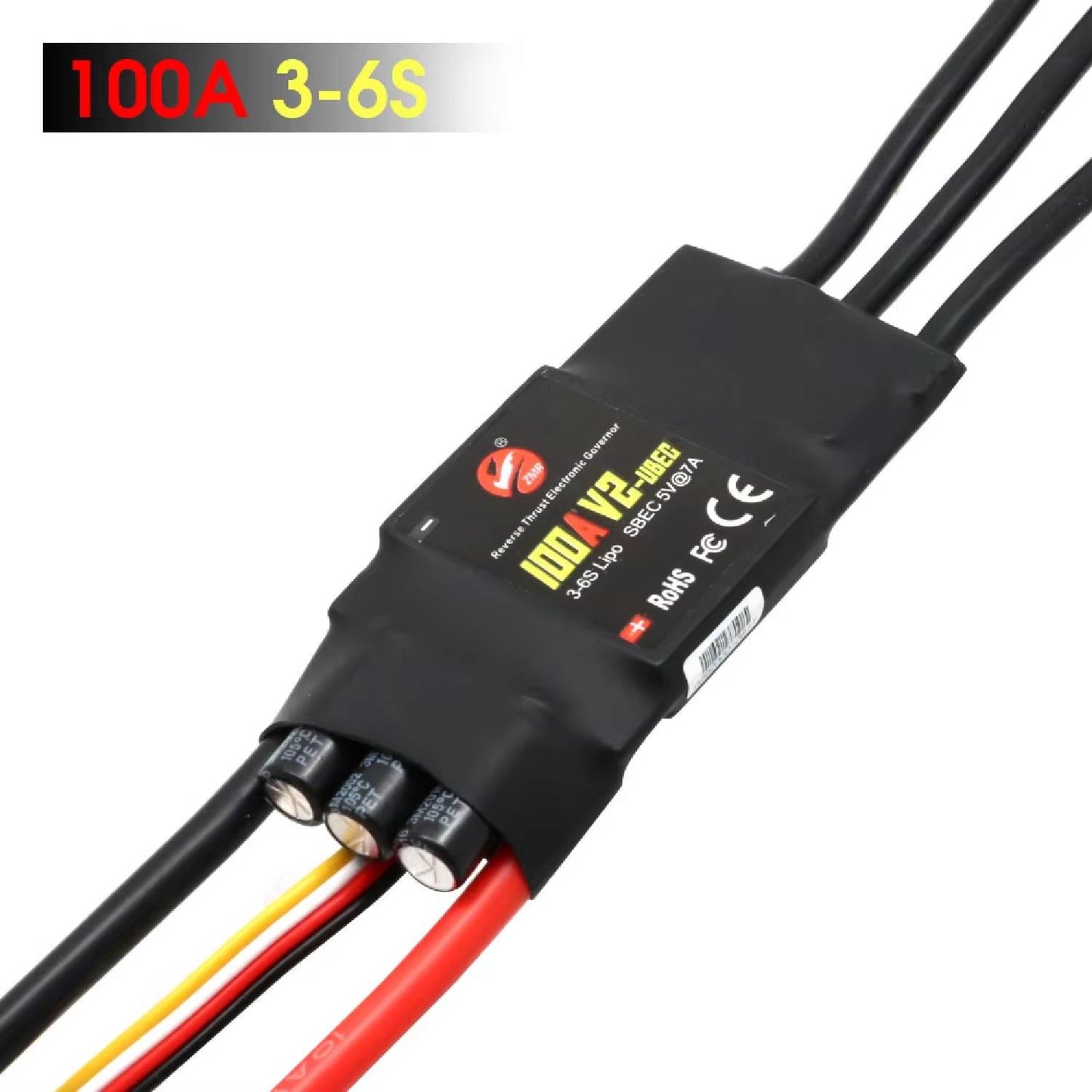

ZMR 100A V2 Brushless ESC:
This high-performance 100A ESC is designed for demanding applications in high-powered RC multirotor aircraft. It supports 3-6S LiPo batteries and delivers a continuous current of 100A with a peak current of 120A, providing ample power for powerful flight.
Specifications:
| Continuous/peak current | Number of battery cells | BEC output | Power cord | Output line | Power plug | output plug | Remote control |
| 40A/60A | 3-4S Lipo | Linear mode: 5V, 5A | 14AWG Red-100mm * 1 Black-100mm * 1 | Black-16AWG-75mm * 3 | No plug | 3.5mm gold plug (female head) | Support |
| 50A/70A | 3-4S Lipo | Switch mode: 5V, 5A | 14AWG Red-100mm * 1 Black-100mm * 1 | Black-16AWG-75mm * 3 | No plug | 3.5mm gold plug (female head) | Support |
| 80A/100A | 3-6S Lipo | Switch mode: 5V, 7A | 12AWG Red-150mm * 1 Black-150mm * 1 | Black-14AWG-100mm * 3 | No plug | 4.0mm gold plug (female head) | Support |
| 100A/120A | 3-6S Lipo | Switch mode: 5V, 7A | 10AWG Red-150mm * 1 Black-150mm * 1 | Black-12AWG-100mm * 3 | No plug | 4.0mm gold plug (female head) | Support |
Features:
ZMR 40A V2 Brushless ESC:
- 40A continuous current and 60A peak current for powerful and dynamic flight.
- Supports 3-4S LiPo batteries for a wide range of applications.
- Integrated 5V/5A linear BEC provides reliable power for flight controllers and servos.
- Supports programming via an LED setting card for easy customization and tuning.
- Features 14AWG power cords and 16AWG output lines with 3.5mm gold connectors for easy installation.
ZMR 50A V2 Brushless ESC:
- Handles continuous currents up to 50A and peak currents up to 70A, providing the raw power you need for aggressive maneuvers, high-speed flights, and demanding applications.
- Supports a wide range of battery configurations from 3S to 4S LiPo batteries, offering flexibility to optimize flight times and performance for different aircraft.
ZMR 80A V2 Brushless ESC:
- 80A continuous current and 100A peak current for exceptional power and performance.
- Features 12AWG power cords and 14AWG output lines with 4.0mm gold connectors for easy and secure installation.
- Supports 3-6S LiPo batteries for a wide range of applications and flight times.
- Integrated 5V/7A switch-mode BEC provides reliable and efficient power for flight controllers and servos.
ZMR 100A V2 Brushless ESC:
- 100A continuous current and 120A peak current for exceptional power and performance in demanding flight situations.
- Supports 3-6S LiPo batteries for a wide range of applications and flight times.
- Integrated 5V/7A switch-mode BEC provides reliable and efficient power for flight controllers and servos.
- Supports programming via an LED setting card for easy customization and tuning.
Package Included:
- 1 x 40A V2 Brushless ESC
- 1 x 50A V2 Brushless ESC
- 1 x ZMR 80A V2 Brushless ESC
- 1 x ZMR 100A V2 Brushless ESC
