- Dimensions: 28 x 12 x 15 mm(LxWxH).
- Weight: 4 gm.
- Onboard
- Rated input current: 5A
- Rated output current: 5mA
- Change: 1000: 1
- The linear range: 0 ~ 10A (100 ohms)
- Linearity: 0.2%
Description:

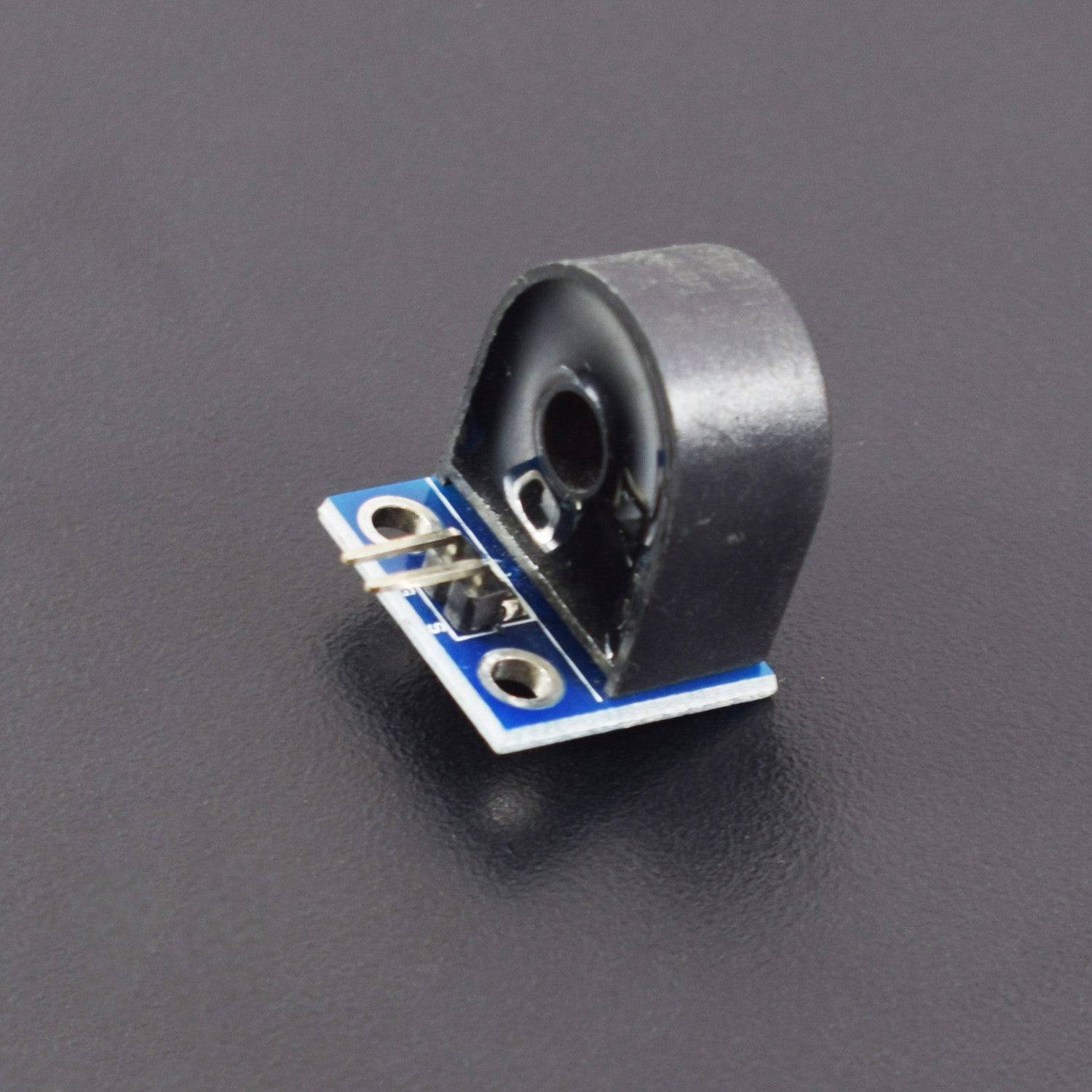

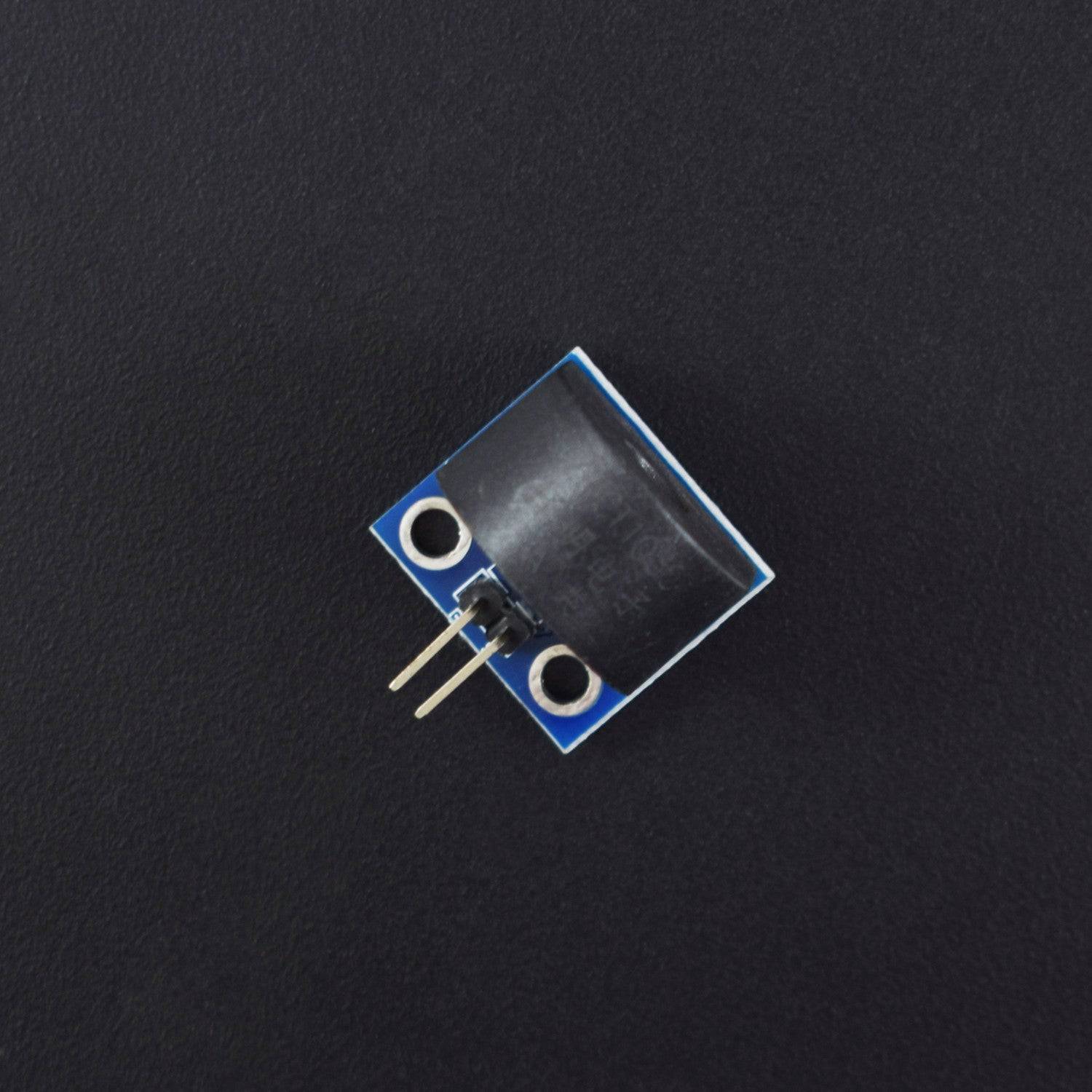

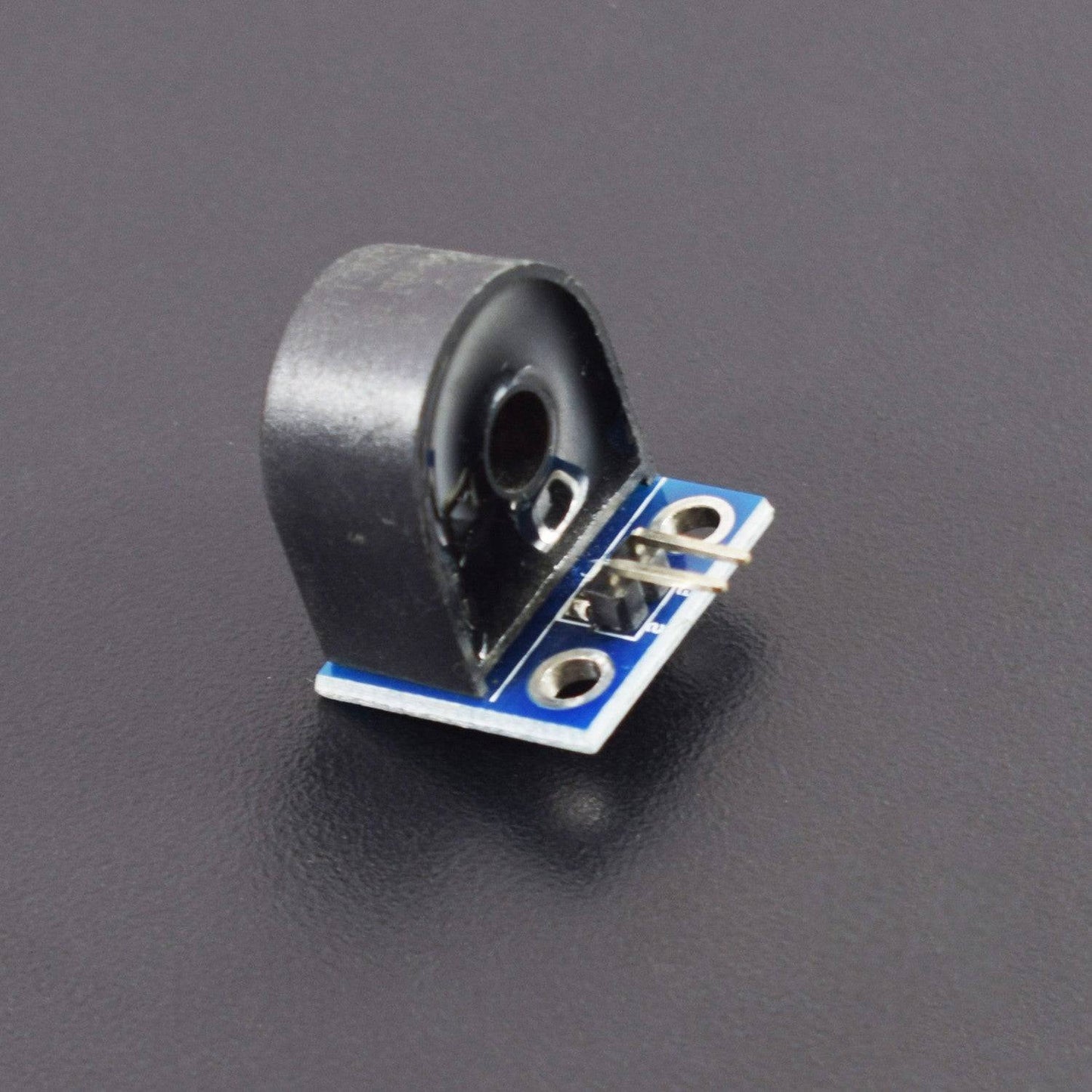

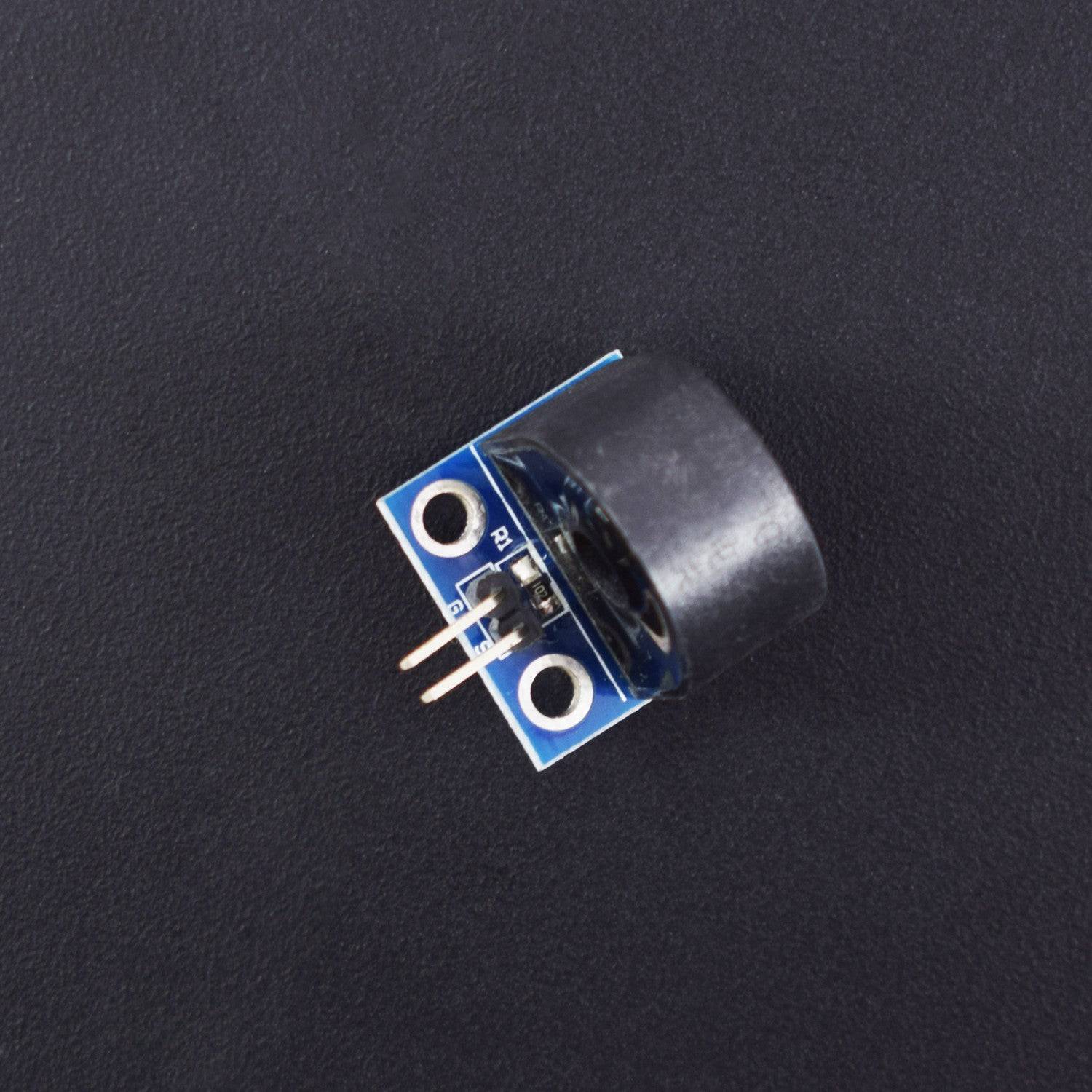

5A range of single-phase ac current sensor module can measure AC currents less than 5A, the corresponding analog output 5A/5mA. It has Onboard sampling resistor and precision microcurrent transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.
Specification and Features:
- Dimensions: 28 x 12 x 15 mm(LxWxH).
- Weight: 4 gm.
- Onboard
- Rated input current: 5A
- Rated output current: 5mA
- Change: 1000: 1
- The linear range: 0 ~ 10A (100 ohms)
- Linearity: 0.2%
- Precision Rating: 0.2
- Uses isolation voltage: 3000V Measurement
- Sealing material: epoxy resin
- Operating temperature: – 40 Celsius to + 70 Celsius
- Onboard sampling resistor and micro-precision current transformer
- Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA
Package Included:
1 x 5A range of single-phase ac current sensor module.
