Description:

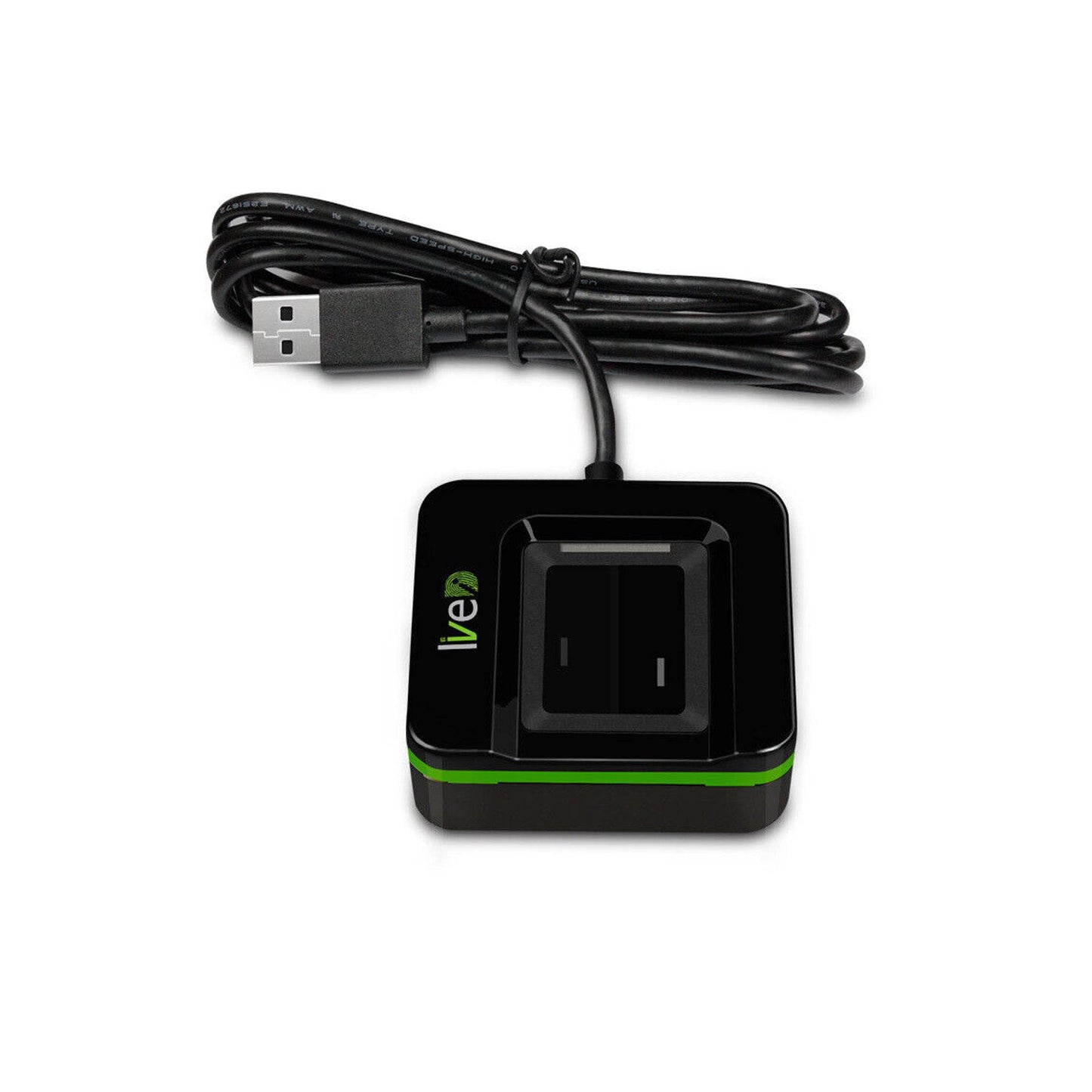

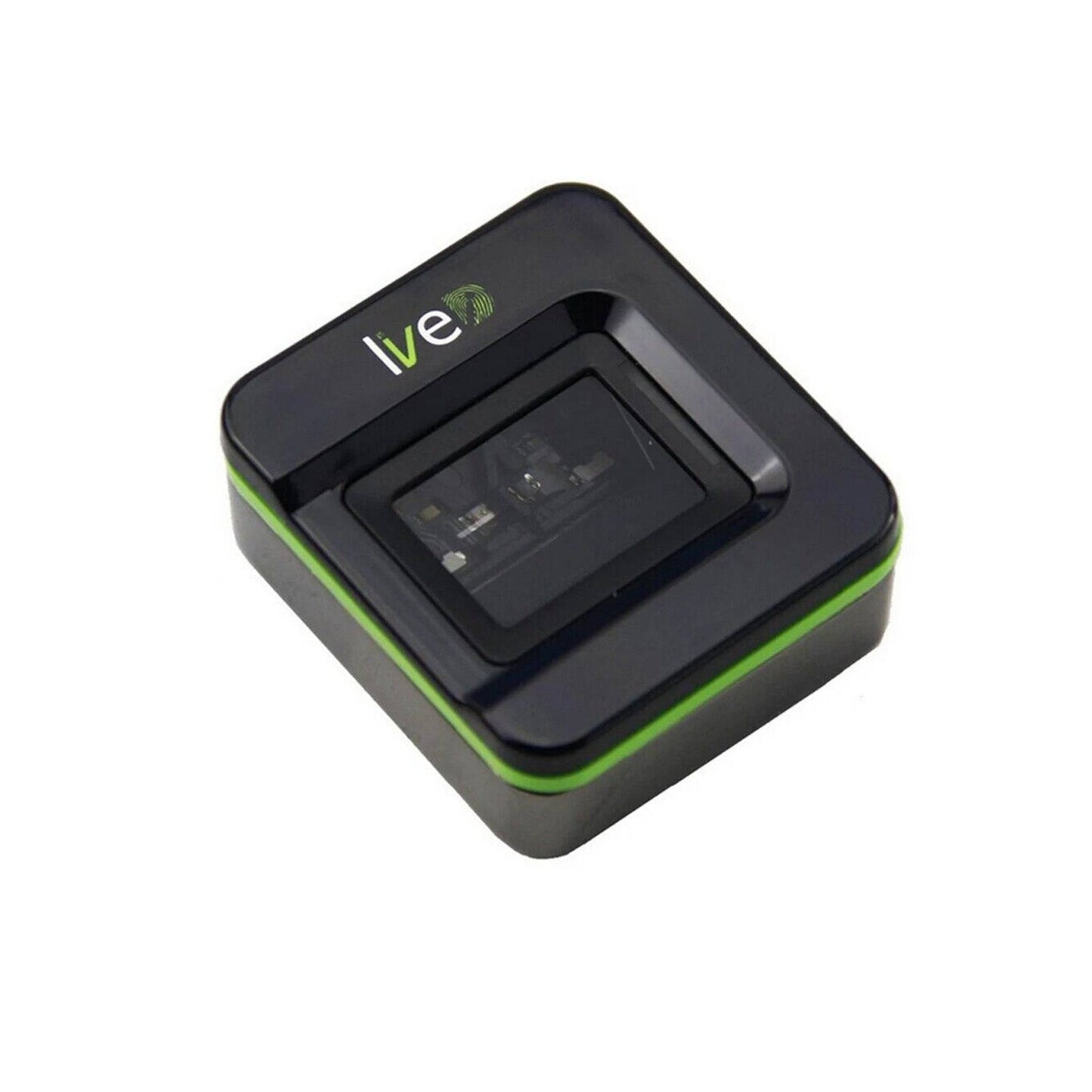

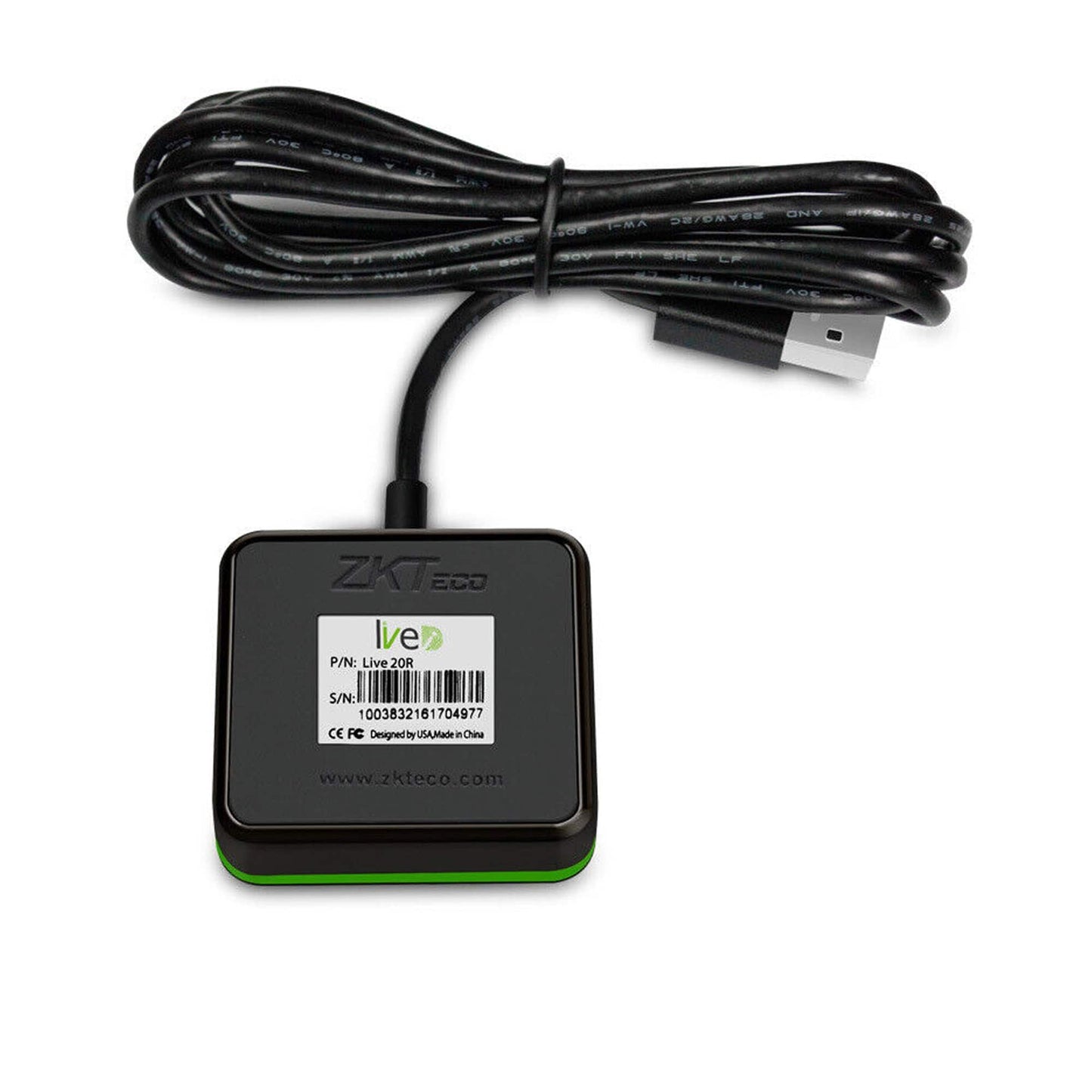

Live20R Fingerprint Reader is a leading fingerprint scanner designed by ZK USA laboratory which adopts an advanced optical design. Live20R Fingerprint Reader has a superior ability to do live fingerprint detection and capture high-quality fingerprint images with a 2-megapixel camera. Live20R Fingerprint Reader can be the most comfortable and affordable desktop enrollment and identification device.
Specifications:
| Model Name | SLK20R (Live20R) |
| Material | Optical |
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS[image out only] |
| Image Quality | 2 million pixels CMOS |
| Encrypted Fingerprint Data | YES |
| Sunlight Operation | Yes, Darkfield and Automatic Gain / Exposure |
| Water Splash | YES |
| Dry, Wet, or Rough Fingerprints | Work well |
| Power Consumption | 5V:200mA Scanning, 5V:60mA idle (waiting for finger) |
| Live Fingerprint Detection | YES |
| LED | White |
| Product Certifications | FCC, CE, RoHS, PIV |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500~1000 dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 mm |
| Image Size | 300 * 400 pixel (FAP20) |
| Dimension | 49 * 44 * 20.1mm (L*W*H) |
| Image Format | RAW, BMP, JPG |
| Template | ZKFinger V10.0, ISO19794-2, ANSI-378 |
| Template Size | 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
Features:
- Live20R Fingerprint Reader has excellent image quality.
- Driver support 10, Support free SDK for secondary development, language support: CB, VB, VC, Delphi, PB8, VBdemo, VF.
- Live20R Fingerprint Reader has encrypted image data.
Package Included:
1 x ZKTeco Live20R USB Biometric Fingerprint Scanner Sensor Reader
