• YZC-516C S-Type Load Cell
  • 100KG Pull Tension & Compression Pressure Sensor
  • Grouping Scales
1 3

Generic

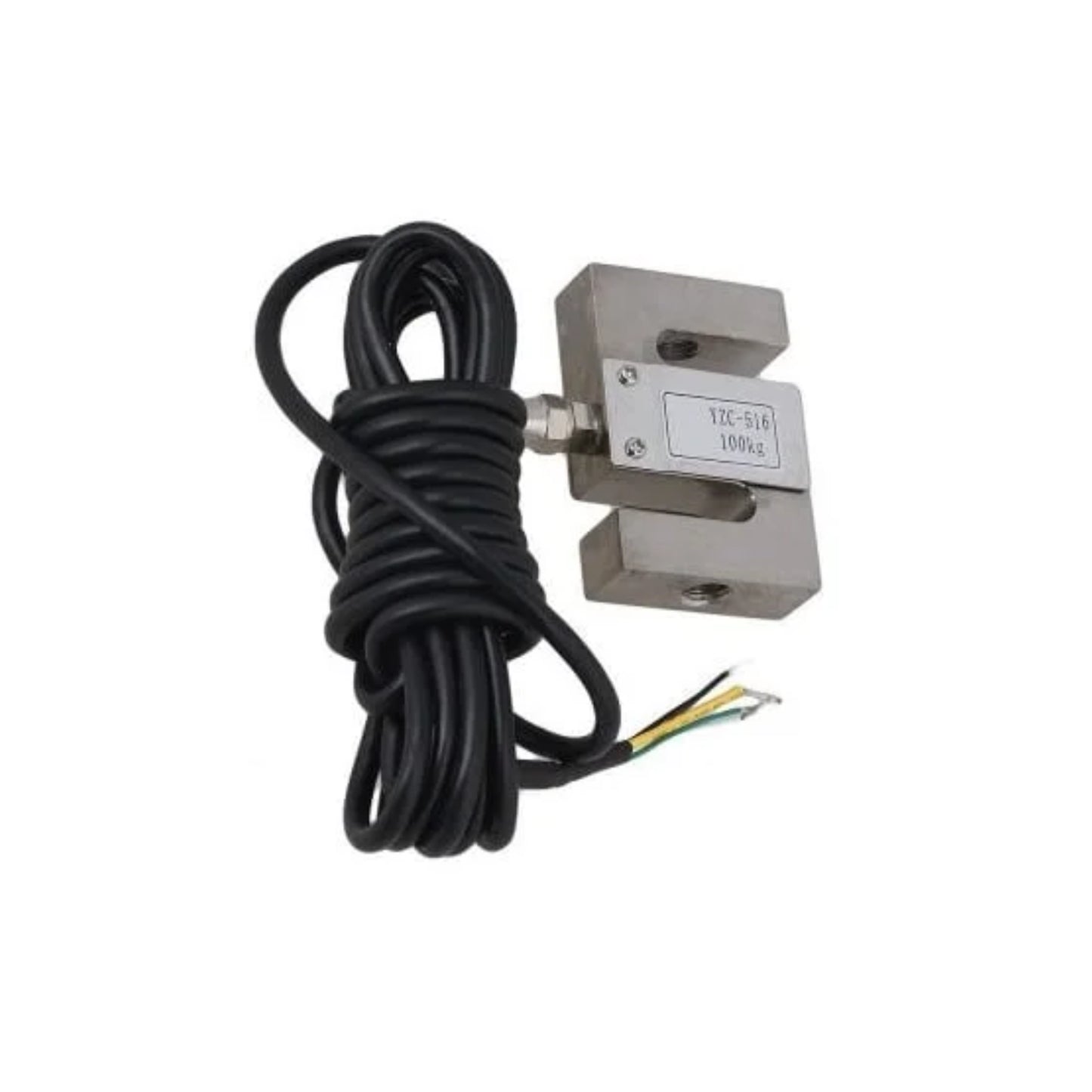

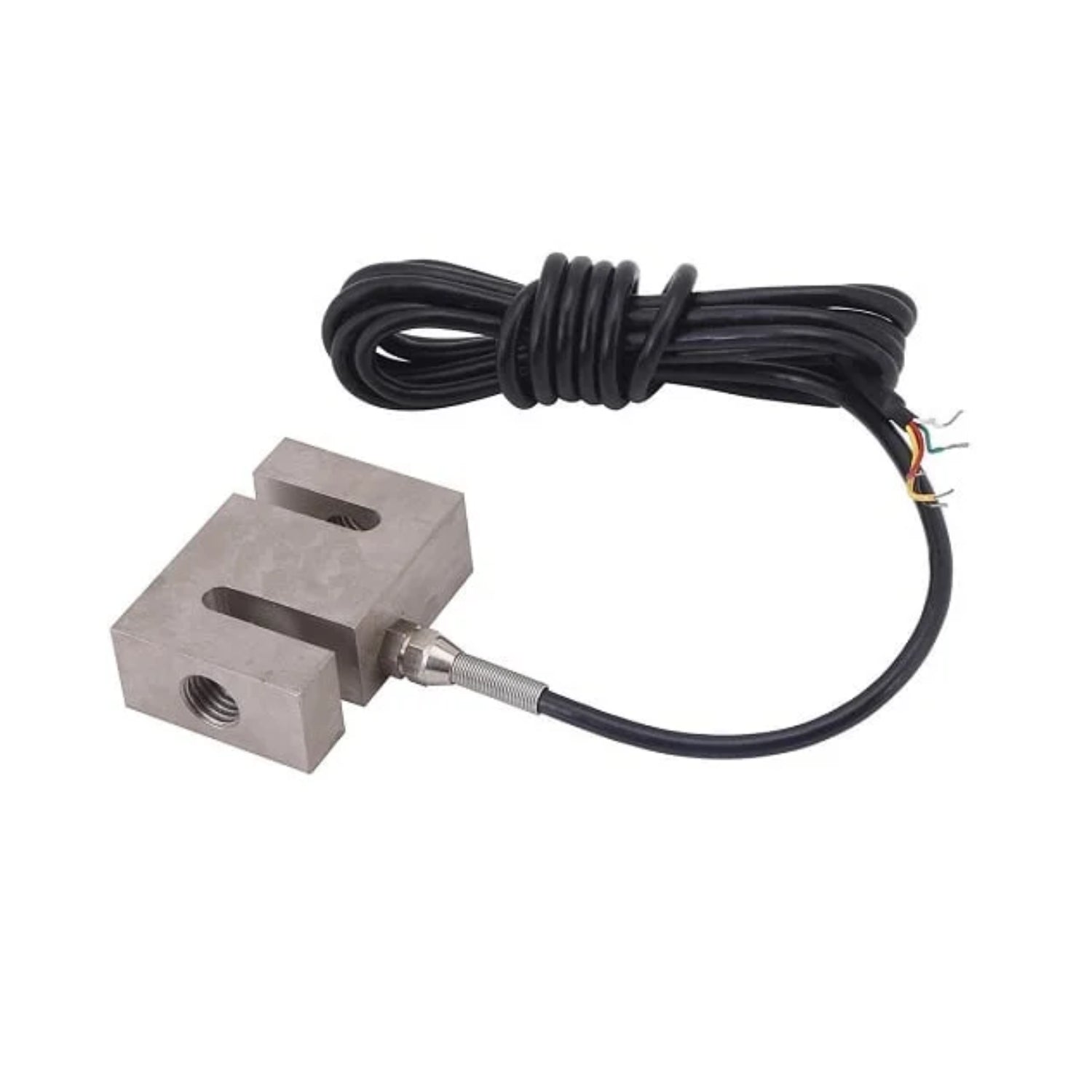

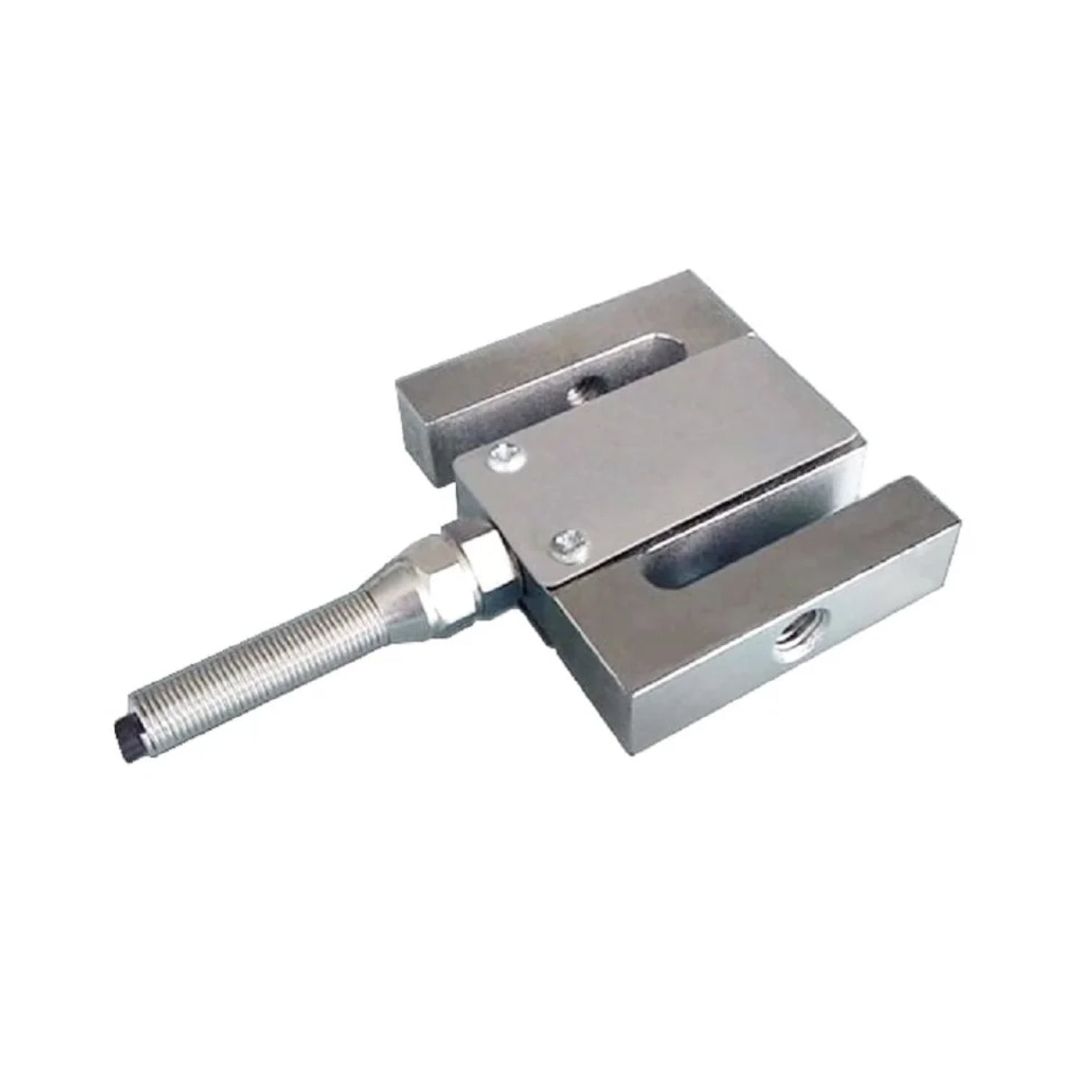

YZC-516C S-Type Load Cell 100KG Pull Tension & Compression Pressure Sensor For Grouping Scales

YZC-516C S-Type Load Cell 100KG Pull Tension & Compression Pressure Sensor For Grouping Scales

In stock

Rs. 1,977.00
Rs. 1,977.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The YZC-516C S-Type Load Cell is a robust and versatile pressure sensor engineered to accurately convert up to 100kg of tension or compression force into a precise electrical signal. This industrial-grade load cell is perfect for grouping scales and various weight measurement applications, providing reliable data for monitoring object presence, weight changes, and applied strain.

Specifications:

  • Model: YZC-516C
  • Capacity: 100 kg
  • Excitation Voltage: 5-12 V
  • Material: Alloy Steel
  • Hysteresis: 0.03% F.S
  • Safe Overload: 150 %FS
  • Rated Output: 2.0 ± 0.005 mV/V
  • Repeatability: ± 0.03 %FS
  • Creep: ± 0.024 %FS/30min
  • Input Resistance: 350 ± 5 Ω
  • Output Resistance: 350 ± 3 Ω
  • Insulation Resistance (MOhm): ≥5000@ 100Vdc M Ω
YZC-516C S-Type Load Cell 100KG Pull Tension & Compression Pressure Sensor

Features:

  • 100kg Capacity: Measures up to 100kg of tension or compression.
  • High Precision: Converts force into an accurate electrical signal.
  • Versatile Use: Ideal for grouping scales and various weighing applications.
  • Industrial Grade: Robust design for reliable performance.
  • Data Monitoring: Tracks object presence, weight changes, and applied strain.

Applications:

Electronic weighing, weighing, and other power measurements, weighing the industrial automation measurement and control system

Package Included:

1 x Pull Tension YZC-516C Pressure Sensor 100KG
