Description:

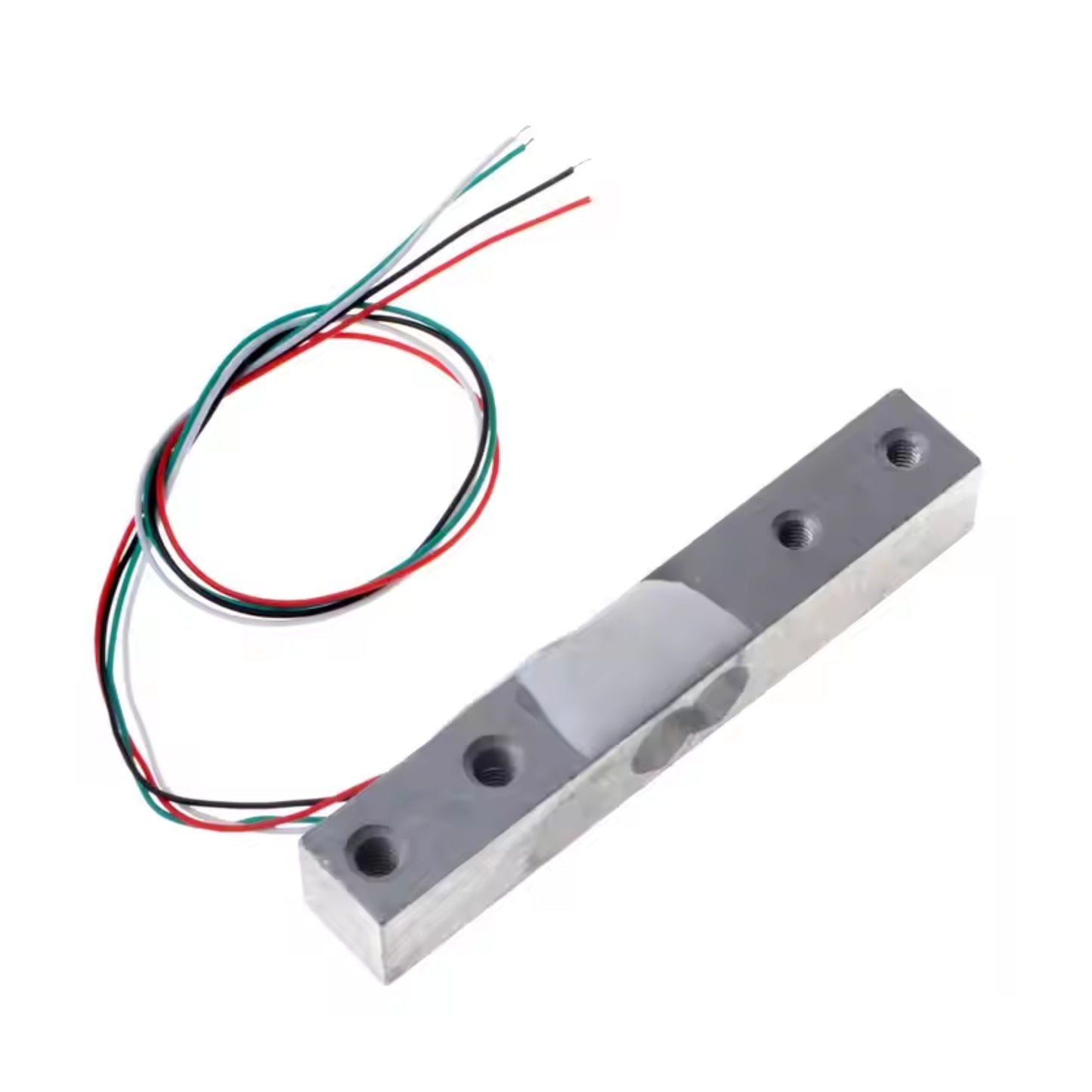

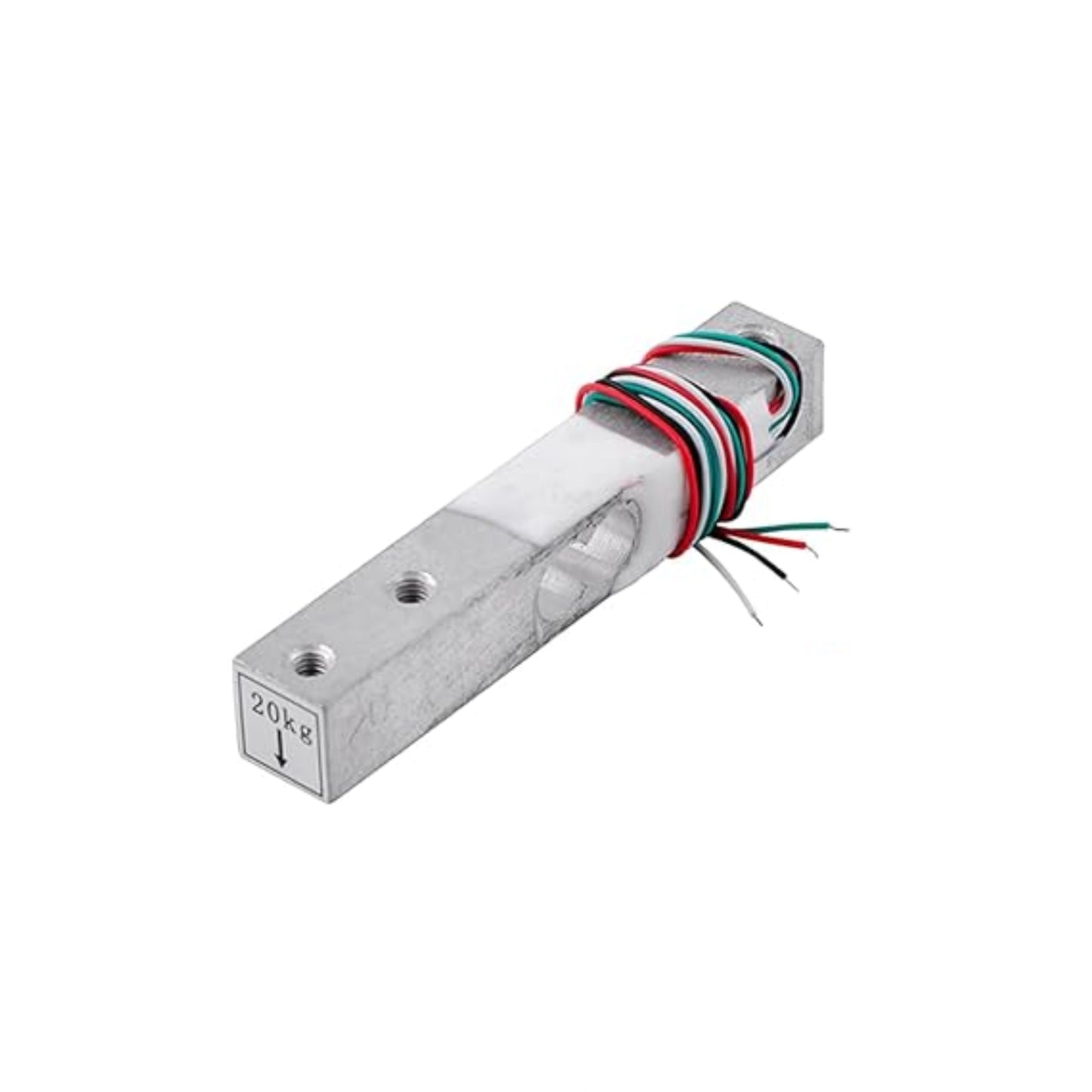

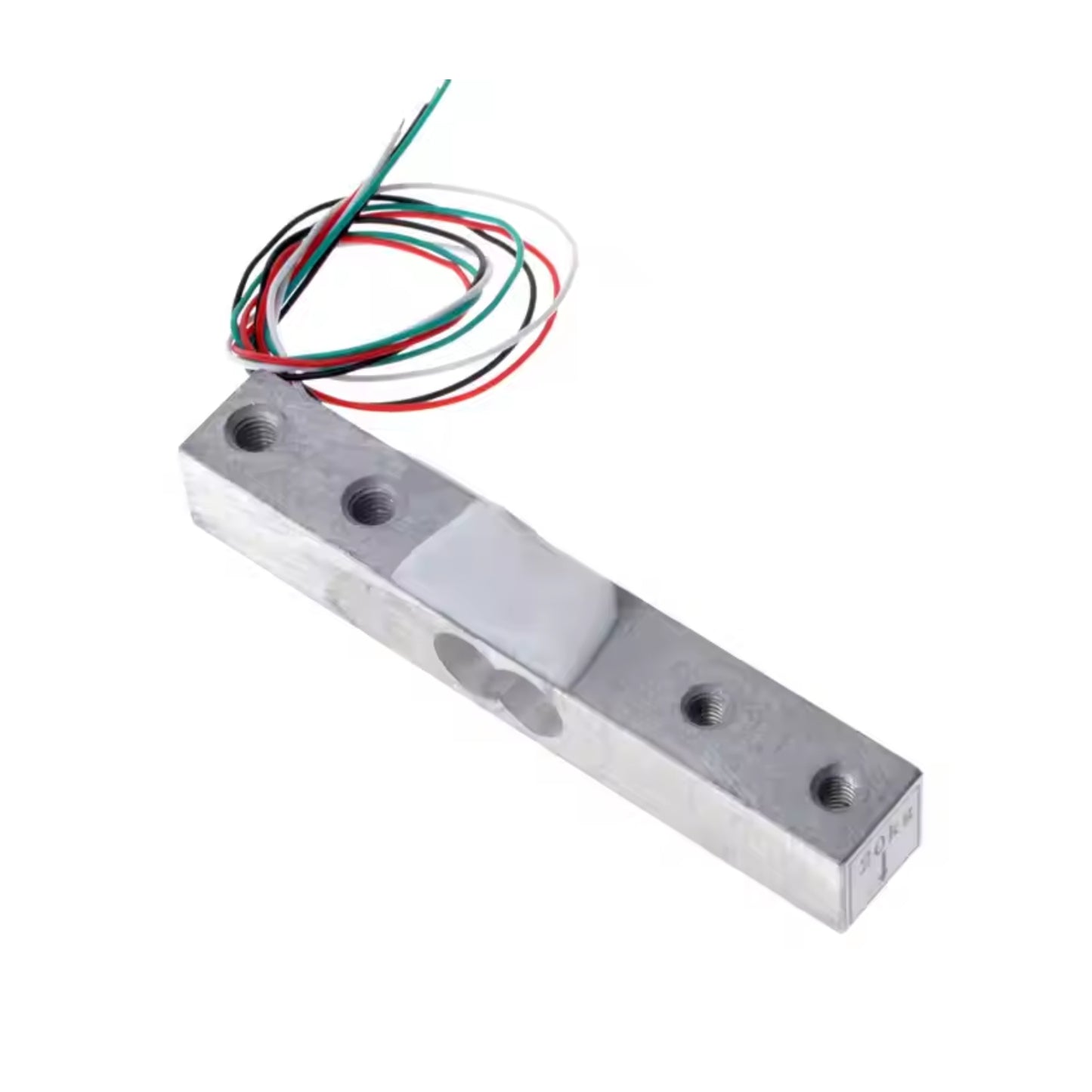

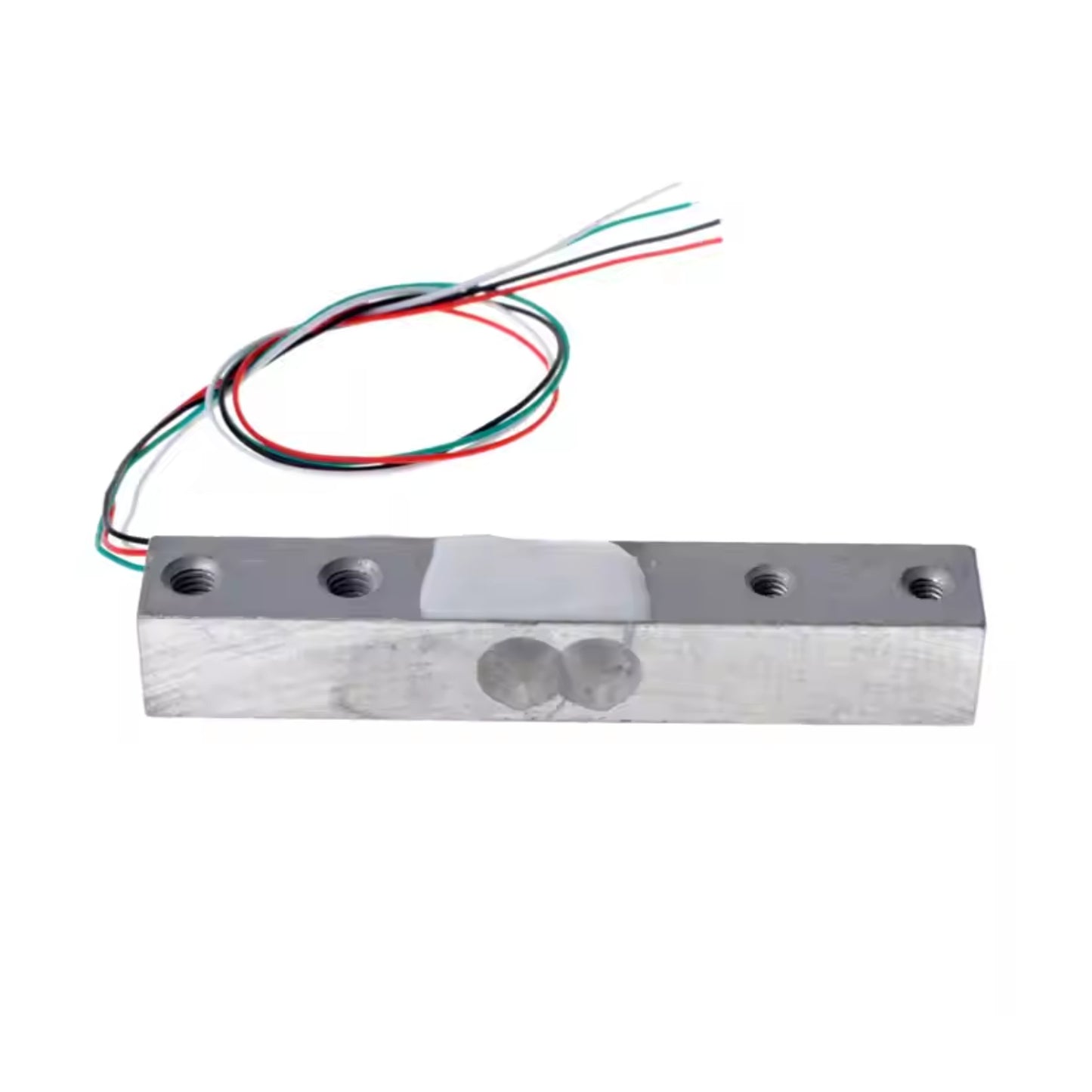

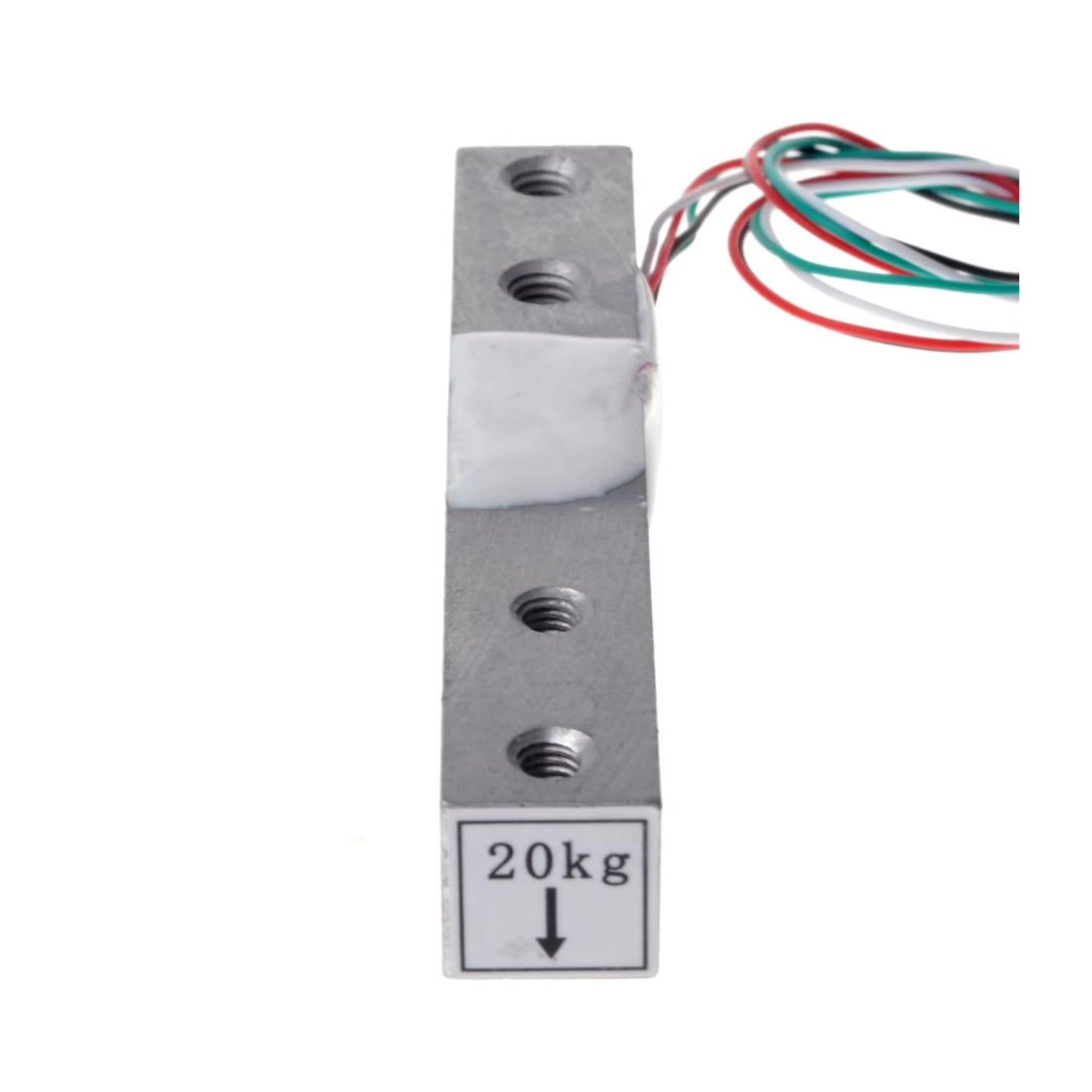

YZC-133 Weighing Sensor With Wire is Made of high-quality aluminum alloy, a parallel beam structure. 20kg High Precision Load Cell Sensor is suitable for electronic kitchen scales, small household appliance force measurement, pet feeders, and other intelligent weighing equipment.
Specifications:
- Model: YZC-133
- Rated output: 1.0±0.15mV/V
- Nonlinearity: 0.0005
- Repeatability: 0.0003
- Hysteresis: 0.0003
- Creep(5min): 0.001
- Temperature effect on sensitivity: 0.003%RO/°C
- Temperature effect on zero: 0.02%RO/°C
- Zero balance: ±0.1%RO
- Input resistance: 1066±20Ω
- Output resistance: 1000±20Ω
- Insulation resistance: 2000MΩ (50V)
- Recommended excitation voltage: 5V
- Temperature-compensated voltage: -10~+50°C
- Operating temperature range: -20~+65°C
- Safe overload: 120%RO
- Ultimate overload: 150%RO
- Cell material Load: Aluminum
- Connection cable: 0.8X180m
Connection:
- Red to E+
- Black to E-
- Green to A+
- White to A-
Package Included:
1 x YZC-133 20kg Weighing Sensor 20KG Load Cell Sensor 20KG Weighting Load Cell Sensor With Wire Durable And Accurate 20kg Load Cell Sensor For Kitchen Scales
