Description:

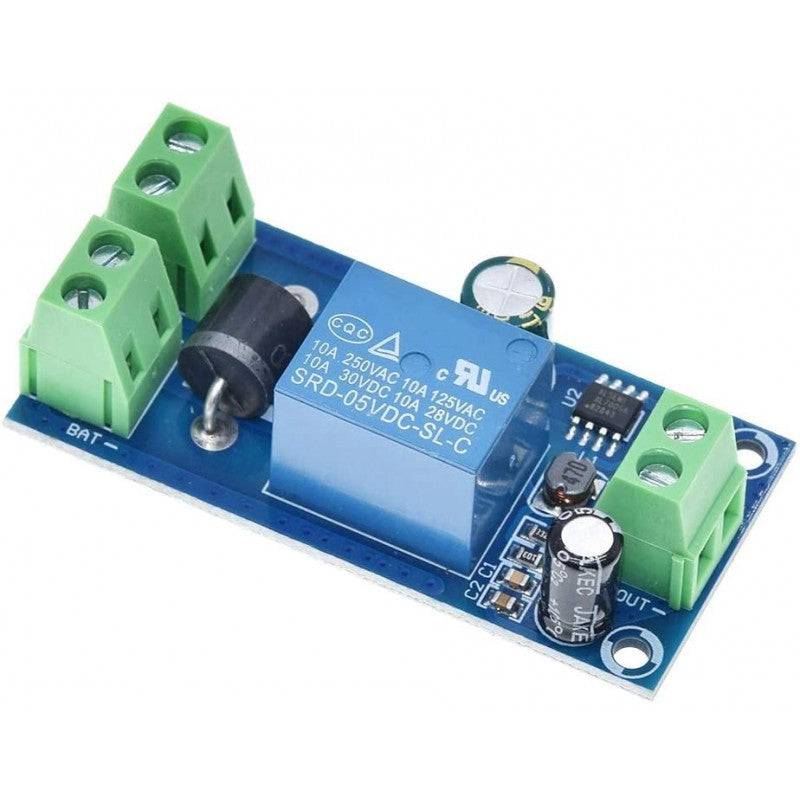

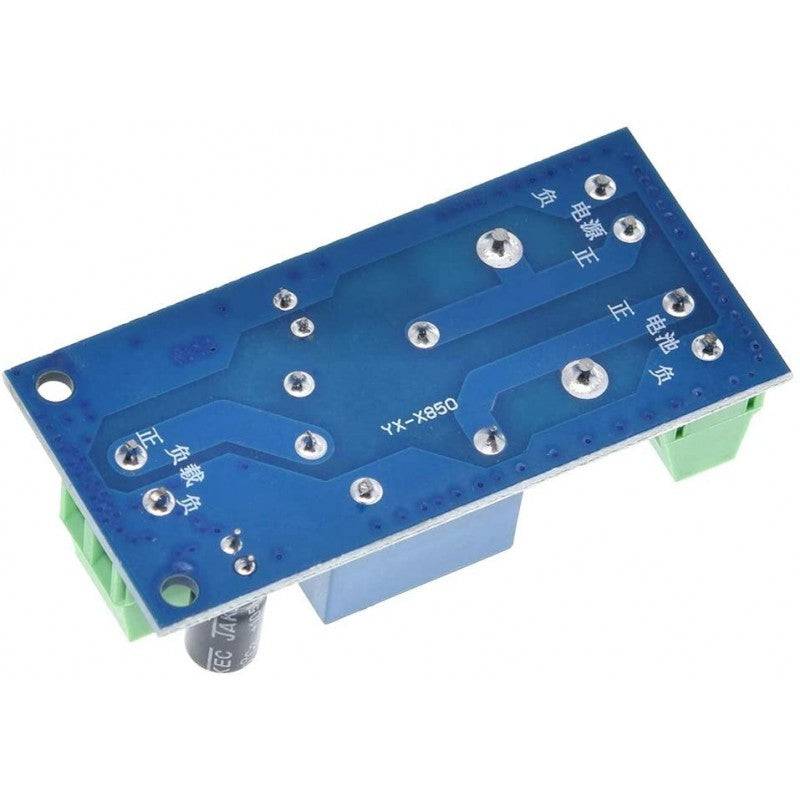

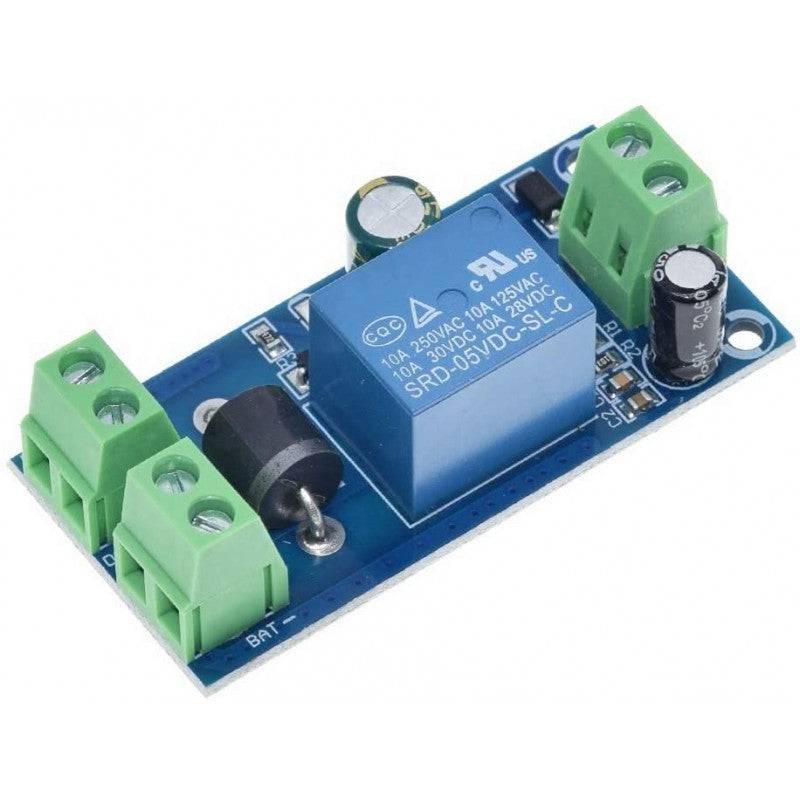

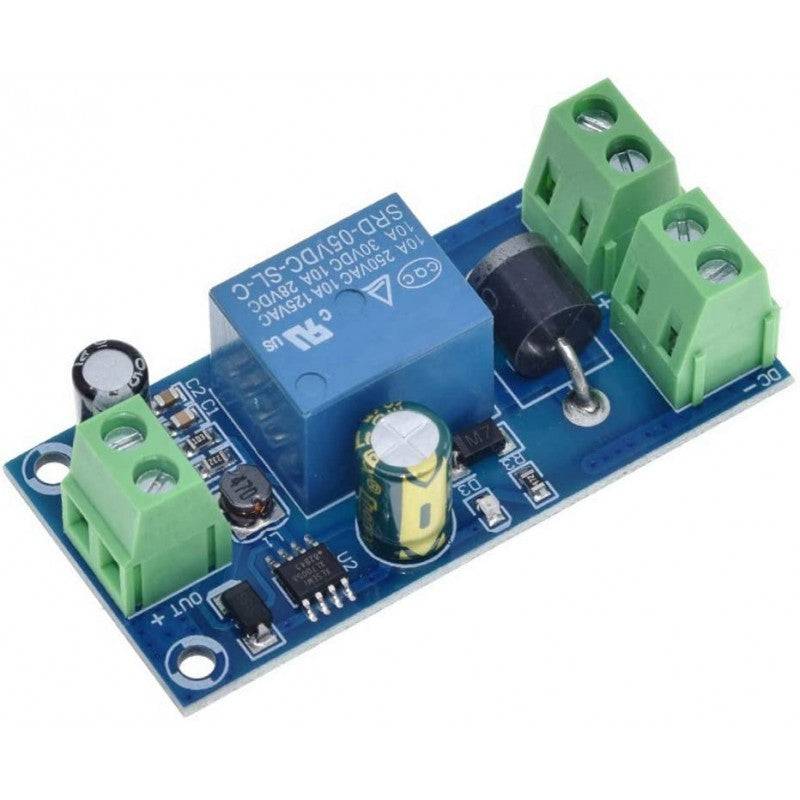

YX850 Power Failure Battery Module is an automatic switching module. When the battery is dead or there is a problem with the battery, the YX850 Power Failure Battery Module is powered by the power supply. When there is input power at the power adapter, the battery can be charged.
Specification:
- Model: YX850
- Input Voltage: DC5V~48V
- Load Current: 10A(MAX)
- Work Temperature: -25~85℃
- Work Humidity: 5%~95%RH
Features:
- Automatically identify the voltage
- Automatically switch power
- Battery discharge protection
Note:

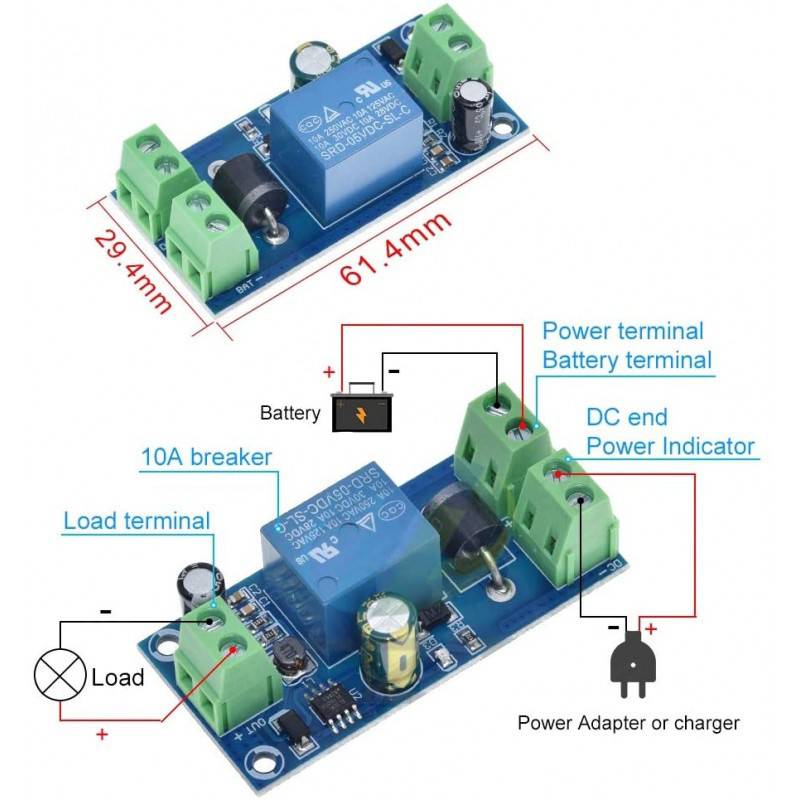

- When the DC terminal has an input voltage, it is connected to the battery to charge the battery.
- When the DC terminal has an input voltage, it will supply power to the load.
- When the DC terminal does not input voltage, the product will automatically switch to the load powered by a battery.
- YX850 Power Failure Battery Module will lose power for 0.7 seconds when switching power supply equipment.
- The DC, power and load voltages should be the same.
Package Includes:
1 x YX850 Power Failure Battery Module YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 5V-48V
