YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module- RS2937
YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module- RS2937
SKU:RS2937
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Power Supply Voltage: DC12V-24V
- Chip Voltage Range: DC8V-26V
- Rated Power: 20W + 20W
- Output Impedance: 4-8Ω
Description:

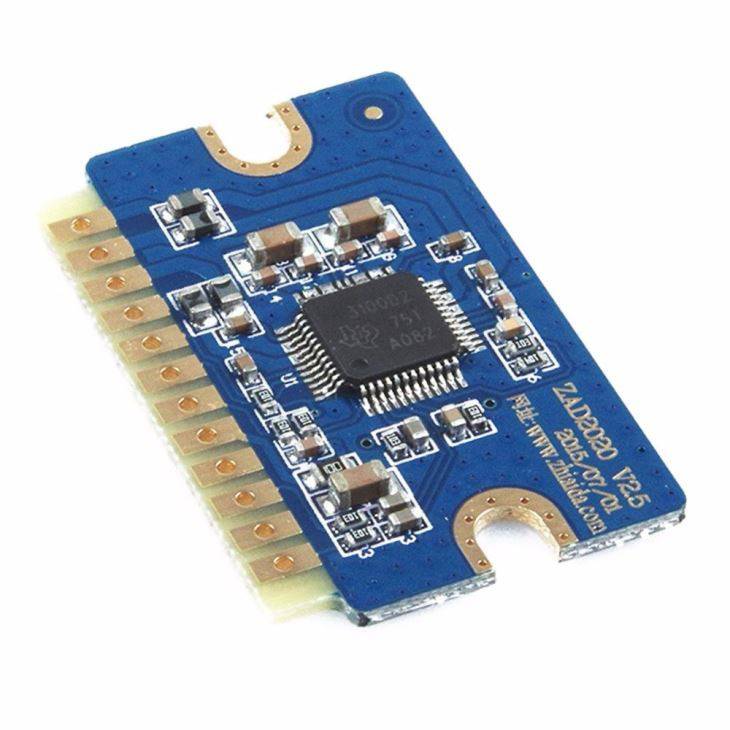

YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module is a simple and mini size class D power amplifier but it has a remarkable audio power output via its dual stereo channel of 20W per channel. This mini type D digital power amplifier can be easily put in small spaces of many digital products, high amplification efficiency. Type D power amplifier has very high amplification efficiency, sound quality will not be affected by temperature rise.
Specification:
- Power Supply Voltage: DC12V-24V
- Chip Voltage Range: DC8V-26V
- Rated Power: 20W + 20W
- Output Impedance: 4-8Ω
- Max. Power: 35W + 35W
- Max. Dynamic Current: 4A
- Quiescent Current: <40mA
- Shut Down Current: <1uA
- Gain: 35dB
- Output Impedance: About 20KΩ
Features:
- It can be powered by DC 12V-24V, with high efficiency.
- The amplifier can provide 20W + 20W power.
- Type D power amplifier has very high amplification efficiency, sound quality will not be affected by temperature rise.
- Widely used for TVs, monitors, laptops, portable speakers, DVD players, game players, etc.
Pin Description:
- Lin: Left channel signal input
- AGND: Signal ground
- RIN: RIght channel signal input
- GND: power ground
- VCC: power positive
- FAULT: Fault Indication
- MUTE: Mute Control
- SD: Shut down Control
- RO: Right channel output negative
- RO+: Right channel output positive
- LO+: Left channel output positive
- LO-: Left channel output negative
Note: In a simple application, the FAULT, MUTE and SD pins do not need to be wired. Fault indication is high level indication when output short circuit; mute is effective at high level; shut down is effective at low level.
Package Included:
1 x YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module
