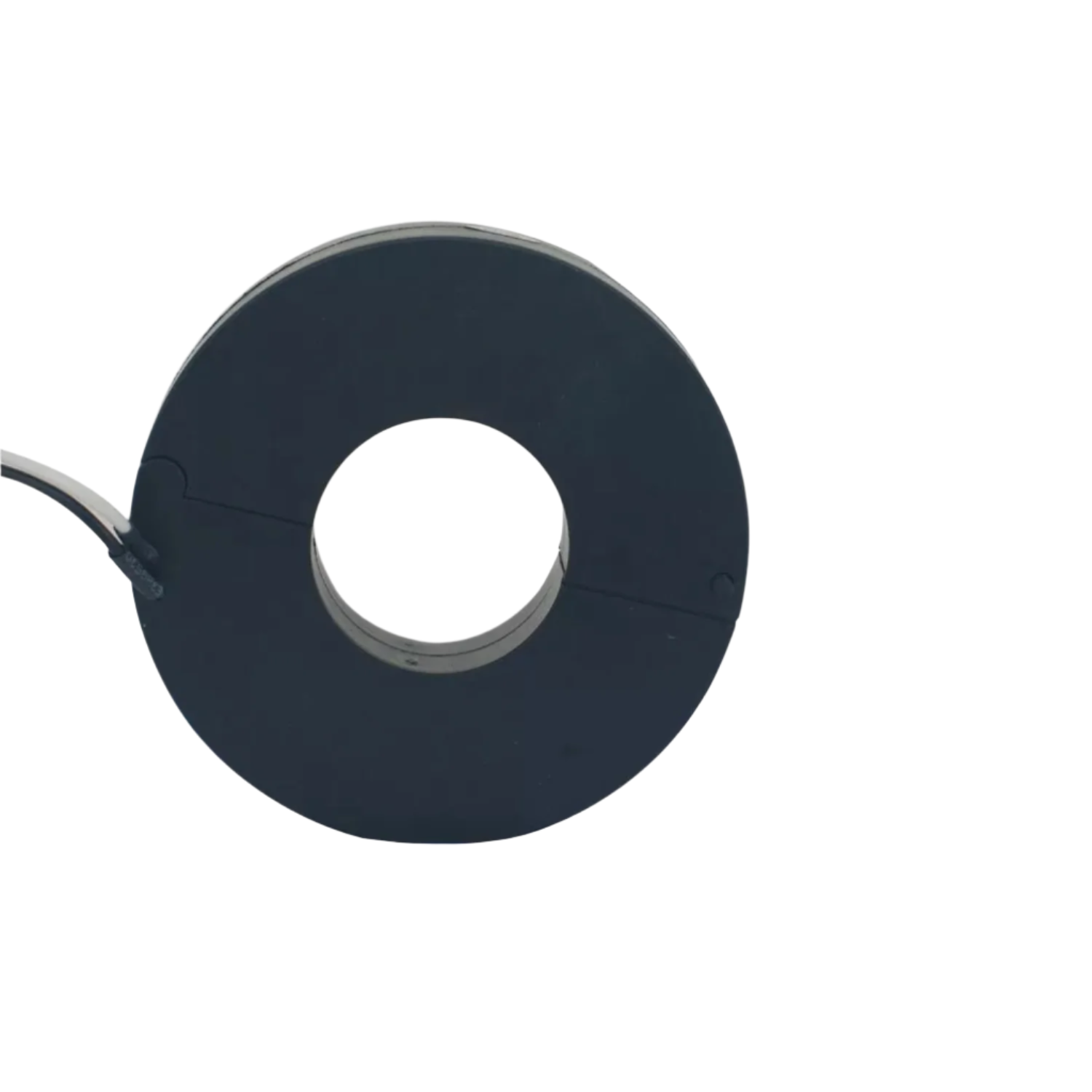

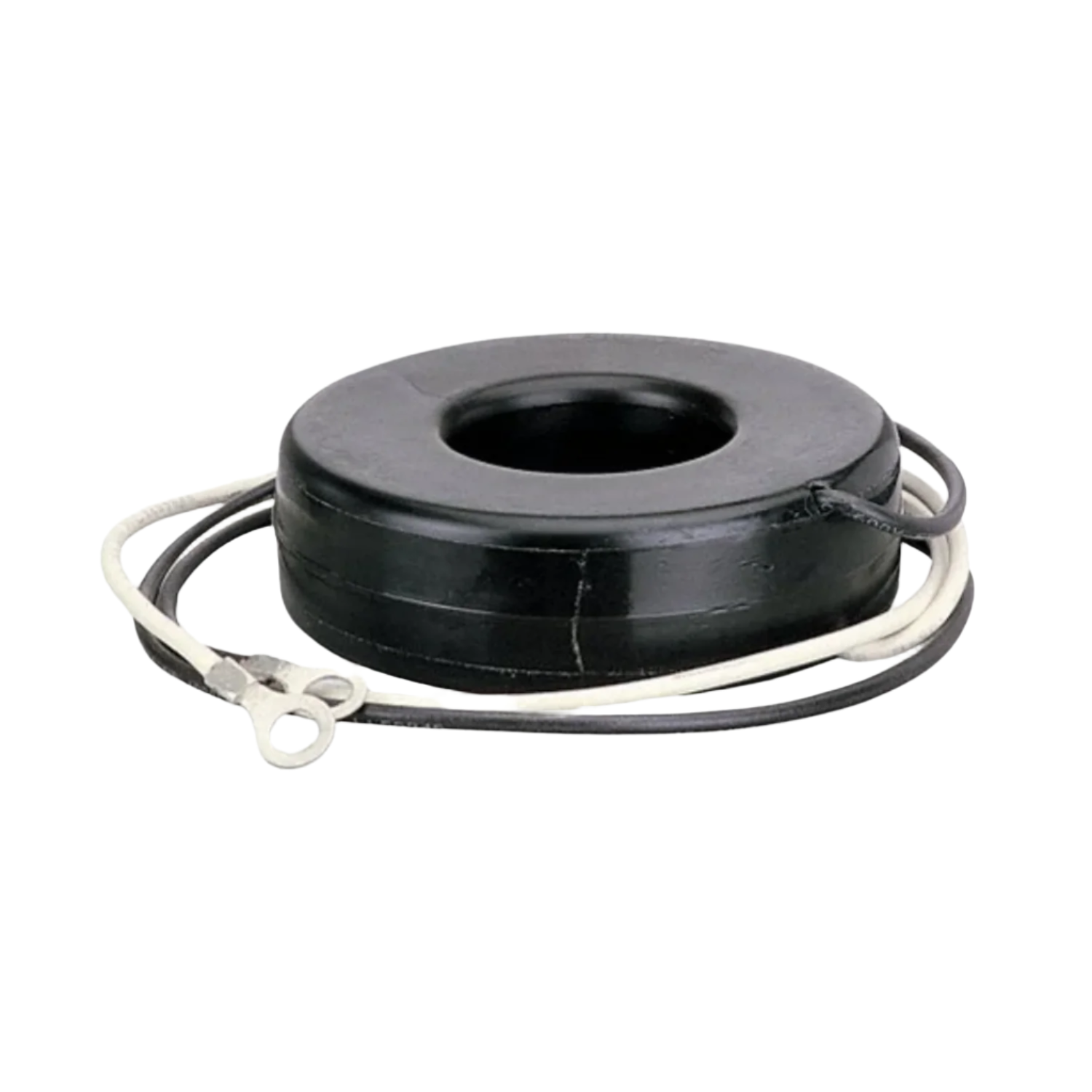

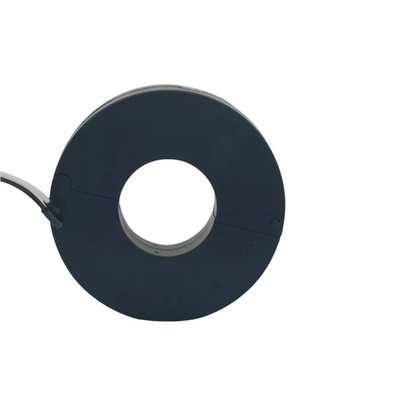

YHDC SCT023R-400A-100mA Non-invasive 23mm Split Core Current Transformer For Accurate 400A AC Current Measurement

Description:

CTP split-core current sensors are sophisticated analog devices specifically designed for accurate and reliable monitoring of AC current. These sensors are distinguished by their split-core construction, which allows for effortless installation without the need to interrupt the circuit or disconnect any wiring. This non-intrusive installation method makes them exceptionally well-suited for both retrofit applications and new installations where minimizing downtime is critical.

These particular CTP split-core current sensors are designed with an input capacity of 400A and provide a corresponding output of 100mA. This means they can accurately measure AC currents up to 400 amperes, and they produce a scaled-down output current of 100 milliamperes at the maximum input current. This scaled output is crucial for interfacing with monitoring equipment, as it provides a manageable signal level that can be safely and easily measured.

Specifications:

• Model: YHDC SCT032R
• Current transformer rated: Input 400A, Output 100mA
• Flame resistance: UL94-V0

• Working temperature: -25～+70°C

• Storage temperature: -25～+70°C

• Dielectric strength: 2.5KV 50Hz 1min

Package Included:

1 x YHDC SCT023R-23 mm Dia. Split core current transformer
