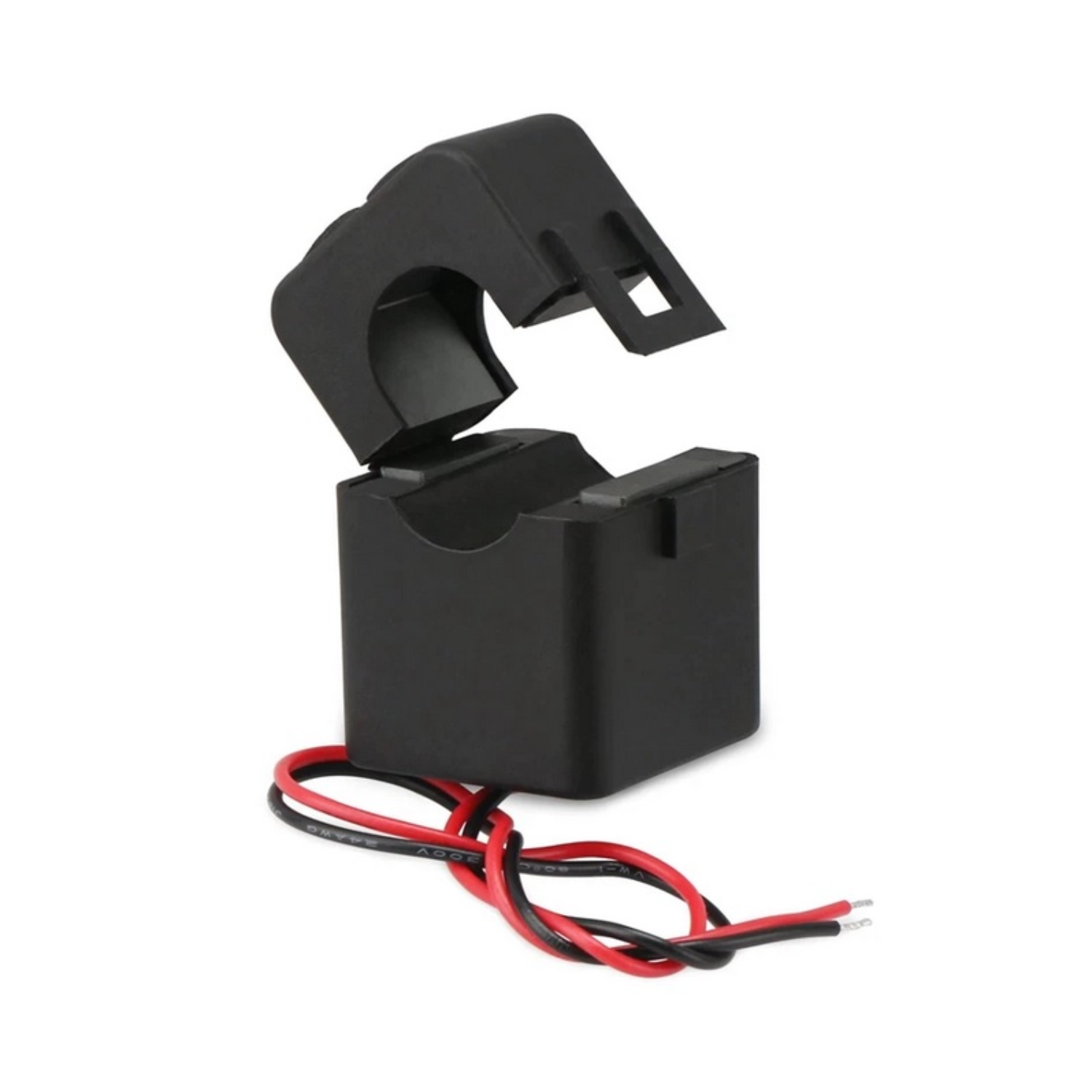

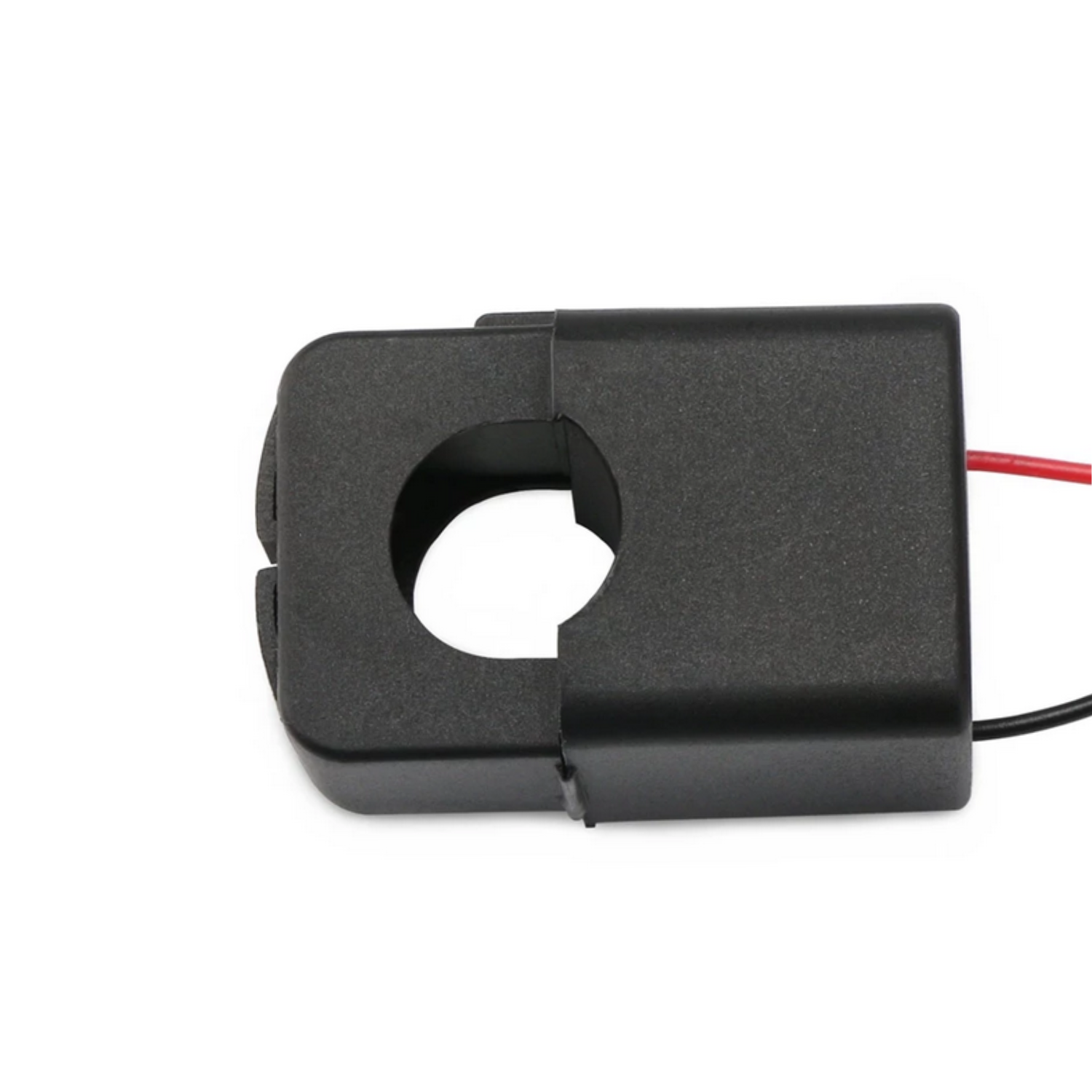

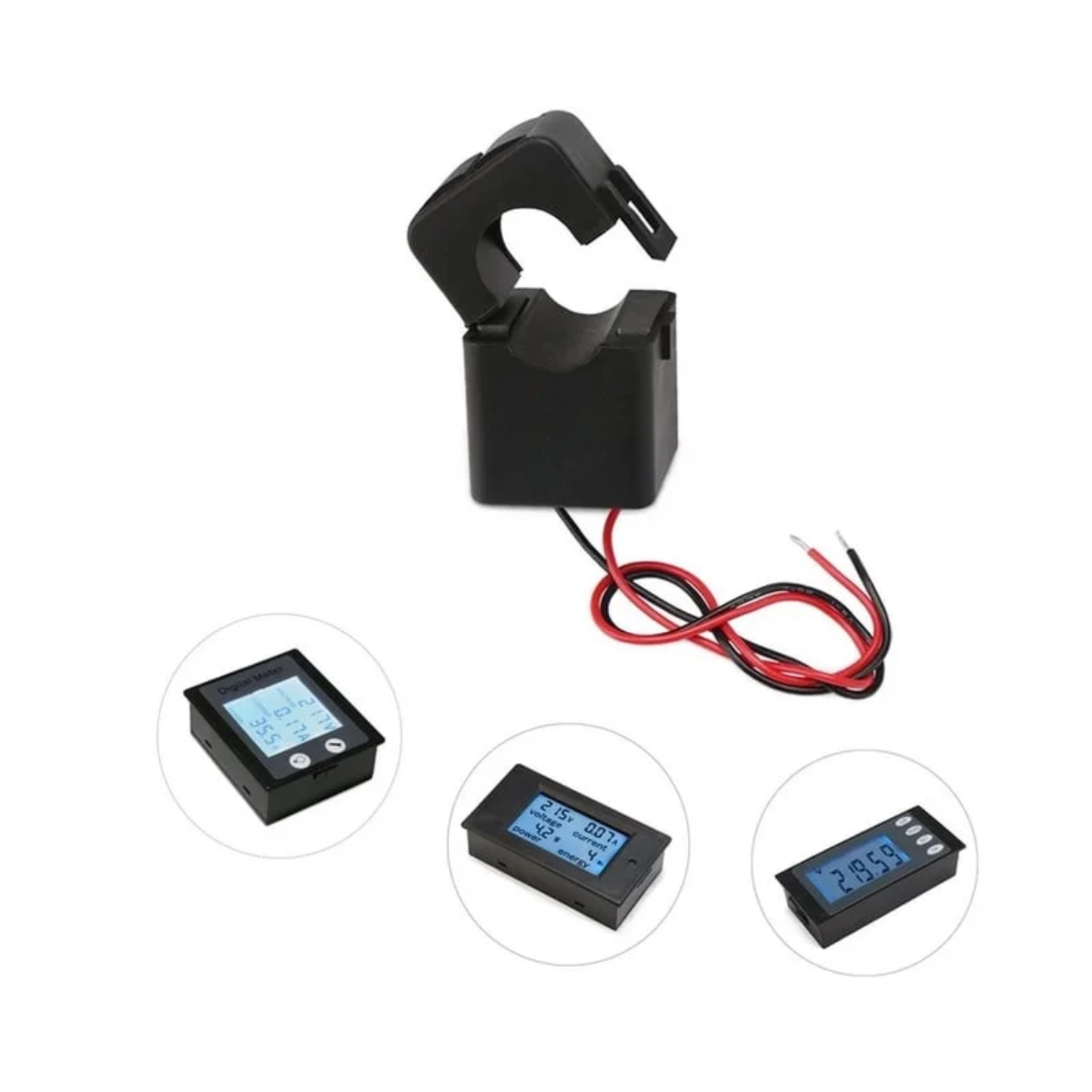

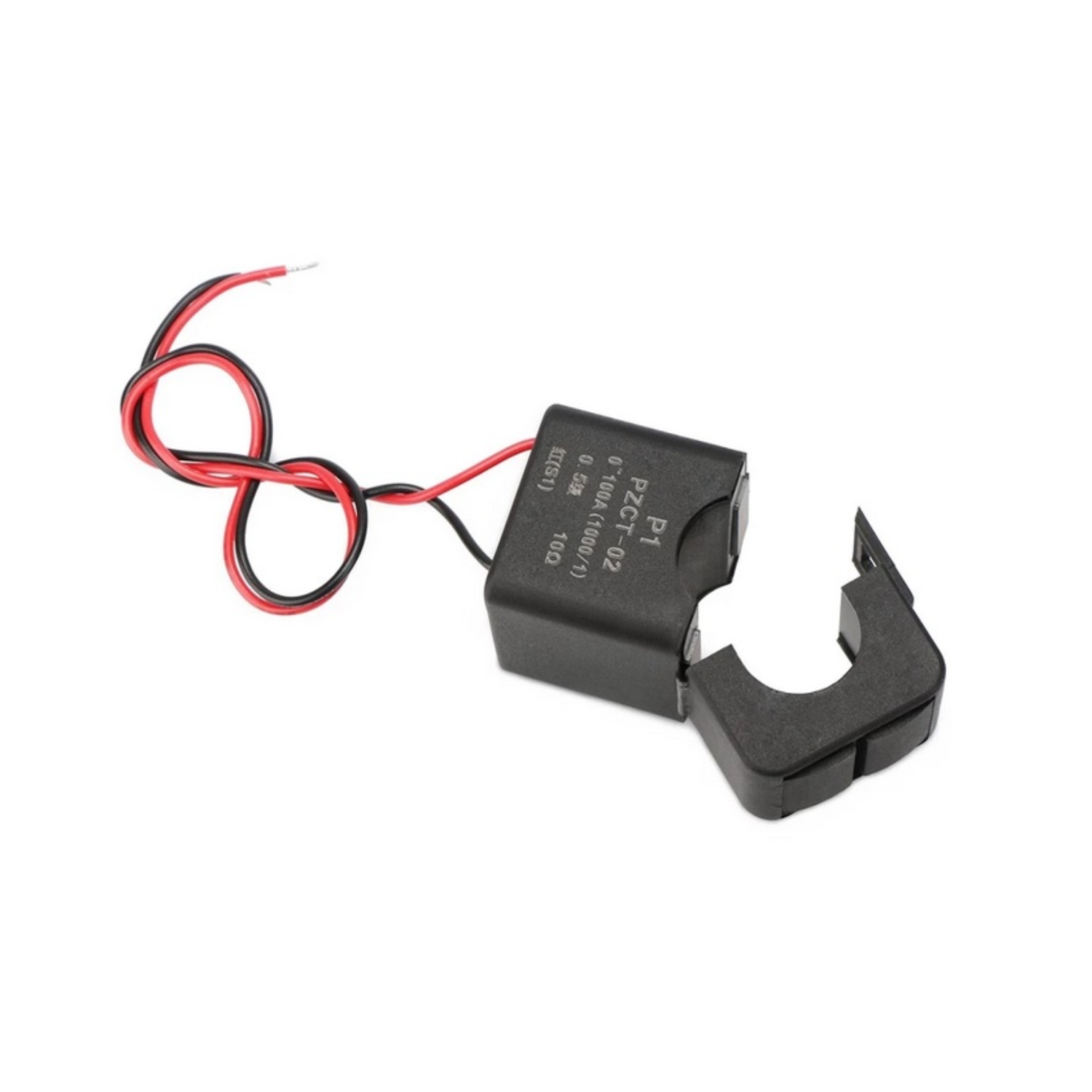

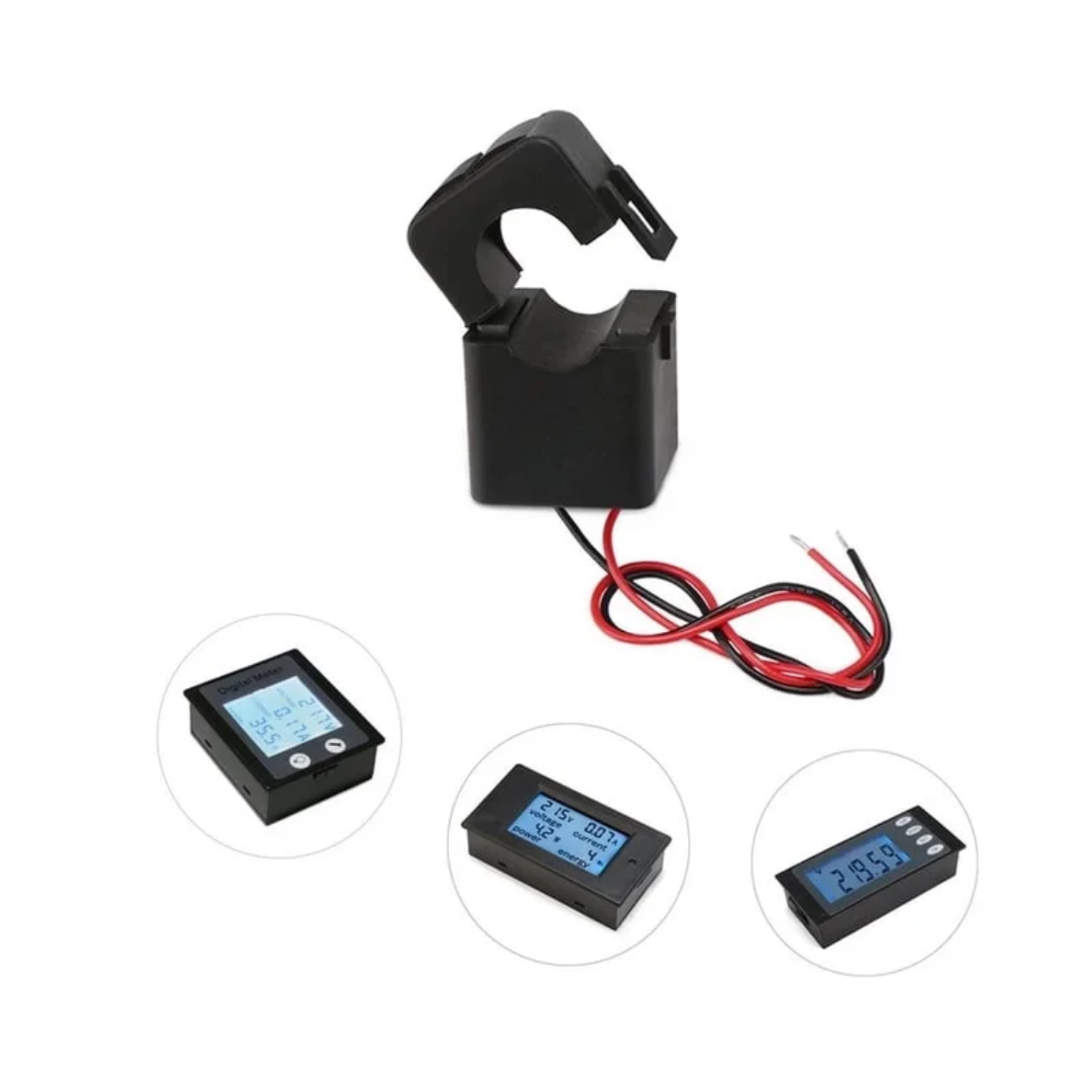

YHDC SCT016-100A-100mA Split Core Current Transformer For Non-Invasive AC Current Measurement

YHDC SCT016-100A-100mA Split Core Current Transformer For Non-Invasive AC Current Measurement

In stock

Rs. 497.00
Rs. 497.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Split-core current transformers (CTs) offer a convenient and precise method for measuring AC electrical currents without the need to disrupt the existing wiring or power supply. Their key characteristic is a split in the core, allowing the CT to be opened and clamped around a conductor without disconnecting it.

This non-invasive design makes split-core CTs ideal for both retrofit installations, where existing systems need to be monitored, and semi-permanent metering applications, where occasional access to the conductor might be required. While split-core CTs may have a higher initial cost compared to other types, their ease of installation and the avoidance of downtime often justify the expense, especially when retrofitting existing installations.

Specifications:

  • Item Type: Current Sensor
  • Model Type: Current Transformer
  • Material of core: Silicon steel sheet
  • Work voltage: 720V
  • Frequency: 50Hz～1KHz
  • Operating temperature: -25℃～+60℃
  • Storage temperature: -30℃～+90℃
  • Frequency range: 50Hz～1KHz
  • Dielectric strength: 3.5 kV 50Hz 1min
  • Rated Current: Input 100A, Output 100mA

Package Included:

1 x Split Core Current Transformer
