Description:

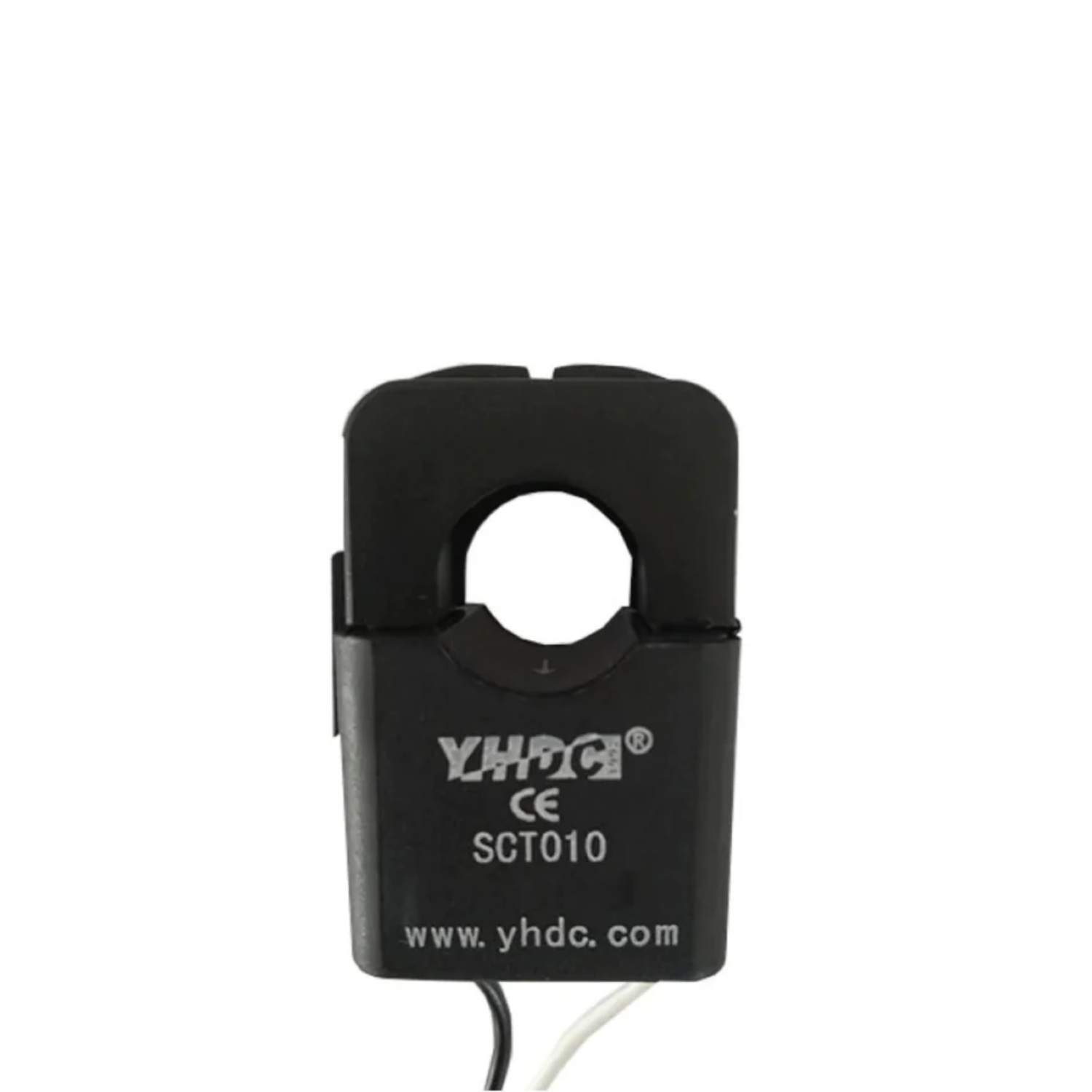

YHDC SCT010 50A:50mA Split Core Current Transformer is a versatile and reliable device designed for accurate current measurement in a variety of electrical applications. This current transformer (CT) is specifically designed to measure currents up to 50 Amperes, producing an output current of 50 milliamperes.

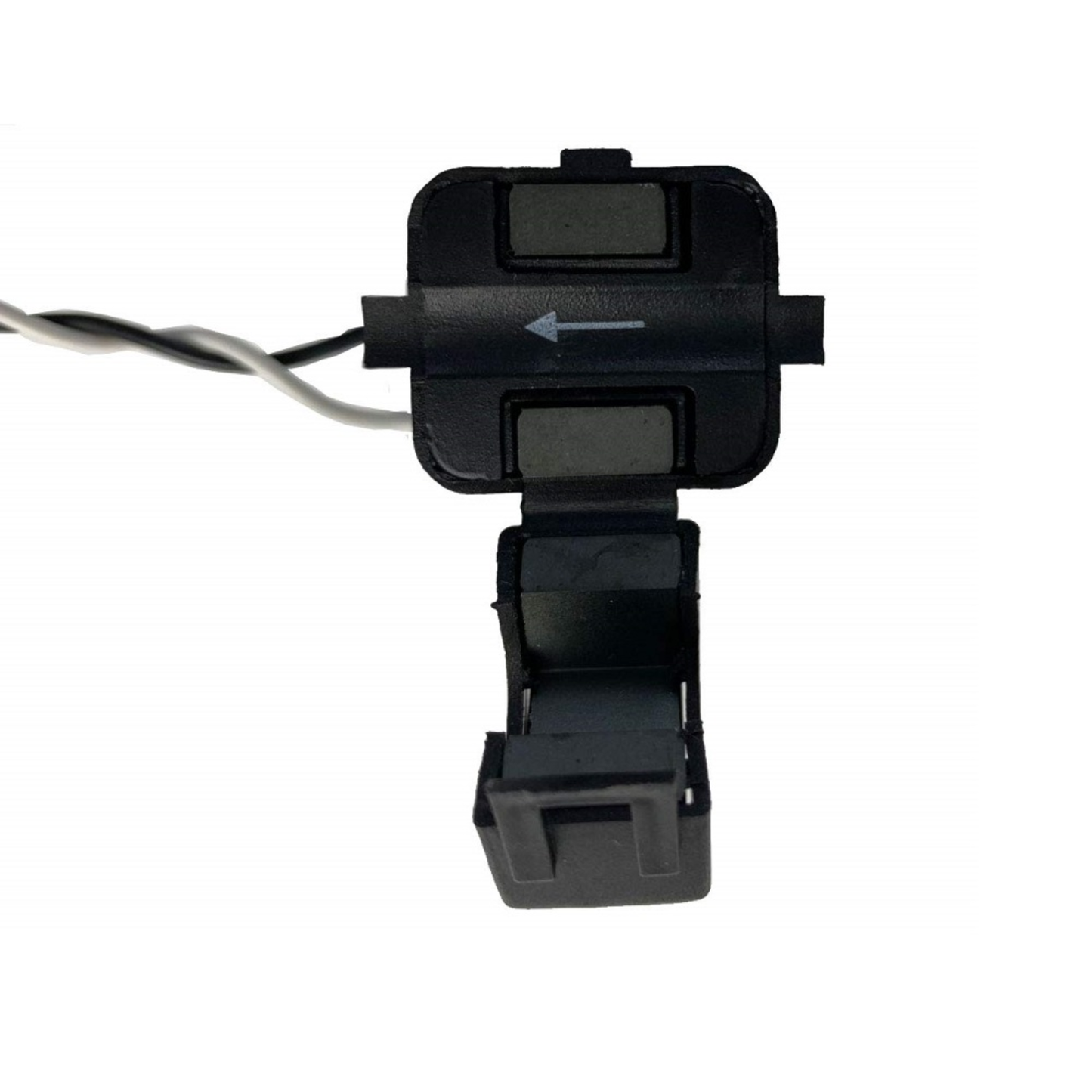

This direct proportionality between the measured current and the output current ensures an accurate representation of current fluctuations within the electrical circuit being monitored. A key feature of the SCT010 is its split-core design, which greatly simplifies installation.
Specifications:
- Item Type: Current Sensor
- Model Type: Current Transformer
- Core Material: Ferrite
- Operating Voltage: Phase voltage≤720V
- Operating Temperature: 25℃～+60℃
- Storage Temperature: -30℃～+90℃
- Frequency: 50Hz～1KHz
- Input: Bare conductor
- output 50A: 50mA
- Whole Diameter: 10
Package Included:
1 x YHDC SCT010 50A:50mA Split Core Current Transformer
