Description:

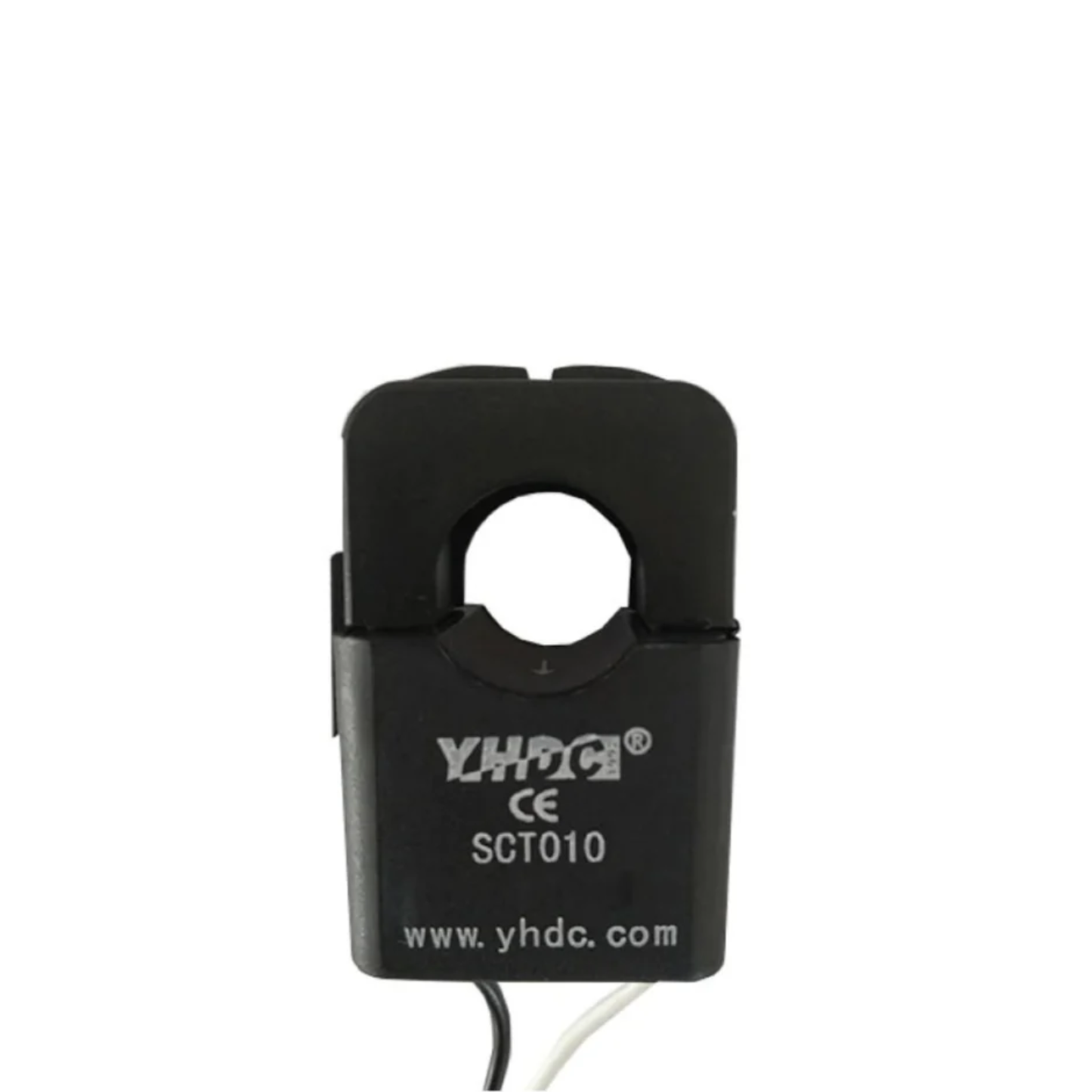

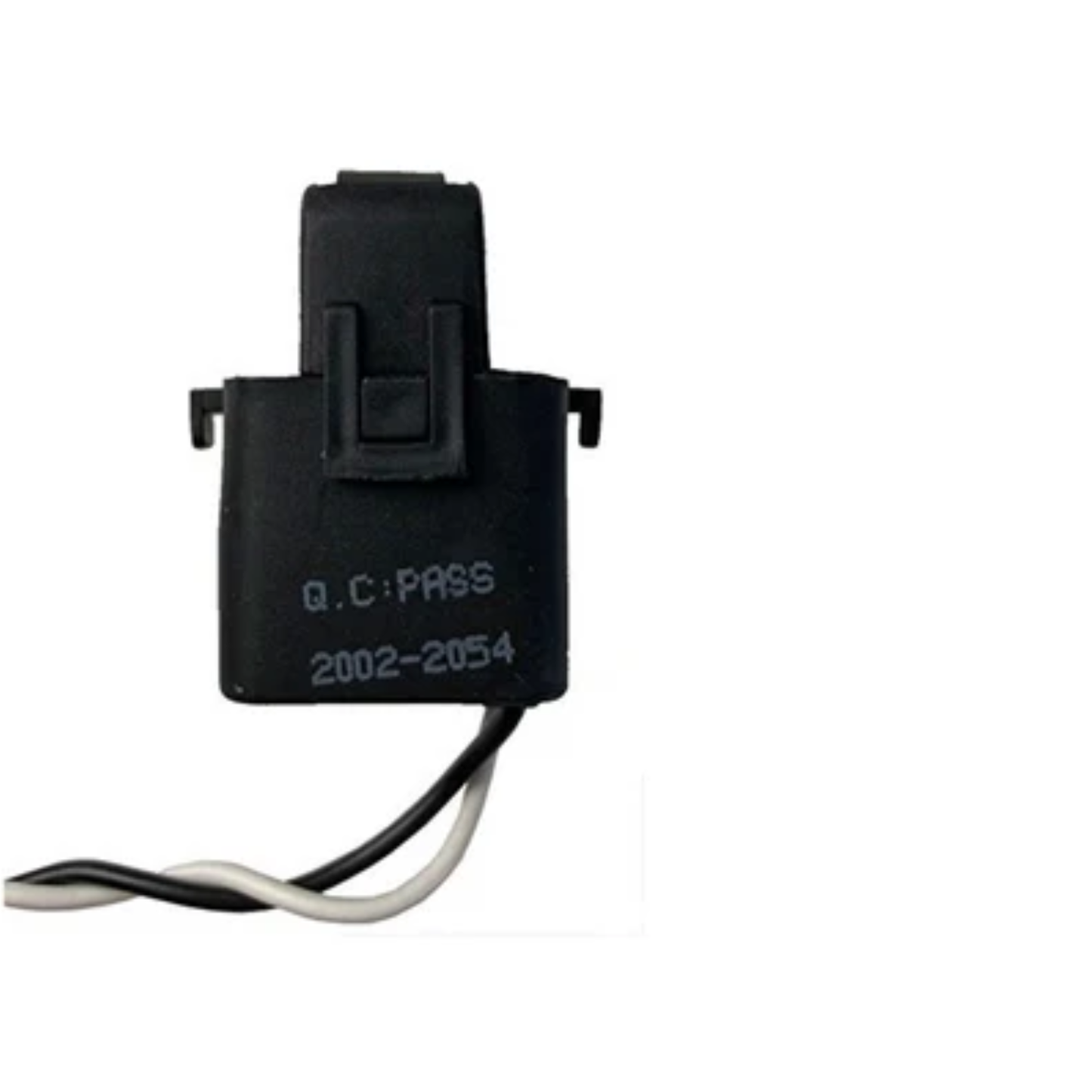

YHDC SCT010 80A : 40mA Split Core Current Transformer is a versatile and reliable device designed for accurate current measurement in a variety of electrical applications. This current transformer (CT) is specifically designed to measure currents up to 80 Amperes, producing an output current of 40 milliamperes.

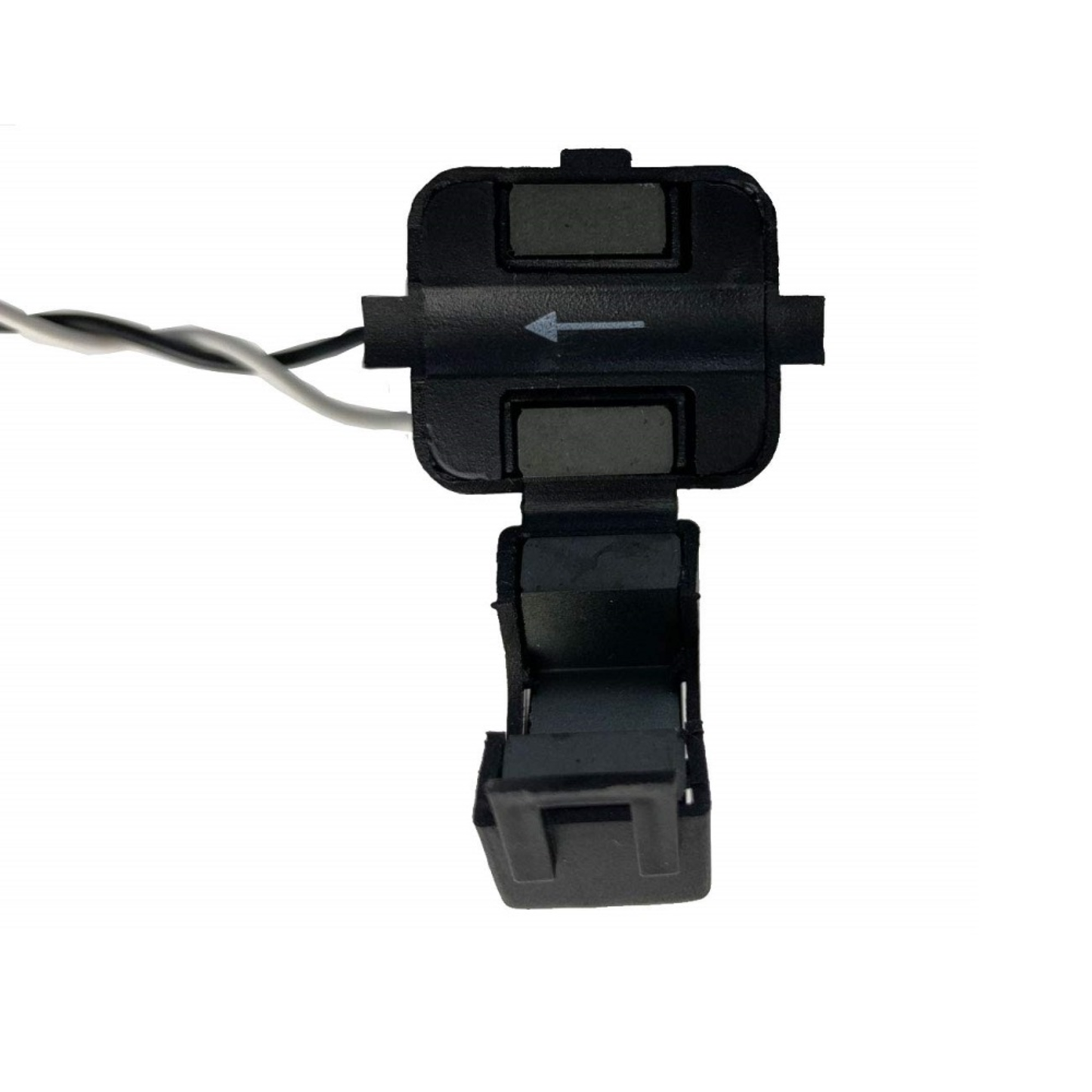

This direct proportionality between the measured current and the output current ensures an accurate representation of current fluctuations within the electrical circuit being monitored. A key feature of the SCT010 is its split-core design, which greatly simplifies installation.
Specifications:
- Item Type: Current Sensor
- Model Type: Current Transformer
- Material of core: Ferrite
- Working voltage: Phase voltage≤720V
- Working temperature: -25℃～+60℃
- Storage temperature: -30℃～+90℃
- Frequency range: 50Hz～1KHz
- Input: Bare conductor
- Cable Length: 40 cm
- output 80A: 40mA
- Whole Diameter: 10
Package Included:
1 x YHDC SCT010 80A : 40mA Split Core Current Transformer
