Description:

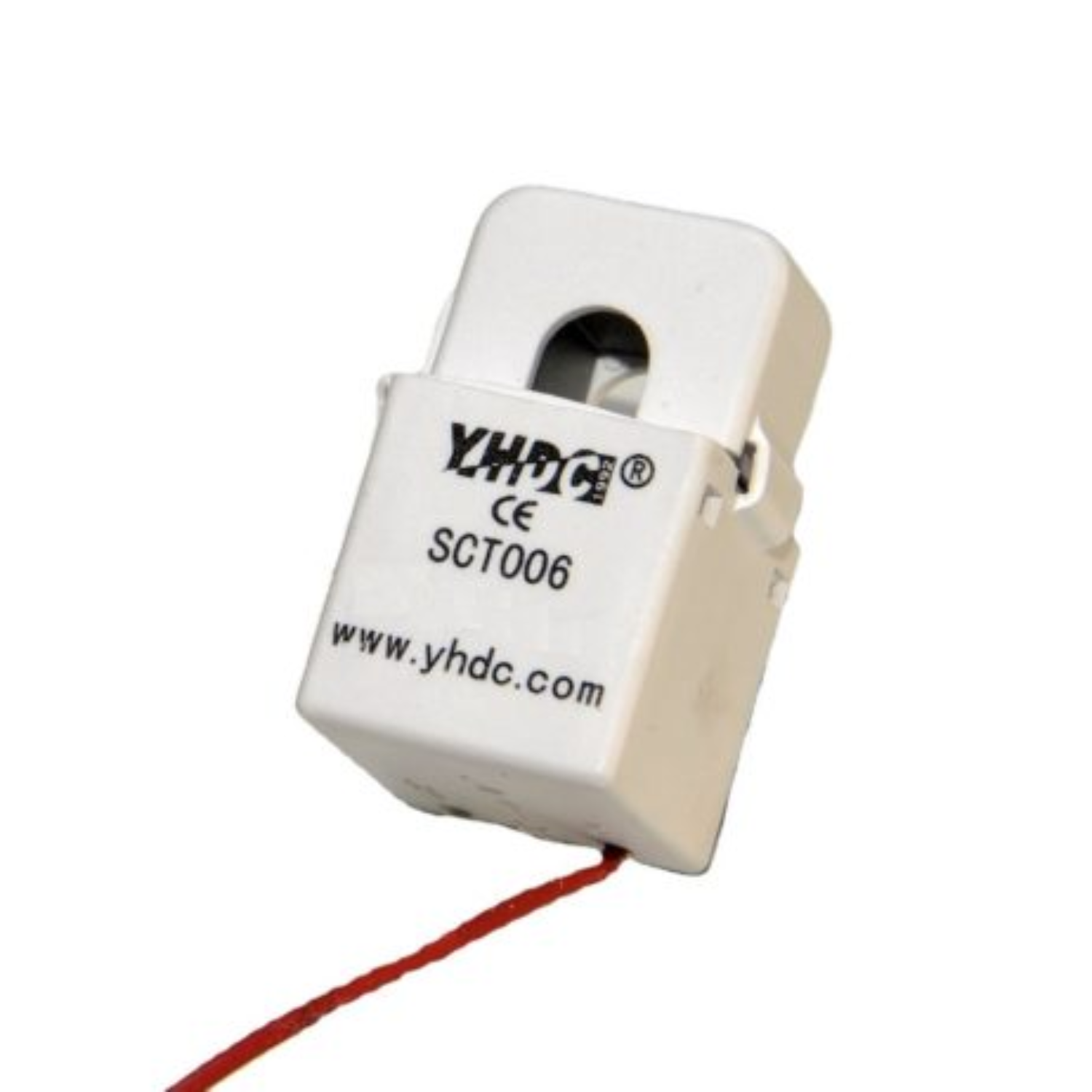

The YHDC SCT006 Split Core Current Transformer is a compact and reliable device designed for accurate current measurement in a variety of electrical applications. This current transformer (CT) is specifically designed with a rated input of 1 Ampere, producing a rated output of 1 milliamperes.
This precise relationship between the measured current and the output current ensures an accurate representation of current fluctuations within the electrical circuit being monitored. A key feature of the SCT006 is its split-core design, which greatly simplifies installation.
Specifications:
- Item Type: Current Sensor
- Model Type: Current Transformer
- Max Output Current: 1.5mA
- Mounting Type: Suspension
- Coil Structure: Toroidal
- Coil Number: 800 turns
- Model: YHDC SCT006 1A 1 mA Split core current transformer
- Input: Bare conductor
- Output: 1mA
- Aperture: 6mm
Features:
- Energy saving
- Internal heating structure.
- low power consumption and high efficiency.
- The shell is made of aluminum alloy, which has good corrosion resistance and a long service life
Package Included:
1 x YHDC SCT006 1A-1mA Split Core Current Transformer
