Description:

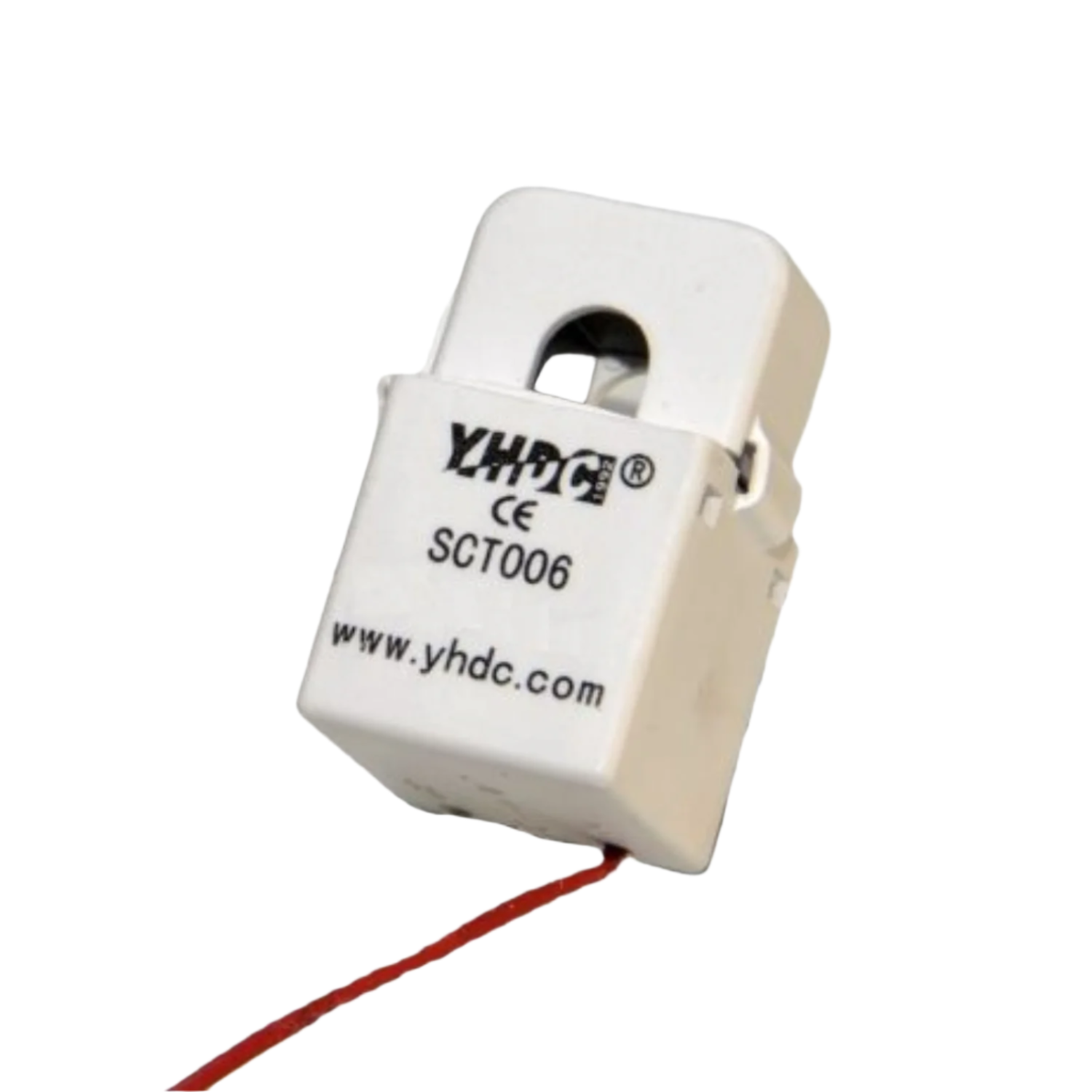

The YHDC SCT006 is a split-core current transformer (CT) designed for accurate current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and other electrical loads. With a rated input of 5A and a rated output of 2.5mA, this CT provides a safe and reliable way to measure current without interrupting the circuit. It includes built-in TVs (likely referring to Transient Voltage Suppressors for surge protection).
A key application of current transformers like the SCT006 is to enable power meters to measure current on circuits that would otherwise exceed the meter's direct current measurement capabilities. By stepping down the current to a manageable level, CTs allow meters to accurately measure high currents safely. This is crucial for applications like energy monitoring, load analysis, and protection systems.
Specifications:
- Item Type: Current Sensor
- Model: YHDC SCT006 5A 2.5mA Split core current transformer
- Mounting Type: Suspension
- Input: Bare conductor
- Cable Length: 30 cm
- Output: 5A-2.5A
- Aperture: 6mm
Features:
- Energy saving
- Internal heating structure.
- Coil Structure: Toroidal
- Coil Number: 800 turns
- low power consumption and high efficiency.
- The shell is made of aluminum alloy, which has good corrosion resistance and a long service life.
Package Included:
1 X AC Current Sensor Split Core Current Transformer SCT006
