YHDC SCT-024TS-100A-1A Precision Split Core Current Transformer Reliable AC Current Measurement For Power Metering & Load Management
YHDC SCT-024TS-100A-1A Precision Split Core Current Transformer Reliable AC Current Measurement For Power Metering & Load Management
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

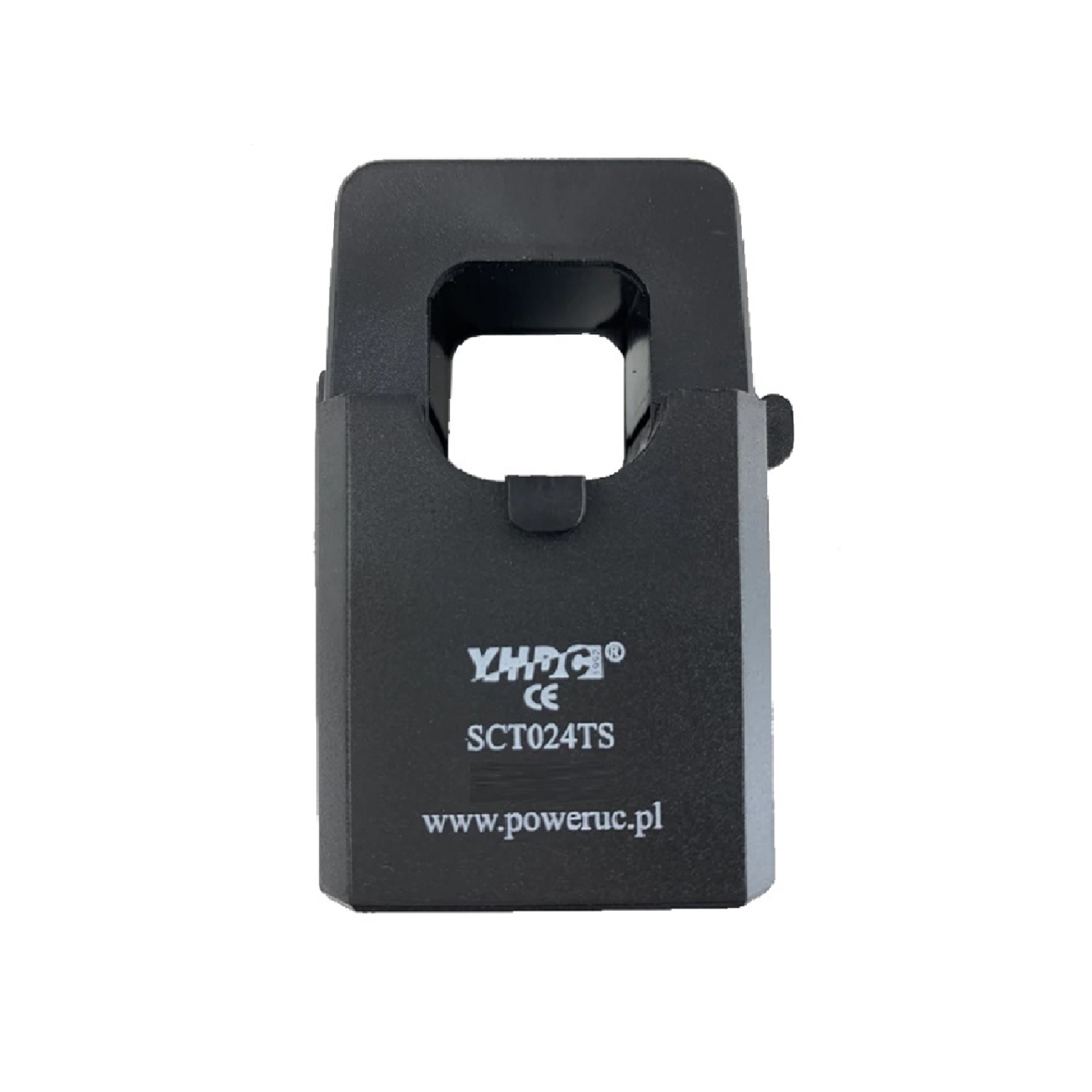

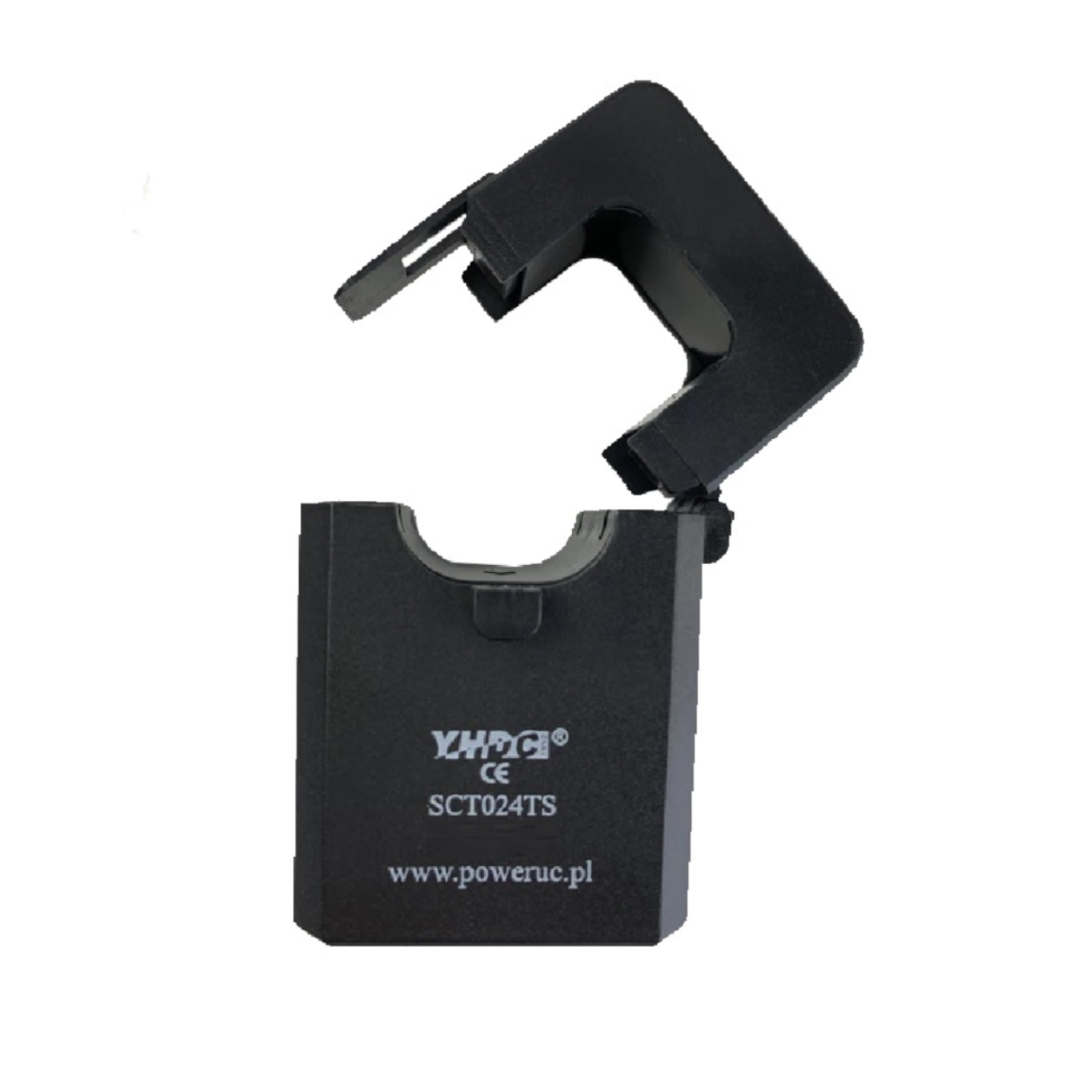

The YHDC SCT-024TS is a mini split-core current transformer (CT) designed for accurate measurement of AC electrical systems. Its compact size and hinged/removable leg design allow for easy, non-invasive installation without disconnecting existing wiring or interrupting power. This makes it ideal for both retrofit applications, where disconnecting conductors is difficult or impossible, and new installations.
Split-core CTs like the SCT-024TS offer a significant advantage over traditional CTs by eliminating the need to break the circuit for installation. The split core opens, allowing the CT to be clamped around the conductor, simplifying the process and saving valuable time. While split-core CTs may have a slightly higher initial cost, their convenience and ease of installation often outweigh this difference, especially in retrofit scenarios.
Specifications:
- Model: YHDC SCT-024TS
- Core Material: Silicon steel sheet
- Operating Voltage: 720V
- I/O Current 100A, 1A
- Operating temperature:-25℃～+60℃
- Storage Temperature: -30℃～+90℃
- Dielectric Strength: 3.5 kV 50Hz 1min
- Frequency range: 50Hz～1KHz
Package Included:
1 x YHDC SCT-024TS-100A-1A Precision Split Core Current Transformer
