Description:
HST016L current transducer is a versatile and accurate device designed for measuring a wide range of current types, including direct current (DC), alternating current (AC), and pulsating currents. This transducer operates on the principle of an open loop, a design choice that offers several advantages.
A key benefit of this open-loop design is the inherent galvanic isolation it provides between the primary conductor, carrying the current being measured, and the secondary circuit, where the measurement signal is generated. This isolation is crucial for safety and prevents unwanted interference between the high-current and low-current circuits.
Specifications:
- Item Type: Current Sensor
- Model Type: Hall Current Sensor
- Model: HST016L
- Transformer type: open/split core
- Cable: 50cm
- Fire resistance: UL94-V0
- Operating Temperature: -10 ℃ ~ + 70 ℃
- Storage Temperature: -25 ℃ ~ + 70 ℃
- Frequency: DC ～ 25kHz
- Dielectric Strength: 2.5KV 50Hz 1min
- Accuracy: 0.01
- Current Consumption: ≤ ± 12mA
- Hole diameter: 16mm
- Operating Current: 200A
- Operating Voltage: 4V
- Response Time: ≤ 5μs
- Hole diameter: – 16mm(Ø)

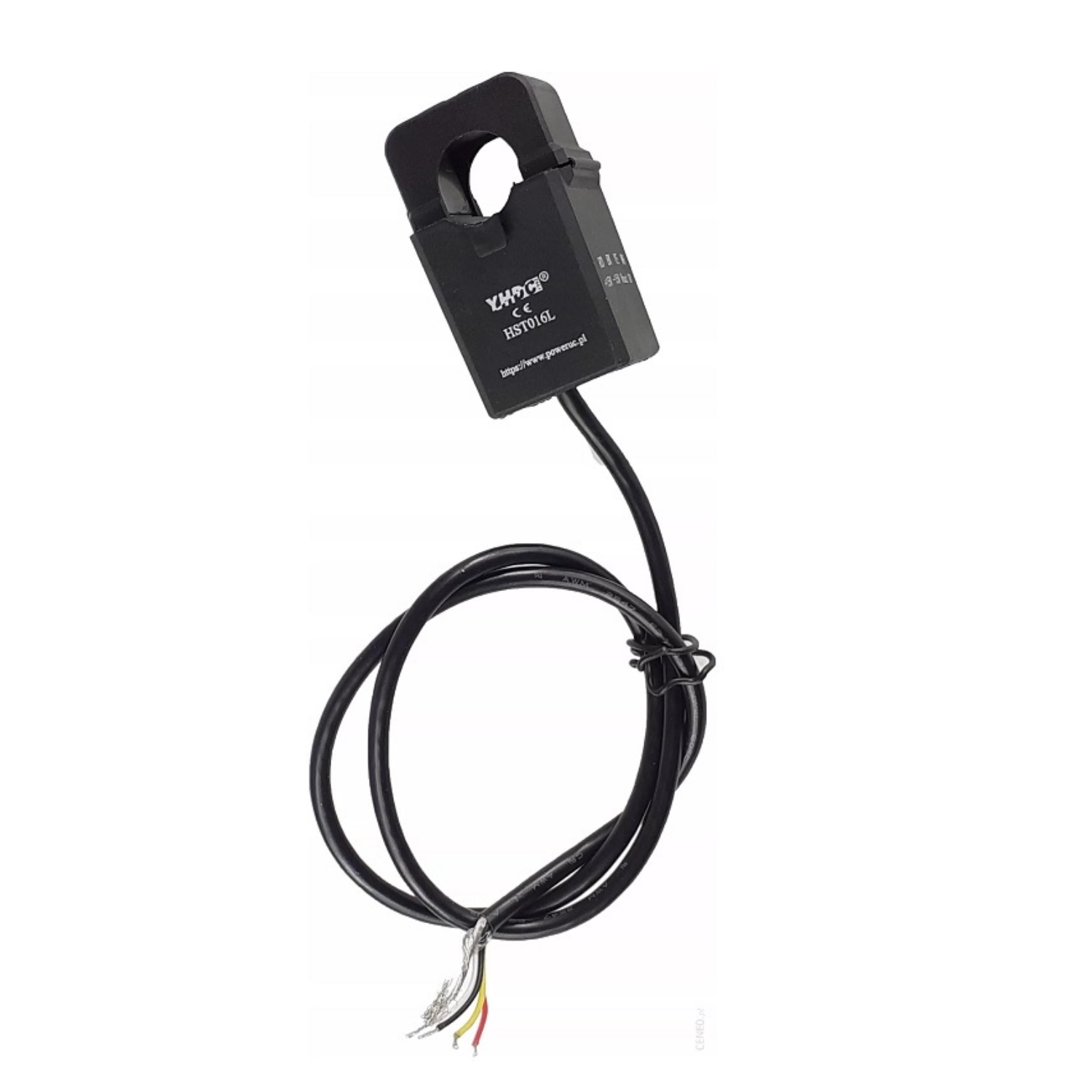

Wiring Diagram:
- Red: + 15V
- Black: -15V
- Yellow: Vout
- White: 0V
Package Included:

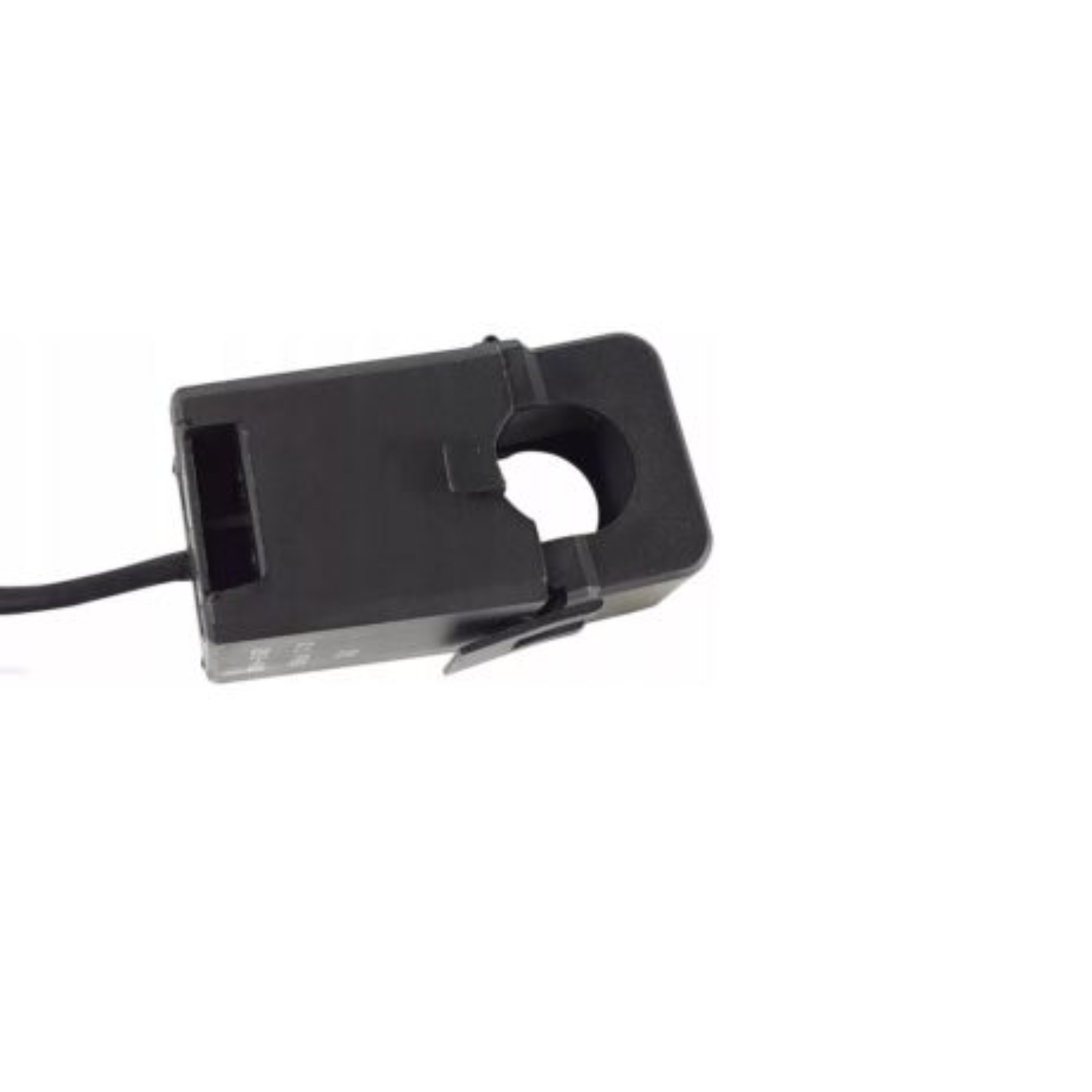

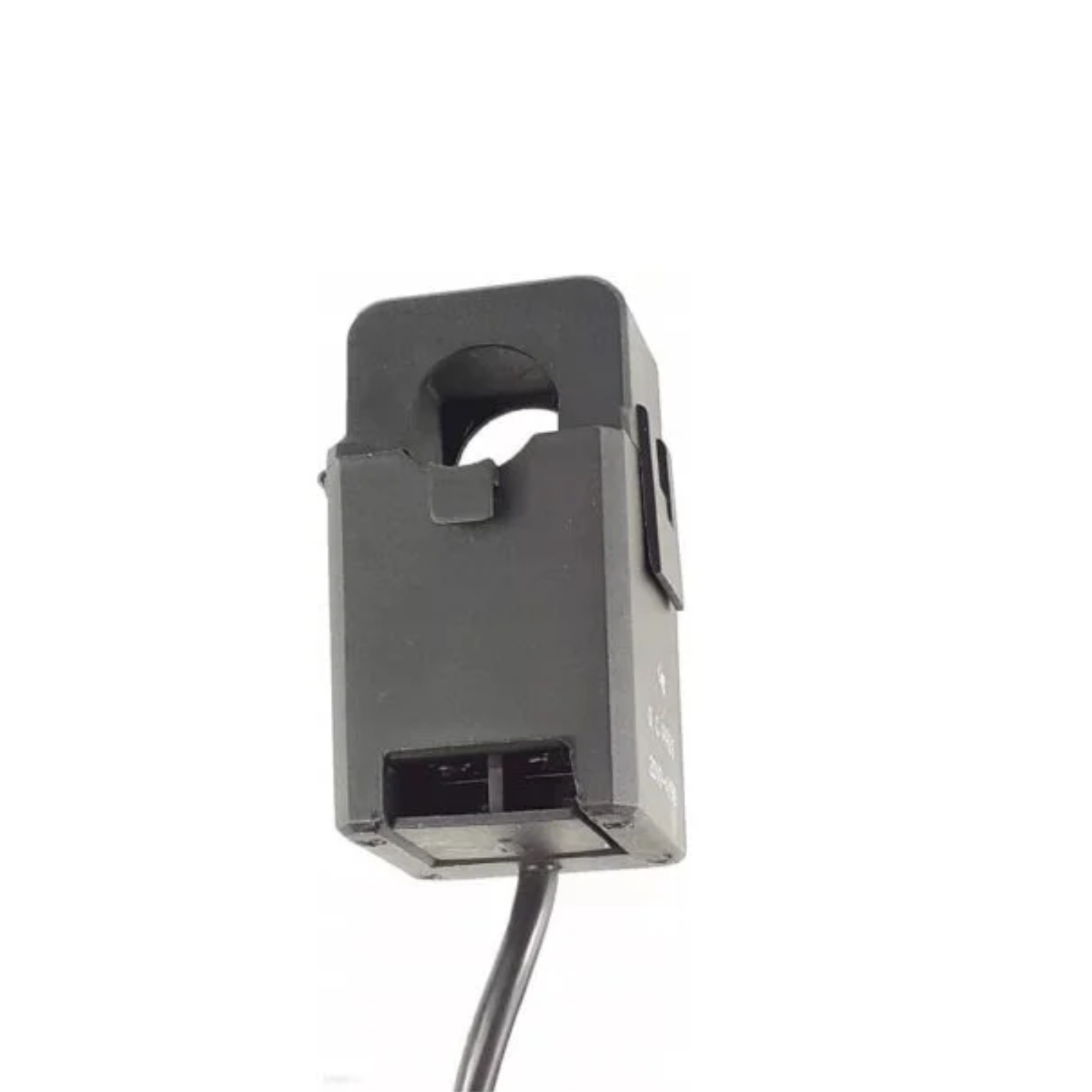

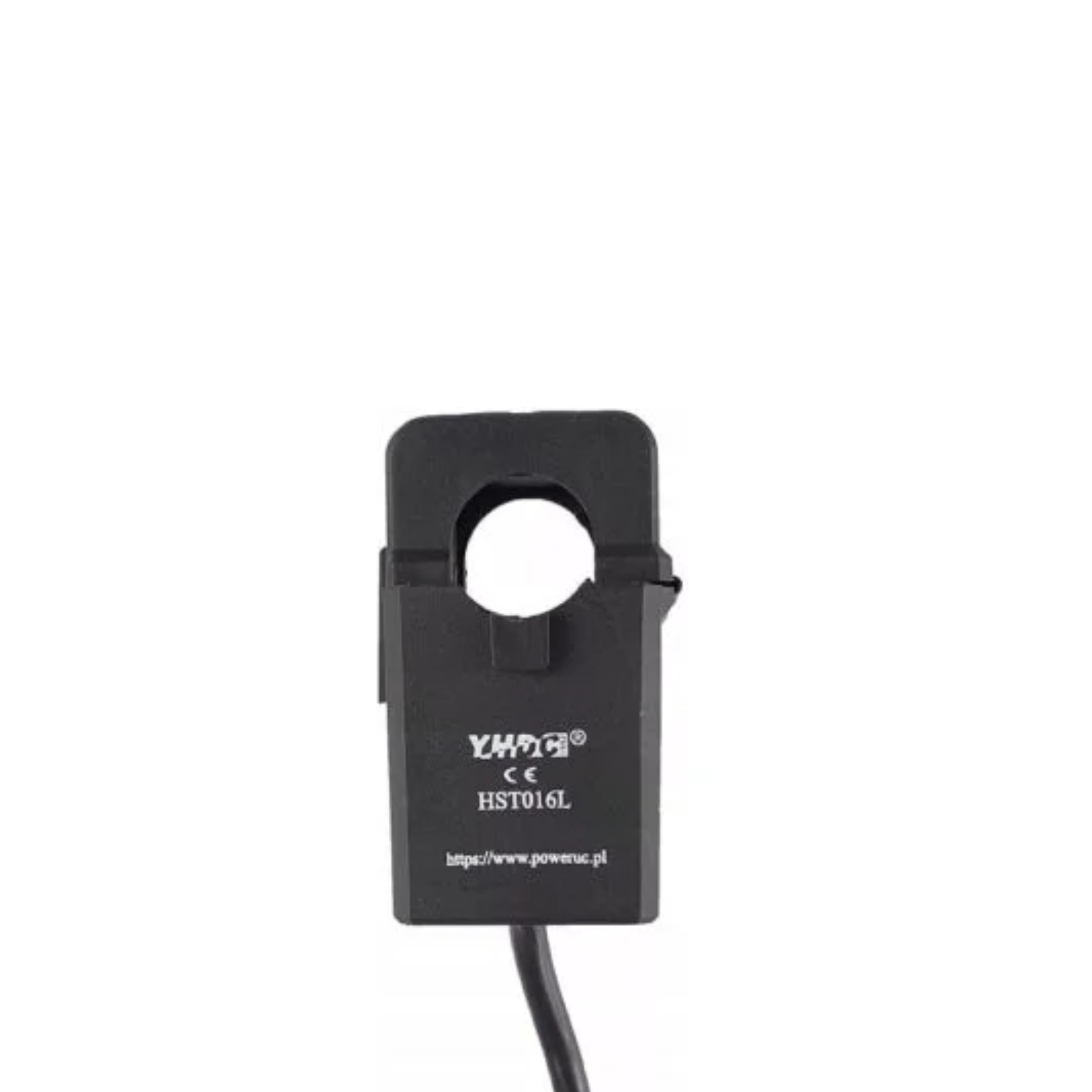

1 x YHDC HST016L 200A 4V Hall Split Core Current Sensor
