ydlidar

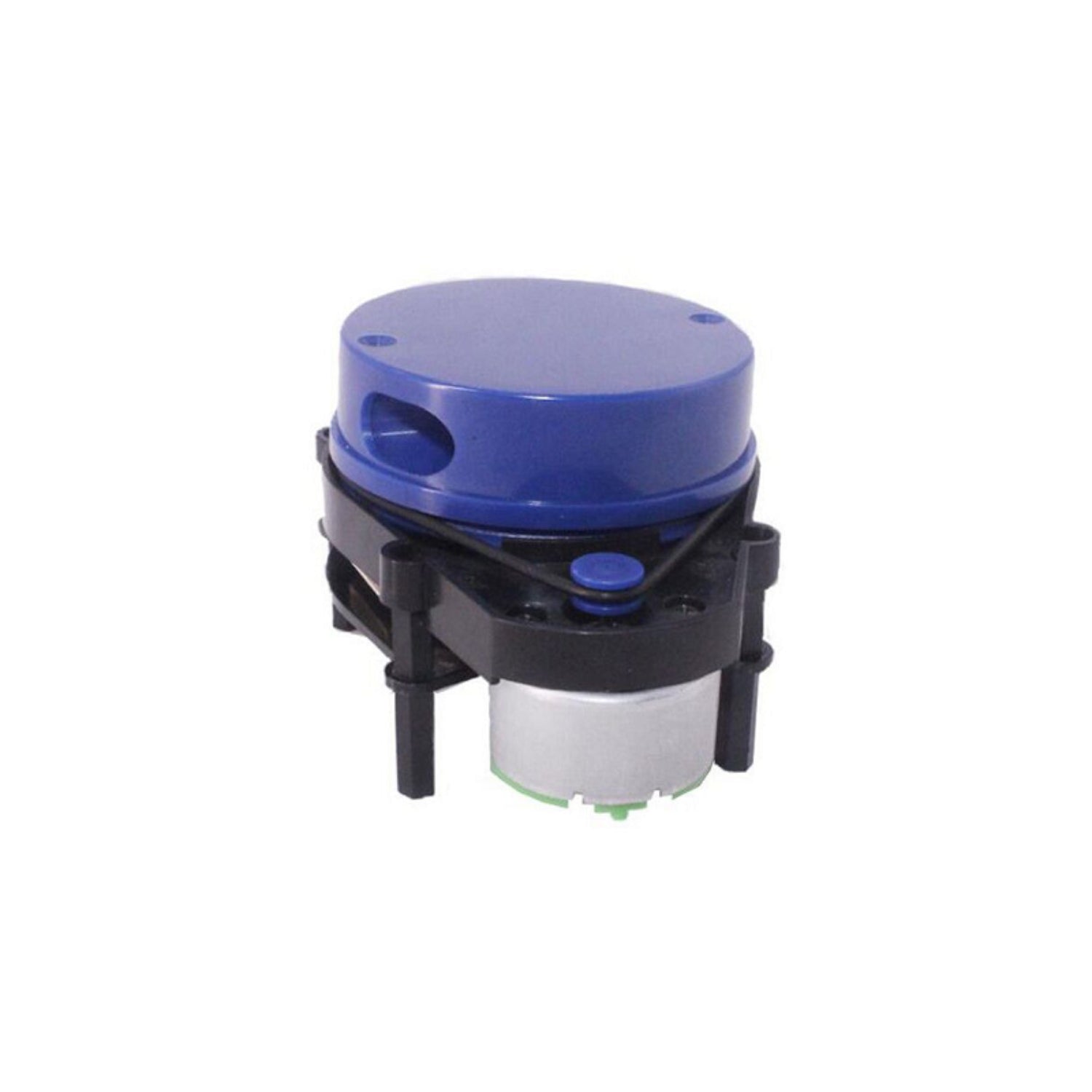

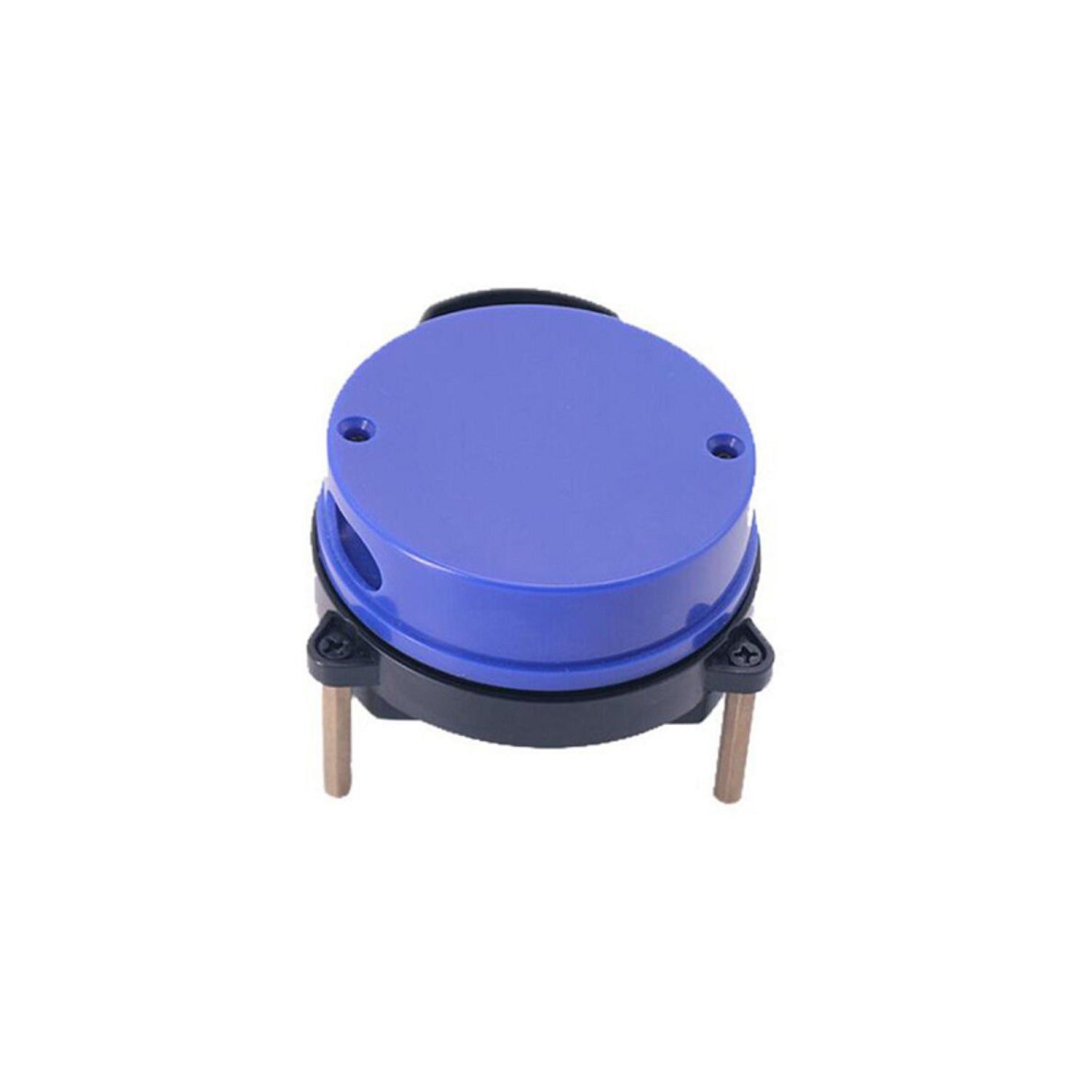

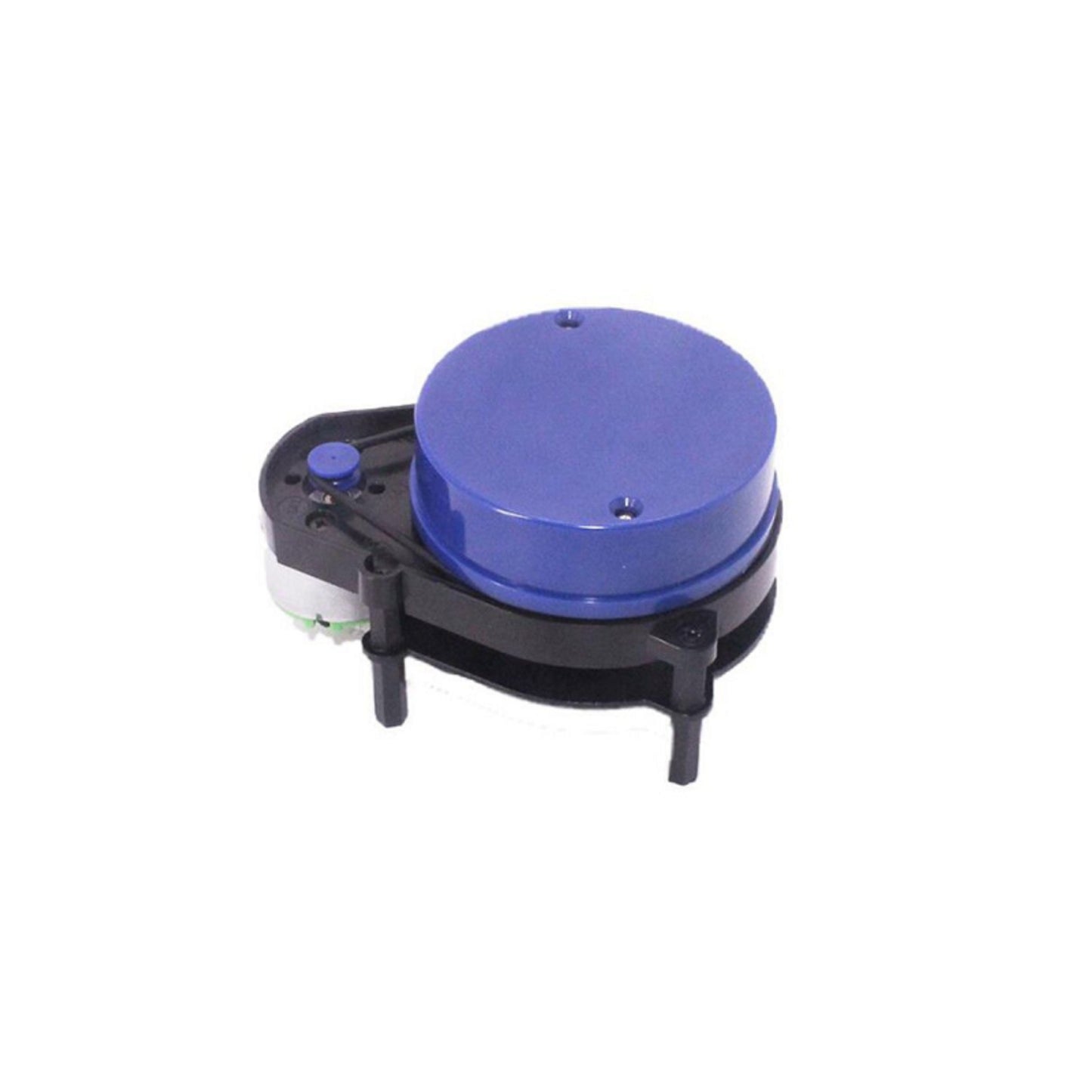

YDLIDAR X4 360 Degree Laser Scanner 10M Range LiDAR Sensor High Accuracy ROS Scanner For Navigation and Collision Avoidance

YDLIDAR X4 360 Degree Laser Scanner 10M Range LiDAR Sensor High Accuracy ROS Scanner For Navigation and Collision Avoidance

SKU:

In stock

Regular price Rs. 9,321.00
Regular price Sale price Rs. 9,321.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The YDLIDAR X4 is a high-performance 360° 2D laser ranging sensor, utilizing triangulation for accurate distance measurement. It features a PH2.0-8P connector for power, data, and motor control, with a 3.3V UART interface for communication.

The built-in motor driver allows speed control through M_EN and M_SCTR pins. Using infrared pulsed laser technology, it meets FDA Class I safety standards. Ideal for robot navigation, obstacle avoidance, ROS teaching, home cleaning, security, environmental scanning, and 3D mapping applications.

Specifications:

  • Distance Measuring Range(M): 0.12 to 10
  • Scanning Frequency(Hz): 06-12Hz
  • Operating Voltage (VDC): 5
  • Scanning Angle: 360°
  • Resolution: 0.48-0.52°
YDLIDAR X4 360 Degree Laser Scanner

Features:

  • 10m Ranging distance.
  • Ranging frequency up to 5K Hz.
  • Strong resistance to ambient light interference.
  • Laser power meets Class I laser safety standards.
  • Low power consumption, small size, and long life.
  • Adjustable motor speed frequency differs from 6Hz~12Hz.
  • Small distance error, stable performance, and high accuracy.
  • 360-degree omnidirectional scanning ranging distance measurement.
Collision Avoidance Sensor

Applications:

  • Regional security.
  • Robot ROS teaching and research.
  • Robot navigation and obstacle avoidance.
  • Commercial robot /Robot vacuum cleaner.
  • Environmental scanning and 3D reconstruction.

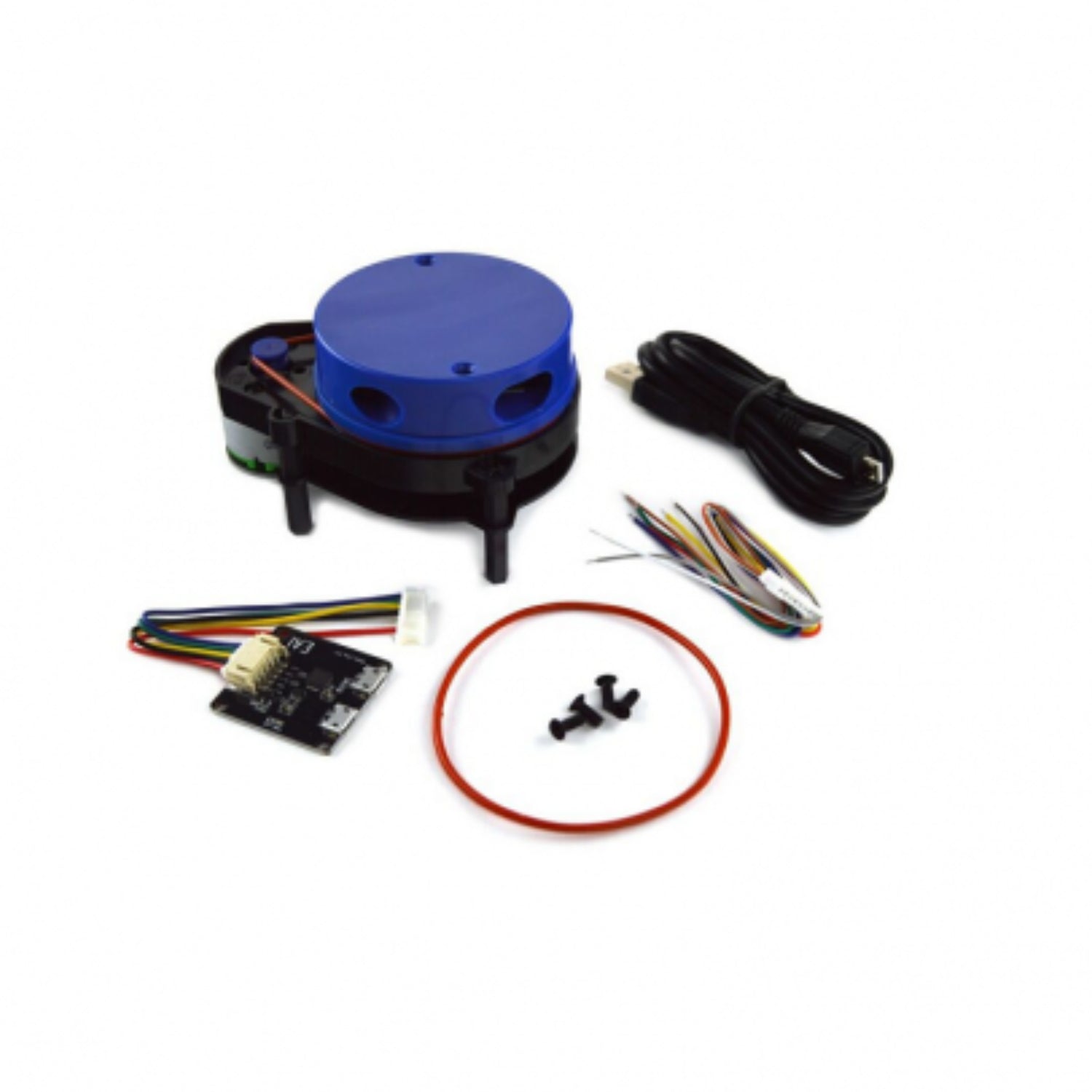

Package Included:

1 x YDLIDAR X4 360 Degree Laser Scanner 10M Range LiDAR Sensor High Accuracy ROS Scanner  For Navigation and Collision Avoidance
