YDLIDAR

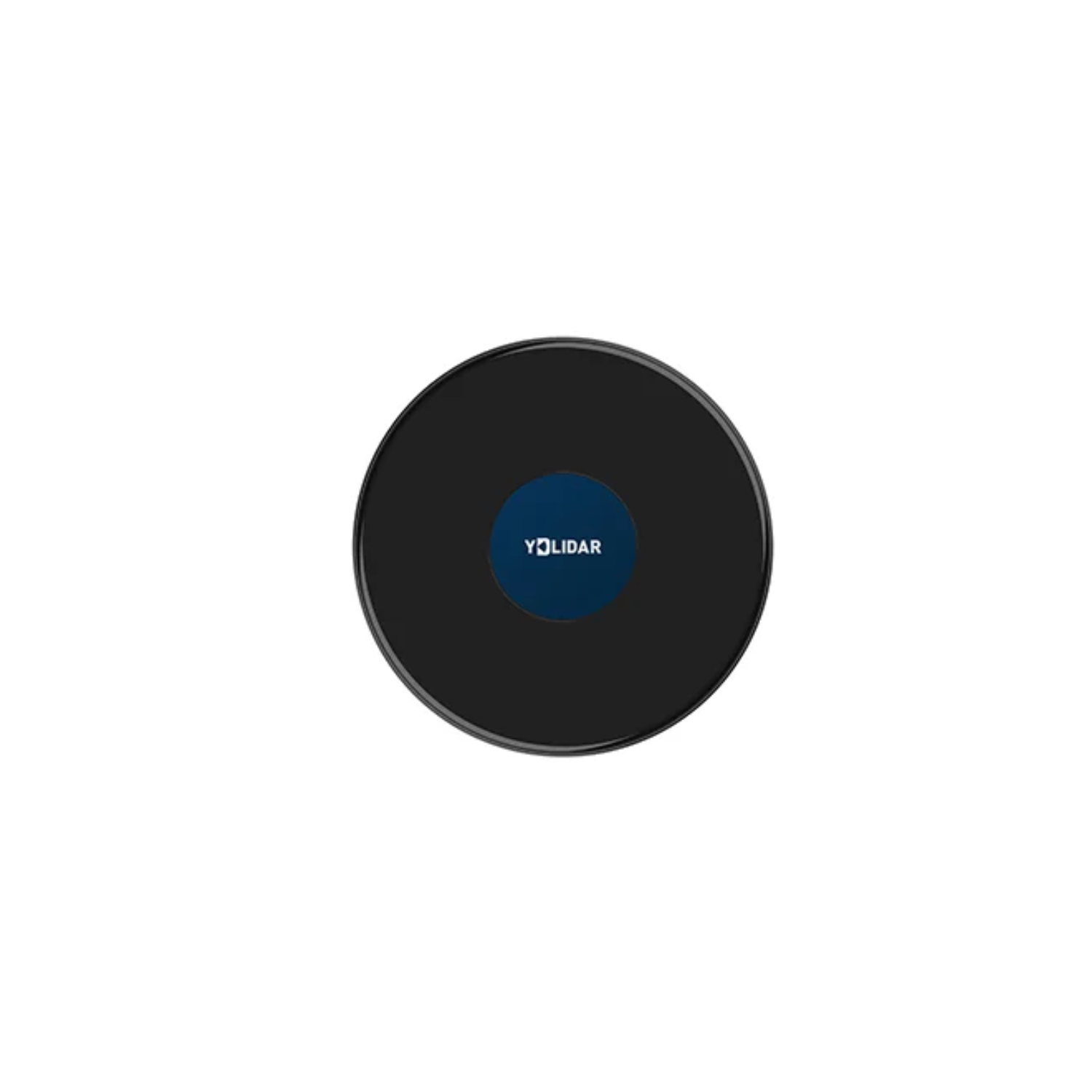

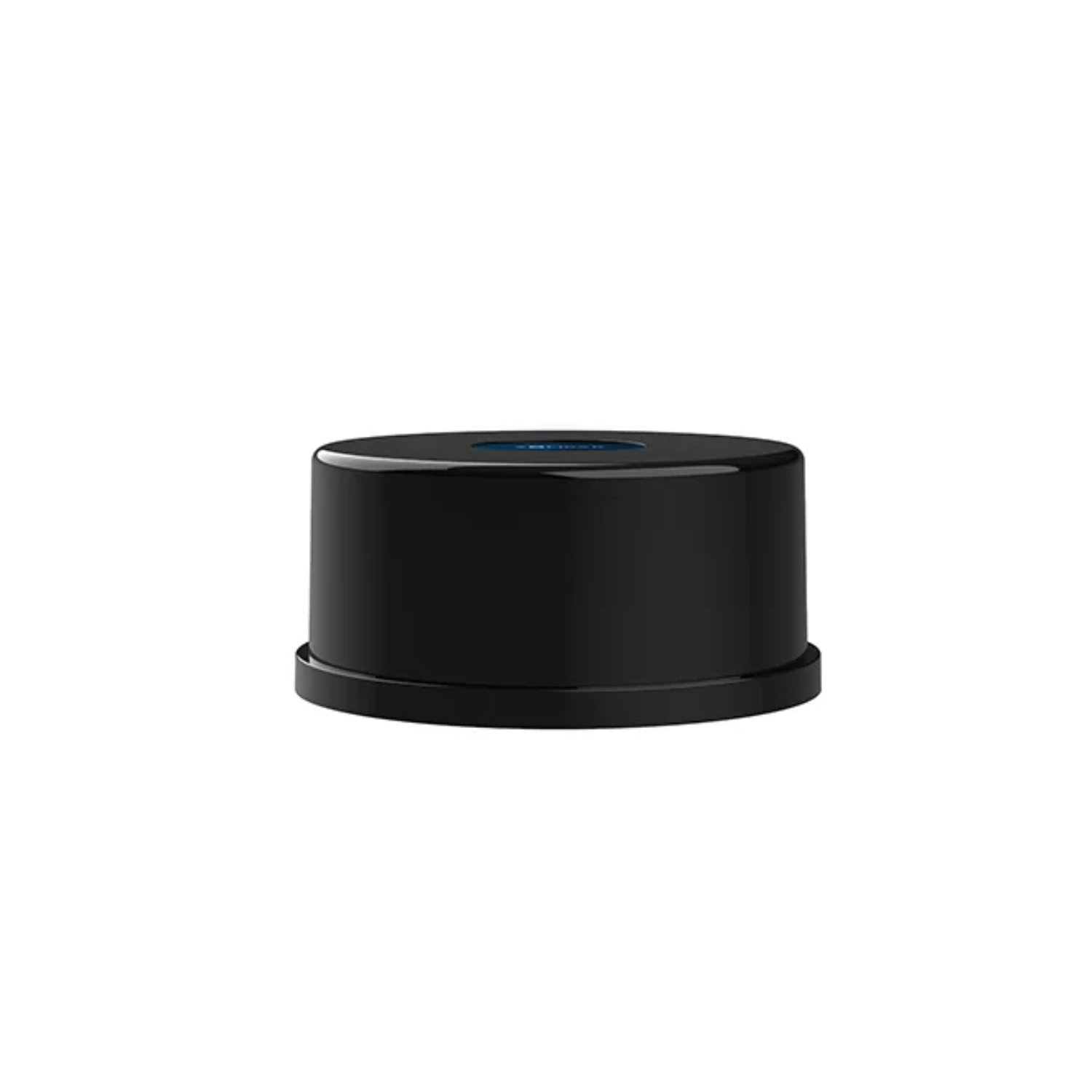

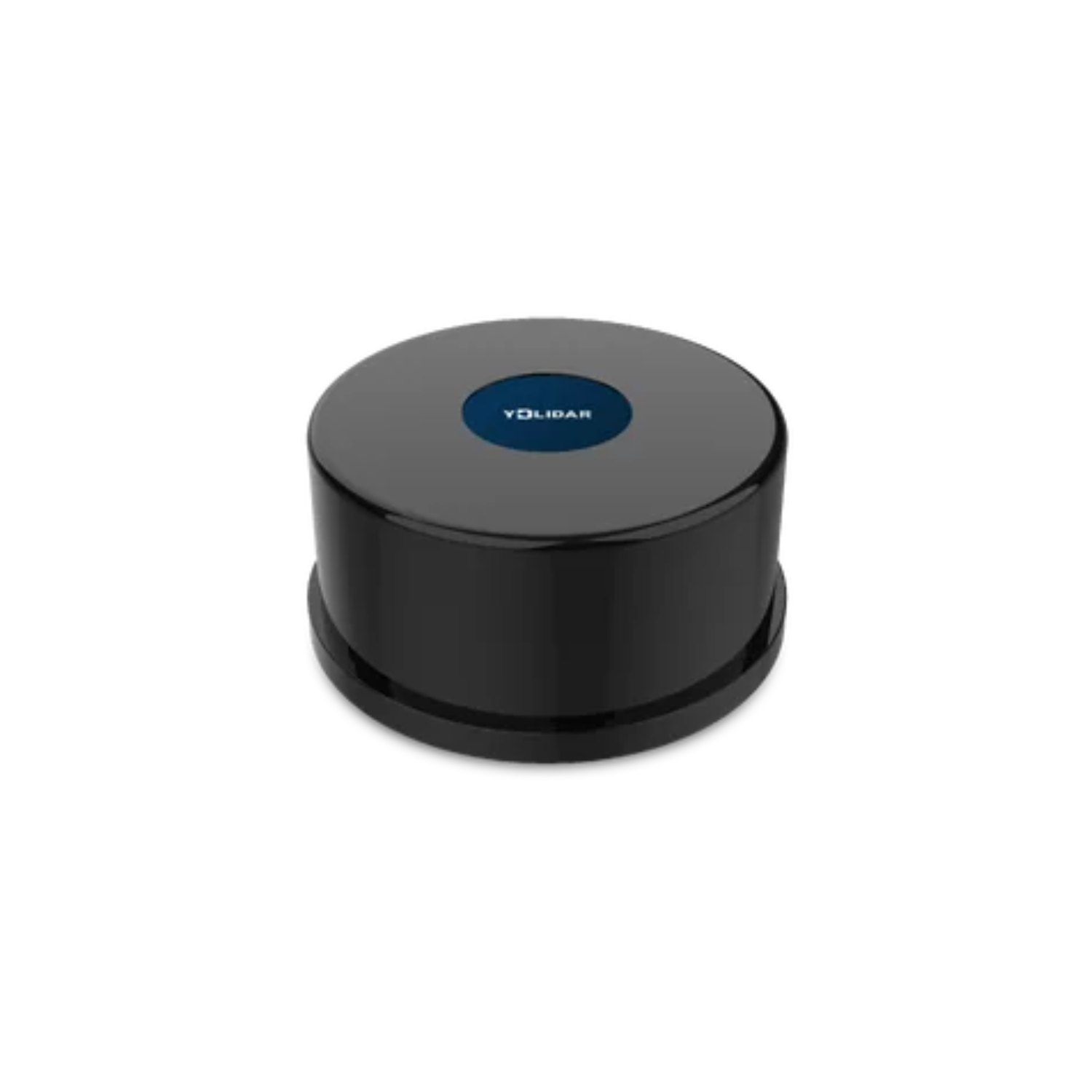

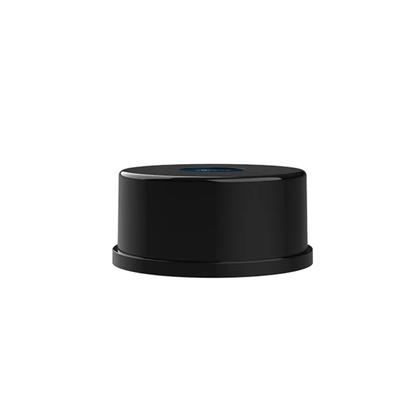

YDLIDAR TG30 LiDAR Sensors 360-degree Laser Range Scanner 30m Lidar Robotics Navigation, Mapping For Autonomous Vehicle Development

YDLIDAR TG30 LiDAR Sensors 360-degree Laser Range Scanner 30m Lidar Robotics Navigation, Mapping For Autonomous Vehicle Development

SKU:

In stock

Regular price Rs. 50,751.00
Regular price Sale price Rs. 50,751.00
Sale Sold out
Shipping calculated at checkout.
Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The YDLIDAR TG30 Lidar is a powerful and compact 360-degree laser range scanner, engineered for high-precision, omnidirectional environmental sensing. Utilizing advanced Time-of-Flight (TOF) ranging technology, this lidar delivers exceptional accuracy and high-frequency distance measurements, making it ideal for a wide array of applications.

Its design features an enclosed housing with an IP65 protection level, ensuring reliable performance even in challenging environments. The compact structure is specifically tailored for seamless integration into various systems, providing developers with a flexible and efficient sensing solution. As it mechanically rotates 360 degrees, it continuously outputs both angle information and detailed point cloud data of its surroundings.

Specifications:

  • Model Type: Laser Range Scanner
  • Distance Measuring Range: 30M
  • Ranging Resolution: 4cm
  • Ranging Frequency: 20000 Hz
  • Motor Frequency: 5-15 Hz
  • Ranging Distance: 0.05-30 m
  • Scan Angle: 360
  • Supply Voltage: 5.2 V
  • Working Current: 400-480 mA
  • Baud Rate: UART 512000
  • Operating Temperature: -10 to 50°C
  • Laser Wavelength: 895-915 nm
  • Laser Power: 85W

Features:

  • 360° Omnidirectional Scanning
  • Anti-Interference Design
  • IP65 Protection
  • High Accuracy Stability

Applications :

  • Industrial automation
  • Robot ROS teaching and research
  • Regional security
  • Smart transportation
  • Environmental scanning and 3D reconstruction
  • Commercial robot /Robot vacuum cleaner

Package Included:

  • 1 x YDLIDAR TG30 360° Laser Scanner (30 m)
  • 1 x USB adapter board
  • 1 x Cable
