Description:
The YDLIDAR T-mini Plus is a compact, high-performance LiDAR sensor engineered for a wide range of applications, including robotics, autonomous vehicles, and industrial automation. Offering exceptional 2D mapping and precise distance measurement.
it delivers a versatile, cost-effective solution, especially in environments where space and power efficiency are essential. With its advanced features and small form factor, the T-mini Plus is the ideal choice for projects that require reliable, accurate sensing in confined spaces or power-sensitive settings.
Specifications:
- Type: Lidar Sensor
- Range Frequency: 4000Hz
- Range Distance: 0.05-12m@80%
- Angular Resolution (°): 0.54°
Features:
- T-mini Plus adopts mature ToF detection principles, while the new temperature compensation algorithm can make the device perform well in different temperature environments, bringing stable and high-precision 360-degree two-dimensional environment precise.
- The ranging radius of T-mini Plus can reach 12m, with a ranging blind spot as low as 0.05m and a full range accuracy of ± 20mm.

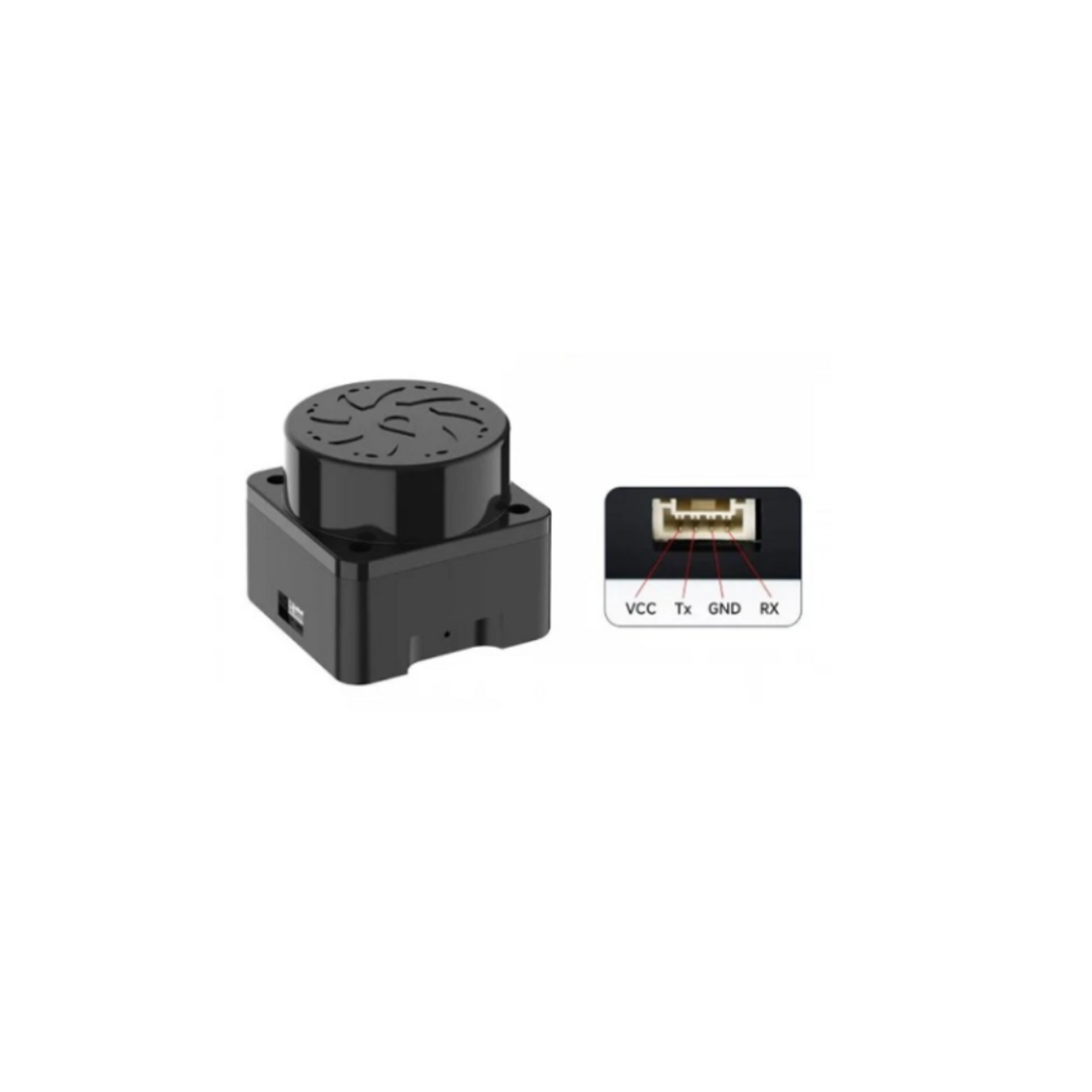

- Delicate appearance of 38.6 * 38.6 * 33.9mm, universal external communication interface UART, compatible with upper computer and terminal devices, suitable for more scenarios.
- T-mini Plus has 60kLux anti environmental interference capability, which can achieve high-frequency and high-precision distance measurement and precise mapping both indoors and outdoors.
- supporting multiple platforms for quick learning T-mini Plus provides SDKs for different platforms such as Windows and Linux, supports Ros and ROS2 systems, and rich technical documentation, making it easy to get started and convenient for customers to use.
- The infrared point pulse laser used in T-mini Plus can ensure the safety of humans and pets. The lidar has passed testing and conformed to Class I IEC60825-1.
Applications:
- Ideal for robotic systems requiring precise distance measurement and 360° environmental scanning for navigation, mapping, and obstacle detection.
- Can be used in self-driving vehicles to enhance object detection and mapping capabilities.
- Suitable for integration with drones for accurate altitude measurement and mapping.
- Commonly used for SLAM applications to create detailed maps of environments while the robot moves.
Package Included:
1 x YDLIDAR T-mini Plus LiDAR Sensor High-Precision LiDAR Sensor For Autonomous Vehicles
