Description:

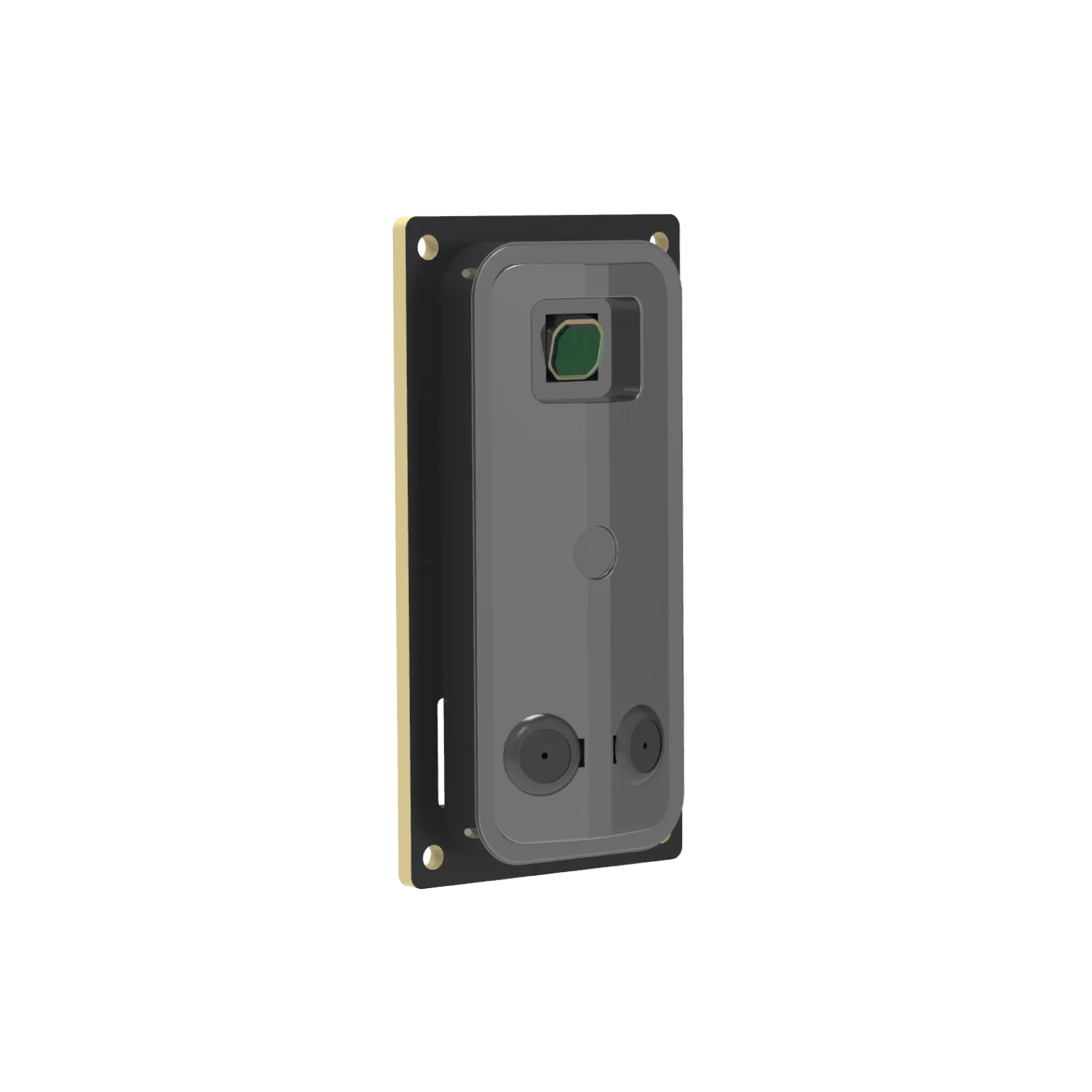

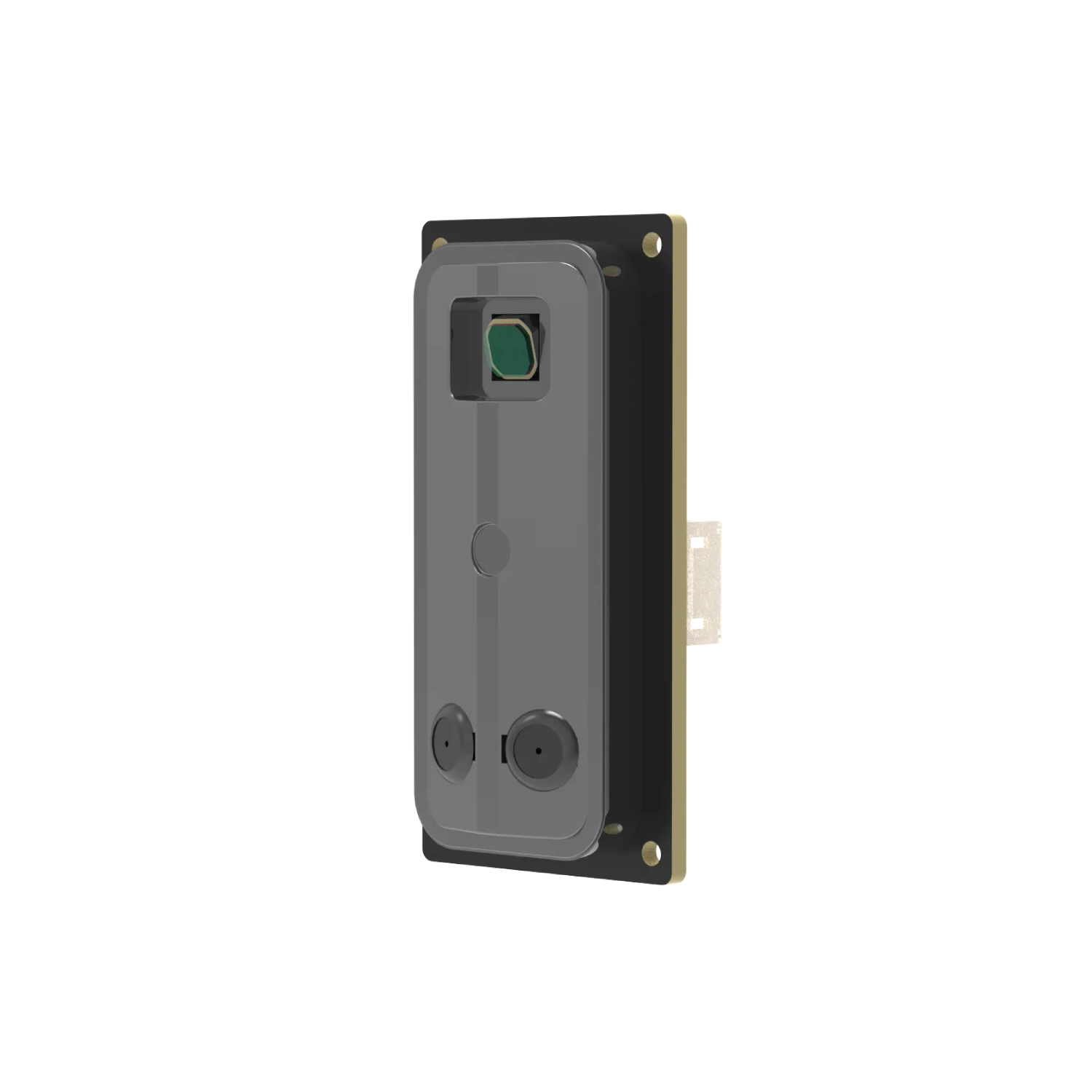

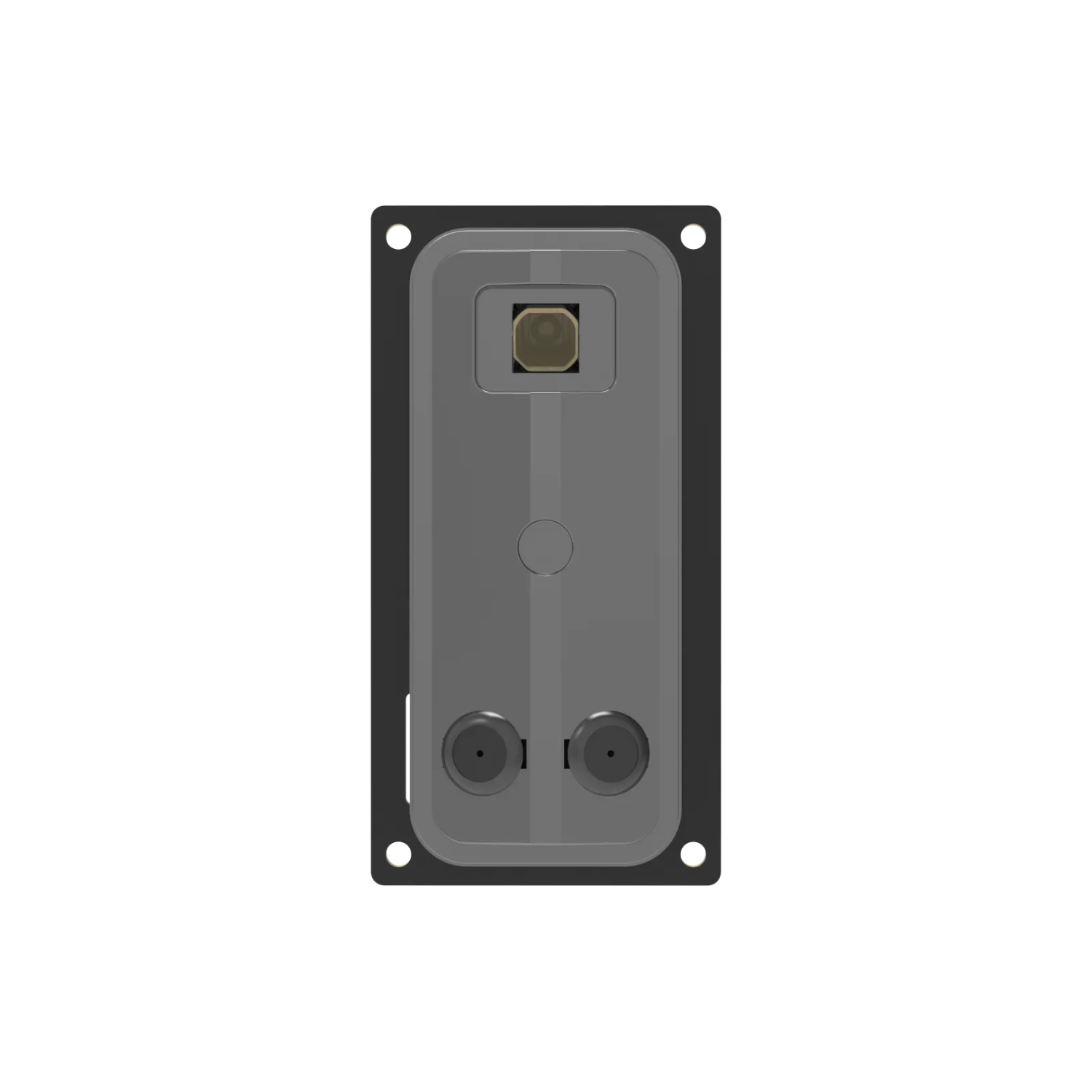

The YDLIDAR GS5 Linear Array Solid LiDAR is a cutting-edge sensor designed by the EAI team for precise distance measurement and environmental mapping. Utilizing advanced triangulation principles, the GS5 delivers 60 degrees of high-accuracy laser scanning, generating detailed point cloud data of its surroundings. Ideal for robot obstacle avoidance and intelligent path planning, the GS5 brings superior perception to your robotic applications.
Specifications:
- Item Type: LiDAR
- Power Supply: 3.3V
- Baud Rate: 921600
- Range Frequency: 7.5-28Hz
- Range Distance: 70-1000mm
- Scan Angle: 85°
- Angular Resolution: 0.54°
Features:
- High accuracy with stable performance
- High angular resolution up to 0.54°
- Detects small objects as tiny as 6mm
- Wide 85° field of view with no blind zones when combined
- Minimal blind area, detection range from 70mm to 100mm
- Long service life of up to 10,000 hours
Package Included:
1 x YDLIDAR GS5 Linear Array LiDAR Sensor
