Description:

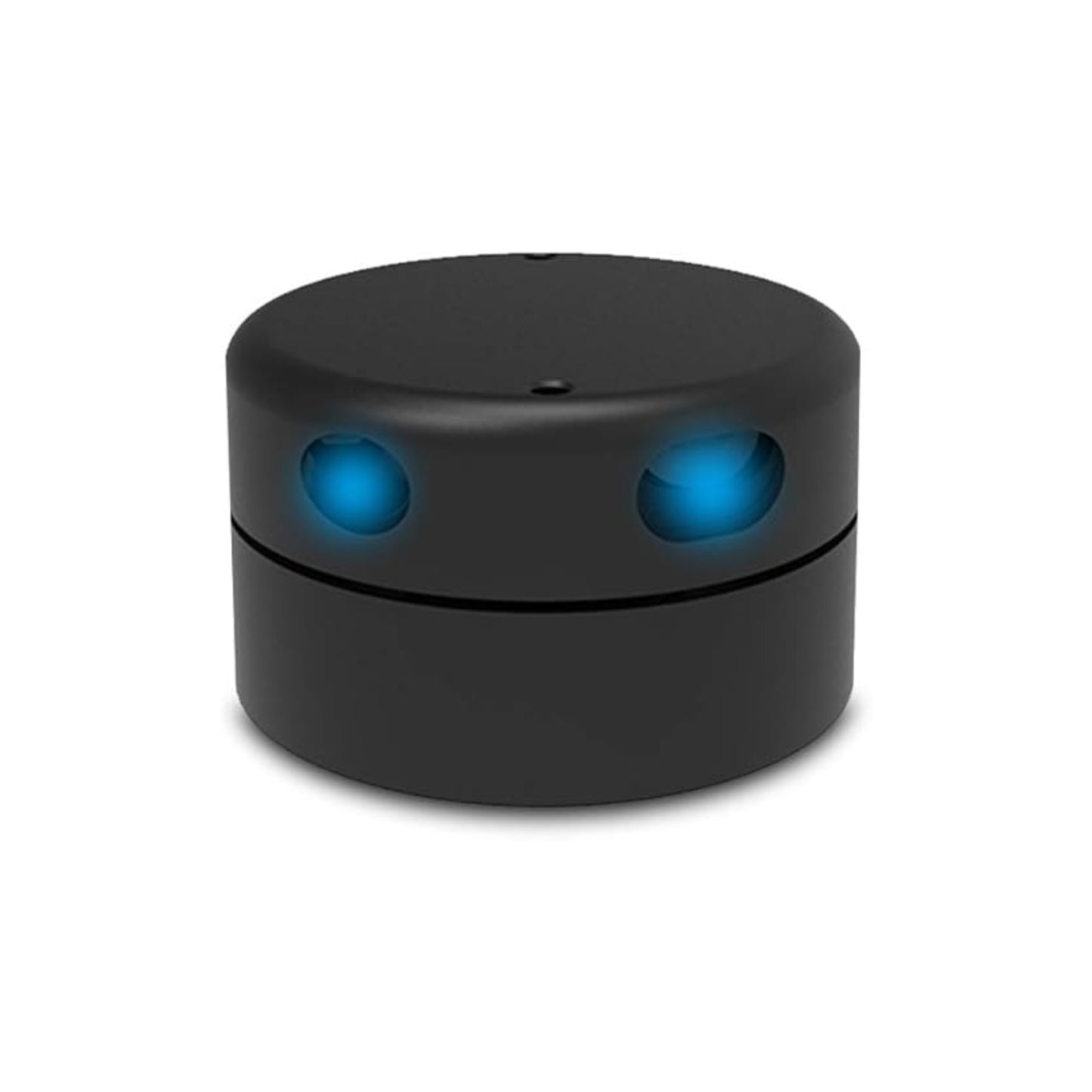

The YDLIDAR G2 is an advanced 360-degree 2D LiDAR sensor, designed to deliver high-precision, high-frequency distance measurements. Leveraging Triangulation technology, the G2 combines cutting-edge optical, electrical, and algorithmic components to ensure superior accuracy.
Its innovative mechanical design enables continuous 360-degree rotation, generating real-time point cloud data and detailed angle information as it scans the surrounding environment. This dynamic scanning capability makes the G2 ideal for a wide range of applications requiring precise environmental mapping and navigation.
Specifications:
- Model: G2
- Model Type: LiDAR Sensor
- Field of View (FOV): 360Deg.
- Supply Voltage (V): 5.2 V
- Operating Current (A): 500mA

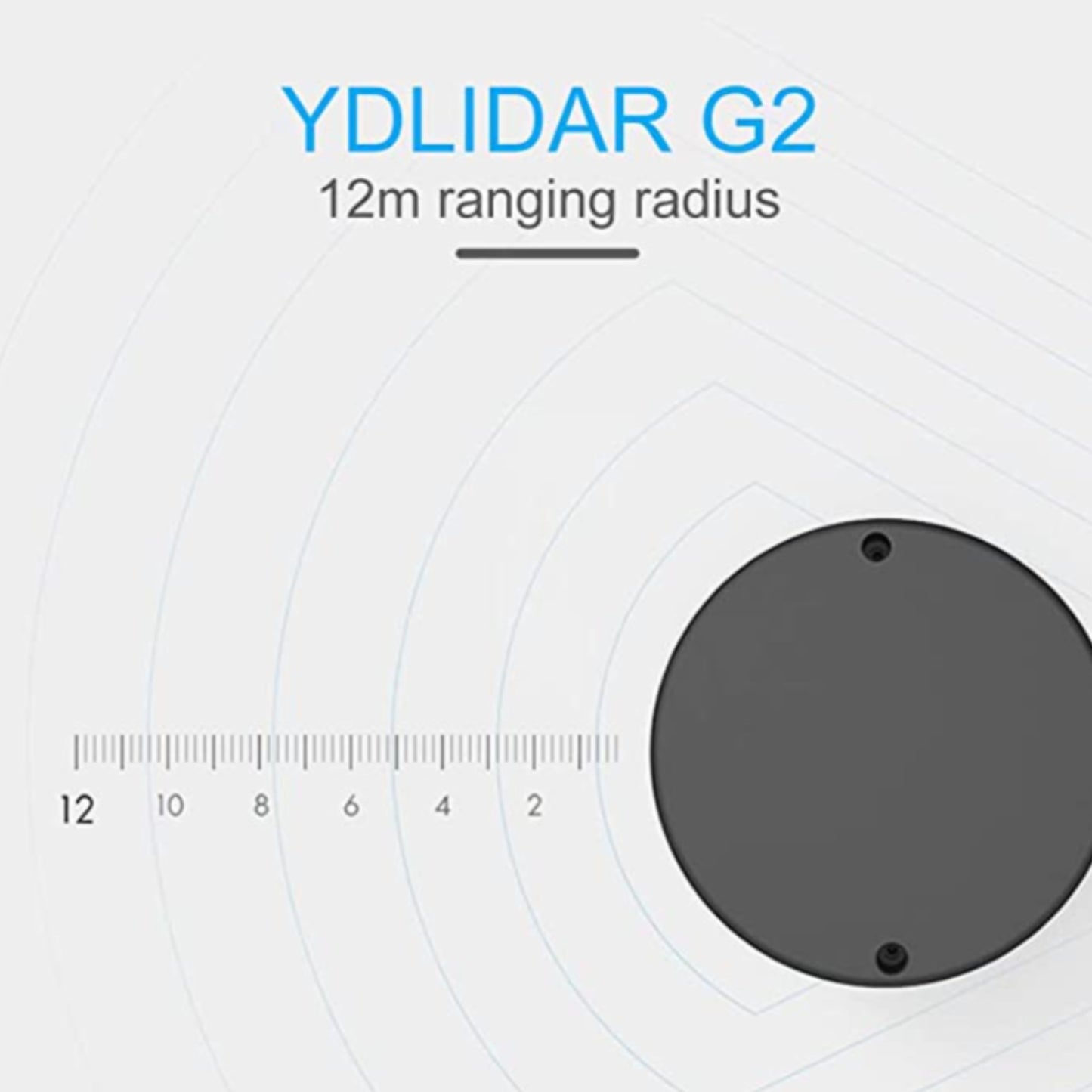

- Ranging Distance: 12m

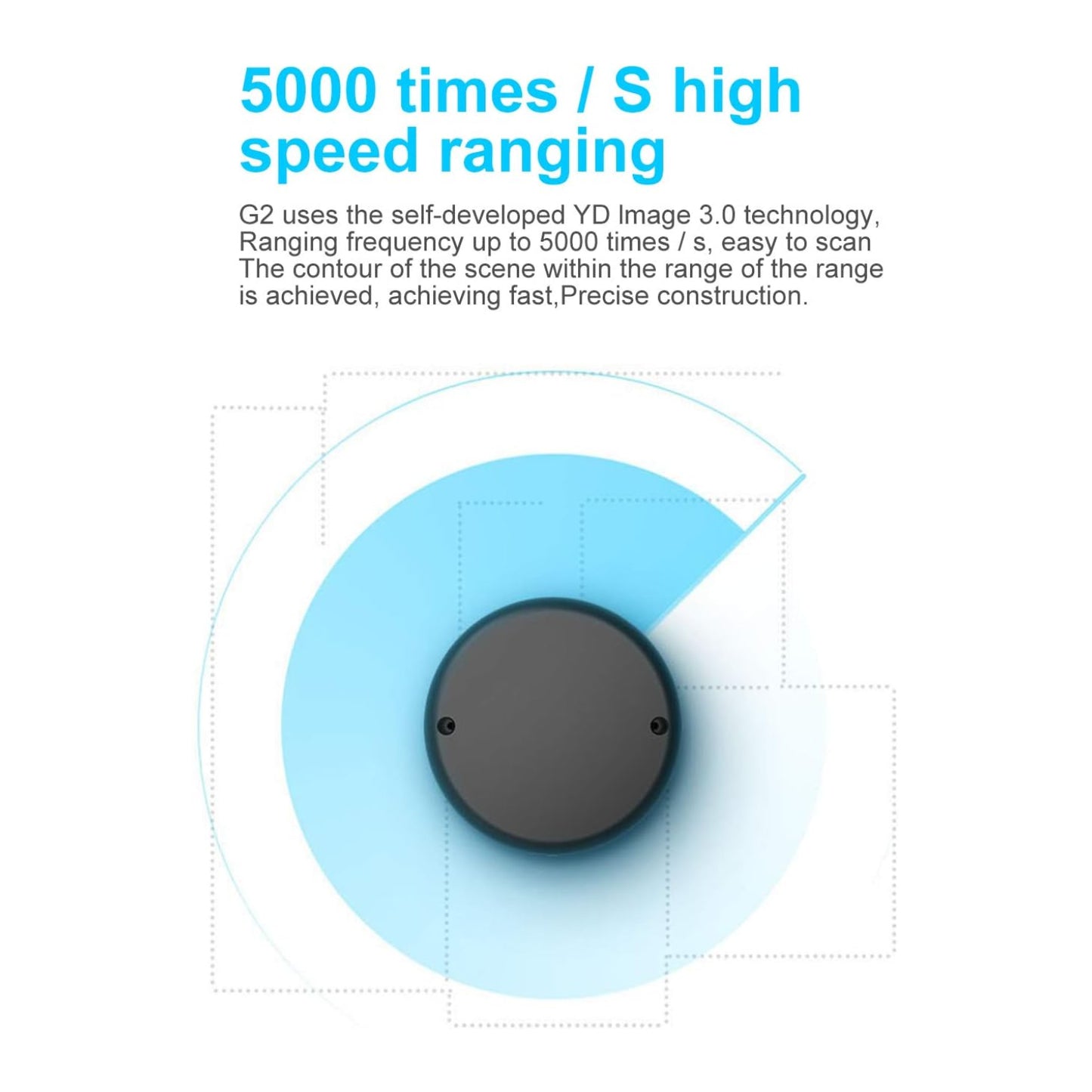

- Ranging Frequency: 5000 times per second
- Angular Resolution (°): 0.864 (Frequency-12Hz):
- Operating Temperature (°C): 50 ℃

Features:
- Wide measuring range.
- 360-degree scan ranging.
- Stable performance and high accuracy.
- High-speed ranging, up to 5000Hz frequency.
- Strong resistance to ambient light interference.
- Industrial-grade brushless motor drive, stable performance.
- Laser power meets Class I laser safety standards.
- 360-degree omnidirectional scanning and 5-12Hz frequency.
- Using optical and magnetic fusion technology to realize wireless communication and wireless power supply.
Applications:
- Regional security.
- Industrial automation.
- Intelligent transportation.
- Digital multimedia interaction.
- Robot ROS teaching and research.
- Robot navigation and obstacle avoidance
- Environmental scanning and 3D reconstruction.
Package Included:
1 x YDLIDAR G2 2D LiDAR Sensor 360° LiDAR Scanning Sensor For Automated Systems and Robotics
