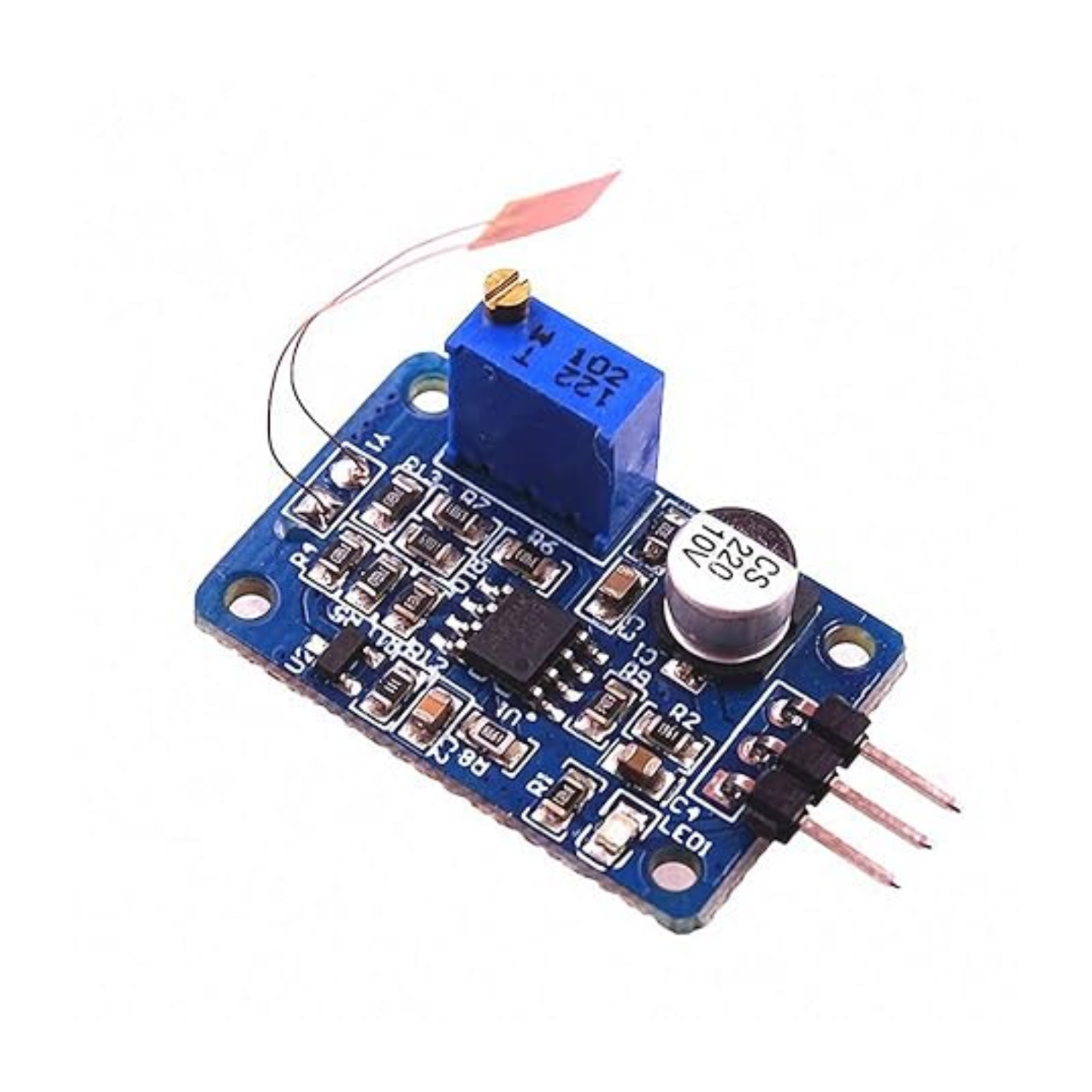

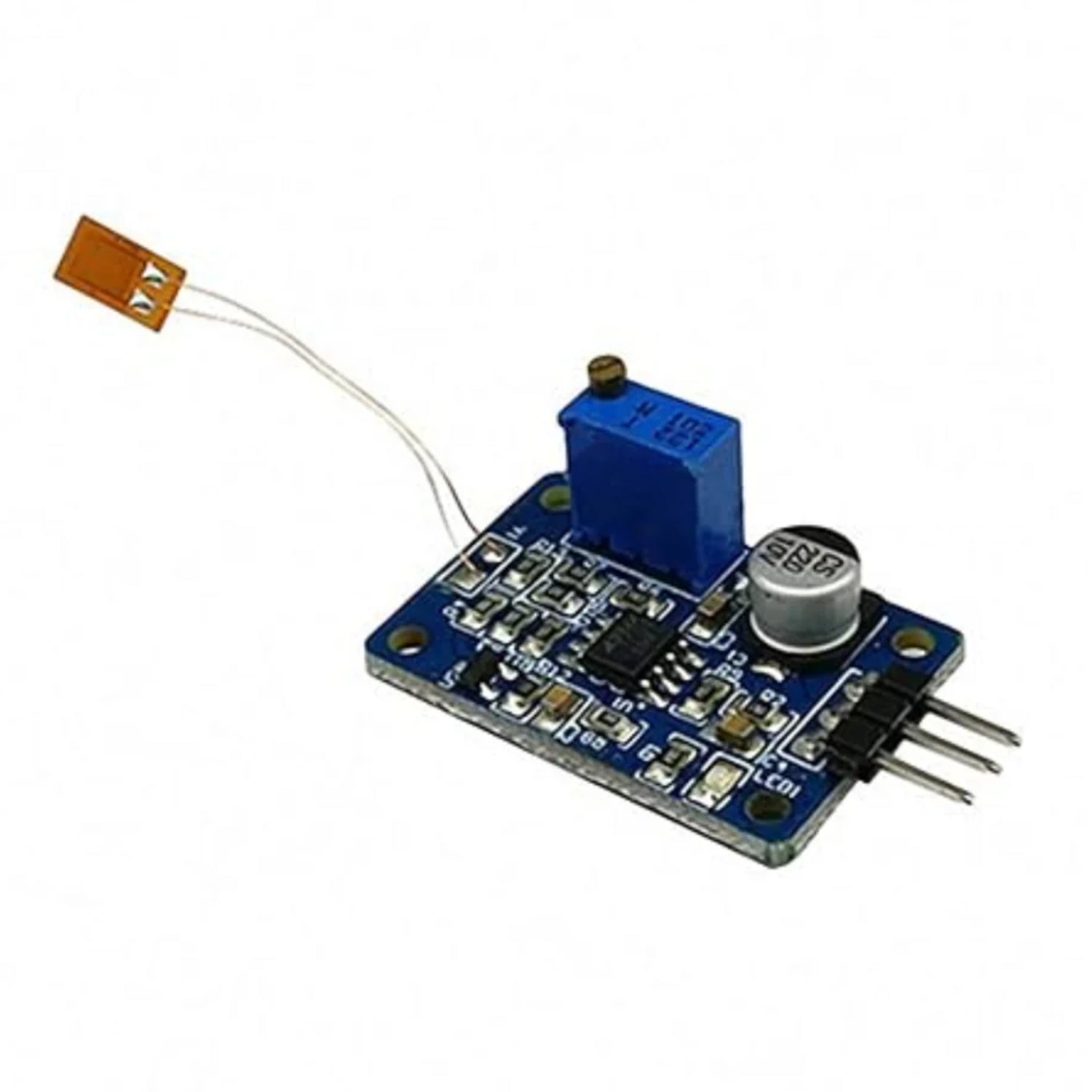

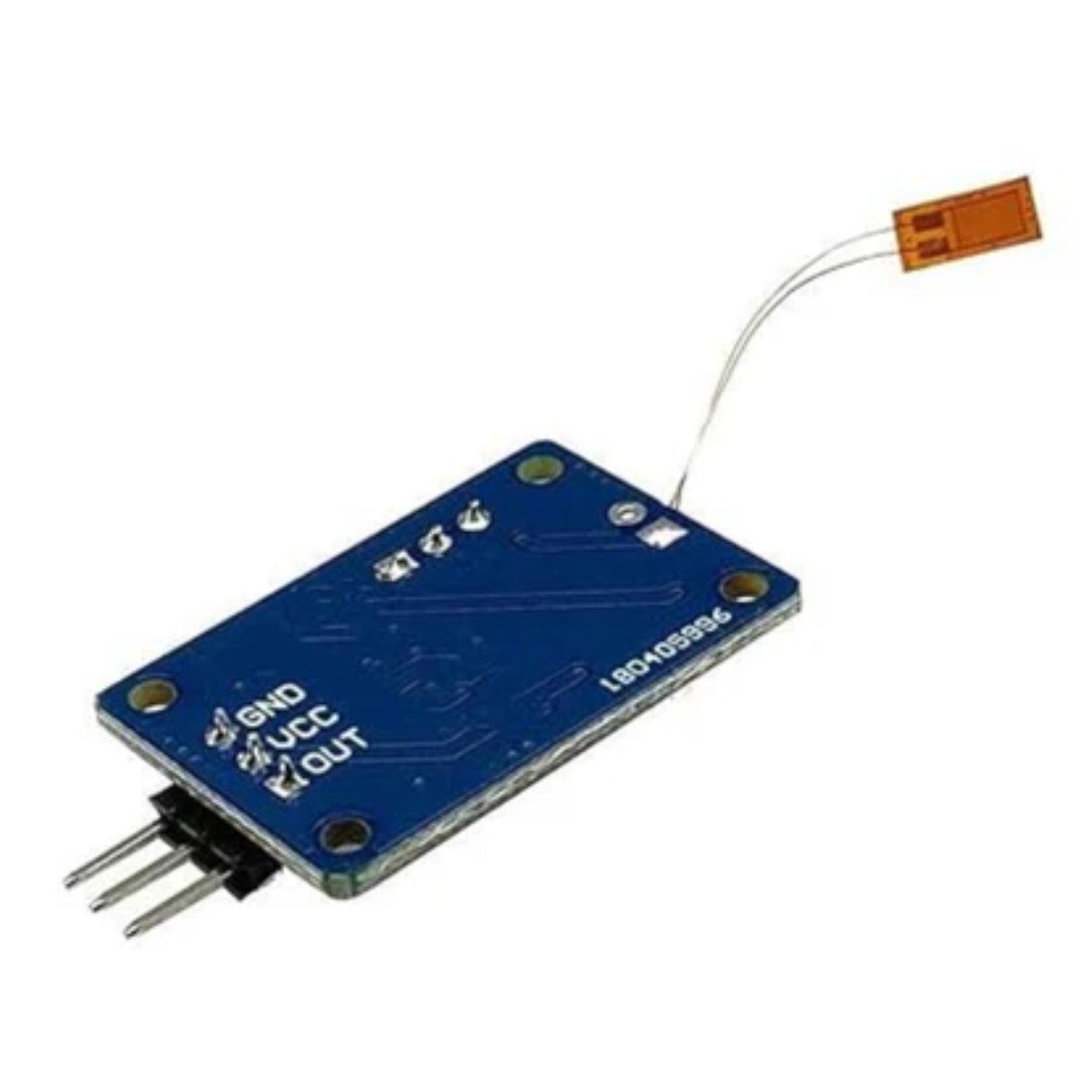

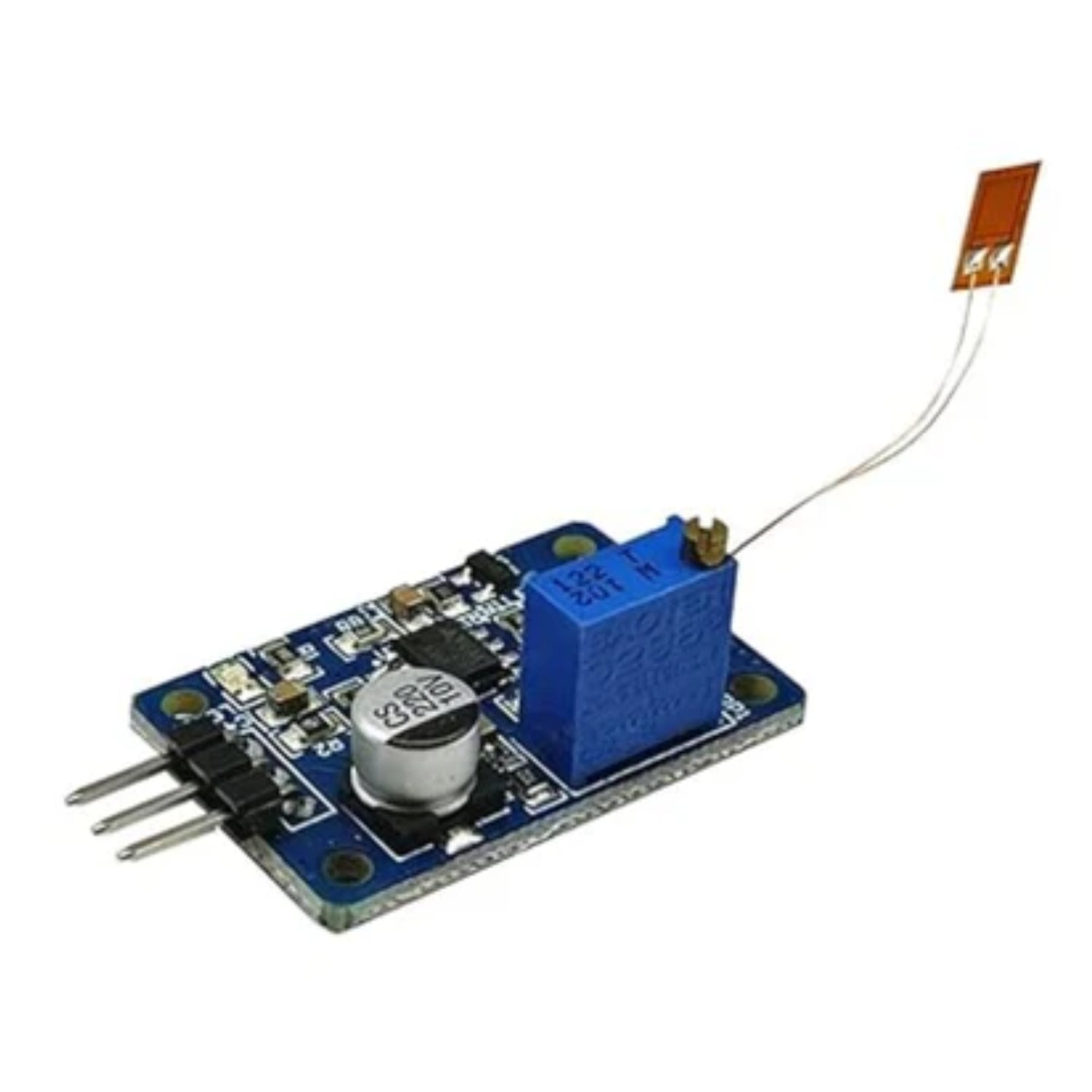

Y3 Strain Gauge Bending Sensor & Weighing Amplifier Module High-Precision Load Cell Signal Conditioning For Weight Measurement
Y3 Strain Gauge Bending Sensor & Weighing Amplifier Module High-Precision Load Cell Signal Conditioning For Weight Measurement
SKU:
In stock
Regular price
Rs. 281.00
Regular price
Sale price
Rs. 281.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The BF350-3AA strain gauge, a testament to precision engineering. This gauge, meticulously crafted to respond to minute changes in applied force, serves as the primary sensing element. Strain gauges operate on the fundamental principle of piezoresistivity, where the electrical resistance of a material changes proportionally to the mechanical strain applied to it. This phenomenon allows the gauge to translate forces, pressures, tensions, and weights into variations in electrical resistance.
Specifications:
- Sensitivity factor 2
- Voltage: 5V
- Strain limit: 2%
- Grid wire long, wide: 2x3.5mm
- Base Material: modified phenolic substrate
- Resistance: 350 ohms
- Fatigue life: >10000000 times
Features:
- Reverse Polarity Protection: Safeguards against damage from incorrect power connections.
- Onboard Power Indicator: Provides visual confirmation of power status with a blue LED.
- Analog Output: Delivers a voltage signal proportional to the bending force.
- Bending-Voltage Correlation: The Output voltage directly increases with the degree of bending.
- Zero Adjustment Potentiometer: Allows for precise calibration of the starting output voltage.
Package Included:
1 x Strain Gauge Bending Sensor Module
