Description:

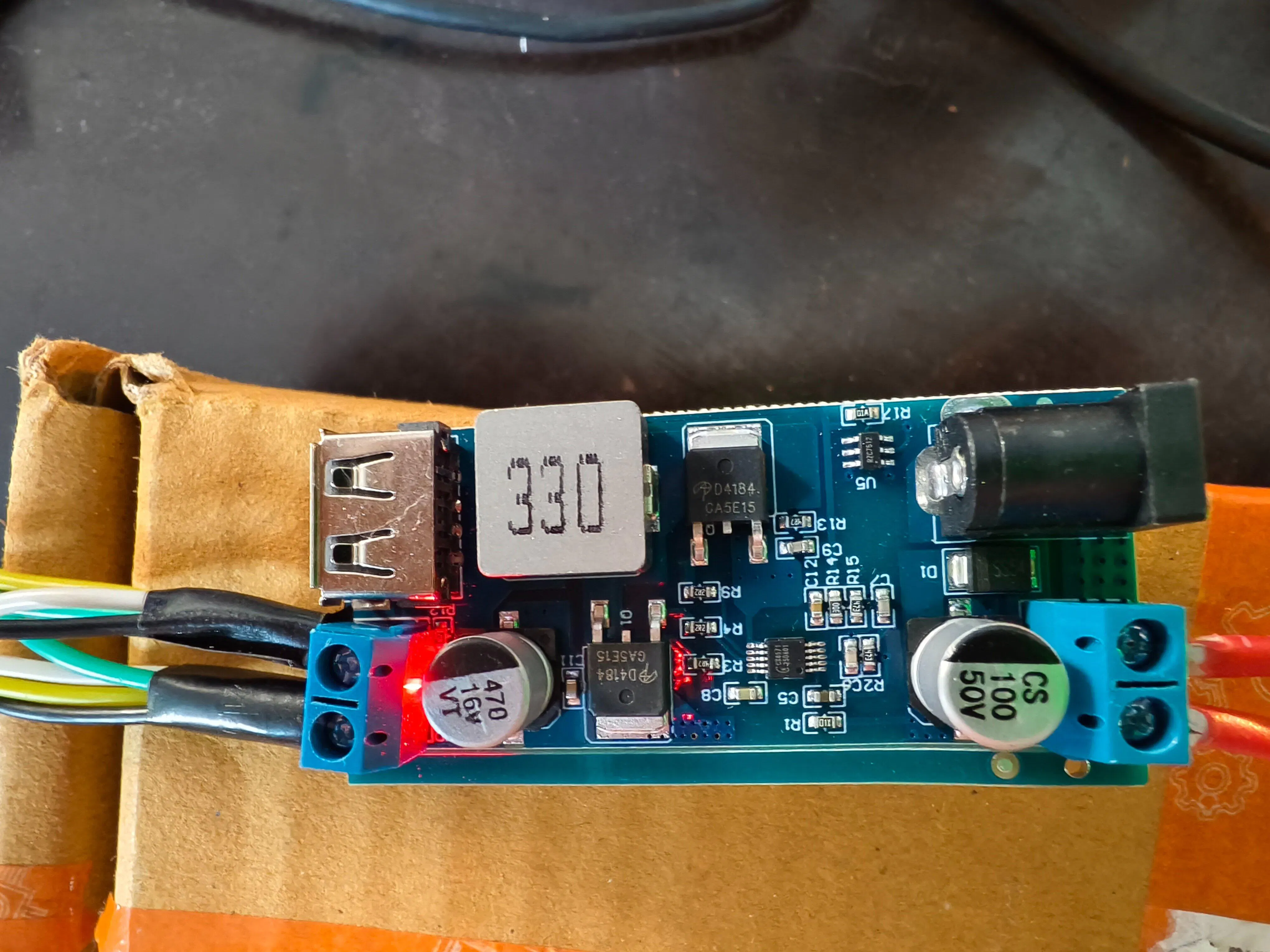

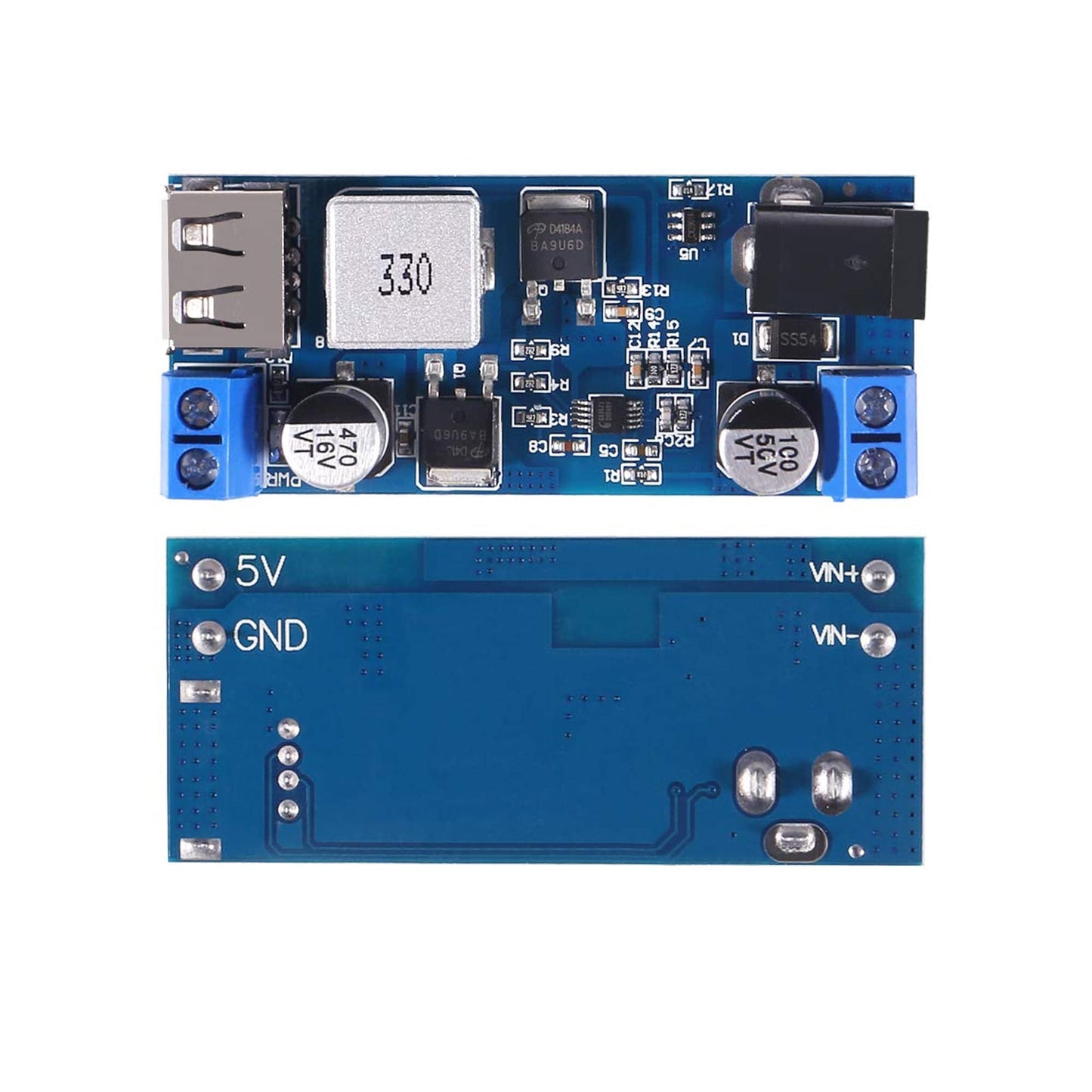

The XY-3606 DC-DC Buck Converter adopts a synchronous rectification scheme to provide a wide voltage range, large current and high efficiency. This XY-3606 DC-DC Buck Converter is user-friendly, accompanied by a DC interface and connecting terminals, making it easier to connect to different devices. The XY-3606 DC-DC Buck Converter has a USB interface and a fast charge-identifying chip that can be used to fast charge your phone.
Specifications:
- Input Voltage: DC 9V - 36V
- Output Voltage: 5.2V
- Input different voltages will output different power
-
DC 9-24V, Output 5.2V/6A/30W
-
DC 24-32V, Output 5.2V/5A/25W
-
DC 32-36V, Output 5.2V/3.5A/18W
Features:
- Synchronous rectification scheme, wide voltage, high current, high efficiency
- With DC plug and terminal, easy to use
- With a USB port, and a fast charge recognition chip compatible with Android and iPhone
Package Included:
1 x XY-3606 DC-DC Buck Converter Step-Down Power Module 5V 12V 24V to 5V 5A Buck Converter Module Step Down to 5V With USB Port For Phone Fast Charging Transformer Dual Output Voltage Regulator Board
