- Model : XR2206
- Operating Voltage (VDC) : 9-12
- Operating Frequency : 1Hz-1MHz

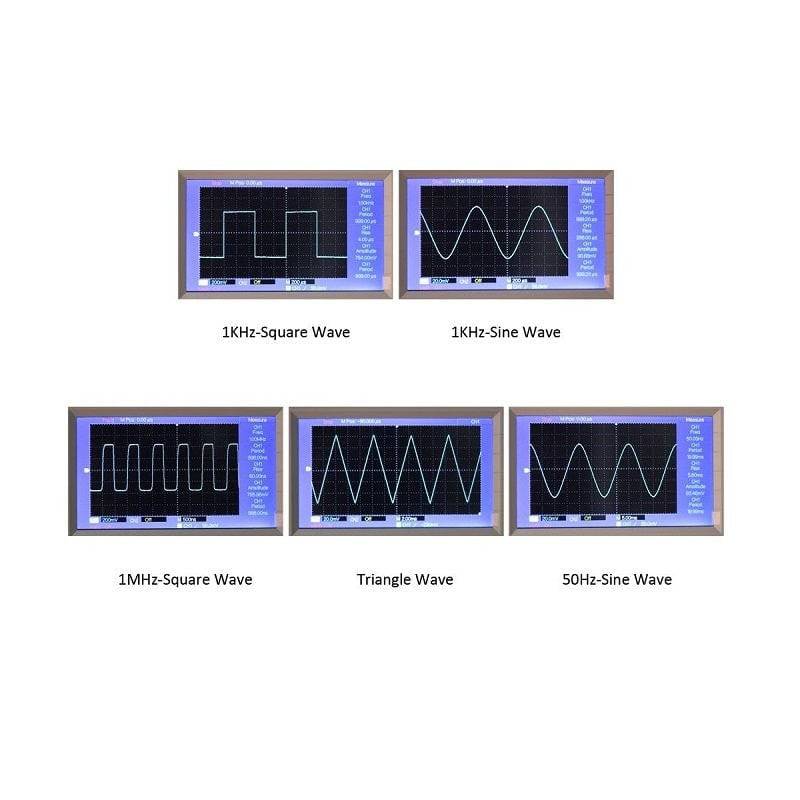

- Supported Waveforms : Sine, Square, Triangle
- Amplitude of Waveform : 0-3VDC
- Distortion : Less than 1%
- Flatness : +0.005dB
Description:

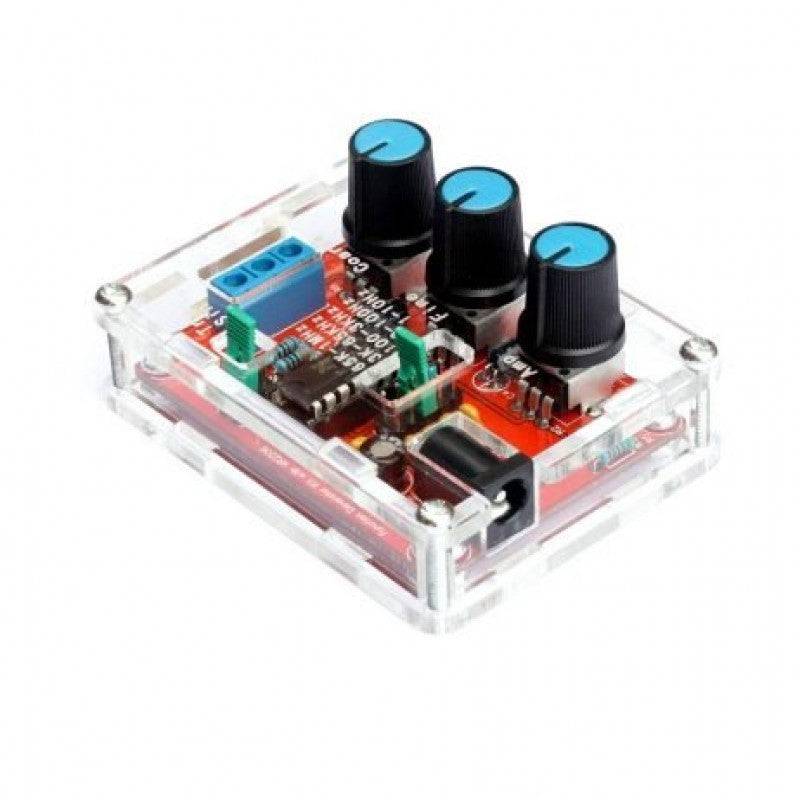

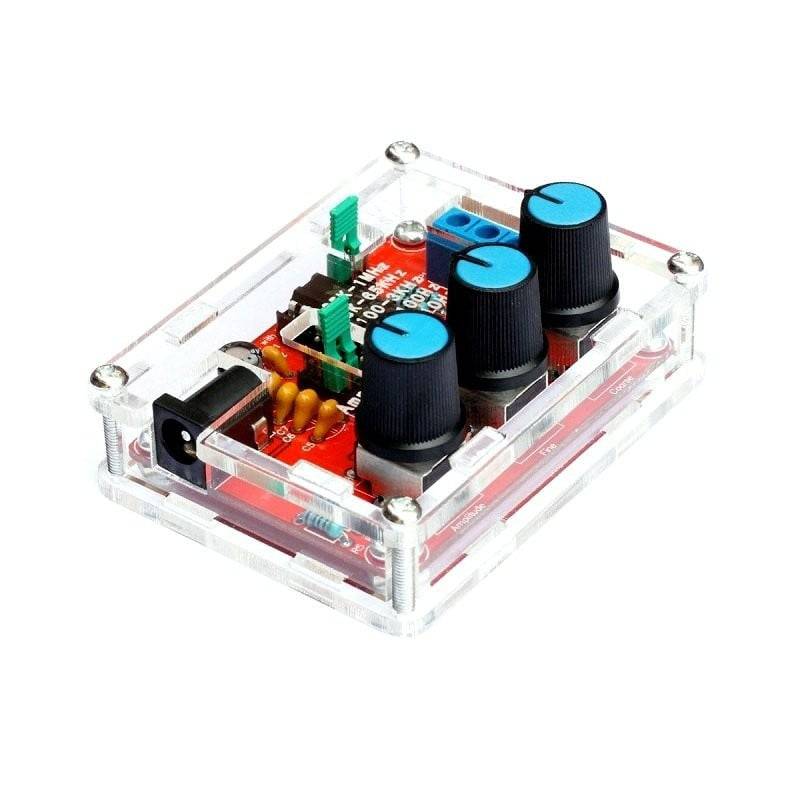

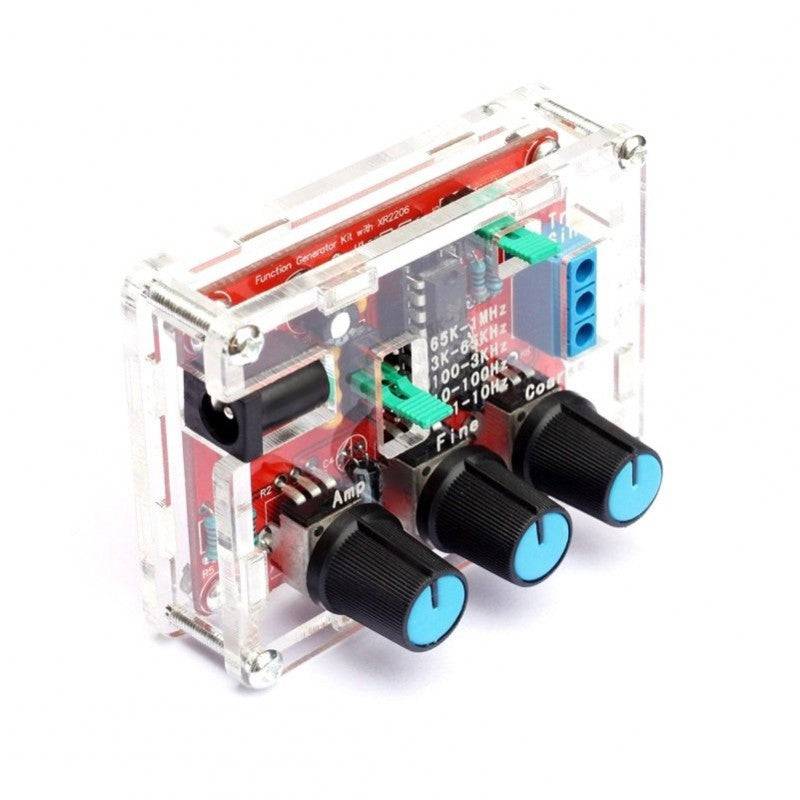

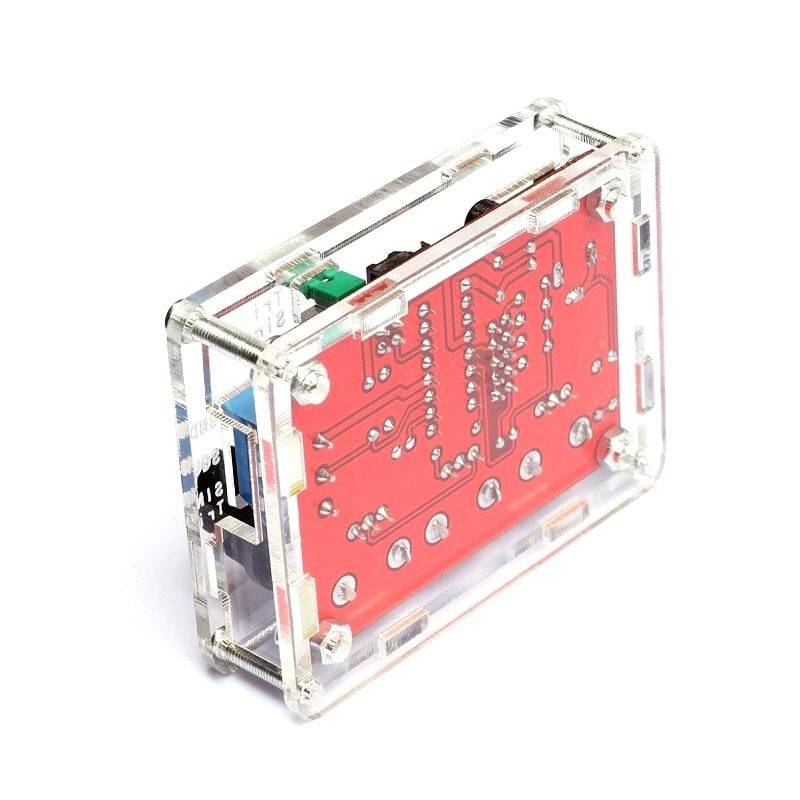

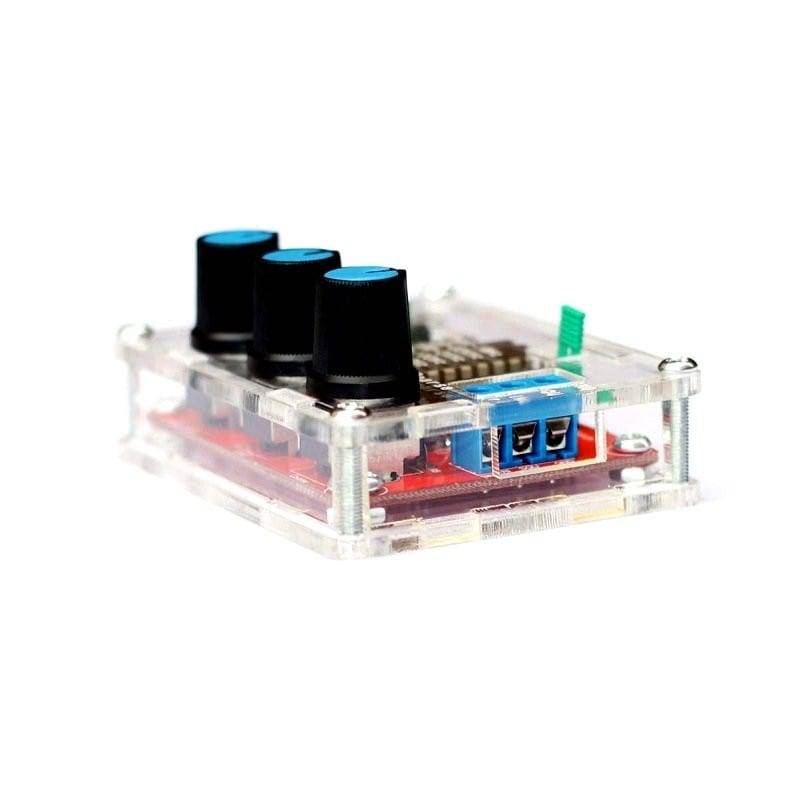

This is a Function Generator Kit that comes pre-soldered and with a compatible case. This function generator works on supply voltage from 9V to 12VDC, it can generate square, sine, and triangle waveforms with frequencies from 1Hz to 1MHz. The amplitude of the waveforms can be in the range of 0-3VDC.
Features:
- High-Resolution Signal Generator.
- Can Generate Sine/Triangle/Square Waves.
- Adjustable Frequency and Amplitude.
- Frequency Adjustment Supports Coarse and Fine Tuning.
Specifications:
- Model: XR2206
- Operating Voltage (VDC) : 9-12
- Operating Frequency : 1Hz-1MHz
- Supported Waveforms: Sine, Square, Triangle
- The amplitude of Waveform: 0-3VDC
- Distortion: Less than 1%
- Flatness : +0.005dB
Package Included:
- 1 x XR2206 High Precision Signal Generator

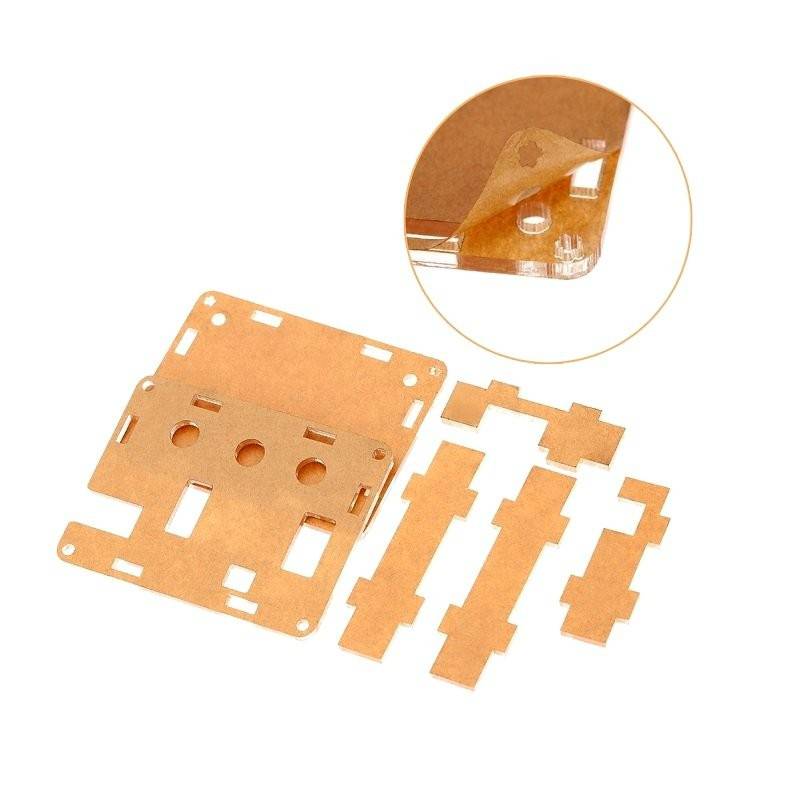

- 1 x Acrylic Case For Signal Generator
