- Operating Voltage: AC / DC 12-15V
- Potentiometer Center Distance: 24-24-24mm
- Working Current: >50mA
Description:

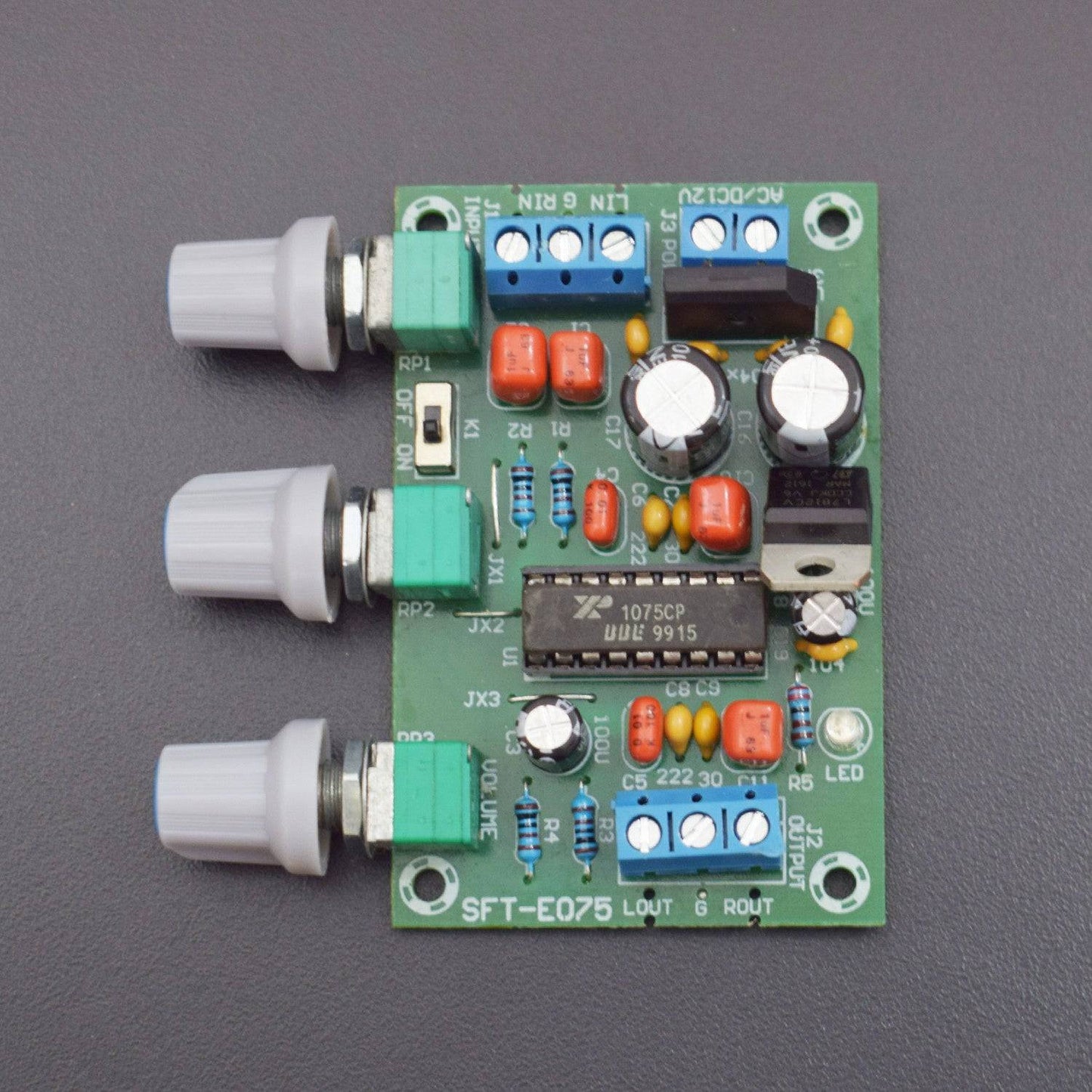

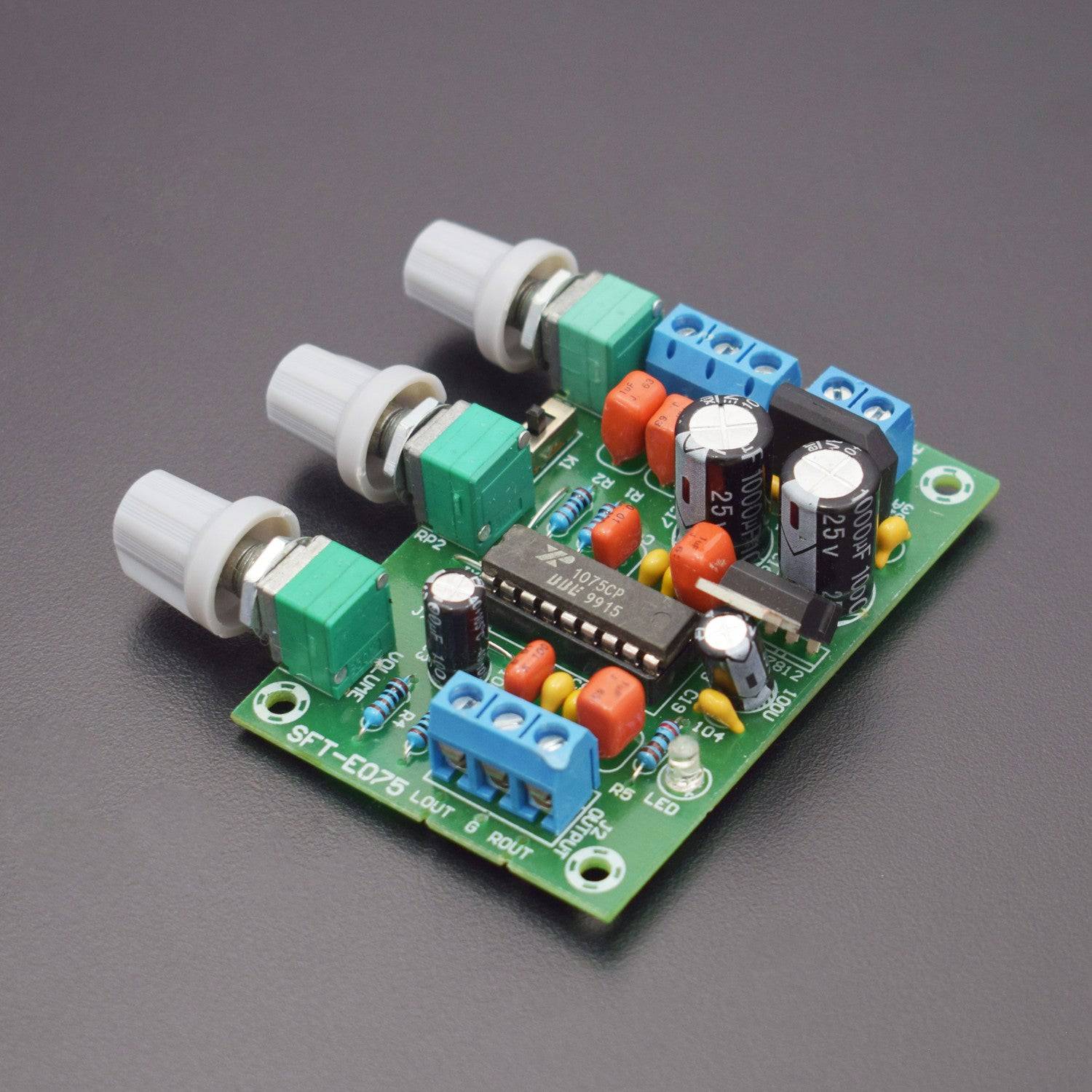

This mini tone adjustment control board is equipped with XR1075PC digital audio audio processor IC. On-board 3 potentiometer to regulate the volume and high low audio frequency to strength the the sound effect ideal for DIY home and car audio system modifications.
Specification:
- Operating Voltage: AC / DC 12-15V
- Potentiometer Center Distance: 24-24-24mm
- Working Current: >50mA
Features:
- Equipped with XR1075CP digital audio processor IC
- On-board 3 potentiometer with knobs support volume,high and low audio frequency adjustment
- High Frequency Adjustment Range:-0.5-13dB,Low Frequency Adjustment Range:?0.5??13dB
- Working Voltage: AC/DC 12V,
- Working Current: >50mA
- Board Size:72 X 47mm/2.83 X 1.85inch
Note: This board can not connect with the speaker directly, it need to connect with the audio amplifier.
Package Included:
1 x XR1075 BBE Sound Processor Tone Adjustment Board Preamp Board
