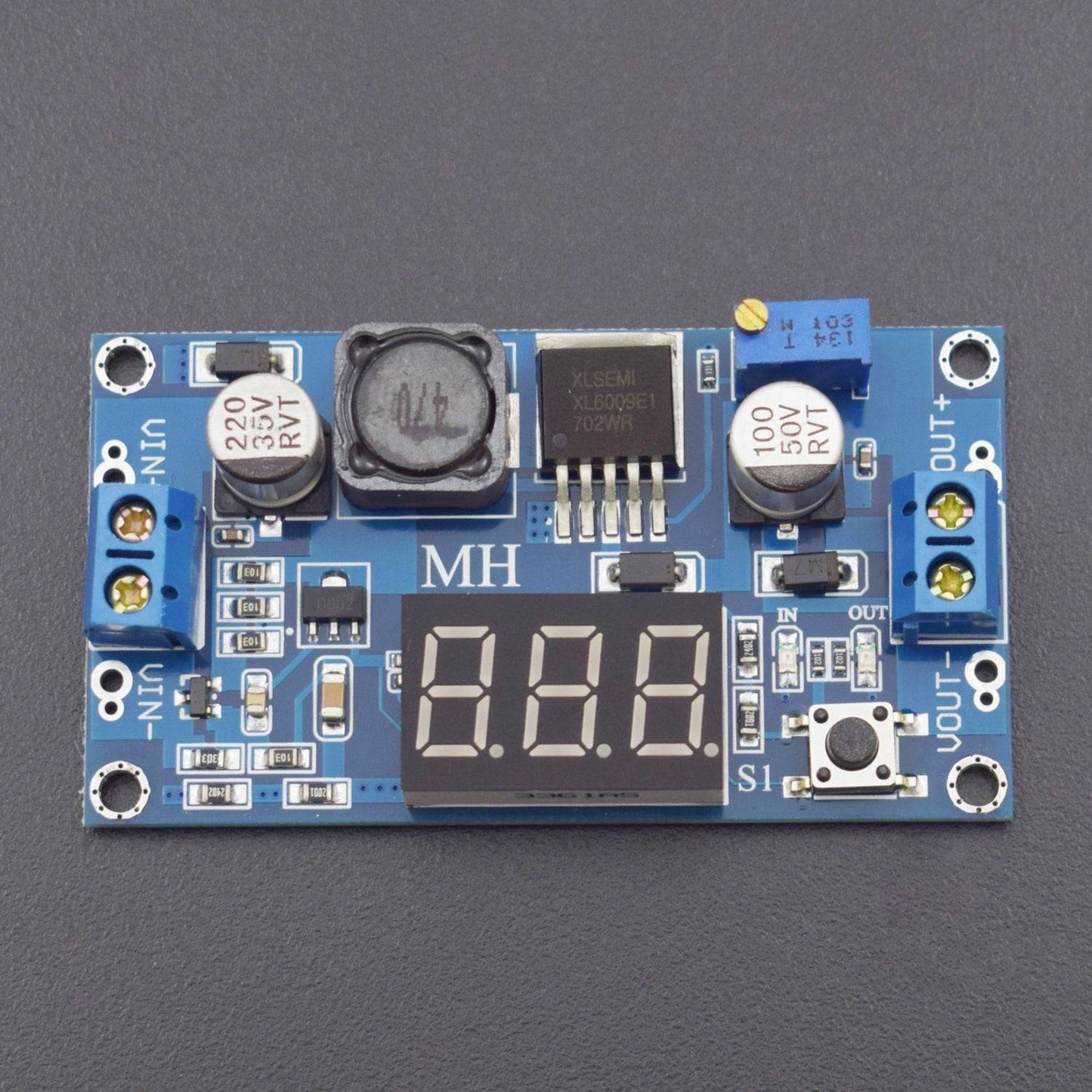

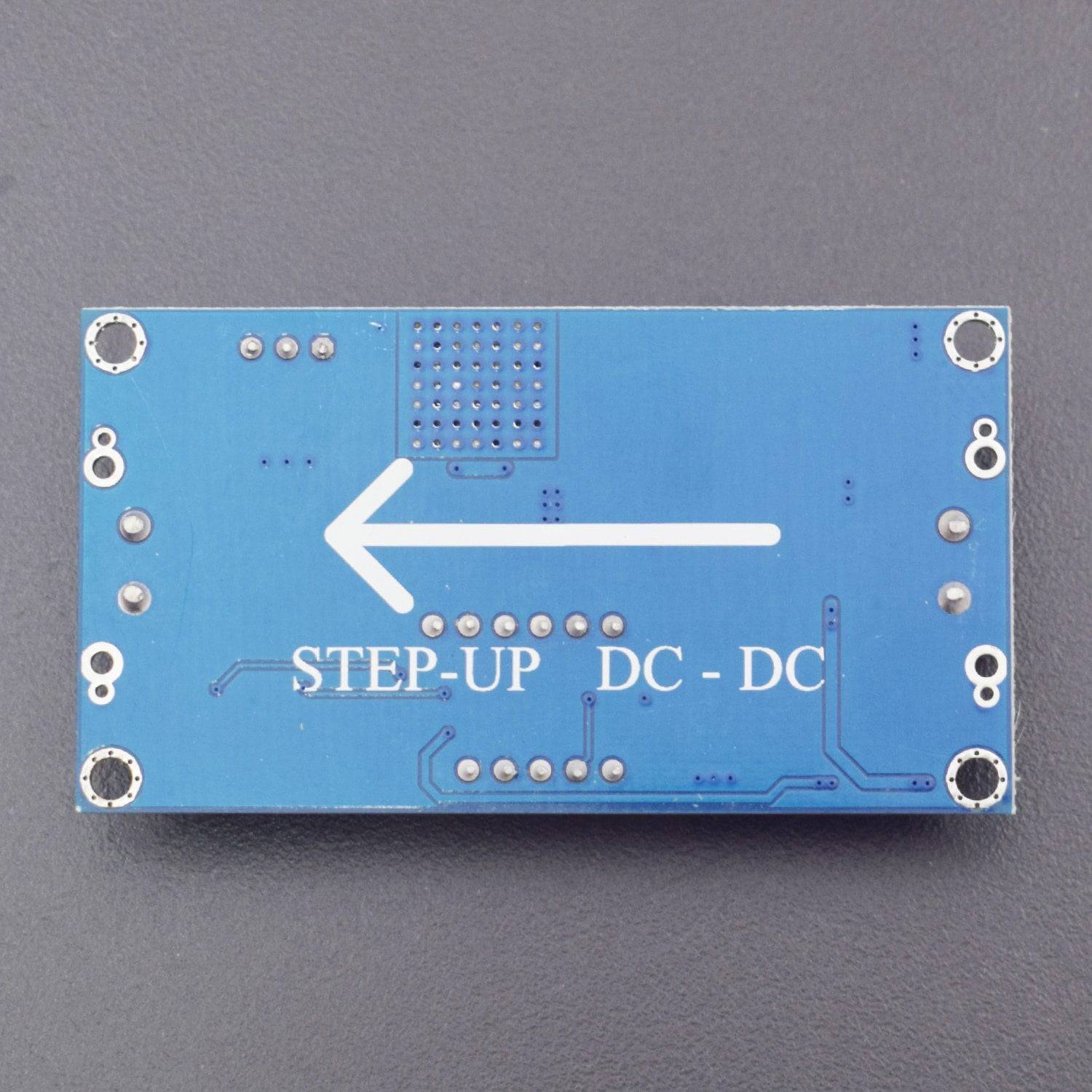

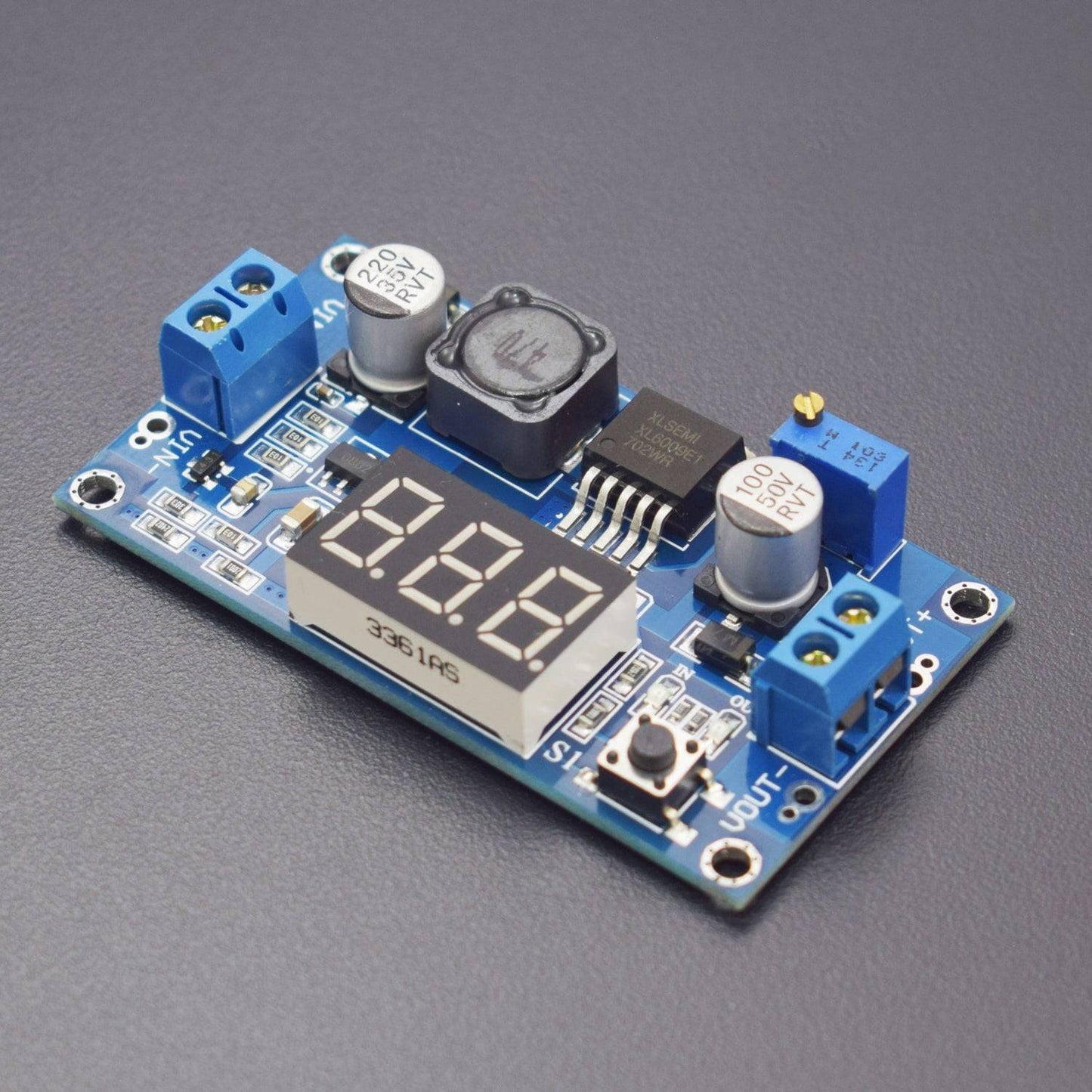

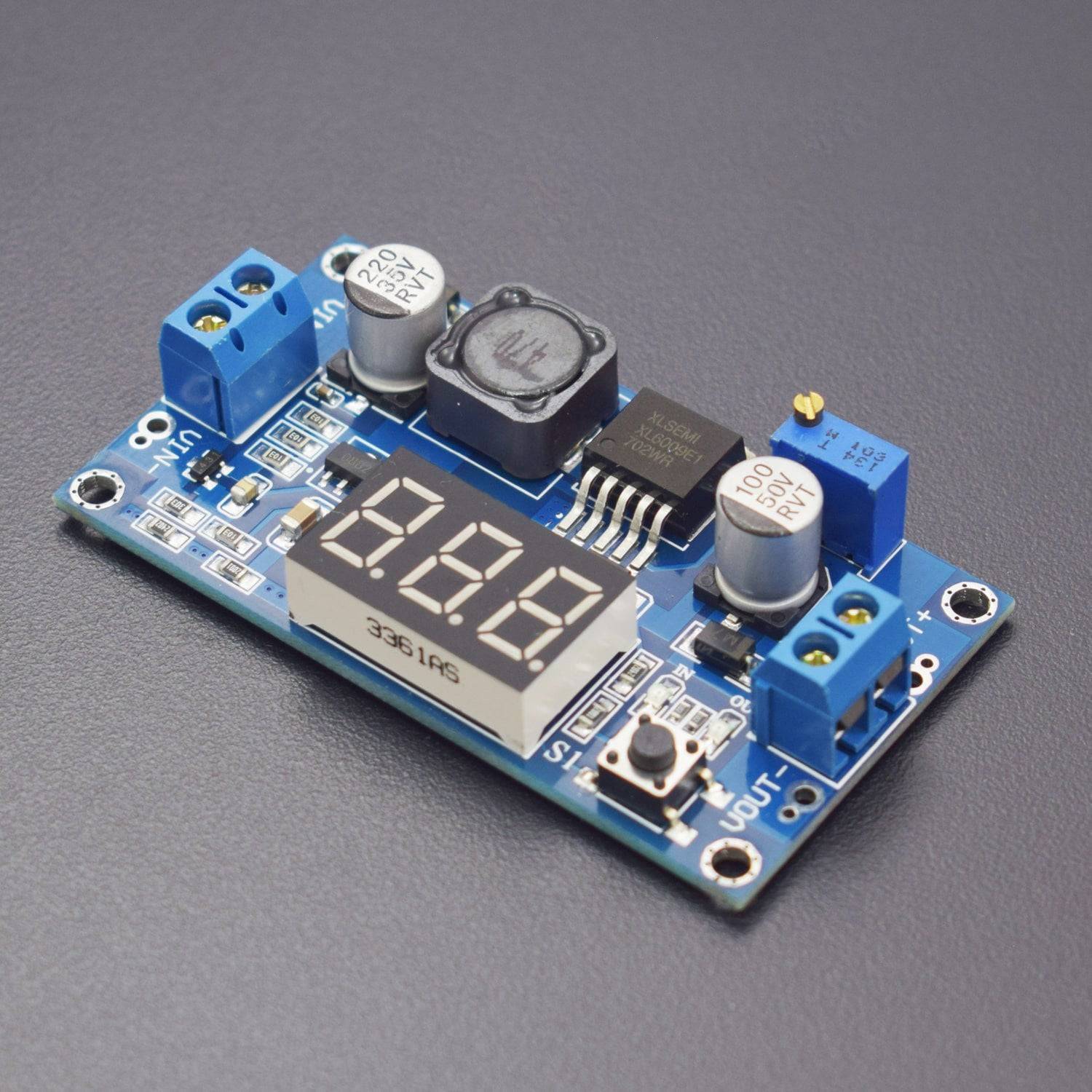

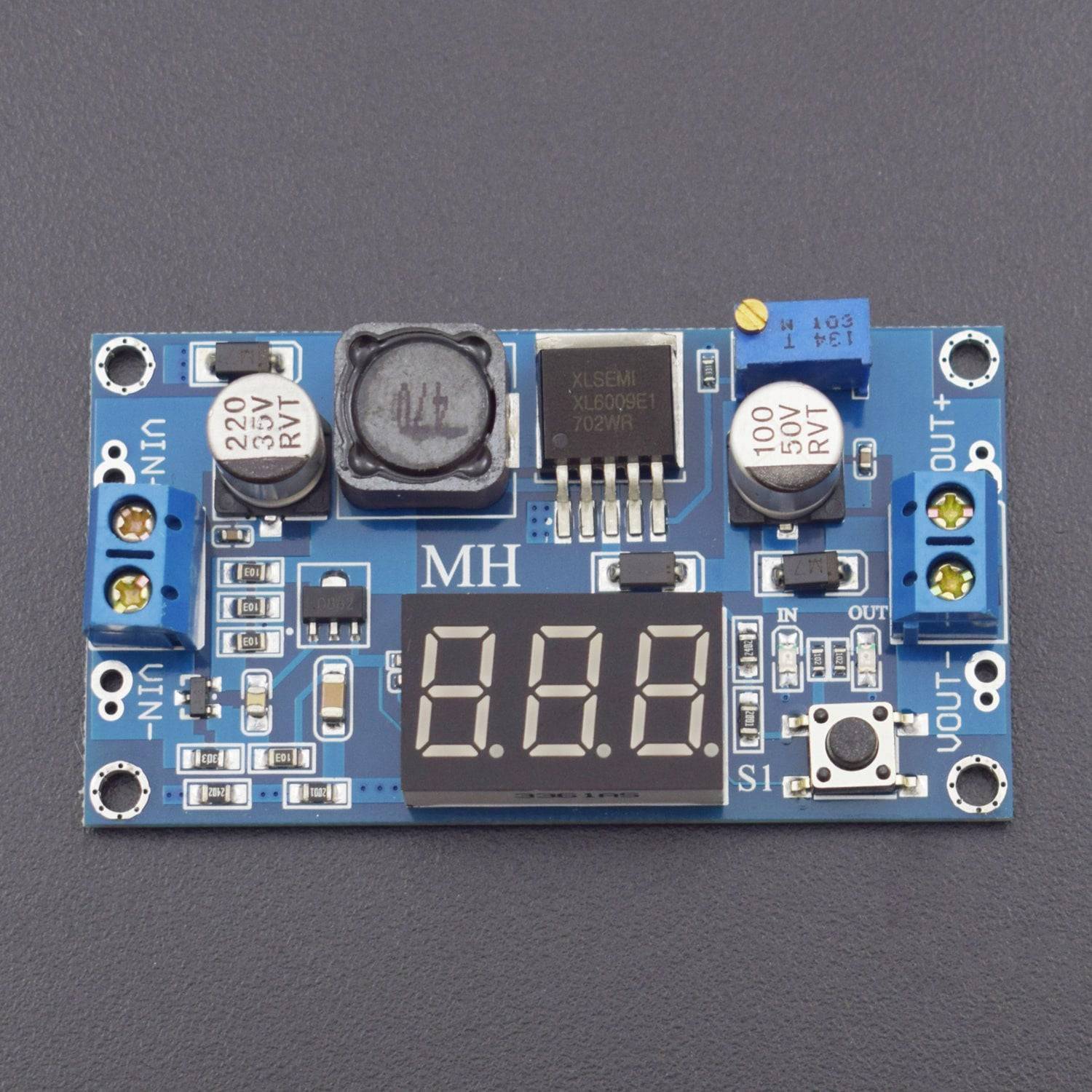

XL6009 Digital Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With Display - RS1455

XL6009 Digital Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With Display - RS1455

SKU:RS1455

147 in stock

Regular price Rs. 380.00
Regular price Sale price Rs. 380.00
Sale Sold out
Shipping calculated at checkout.

Couldn't load pickup availability

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Input Voltage: 4.2-32V
  • Output Voltage: 5-52V
  • Maximum Input Current: 4A
  • Transfer Efficiency: 94%
  • Output Ripple: 50mV

Description:

XL6009 is a 4A switch current high performance boost ( BOOST ) module. This module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, and its performance far exceeds that of the first-generation technology LM2577. The XL6009 booster module has lower cost and better performance, and the LM2577 module is about to be eliminated.

Specifications:

  • Input Voltage: 4.2-32V
  • Output Voltage: 5-52V
  • Maximum Input Current: 4A
  • Transfer Efficiency: 94%
  • Output Ripple: 50mV
  • Operating Temperature: -40℃~+85℃
  • Switching Frequency: 400KHz
  • Output Ripple: 30mV (the higher the voltage, the greater the current, the greater ripple)

Features:

  • XL6009 Step-up Power Module uses XL6009 as main control chip to realize broader scope of application about boosting.
  • It shows the adjusted results intuitively with the digital tube.
  • There is no need to use the multimeter, which will be more convenient.
  • Equipped with the Schottky diode,you need not to be worried about wrong operation.
  • It adds ventilation hole on PCB to enhance the capacity of heat dissipation.

Package Included:

1 x XL6009 Digital Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With Display
