- DC 5V-32V Input, DC 1.2-35V Output Adjustable
- The Max Output Current is 1.5A, max power 20W.
- Built-in MOSFET,can up to 94% efficiency.
- Increased enabled port, you can control whether the booster circuit is working.
Features:
Module properties: non-isolated boost buck module
Input voltage: DC 5-32V
Output voltage: DC 1.2-35V continuously adjustable
Input current: 4A(max)
Output current: 1.5A(max)
Output power:20W(natural cooling)
Maximum output power = input voltage * 4A * conversion efficiency
Operating temperature: Industrial grade (-40 to + 85℃)
Full load temperature rise: 45℃
Operating frequency: 400khz
No-load current: Typical 15mA (5V turn 12V)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Enable Control Port: Yes, high level 1.4V-VIN (ON), low level 0-0.8V (OFF), the default high level
Short circuit protection: None (Please install fuse or protection circuit input)
Input reverse polarity protection: None, please with our reverse protection diode board or in the input series.
Installation: You can screw fixation(fixing holes 3 mm), 2 fixing holes
Connection: welding,add pin can be soldered directly to the PCB
Note:This module without PBCA shell.
Size:49(L)*23.4(W)*11.4(H) mm(Not include Potentiometer)
Netweight: about 15g
Package List:

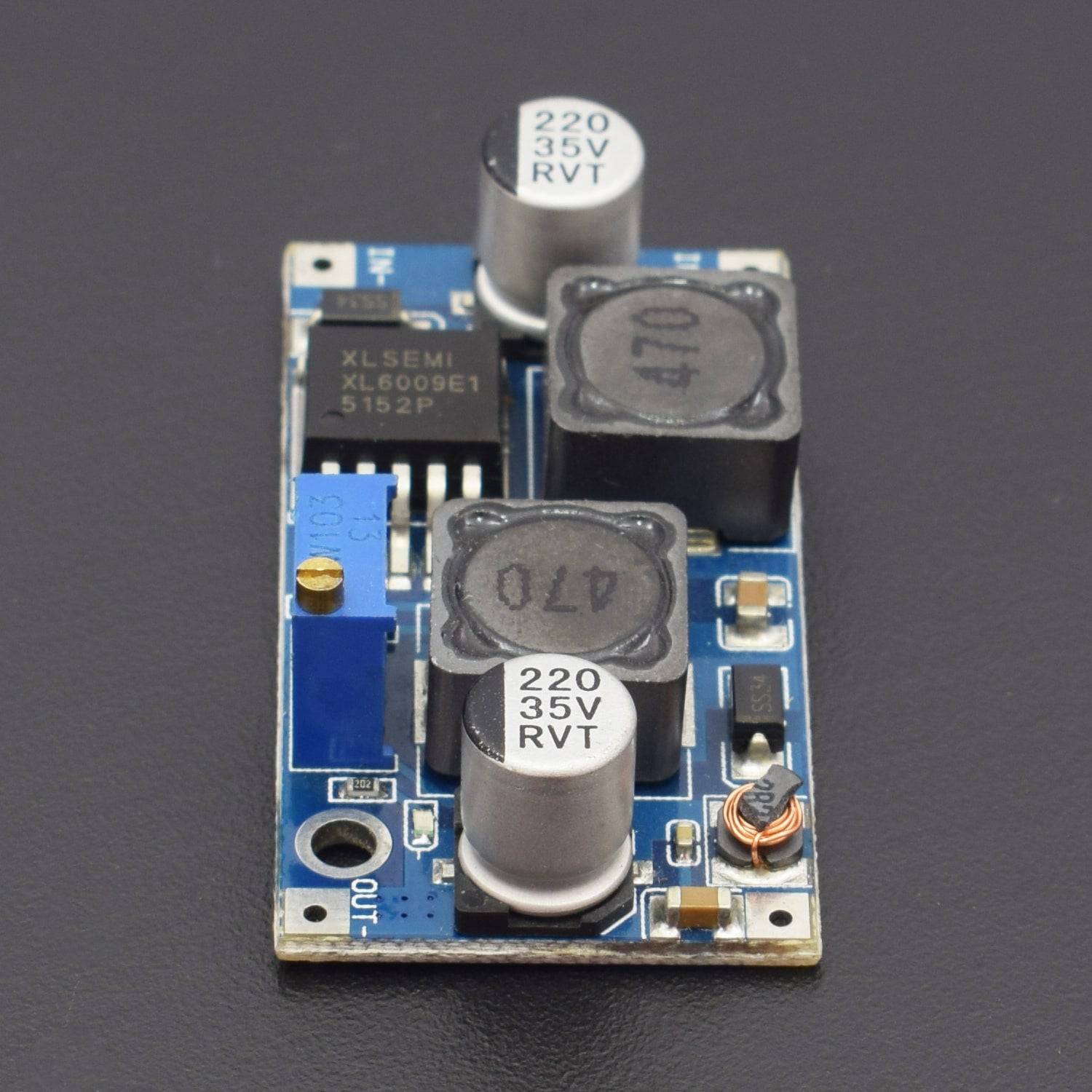

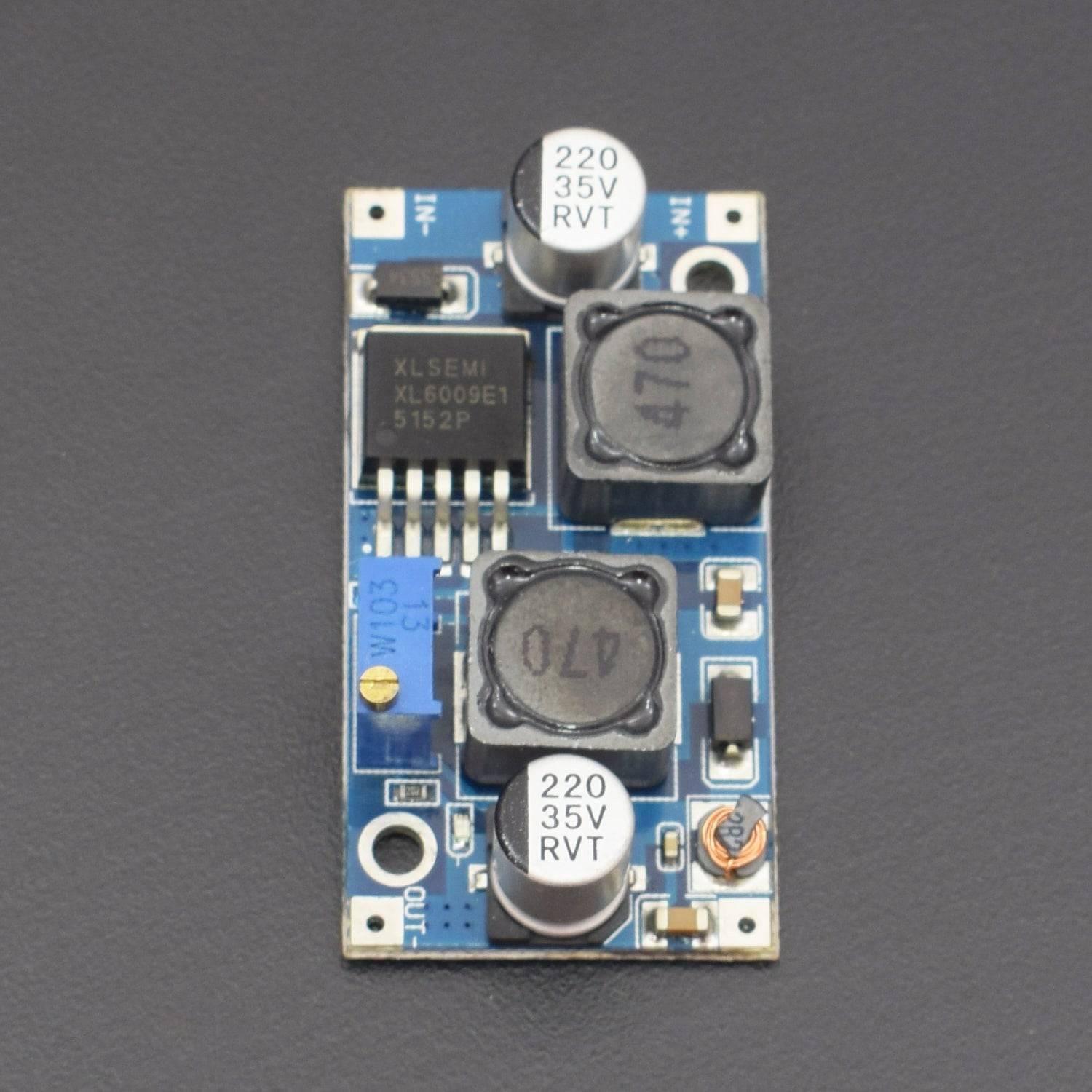

1 x DC-DC Boost&Buck Adjustable Module XL6009
