- The Voltage Regulating Mode: PWM modulation
- Input Voltage: DC 4-40V
- Output Voltage: DC 1.25-36V
- Maximum Current: 8A(please add fan and make current less than 5A for long term use)
- Maximum Power: 200W
Description:
The XL4016 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 12A load with high efficiency, low ripple, and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.
The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An overcurrent protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.
Specification:
- The Voltage Regulating Mode: PWM modulation
- Input Voltage: DC 4-40V
- Output Voltage: DC 1.25-36V
- Maximum Current: 8A(please add fan and make current less than 5A for long term use)
- Maximum Power: 200W
- Conversion Efficiency: 96%
- Switching Frequency: 180KHz
Features:
- Wide 8V to 36V Input Voltage Range
- Output Adjustable from 1.25V to 32V
- High efficiency up to 96%
- Built-in thermal shutdown function
- Built-in current limit function
- Built-in output short protection function
- Excellent line and load regulation
Application:
- LCD Monitor and LCD TV
- Portable instrument power supply
- Telecom / Networking Equipment
Package Included:

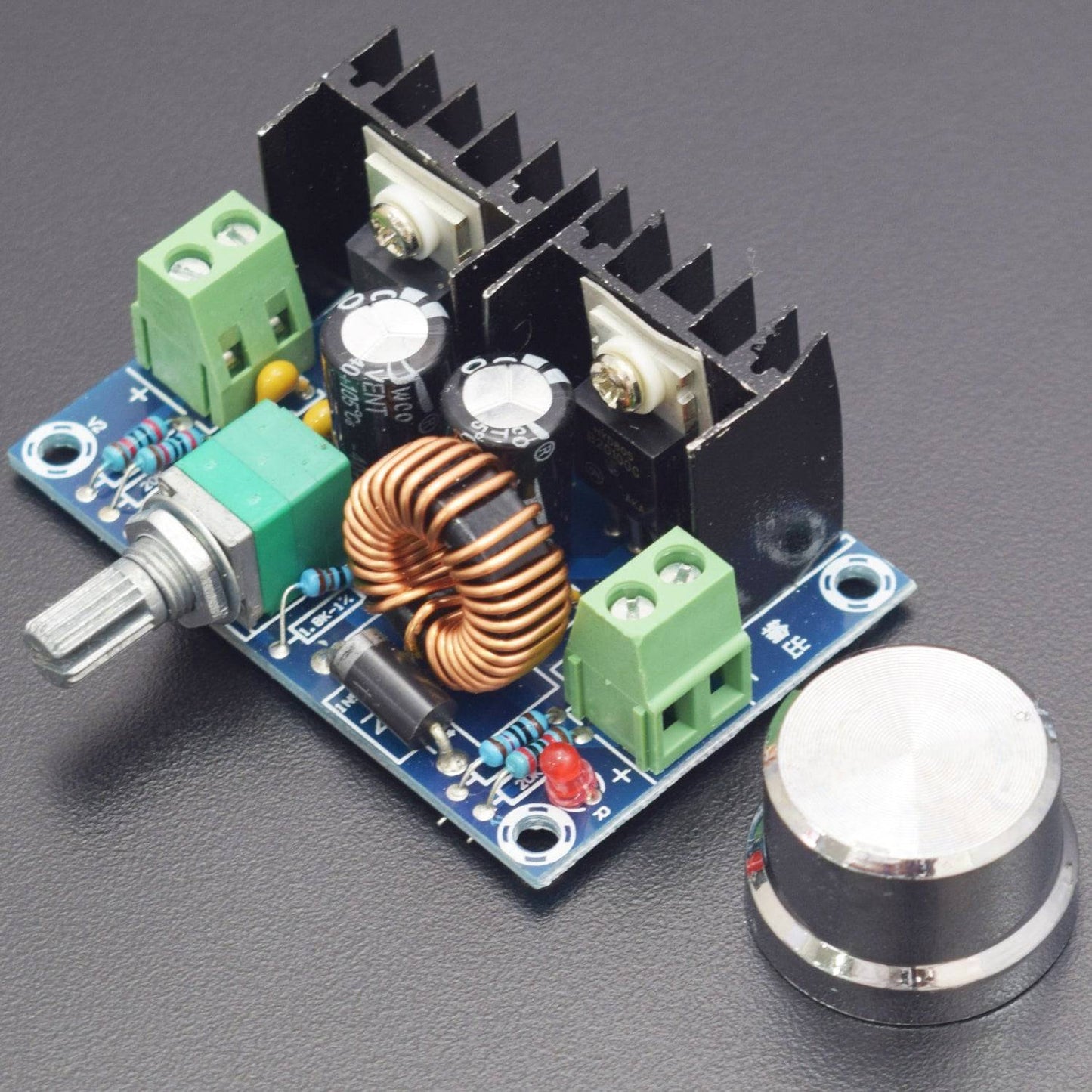

1 x XL4016E1 DC 4-40V to DC 1.25-36V 8A Buck Converter Voltage Regulator 36V 24V 12V to 5V
