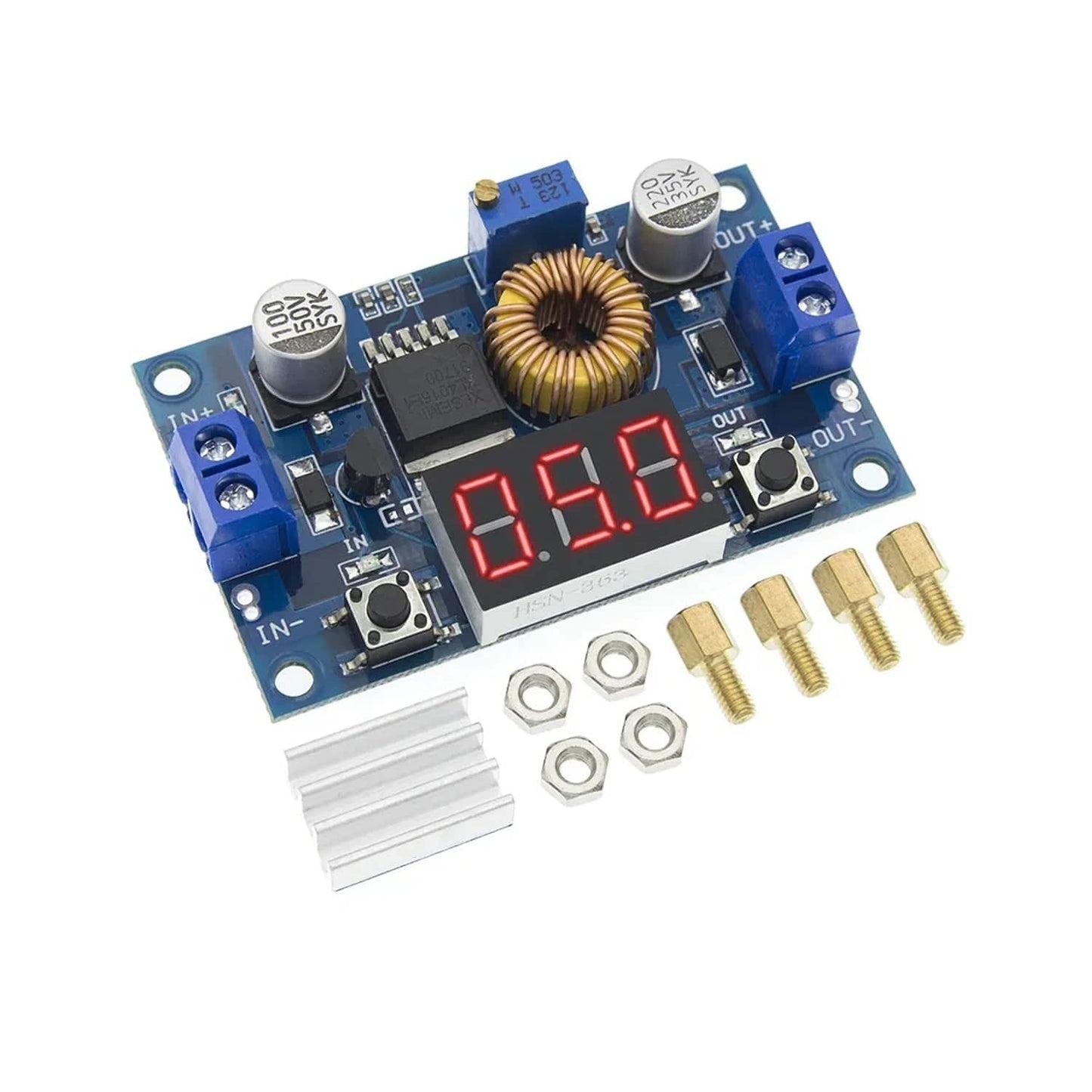

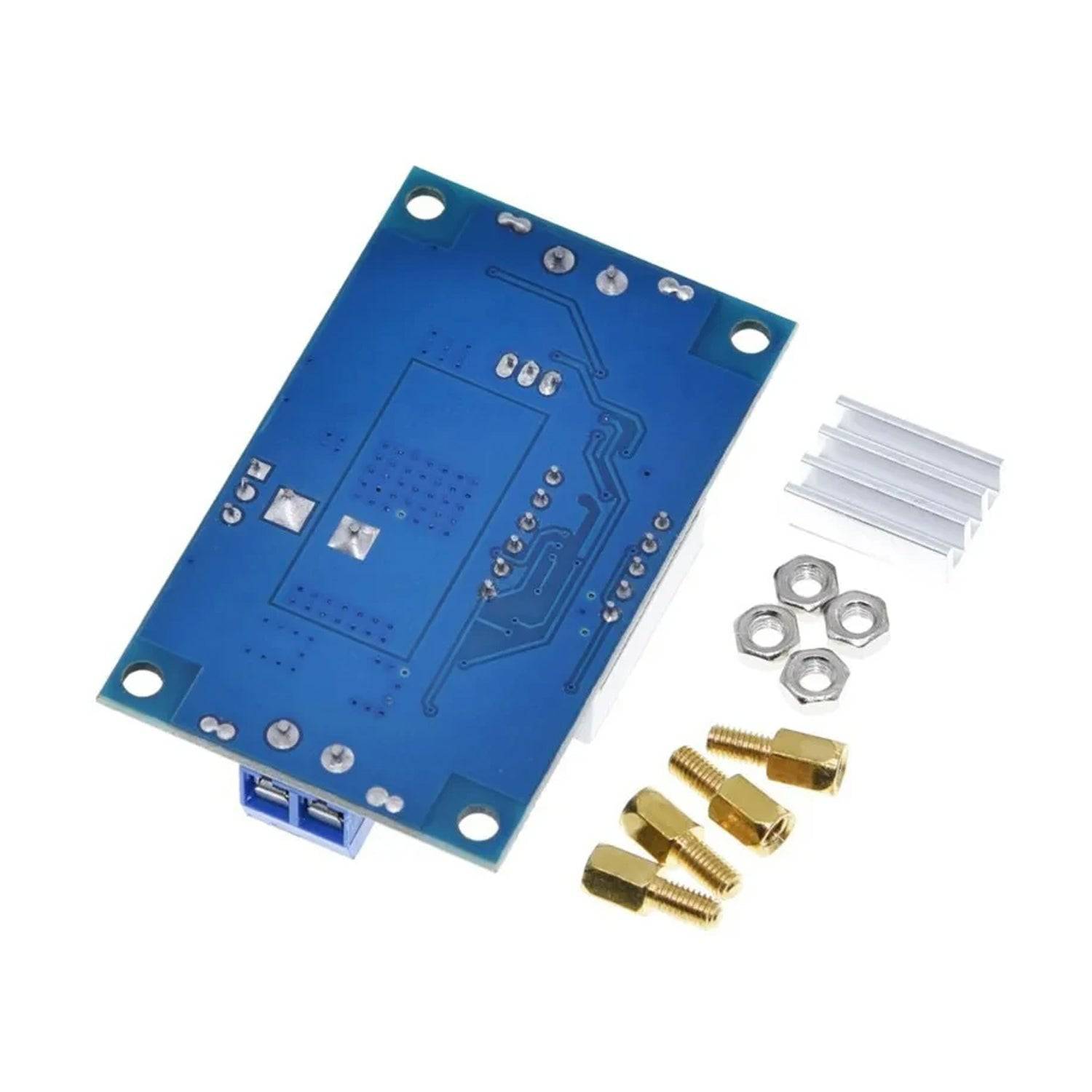

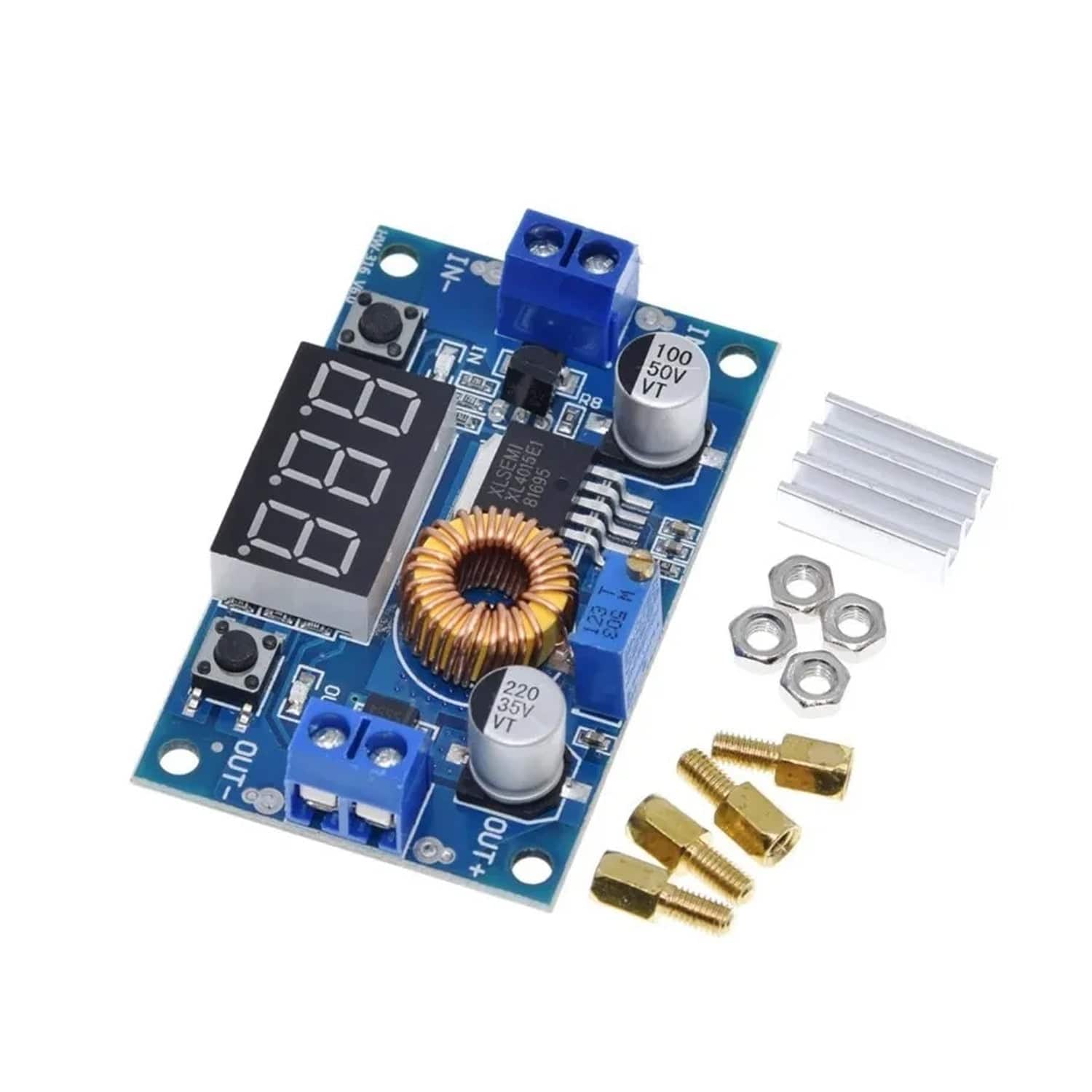

XL4015 Adjustable DC-DC Buck Converter DC-DC XL4015 Adjustable Stepdown Module 5A 75W with 3 Bits Digital Display Voltmeter - RS3228

Description:

XL4015 Adjustable DC-DC Buck Converter is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. The XL4015 Adjustable DC-DC Buck Converter with a voltage meter displays the input voltage and output voltage and the voltage can be corrected through the button to improve the accuracy of the voltmeter.

Specifications:

• Input Supply Voltage: 5~38V DC
• DC Output Voltage: 1.25 ~ 36V (adjustable)
• Max. Output Current: 5A
• Output Power: 75W
• Voltmeter Error: Â± 0.05V
• Conversion Efficiency: 96%

Features:

• Over-temperature protection: Yes (shutdown output automatically after over-temperature).
• Input Reverse Polarity Protection: None (cascade high current diode if required).
• Built-in current limit function.

Package Included:

1 x XL4015 Adjustable DC-DC Buck Converter DC-DC XL4015 Adjustable Stepdown Module 5A 75W with 3 Bits Digital Display Voltmeter
