Description:

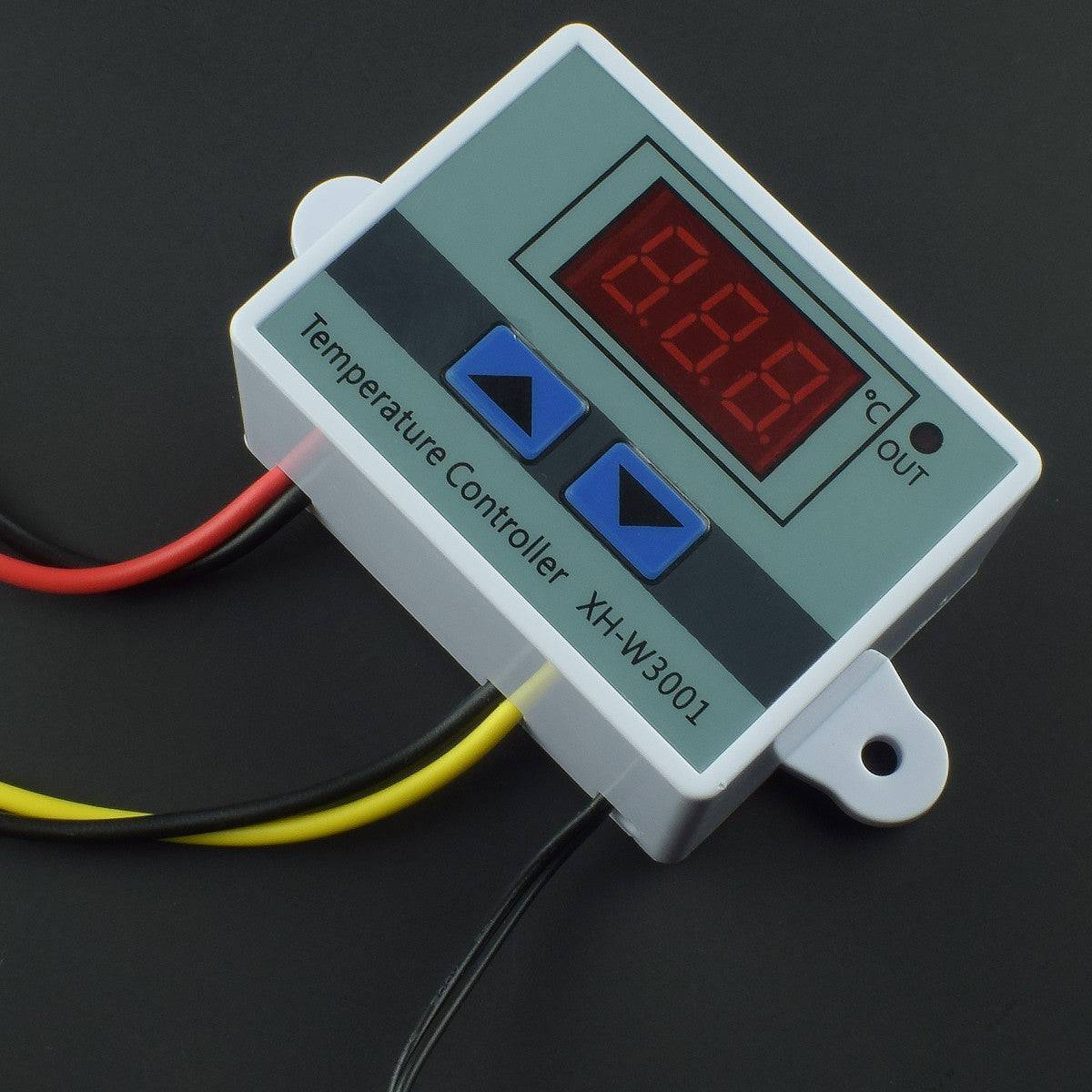

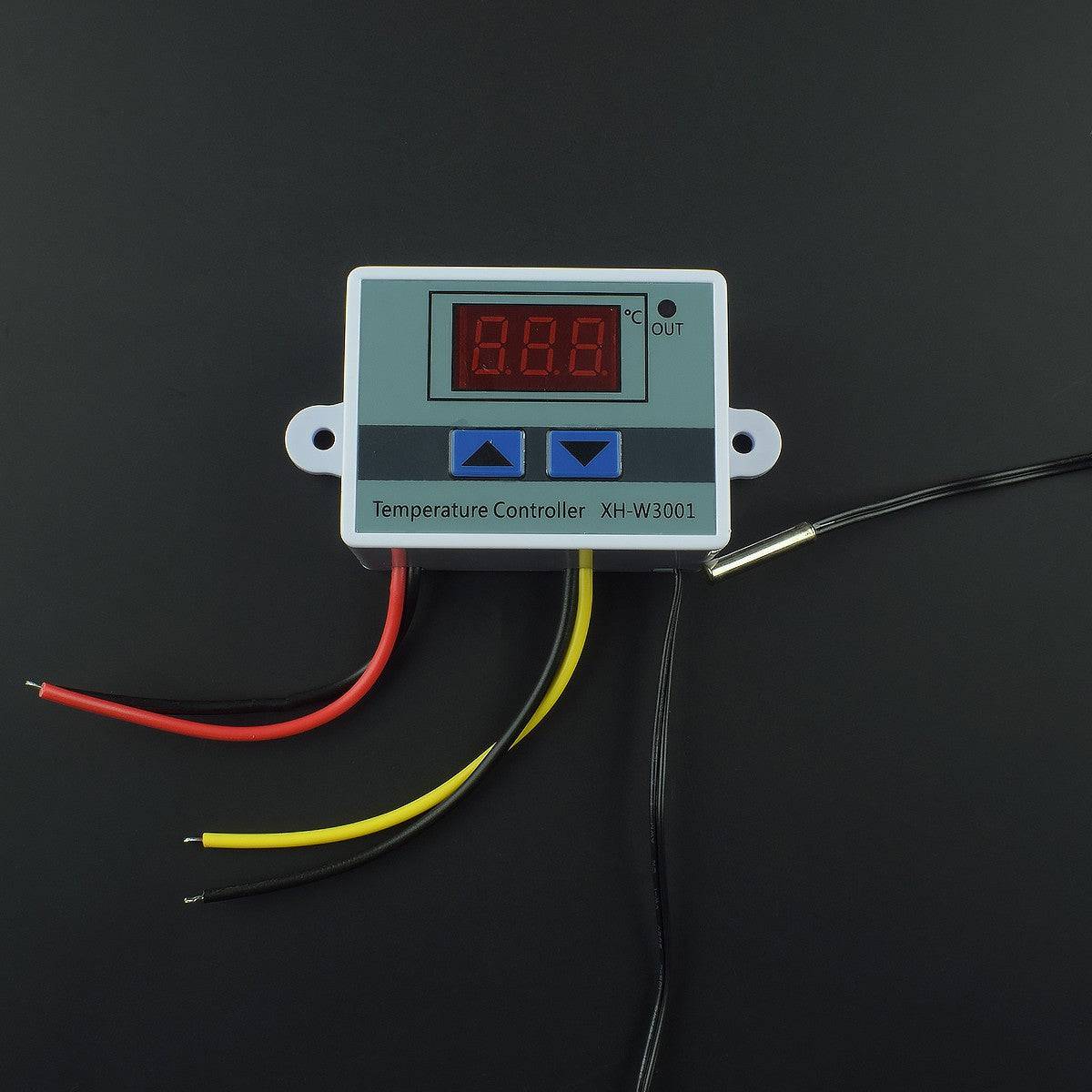

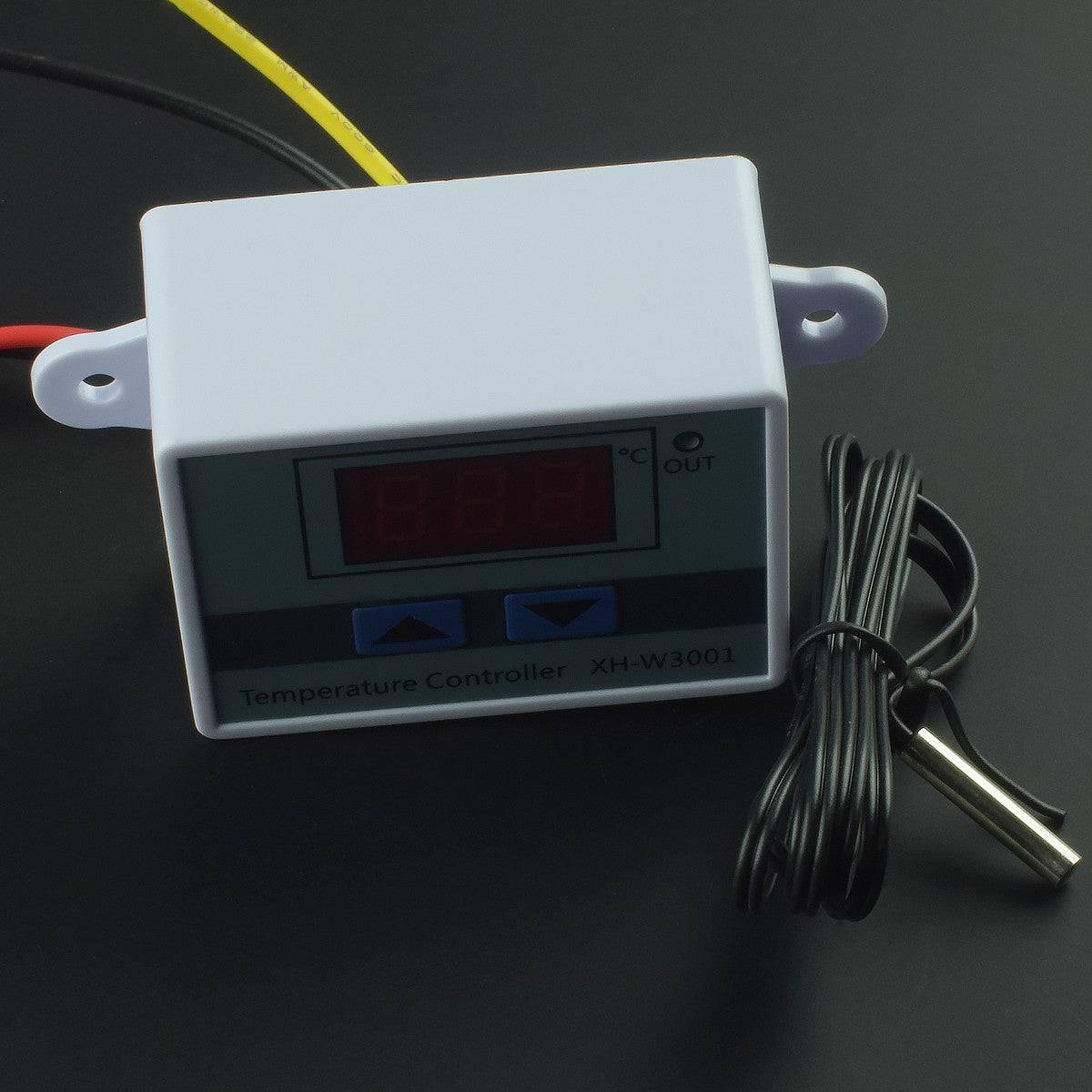

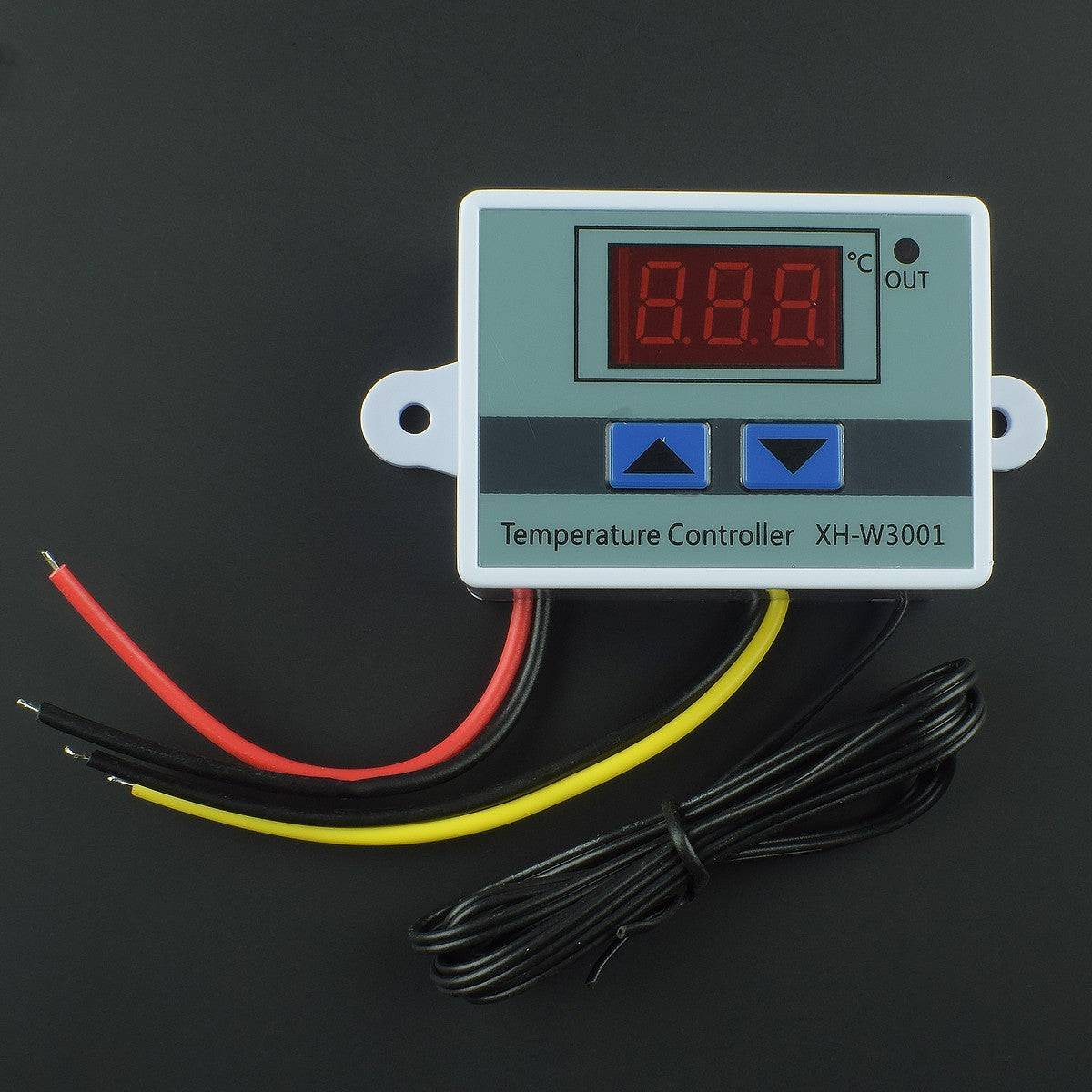

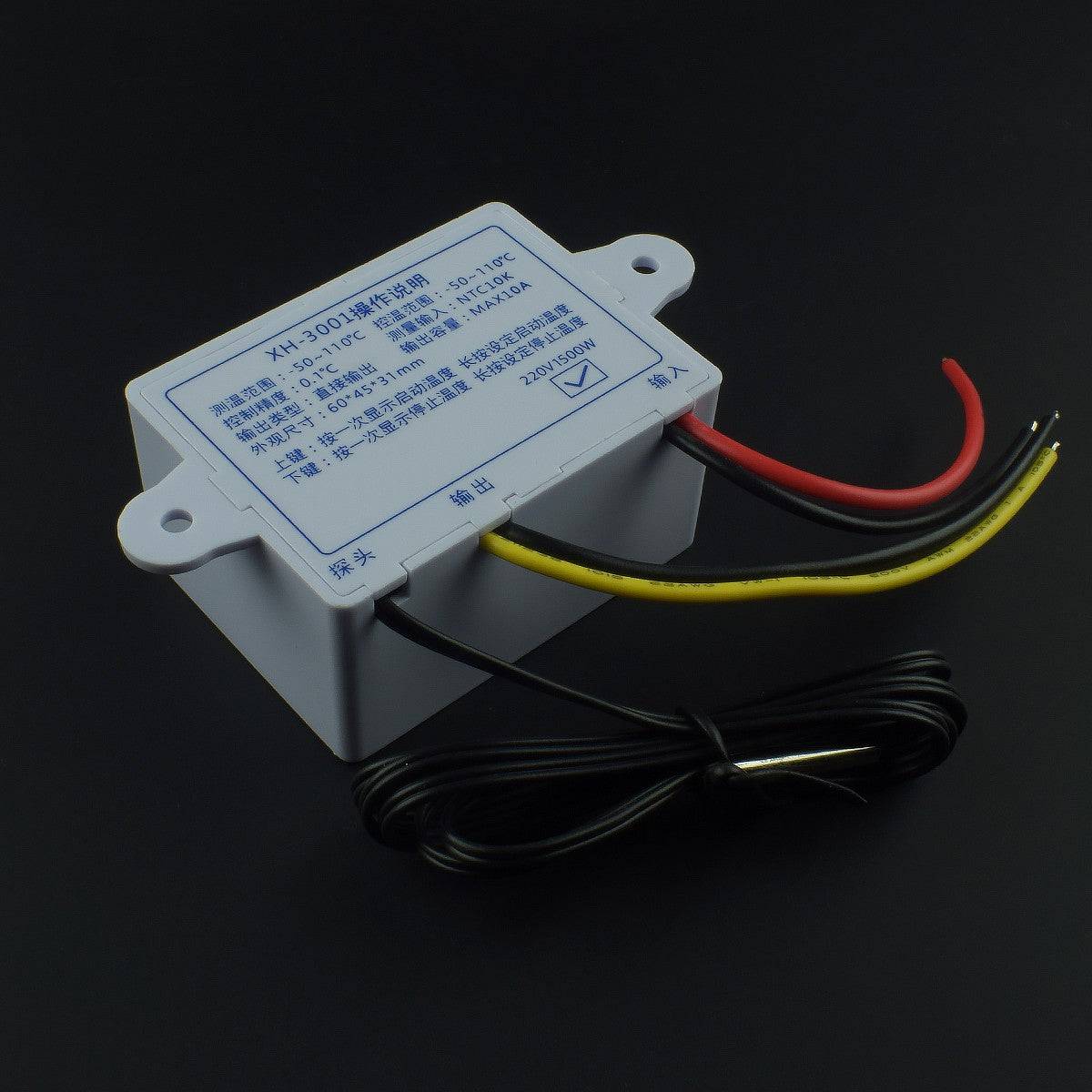

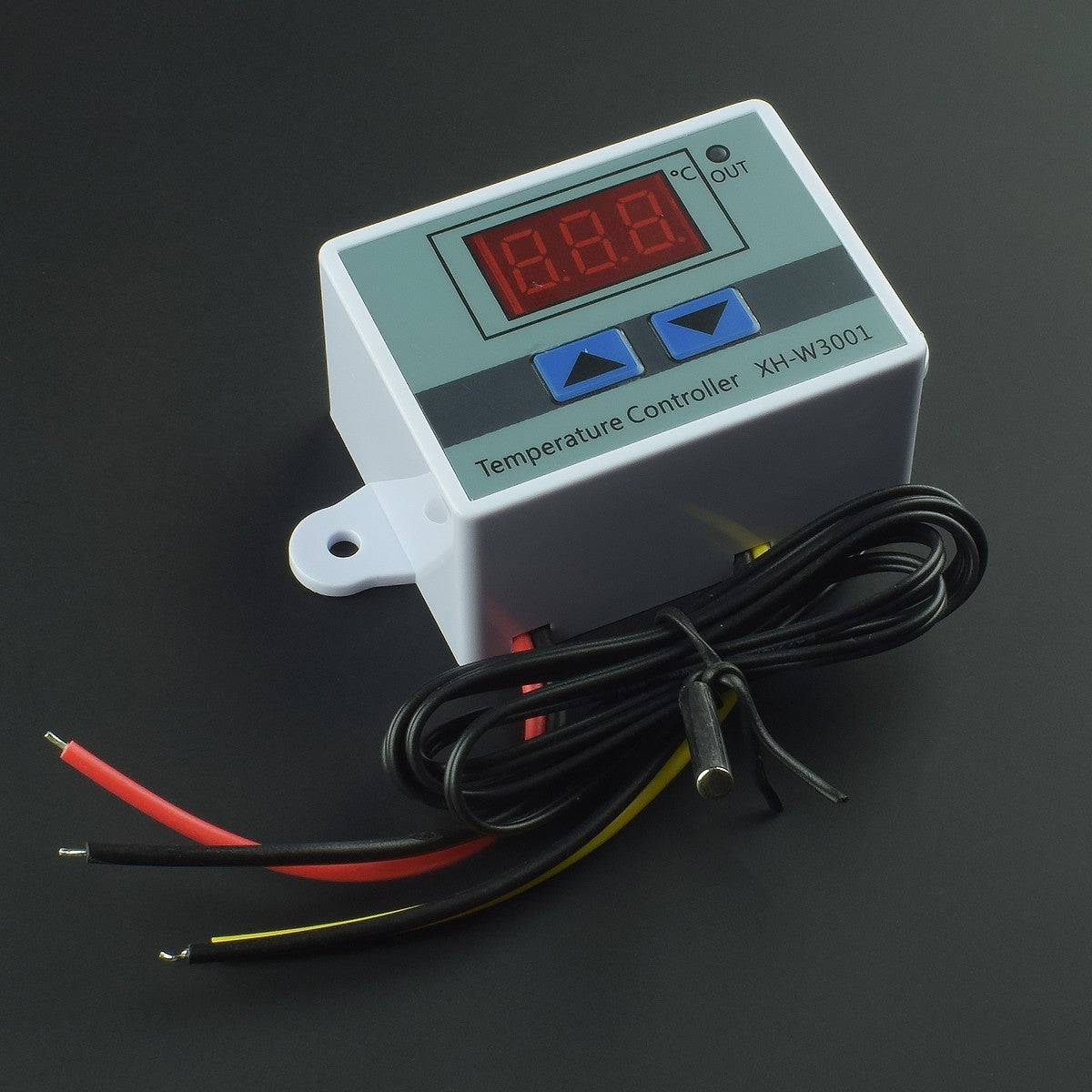

This is XH-W3001 DC 24V 240W Digital Temperature Controller Microcomputer Thermostat Switch. It’s a temperature measurement and Controller tool with high accuracy and precision at a very low cost. Furthermore, it offers a temperature control range from -50˚C to +110˚Cwith precision of ± 0.1˚C.The LED display of the switch shows the results clearly, so you can directly install or embed the XH-W3001 in the industrial control equipment panel conveniently. In addition to temperature control, it features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. All the delicate and sensitive components are kept safe in ABSflame retardant housing which is avirulent and environmentally protective. Applications of this switch include temperature measurement and display systems, refrigeration and heating control, and seafood machines.
Specifications:
- Model: XH-W3001
- Output Type: Direct Output
- Output Capacity: 10A max
- Power Supply: AC 220V
- Load Power: 1500W
- Temperature Measurement Range: -50°~110°
- Temperature Control Range: -50°~110°
- Temperature Control Precision: ±0.1°
- Input measurement: NTC10K waterproof probe L = 1 meter
Features:
- Easy to install
- Output type: Direct output
- Output capacity: max. 10 A
- Up key: Press once to display the start temperature. Long press to set the start temperature.
- Down key: Press once to display the stop temperature. Long press to set stop temperature.
- Temperature setting upper and lower limits
Button Function:
- Press UP to show the start temperature button.
- On a Long press of the UP button, the display starts flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop the temperature.
- On the Long press of the Down button, the display starts flashing, then press the Up or Down button to stop the temperature value.
Package Included:
1 x W3001 Digital Temperature Controller 220V/1500W AC 10A Thermostat Control Probe, Incubator Temperature Controller
