- Model No.: XH-W3001
- Operating Voltage: 6 ~ 12VDC
- Rated Power: 120W
- Rated Current: 10 mA Max.
Description:

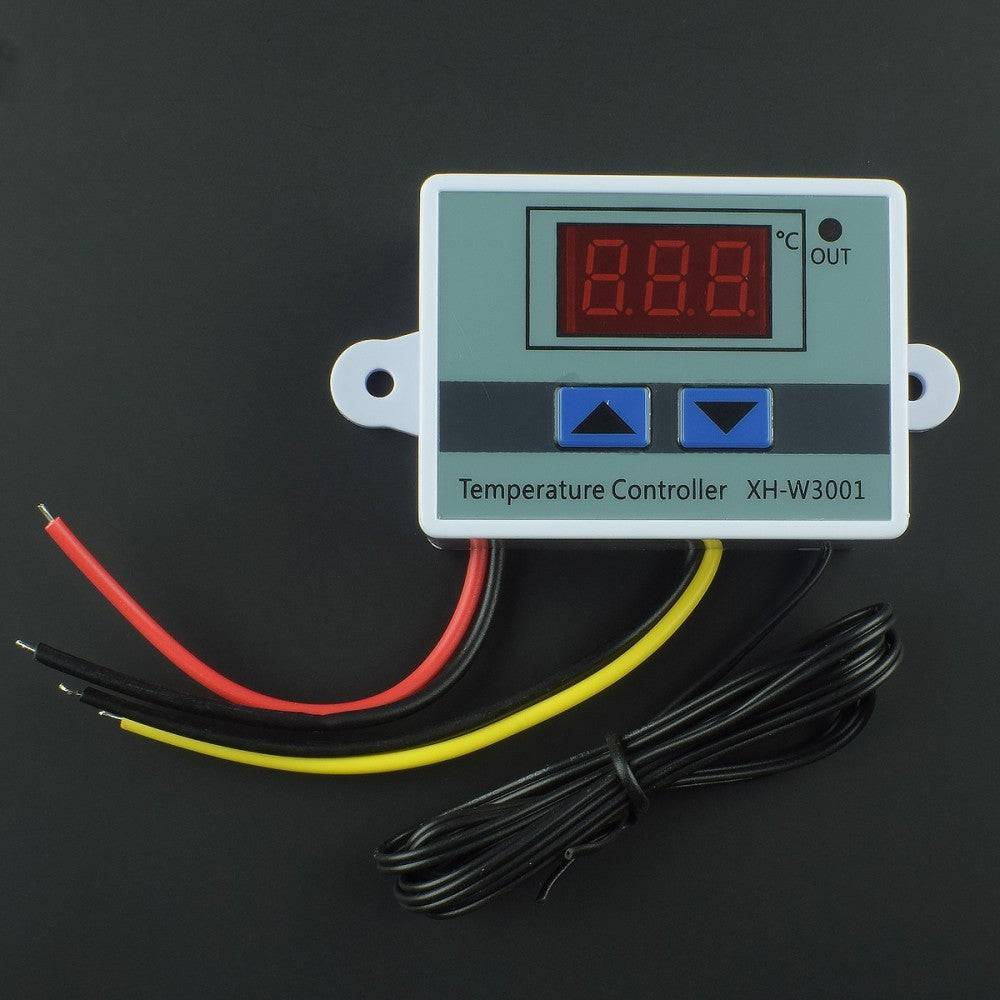

This is an XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch. A temperature measurement and Controller tool with high accuracy and precision at a very low cost.
It offers high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃.
It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmentally protective.
Specification:
| Model No. | XH-W3001 |
| Operating Voltage | 6 ~ 12VDC |
| Rated Power | 120W |
| Rated Current | 10 mA Max. |
| Measurement Input | NTC10K |
| Temperature Measuring Range | -50 ~ 110°C |
| Temperature Control Range | -50 ~ 110°C |
| Control Accuracy | Upto 0.1℃ |
| Measuring Accuracy | ± 0.2 ℃ |
| Dimensions LxWxH | 60 x 45 x 31mm |
Features:
- Easy to install
- Output type: Direct Output
- Output capacity: MAX 10Aemperature measurement, display; refrigeration, heating control
- Temperature setting upper and lower limits
- Simple operation, suitable for seafood machines.
- Upper key: The start temperature is displayed in one press, and a long press to set the start temperature.
- Lower key: The stop temperature is displayed in one press, and a long press to set the stop temperature.
Button Function:
- Press UP to show the start temperature button.
- On Long press of the UP button, the display starts Flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop temperature.
- On Long press of the Down button, the display starts Flashing, then press the UP or Down button Set to stop the temperature value.
Package Included:
1 x XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
