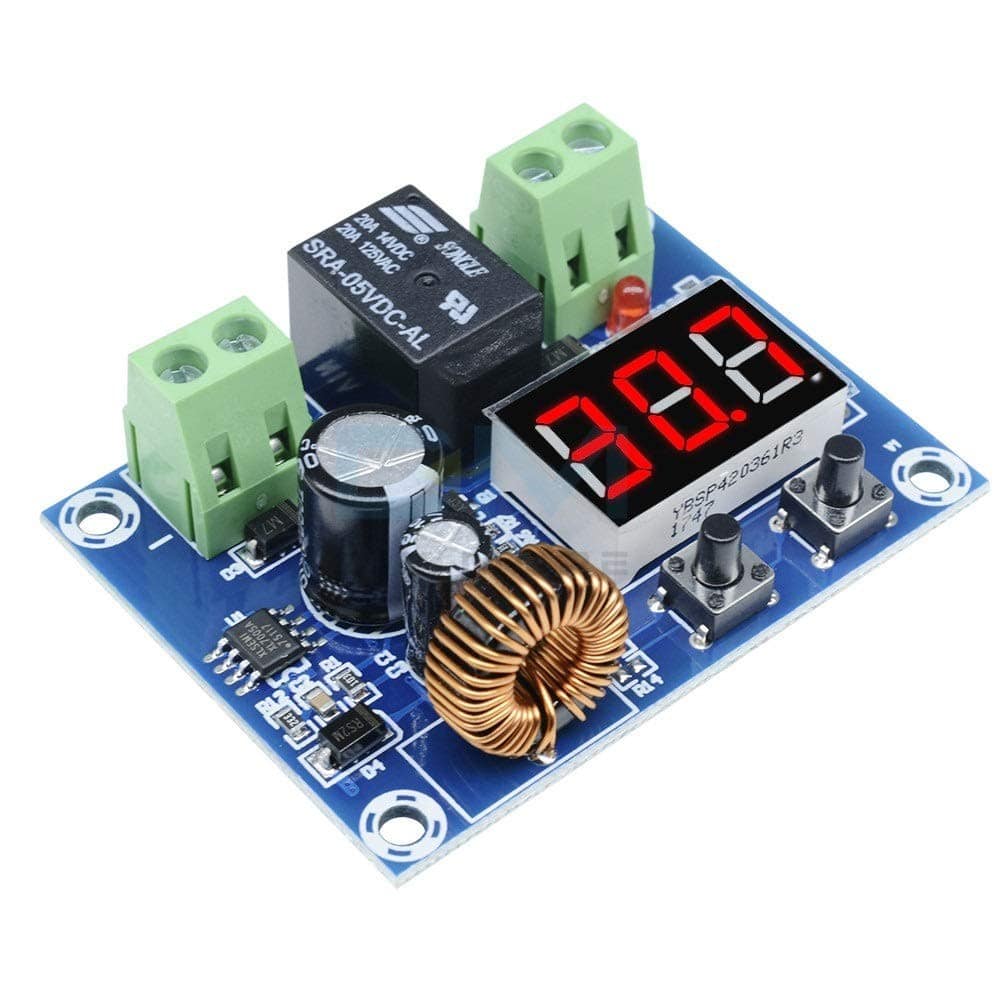

XH-M609 DC 12V-36V Charger Module Voltage OverDischarge Battery Protection Module Board- RS2528

XH-M609 DC 12V-36V Charger Module Voltage OverDischarge Battery Protection Module Board- RS2528

SKU:RS2528

Low stock: 6 left

Regular price Rs. 390.00
Regular price Sale price Rs. 390.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Power Supply Voltage: 12 V-36 V battery
  • Output Voltage: equal to the supply voltage
  • Control Accuracy: 0.1 V
  • Power Consumption: less than 1.5 W

Description:

It is a Power Supply Module/Battery Charger Control Module, ST processing chip, stable performance, high integration and durable. Automatic Power-off function and discharge protection can prolong battery life. Suitable for discharging protection of all kinds of batteries.

Specification:

  • Power Supply Voltage: 12 V-36 V battery
  • Output Voltage: equal to the supply voltage
  • Control Accuracy: 0.1 V
  • Power Consumption: less than 1.5 W

Features:

  • Battery over-discharge protection module prolong battery life.
  • Highlight digital tube, highlight digital tube of three-digit, display accuracy is 0.1
  • Automatic Power-off function and discharge protection can prolong battery life.
  • ST processing chip, stable performance, high integration and durable.

Wiring:

  • VIN+: battery+
  • VIN-: battery -
  • VOUT+: positive of device/power supply system
  • VOUT-: negative of device/power supply system

Operation Instructions:

"+" button: short press to show stopping voltage; Keep pressing to set stopping voltage.

"-" button: short press to show return difference; keep pressing to set return difference.

  • Set Stopping Voltage and return difference:
    • Keep pressing “+” button for five seconds until stop voltage value flashing, then press “+/-” button to set stop voltage value.
    • keep pressing "-" button for five seconds until return difference value flashing, press “+/-” button to set return difference.
    • Example: Stopping value is set as 11v and return difference is 0.6v. Output will be turned off when voltage is below 11v. If voltage is higher than 11.6v, output will be turned on automatically.
  • Mandatory Input for five seconds:
    • Long press on “+” button for three seconds to enter mandatory mode. Five seconds later it will automatically come to normal mode(stop voltage in normal mode is lower than battery voltage and protected lines will be automatically cut off after five seconds of mandatory input)
    • When the new battery is initially used, the rated voltage is close to actual value. To determine stop voltage, user can use general voltage calculation method of battery to calculate reasonable discharge voltage value.
    • When this module is used on the old battery, the actual voltage value and the rated voltage value differ greatly. User needs to measure stop voltage value in actual use

Application:

  • Applicable to all electric two-wheel vehicle or tricycle batteries within the applicable voltage range.
  • Suitable for battery discharge protection of cars and new energy vehicles.
  • Suitable for solar, wind and other power supply system.
  • Suitable for discharging protection of all kinds of batteries.

Package Included:

1 x XH-M609 DC 12V-36V Charger Module Voltage OverDischarge Battery Protection Module Board
