Description:
This XH-M604 Charger Module is suitable for 6-60V battery charge control, and can set charging voltage modes and stop charging voltage. Suitable for home use charger, solar power, wind turbine.
Input charger 6-60v on the IN end, plug the storage battery into the OUT end. For example, set the 12V start and stop 15V, when the voltage is less than 12V, the relay closes and sends the charging voltage of the charger to the battery, when the voltage is higher than 15V, the relay is disconnected and stops charging. downloads.
It is quite smart helping to save electricity and safe. Automatic power cutoff, Save energy by saving energy, extend battery life.
Specifications:
- Input Voltage: DC 6-60V
- Display Accuracy: 0.1V
- Control Accuracy: 0.1V
- Output Type: Direct output
- Voltage Tolerance: ±0.1V
- Apply For: 6-60V Lithium Lead-acid battery
Features:
- Simple and straightforward setup.
- Automates charging to conserve energy and extend battery life.
- Shuts down charging at 15V to prevent damage.
- Durable construction with built-in charging protection.
Package Included:

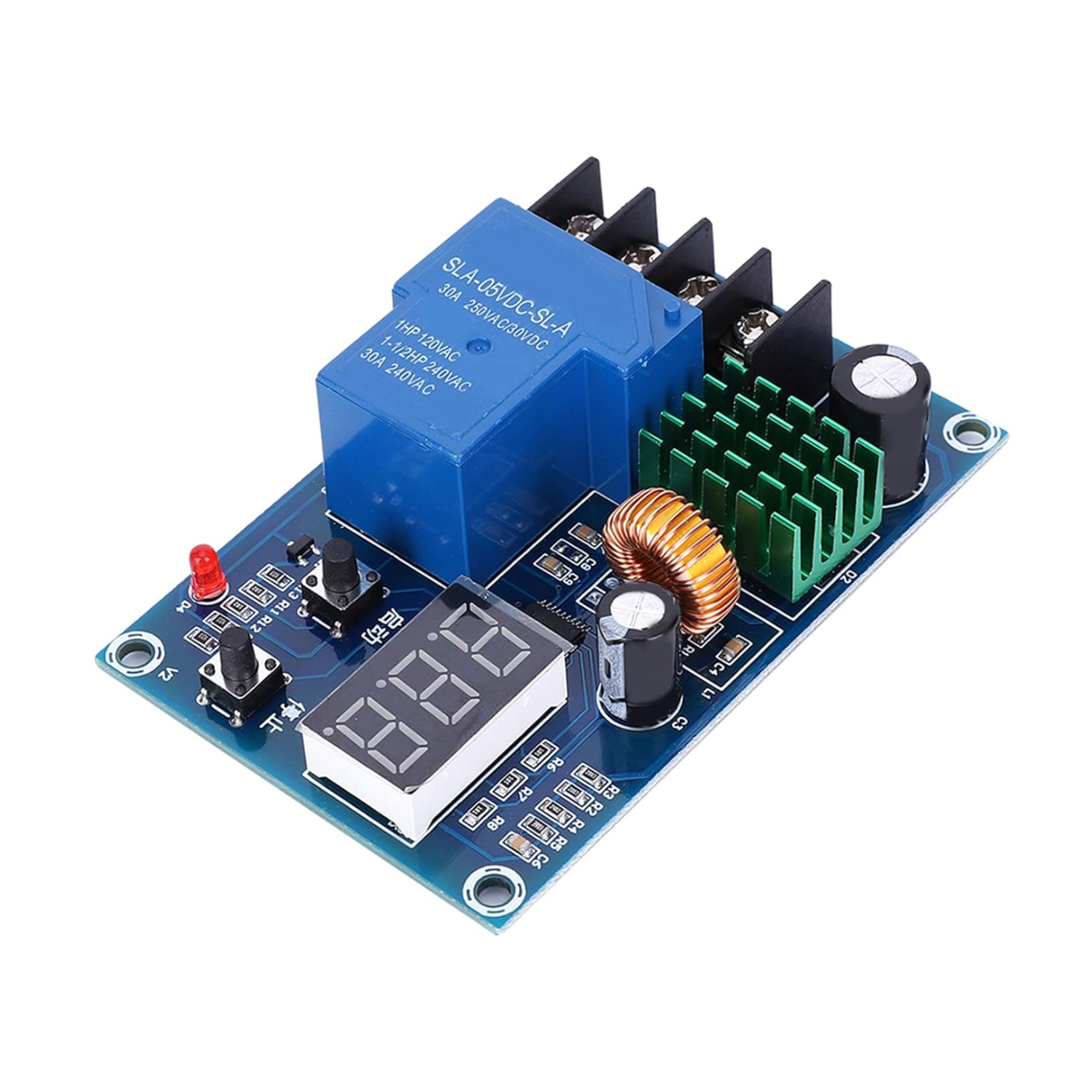

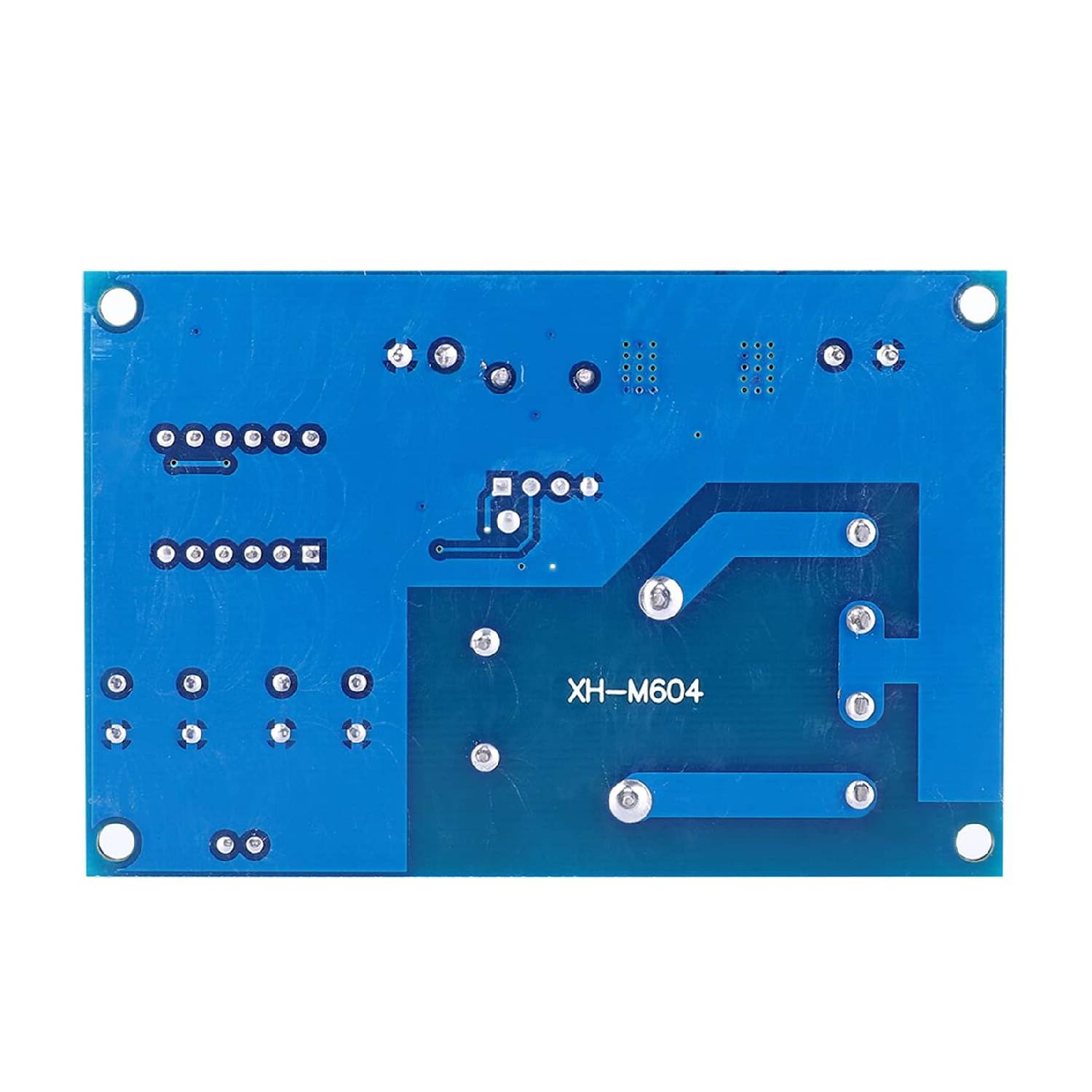

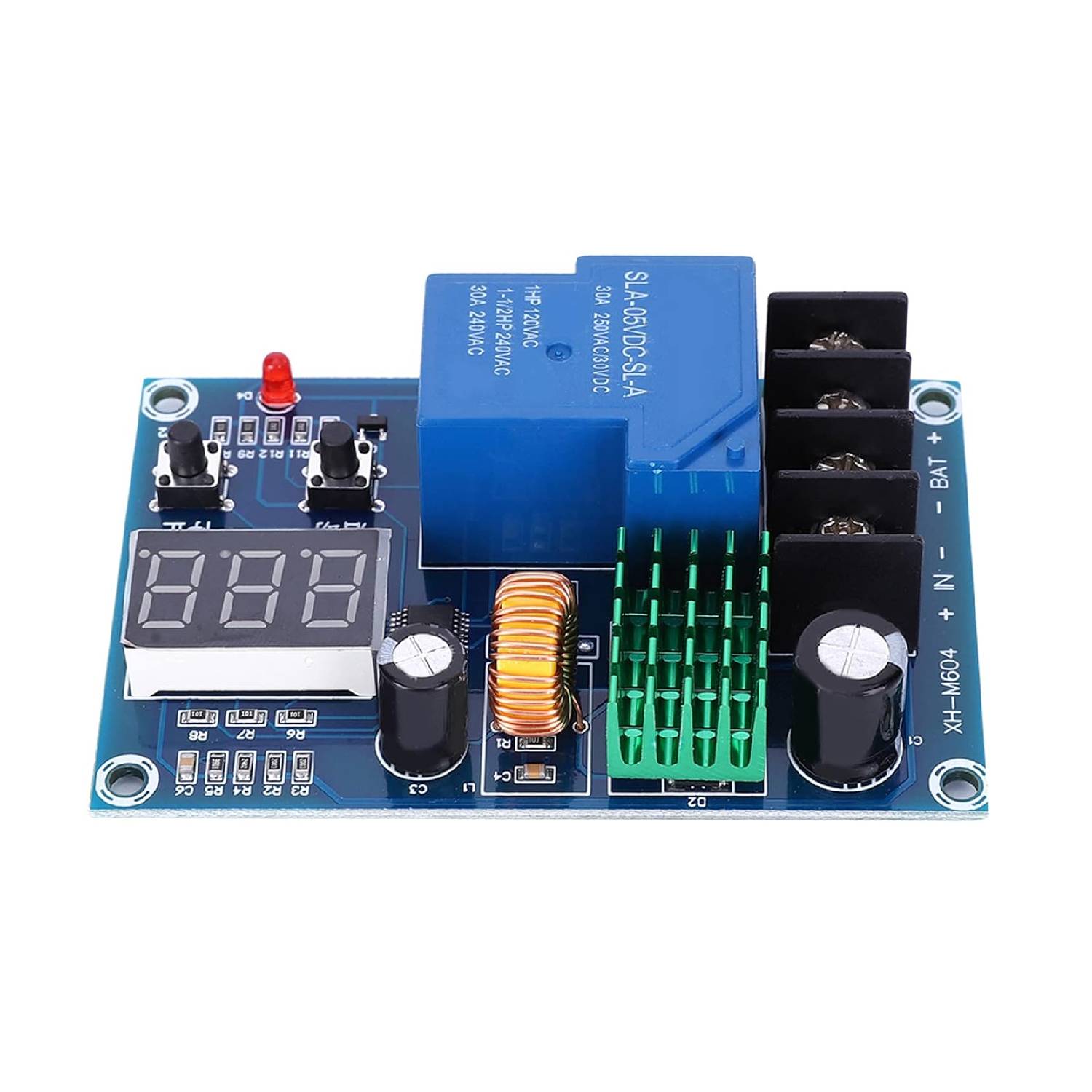

1 x XH-M604 6V-60V Battery Charging Control Board
