Description:

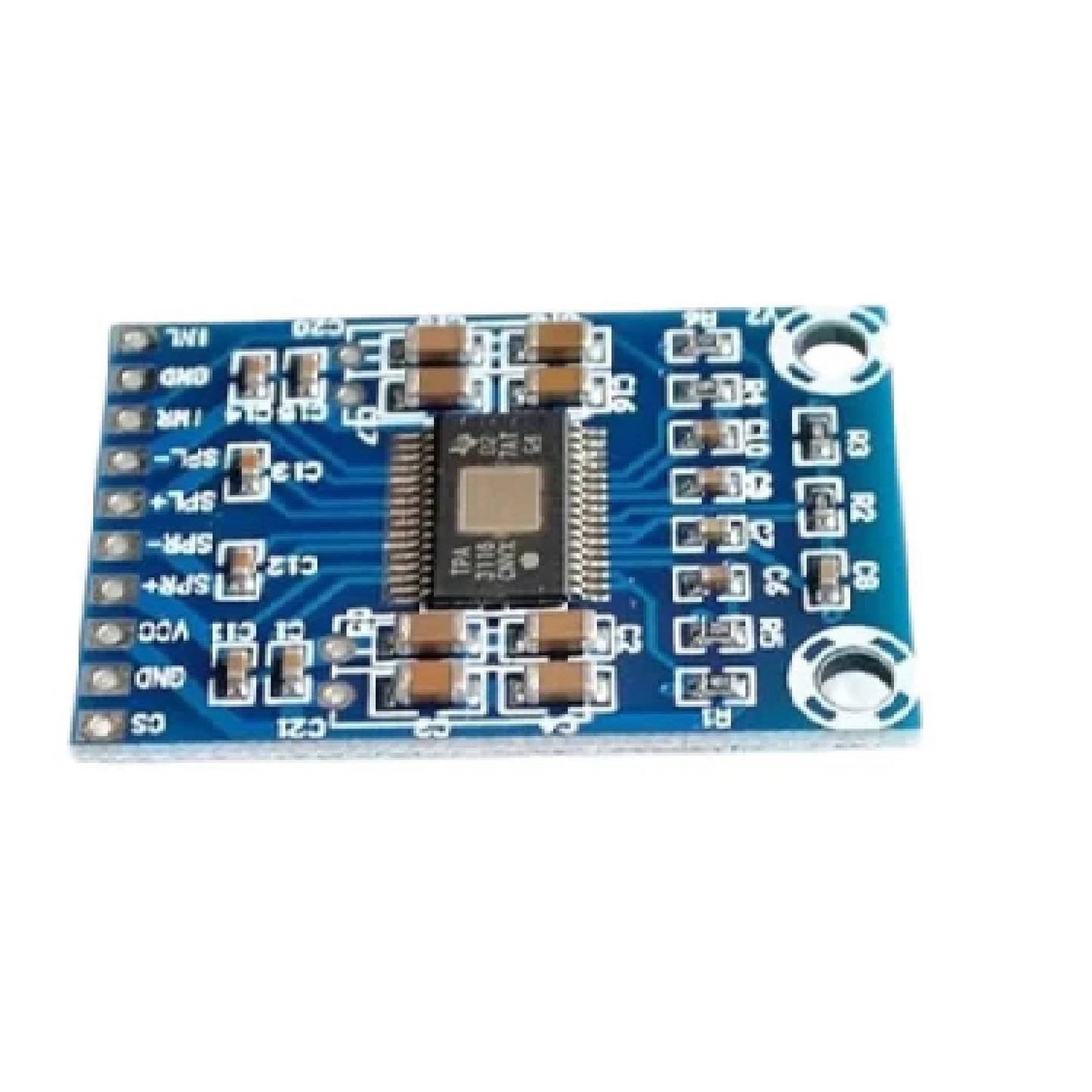

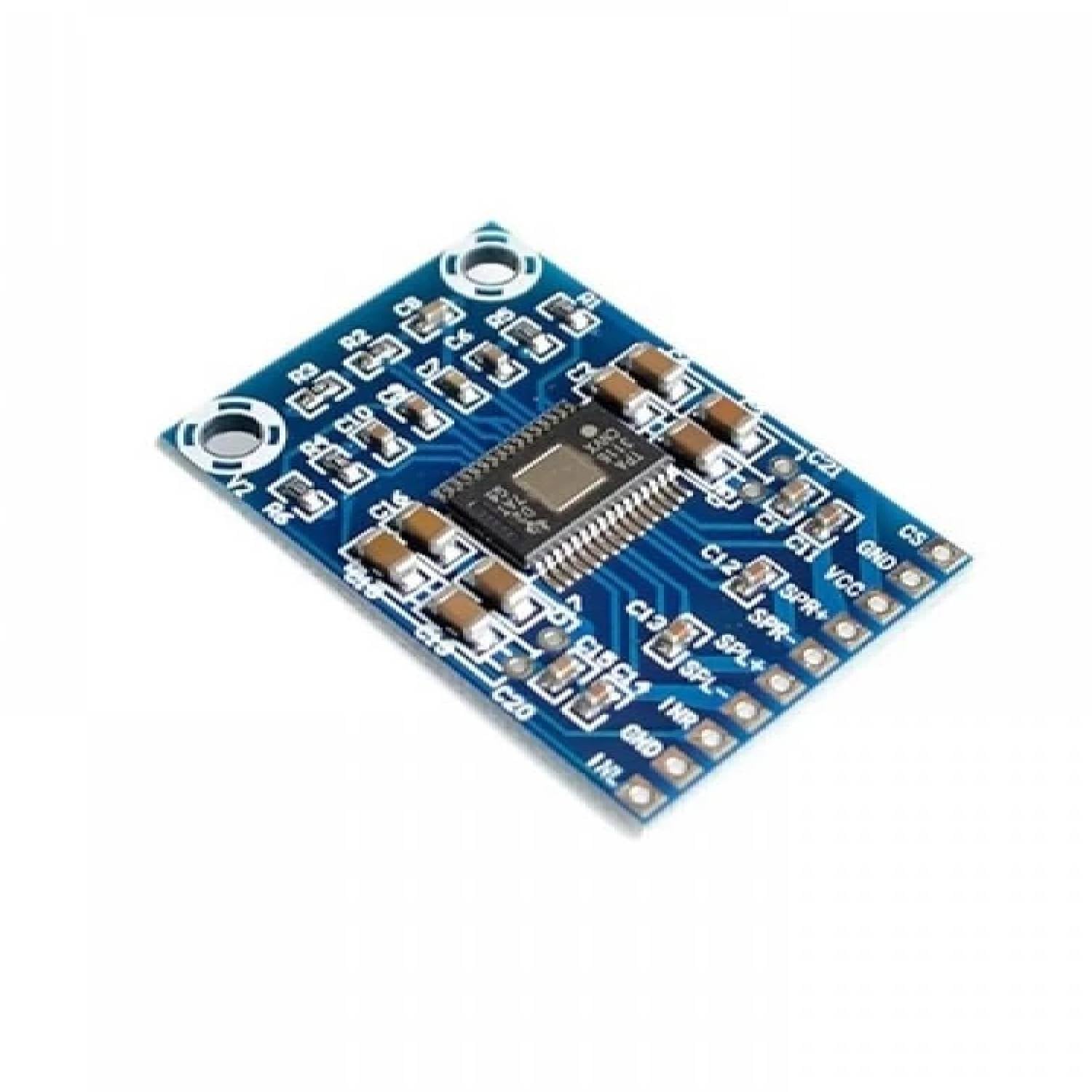

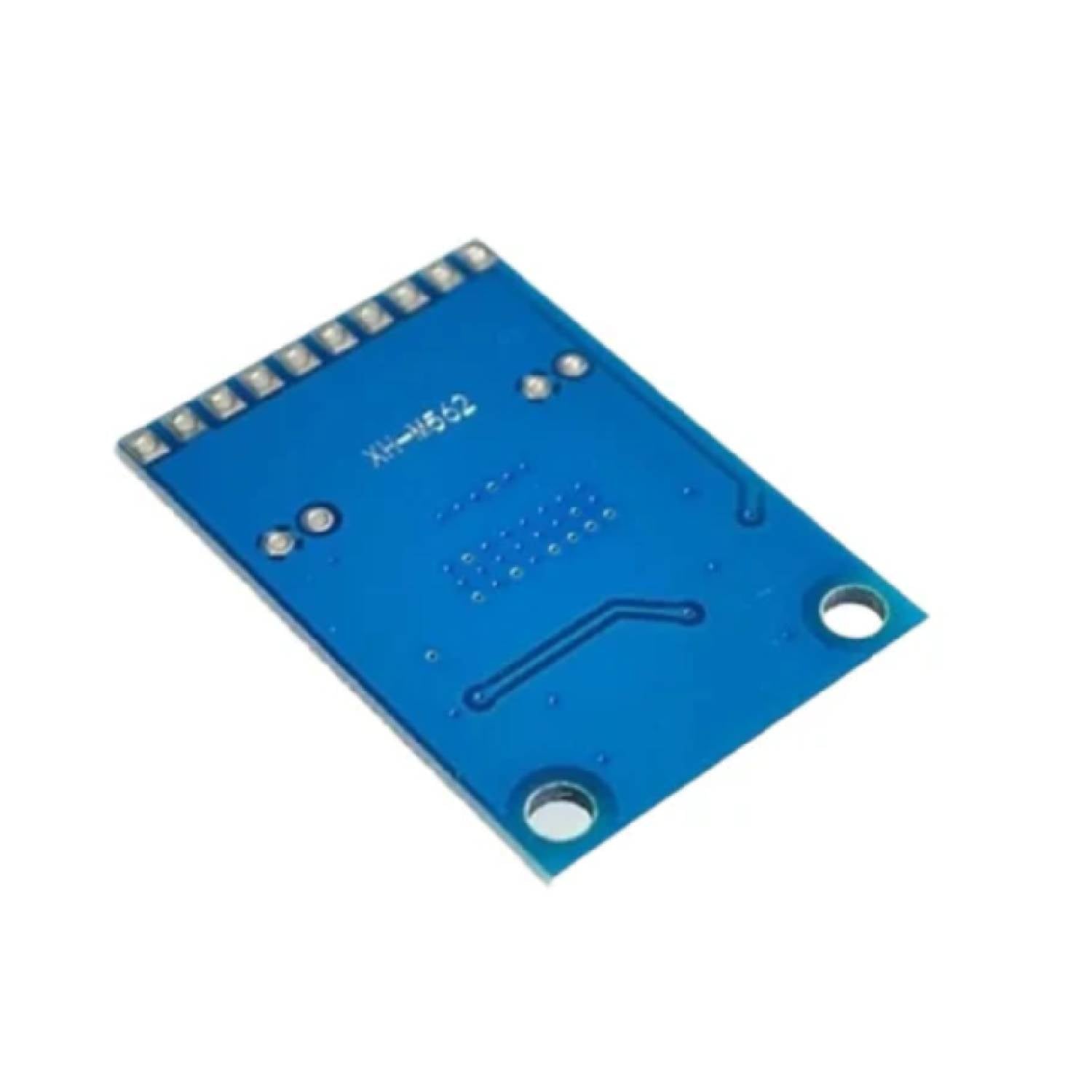

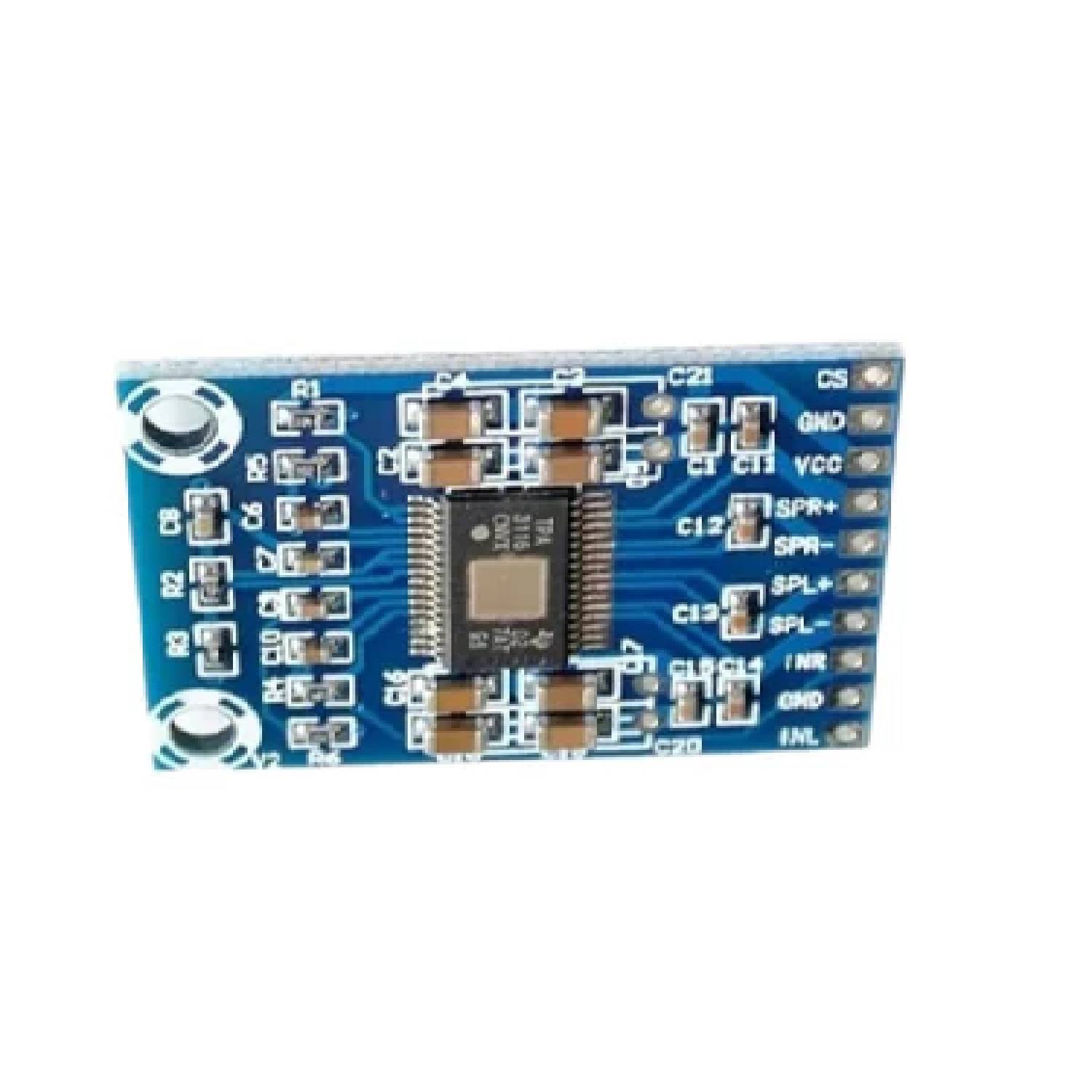

The XH-M562 TPA 3116D2 50W+50W Dual Channel Mini Digital Class D Amplifier. Allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area.
With the same number of external components, the efficiency of the TPA 3116D2 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.
Specifications:
- Operating Voltage (VDC): 12-24
- Max Gain: 36 dB
- Current Handling Capacity (A) : 3
- Efficiency: >90%
- Amplifier IC : TPA3116D2
- Load: Can Direct Device 4 Or 8 Ohm Small Speakers
Features:
- Dual-channel stereo, high output power (50w + 50w power @ 12V ).
- Good sound quality.
- Double-panel wiring solves crosstalk.
- Super mini design allows it to be easily placed in a variety of digital products.
- Filterless, Low Quiescent Current, and Low EMI.
- Superior Low Noise.
- Short Circuit Protection.
- Thermal Shutdown
Package Included :
1 x XH-M562 50W+50W Mini Digital Amplifier TPA3116D2 Dual Channel Class D Amplifier High-Power Dual Channel Mini Digital Amplifier For Audio Systems
