Description:

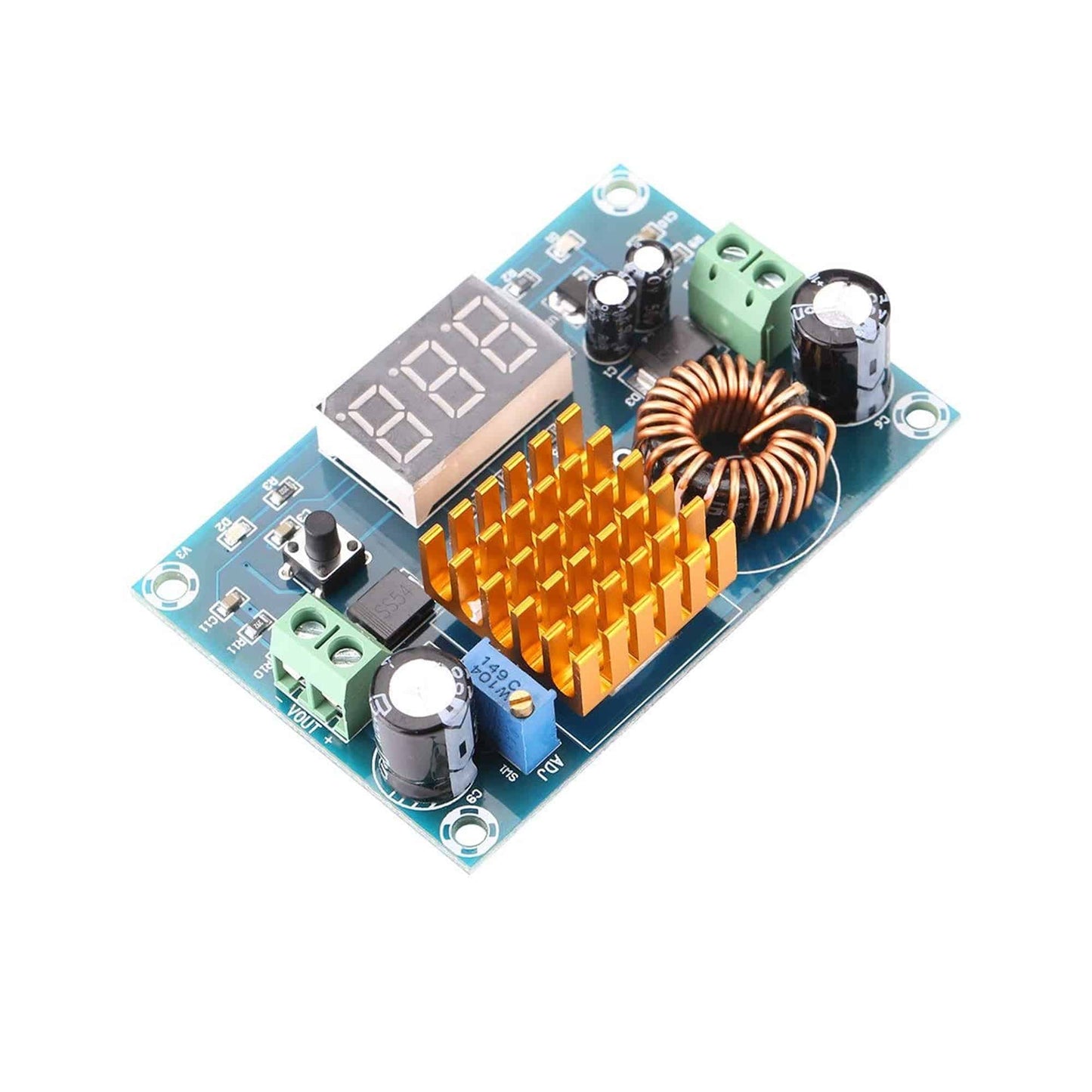

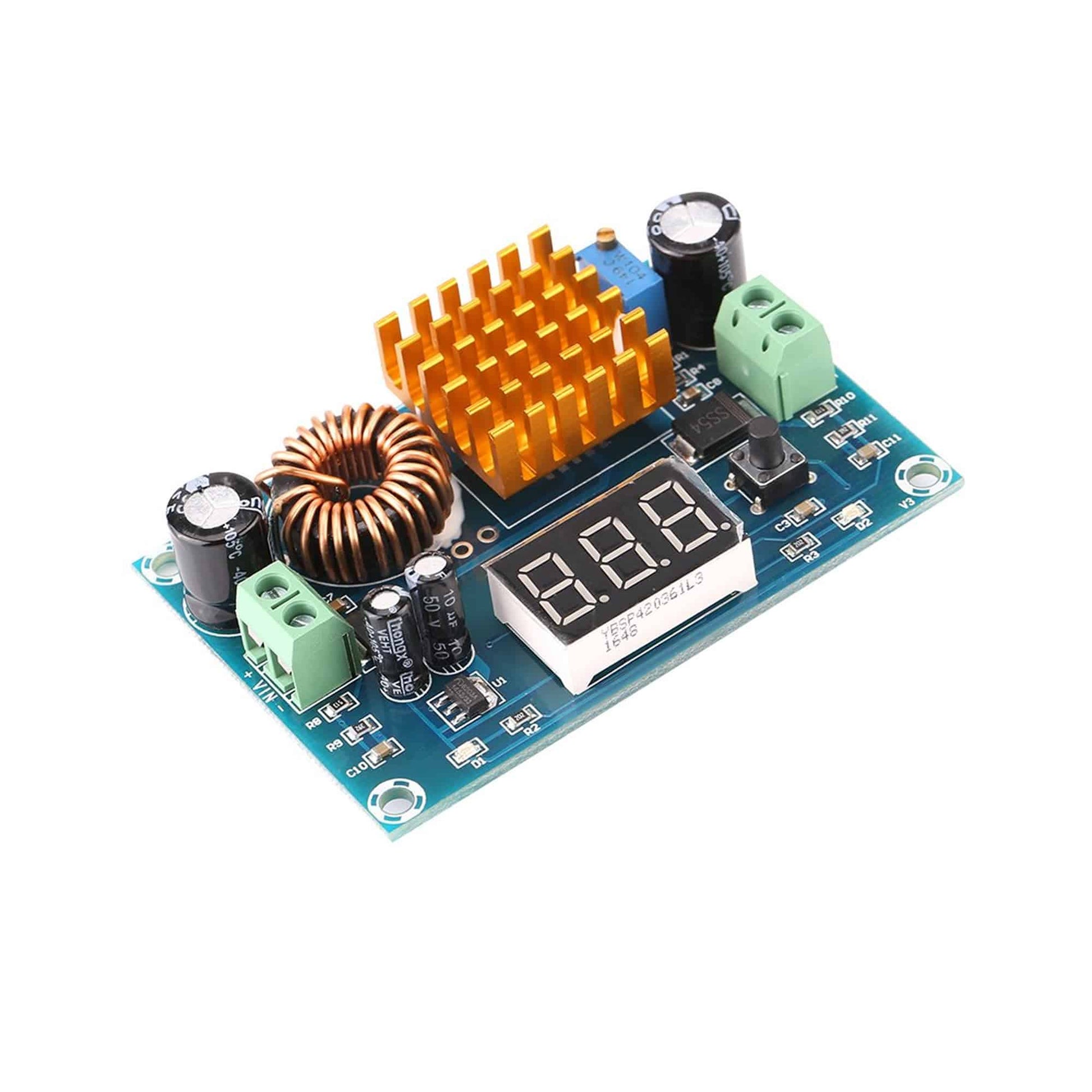

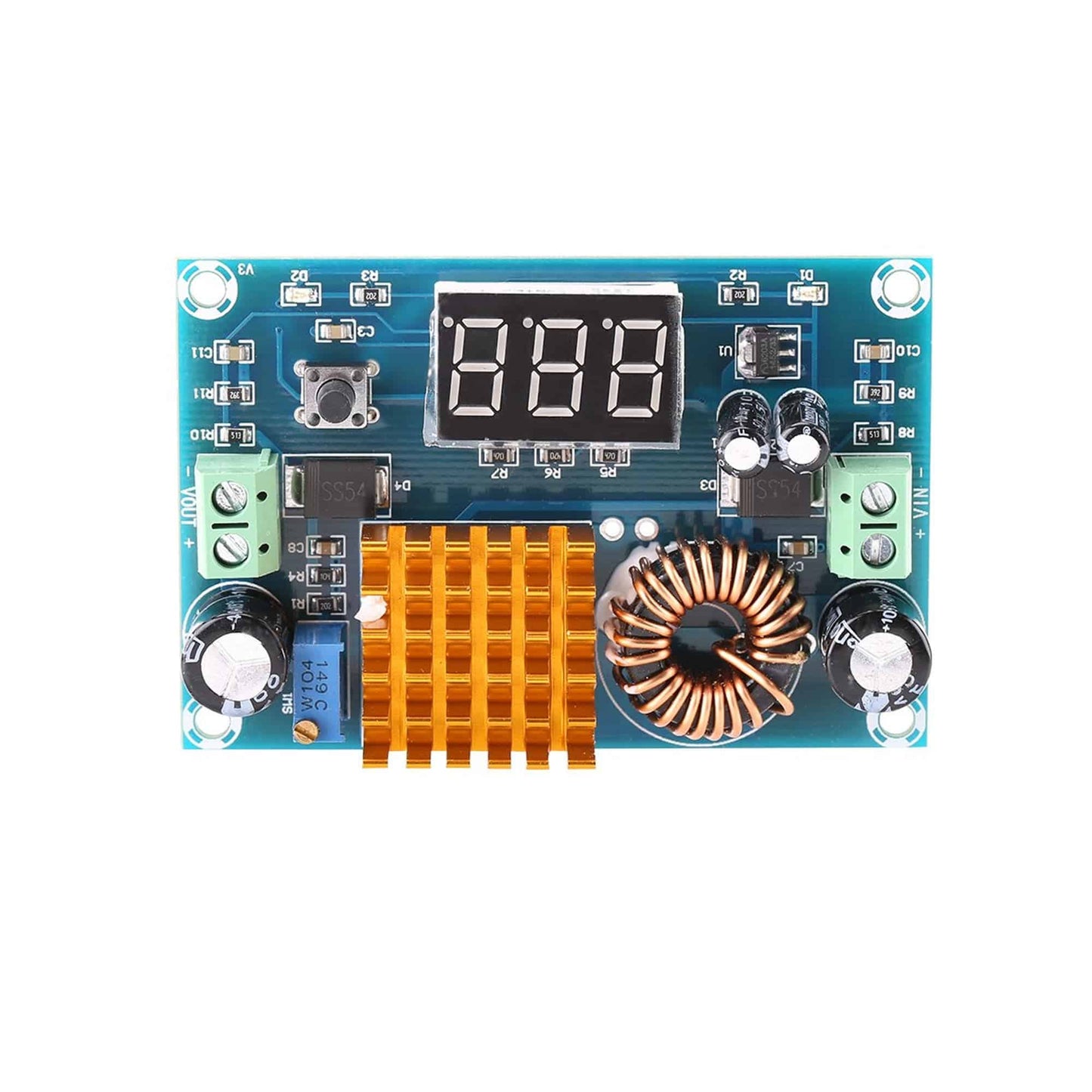

This is an XH-M411 Boost Converter Module with an XL6019 boost chip that supports 3V-35V input and 5V-45V adjustable voltage output with high current output up to 5A. The onboard potentiometer and 3-digit red LED for output voltage adjustment display the pushbutton-controlled input/output voltage for easy operation. This is a digital XH-M411 Boost Converter Module with a monolithic integrated circuit and digital programming. It is precise, reliable and durable.
Specifications:
- Model: XH-M411
- Input Voltage: 3V-35V
- Output Voltage: 5V-45V
- Input Current: 5A(Peak)
- Voltage Display Range: 5V-30V(if the input voltage is lower than 4.5V, it will not display)
- Voltage Display Error: ±0.1V
Features:
- This is a great XH-M411 Boost Converter Module for electric equipment, digital products, etc.
- Input and output are designed with screw terminals for convenient wire connection and disconnection.
- There is a heat sink on board that would ensure better heat dissipation.
- Designed with USB and 2.5A large current output, can identify resistance and charge several phones at the same time.
- XH-M411 Boost Converter Module can also be used as a power supply for laptops or a voltage regulator for solar panels.
Using Instruction:
- Access the power supply (4.5-40V), and then the input indicator lights, which means the module works normally.
- Adjust the blue potentiometer knob (generally clockwise rotation boost, counterclockwise rotation step-down), and use the universal meter to monitor the output voltage to meet the need.
- If the output voltage of the XH-M411 Boost Converter Module can not be adjusted and is always equal to the input voltage, please turn the potentiometer counterclockwise several times before using it.
Application:
- Make a DIY stable power supply, input 12V, the output can be 12-35V adjustable, with a voltmeter, display more intuitive.
- Power supply for electronic equipment. You can set the output value according to your system voltage.
- Make car power supply. Powering laptops, PADs, or digital products.
- XH-M411 Boost Converter Module can be used to make a DIY high-power notebook mobile power and configure a large capacity 12V lithium battery. Keep your laptop bright.
- XH-M411 Boost Converter Module can be used as a solar panel voltage regulator.
Package Included:
1 x XH-M411 Boost Converter Module Digital Step Up Power Module XH-M411 DC-DC Digital Booster Board Boost Module High-Power 5-45V Output 5A
