XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1 - RS3058

XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1 - RS3058

RS3058

12 in stock

Rs. 285.00
Rs. 285.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

    Description:

    This XL4016E1 Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC. This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

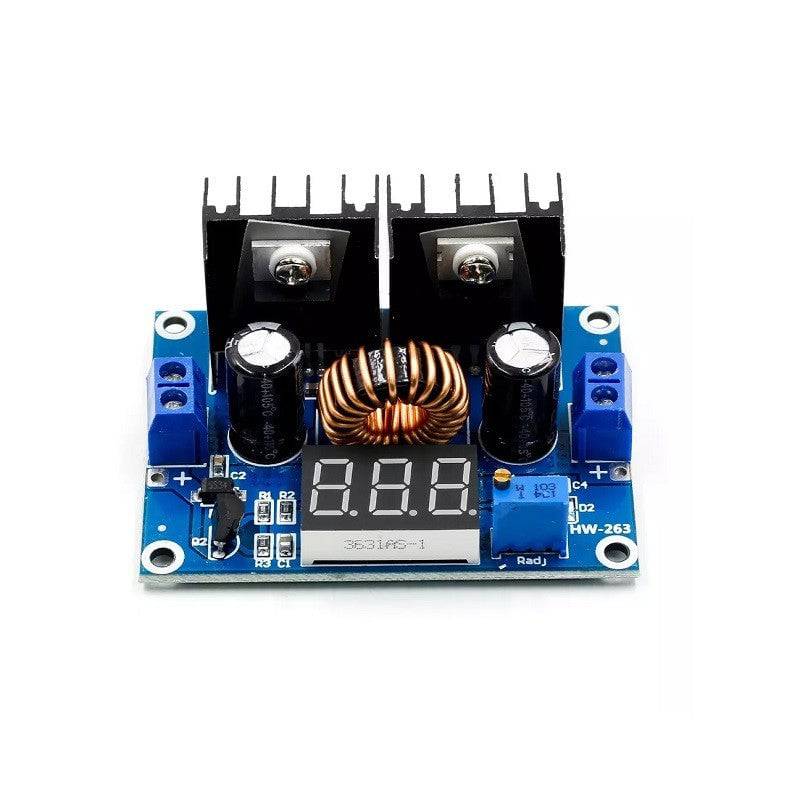

    Note: This Product is available in two different variants (XH-M404 and HW-263) with the same working, we will ship it randomly.

    Specification:

    • Input Voltage: 4 to 40VDC
    • Output Voltage: 1.25 to 36VDC
    • Max Current: 8A
    • Maximum Power: 200W
    • Efficiency: 94%
    • Switching Frequency: 180KHz

    Features:

    • Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
    • Input: IN+ input positive IN- input negative
    • Output: OUT+ output positive OUT- output negative
    • Static power consumption is only about 6mA.
    • Connection: Welding, plus pin can be directly soldered after the PCB.
    • Short circuit protection: current limiting, thermal protection, self-recovery.
    • Non-isolated step-down (BUCK) switching regulator.
    • Short circuit protection: Current limiting, self-recovery
    • Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
    • Non-synchronous rectification

    Package Included:

    1 x XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1
