- Input voltage: DC 5~24V
- Output voltage: DC 24V
- Maximum current: 10A
- Maximum power: 240W
- Conversion power: >94%
Description:

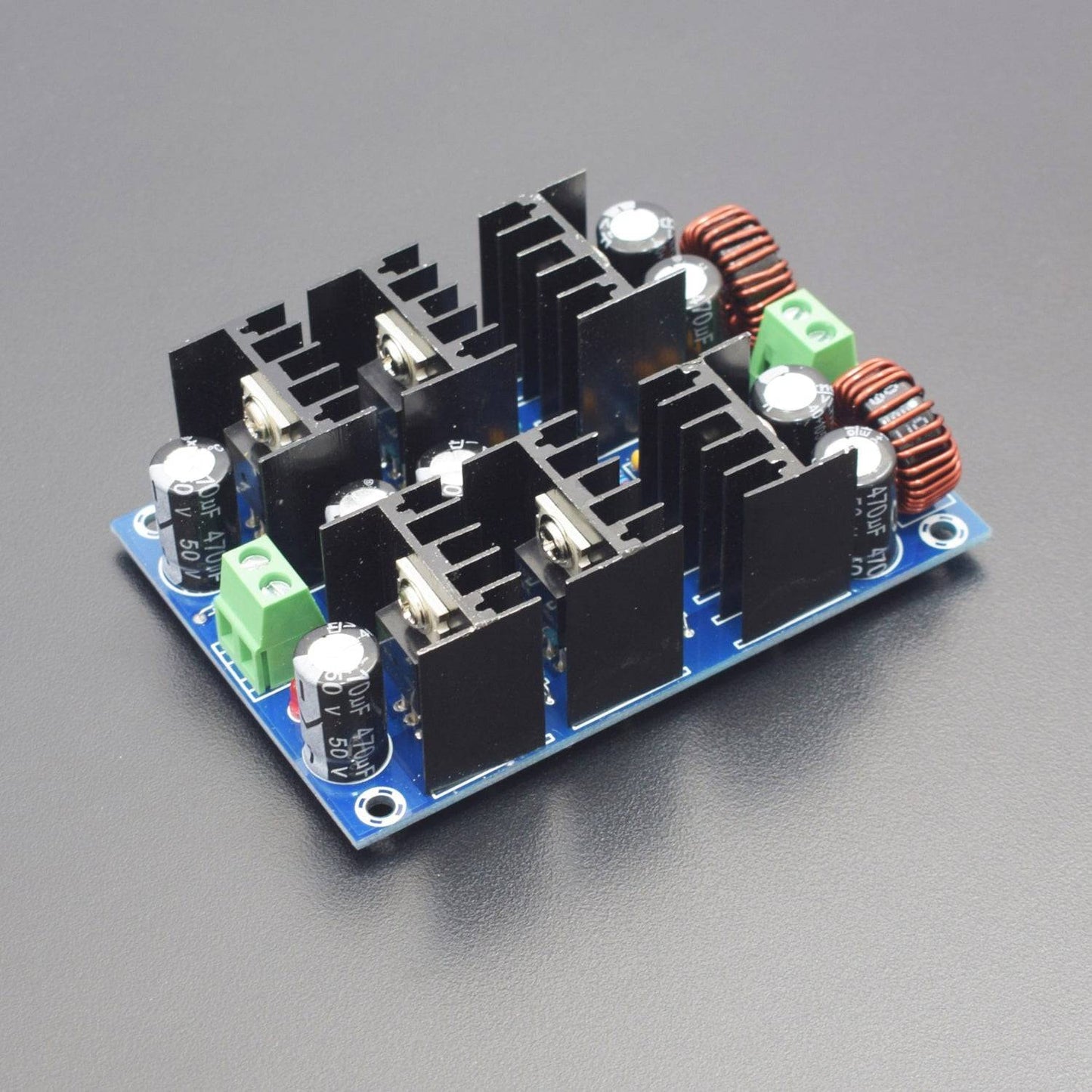

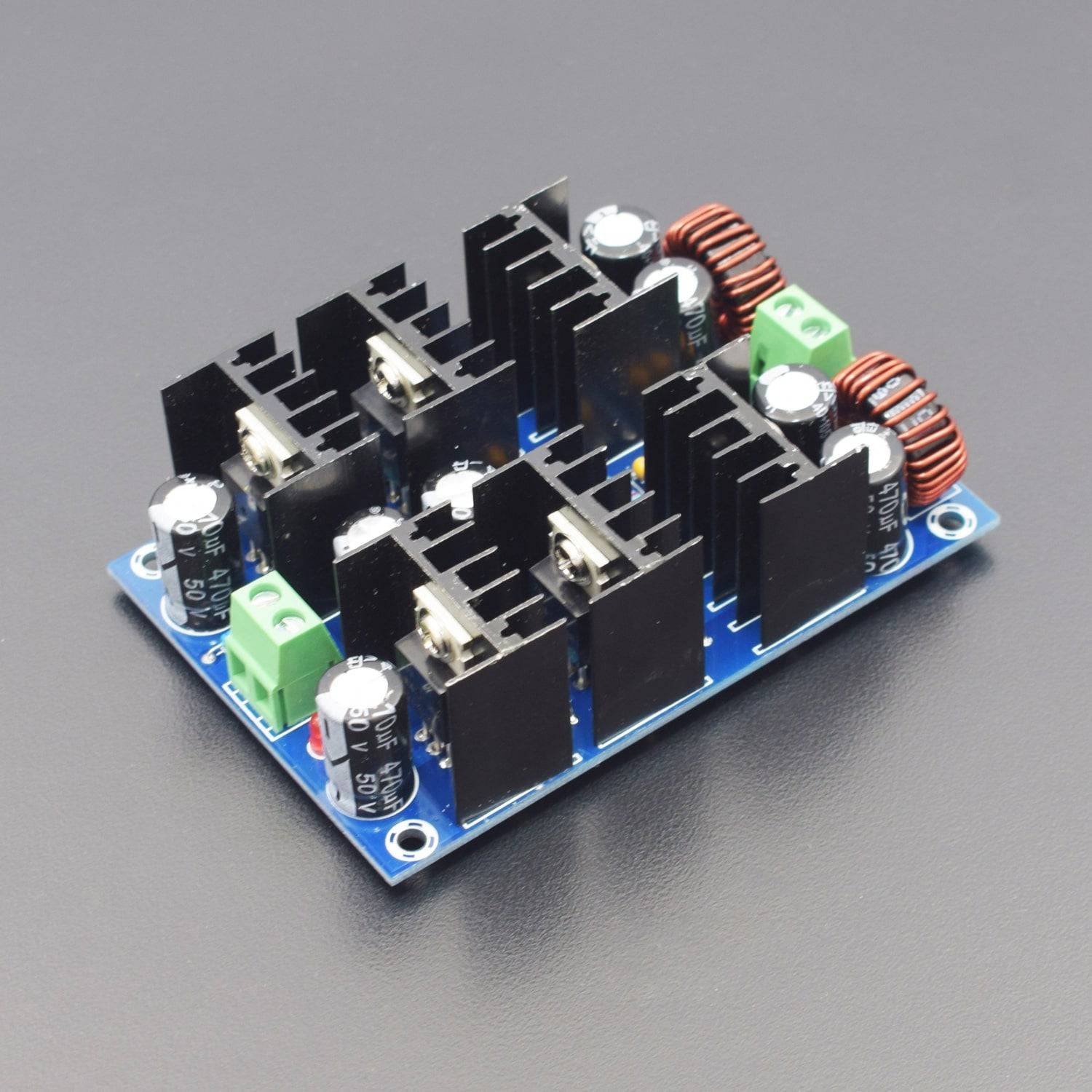

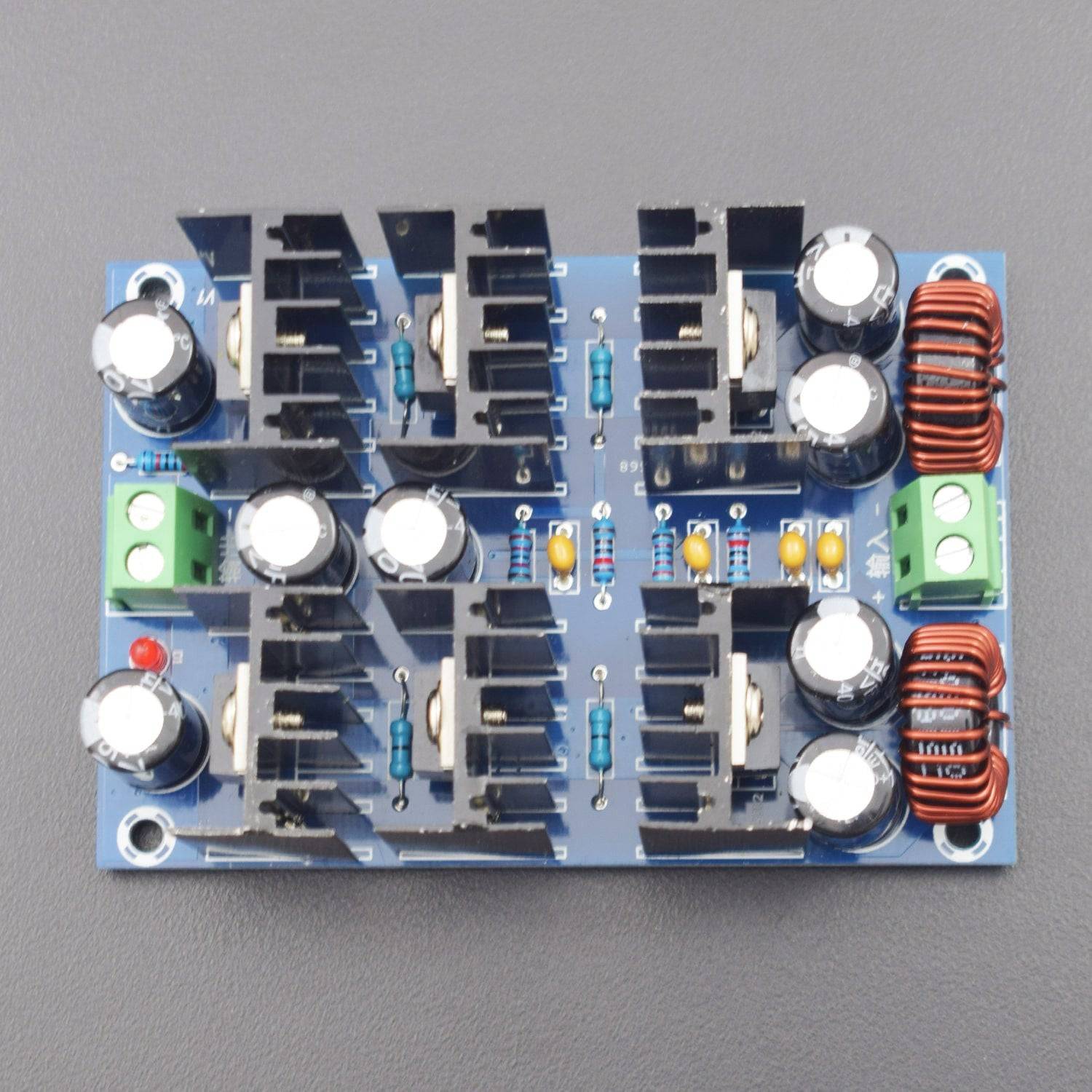

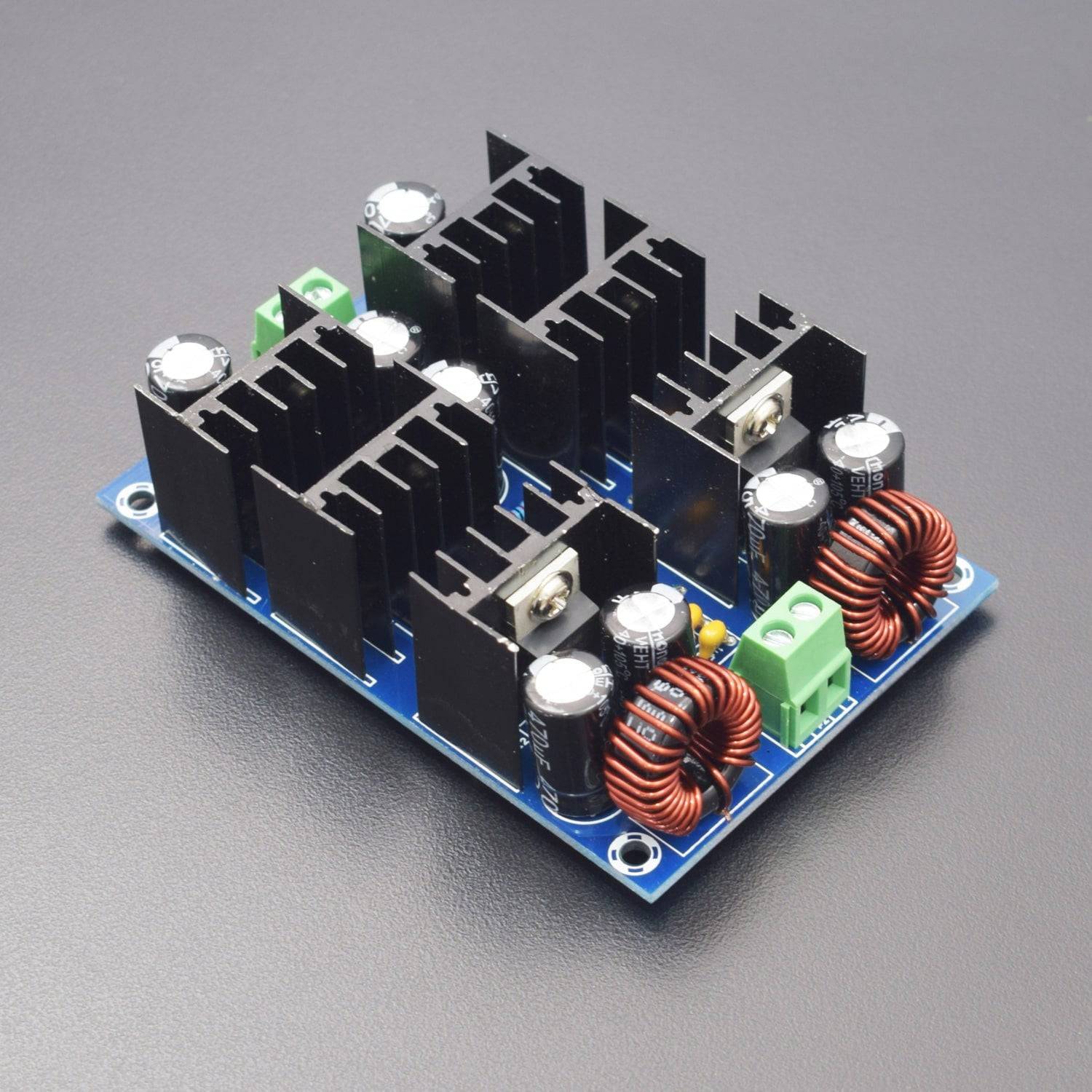

The dual XL6012 boost chip is stabilized with four MBR20100CT chips. The conversion efficiency is high and heat dissipation is stable. The 5A24V power 120W can be continuously output. Black coating helps to absorb heat, enhance heat dissipation efficiency, effectively prevent the overheating of Schottky and XL6012, and affect conversion efficiency and circuit operation. The large terminal conductance is more efficient and safe, and the internal upper and lower articulation structure is firmly connected, and the pin plug-in is deeply welded.
Specification:
- Input voltage: DC 5~24V
- Output voltage: DC 24V
- Maximum current: 10A
- Maximum power: 240W
- Conversion power: >94%
- Switching frequency: 180KHz
Features:
- Built in XL6012 chip.
- Aluminum alloy black coating radiator
- Large inductance with double copper core
- Additional soldering circuit
- It can Increase current flow capacity
- Dual layer high density glass fiber circuit board for 1.6mm military quality.
Package Included:
1 x XH-M348 Step Up Module Boost DC-DC 5V-24V To 24V Digital Voltage Regulator Module
