Description:

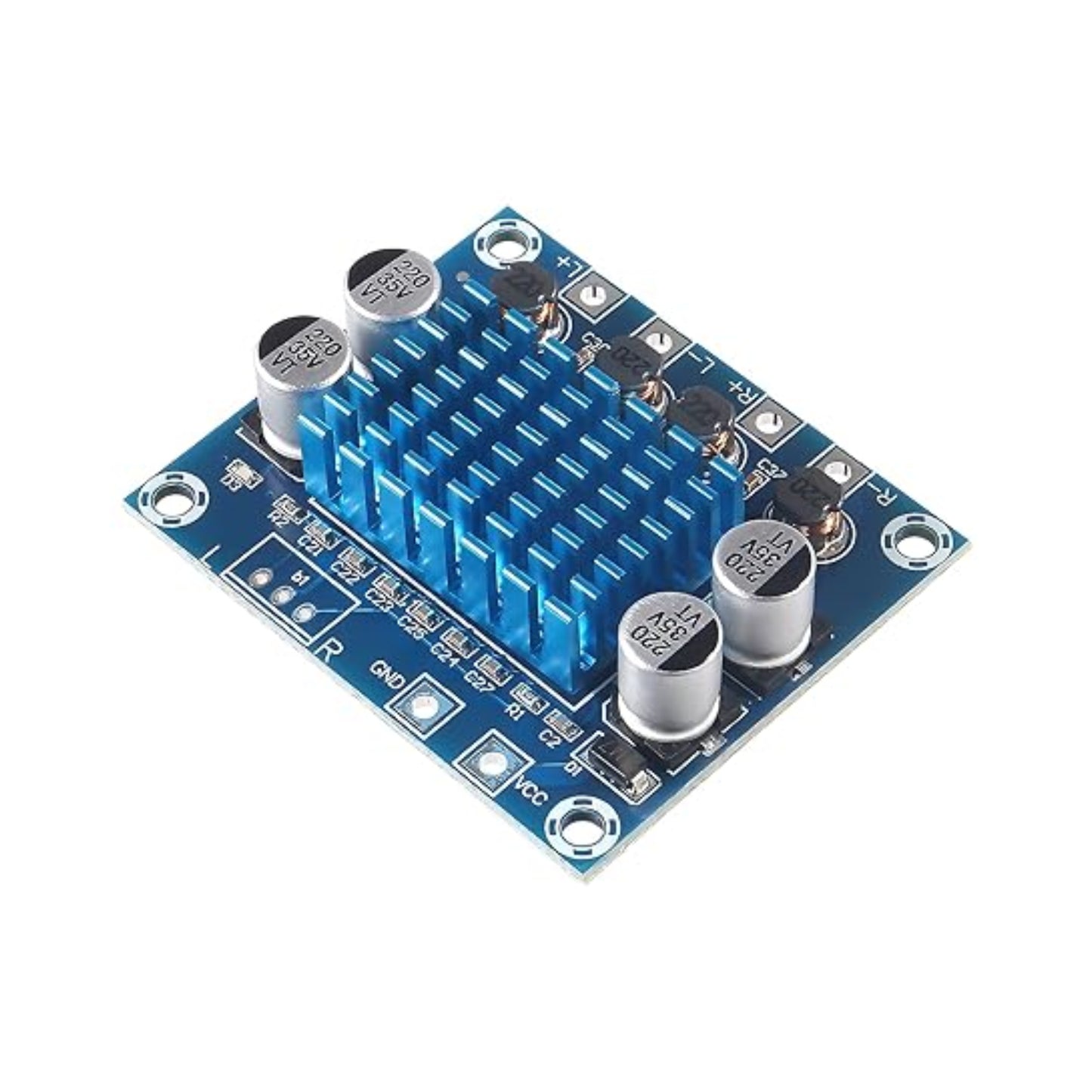

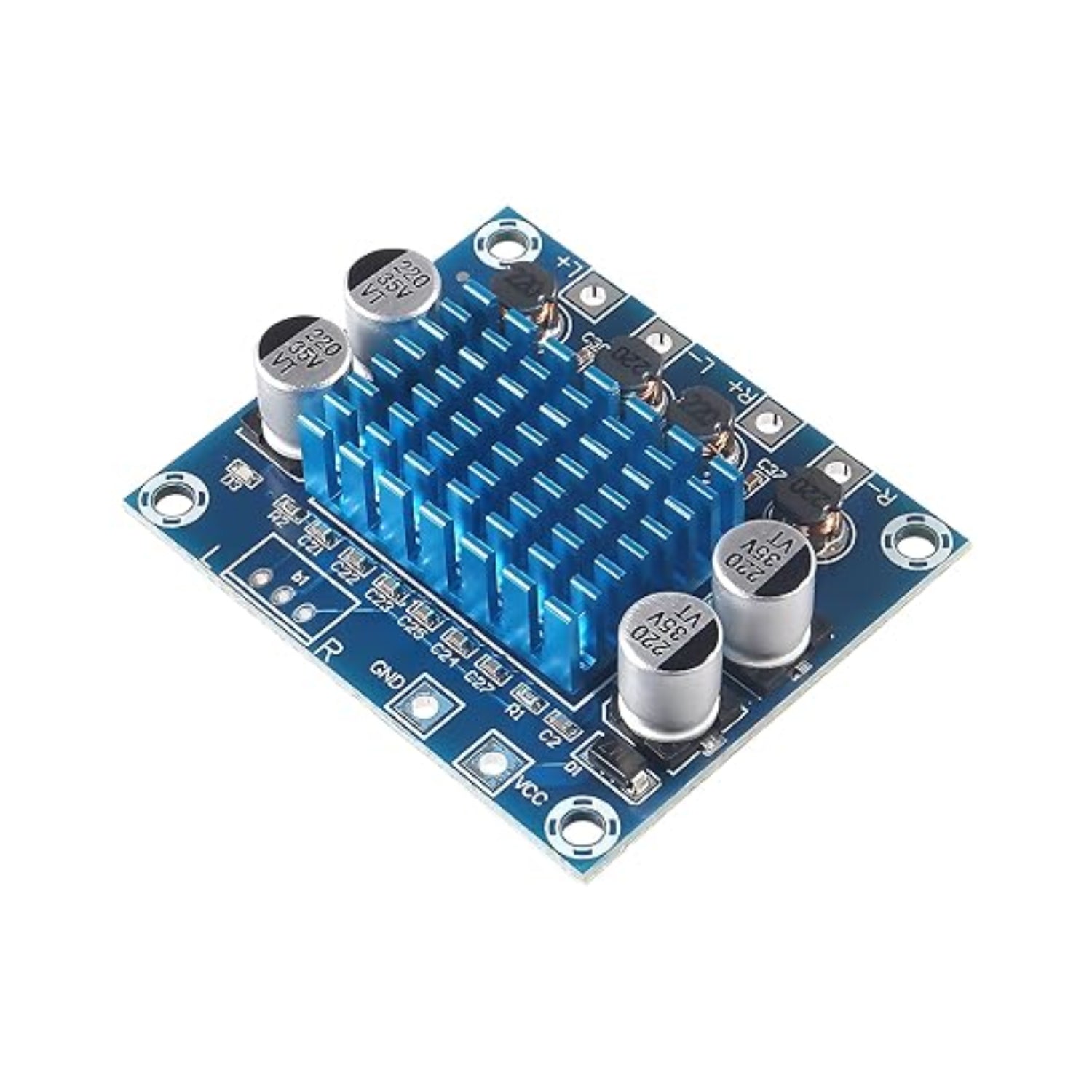

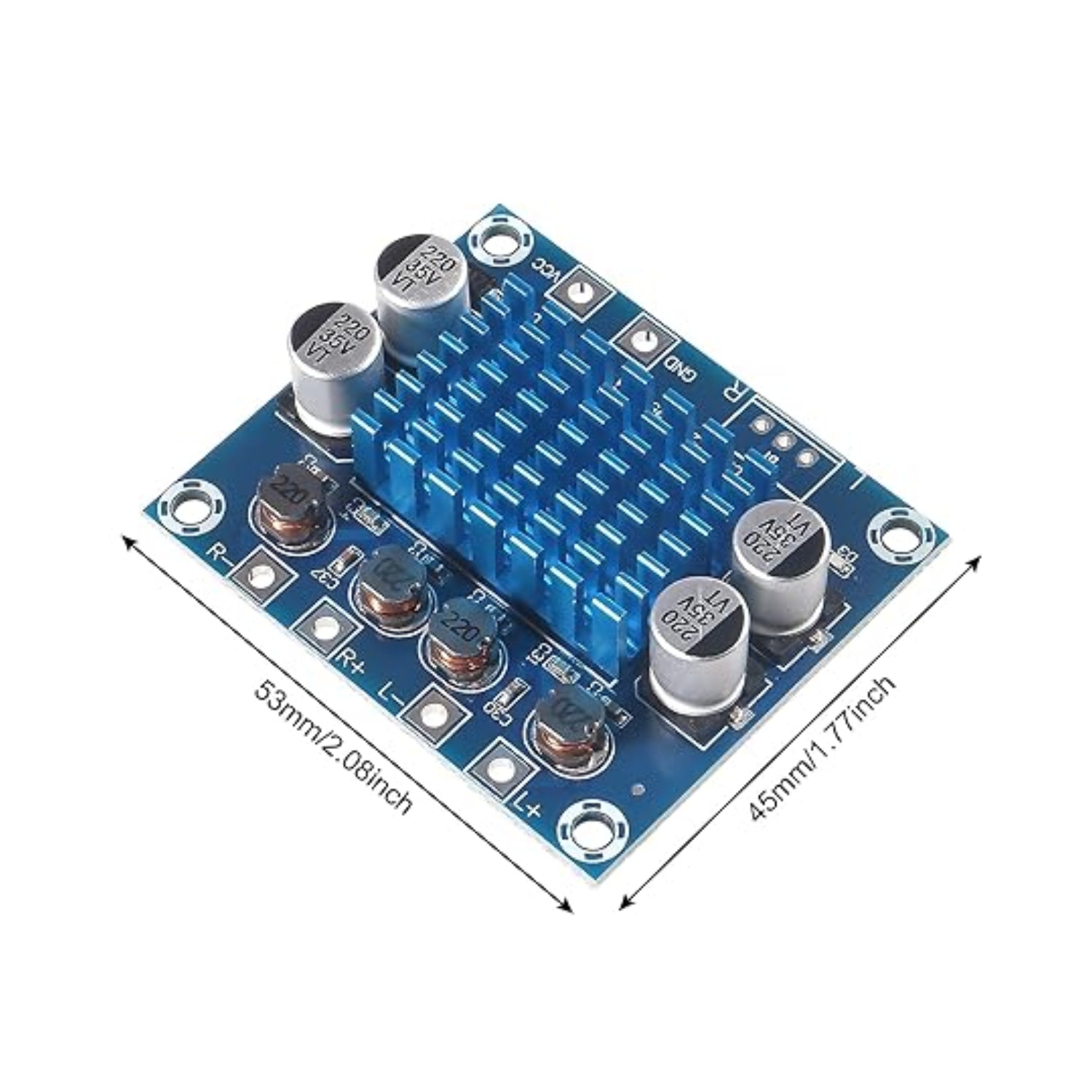

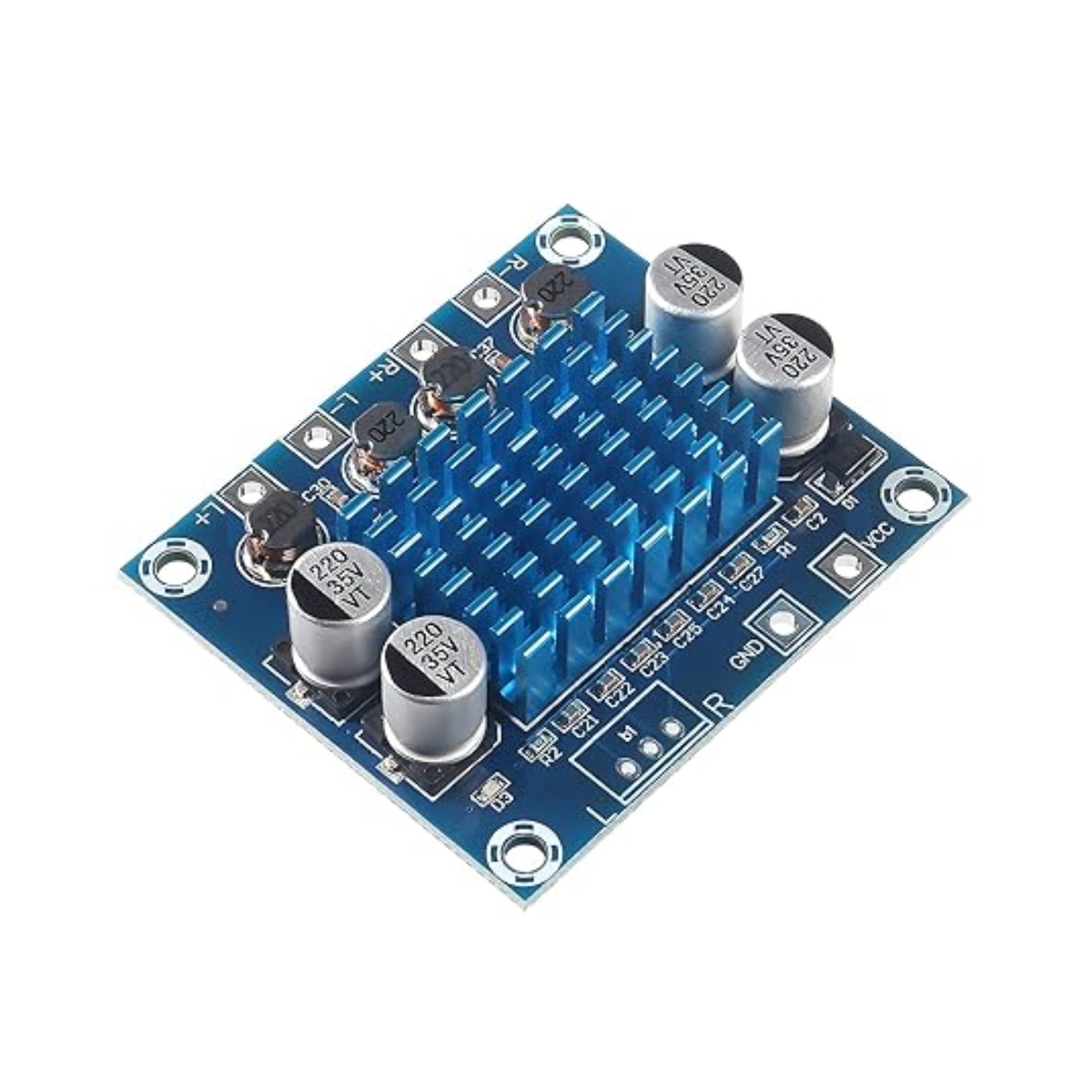

XH-A232 TPA3110 Stereo Audio Amplifier Module is a newly designed digital audio amplifier board with fine quality that is practical to install and use and also has good performance. It features a high-efficiency class D audio power amplifier with the latest and original TPA3110 core technology the BTL bridge circuit is more efficient than before.
2.0 Channel Digital Amplifier Board uses the double power supply transformer with a dynamic power supply range from 12V to 24V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.
Specifications:
- Chip: TPA3110
- Condition: XH-A232
- Power supply voltage: DC8V-26V
- Dissipation Power: 30W+30W
- Signal-to-noise ratio: 100db
- Output impedance: 4-8ohm
- Current: more than 3A
- Channels: 2 (2.0)
- Application: computer
Features:
- Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.
- Strong TPA3110 chip is a digital power amplifier chip, with low idle loss characteristics, which makes it work well and quickly.

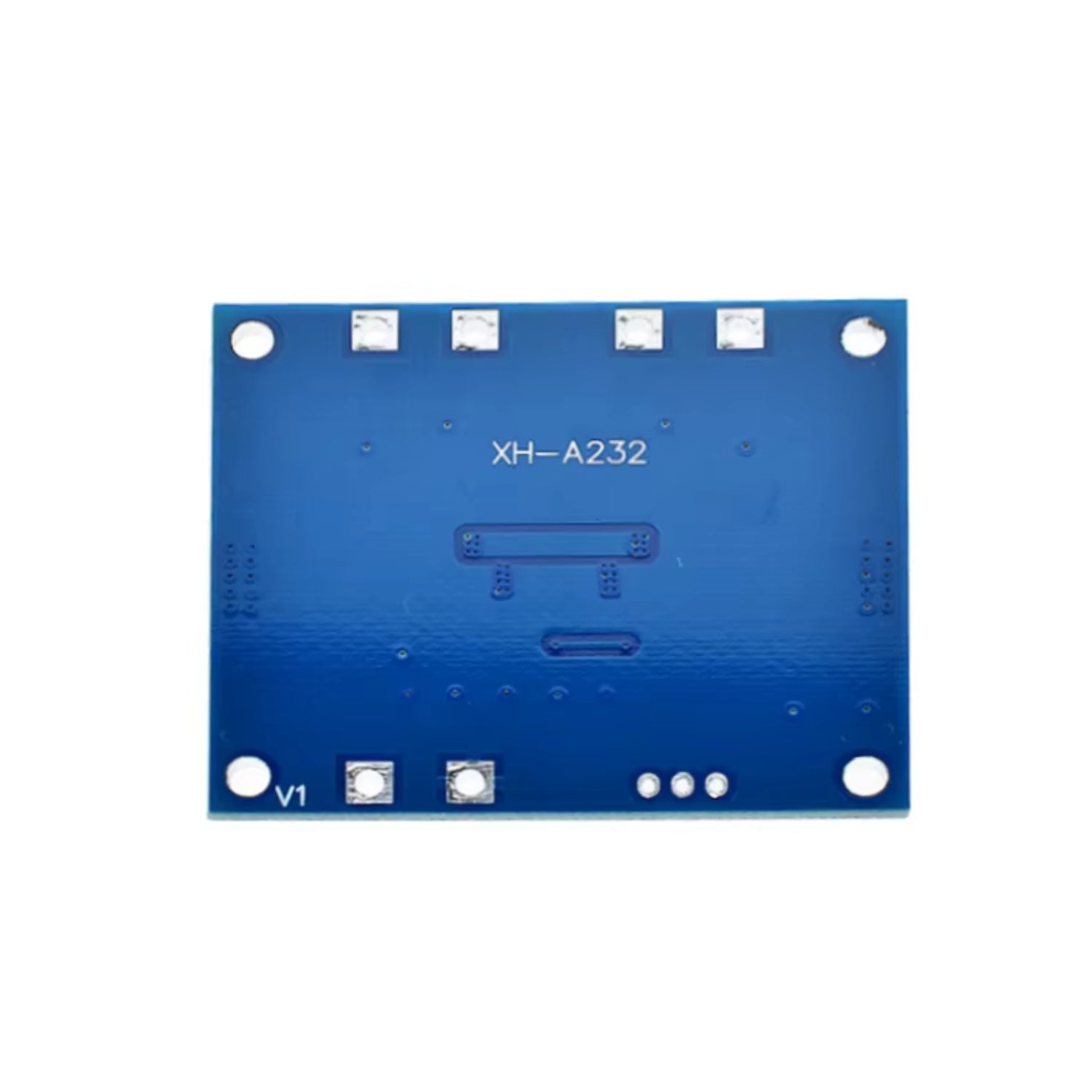

- There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of a short circuit.
Package Included:
1 x XH-A232 TPA3110 Stereo Audio Amplifier Module High Power Digital Audio Amplifier Board 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier Board For Various Applications
