XD-75 Humidity Sensitive Switch Relay Module Humidity Regulator Controller HR202 Sensor DC 5V - RS1450

XD-75 Humidity Sensitive Switch Relay Module Humidity Regulator Controller HR202 Sensor DC 5V - RS1450

SKU:RS1450

Low stock: 10 left

Regular price Rs. 259.00
Regular price Sale price Rs. 259.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Power Supply: 5VDC
  • Current: > 150mA
  • Maximum Load: 250V 10A AC or 30V 10A DC, All can be used that is less than the power

Description:

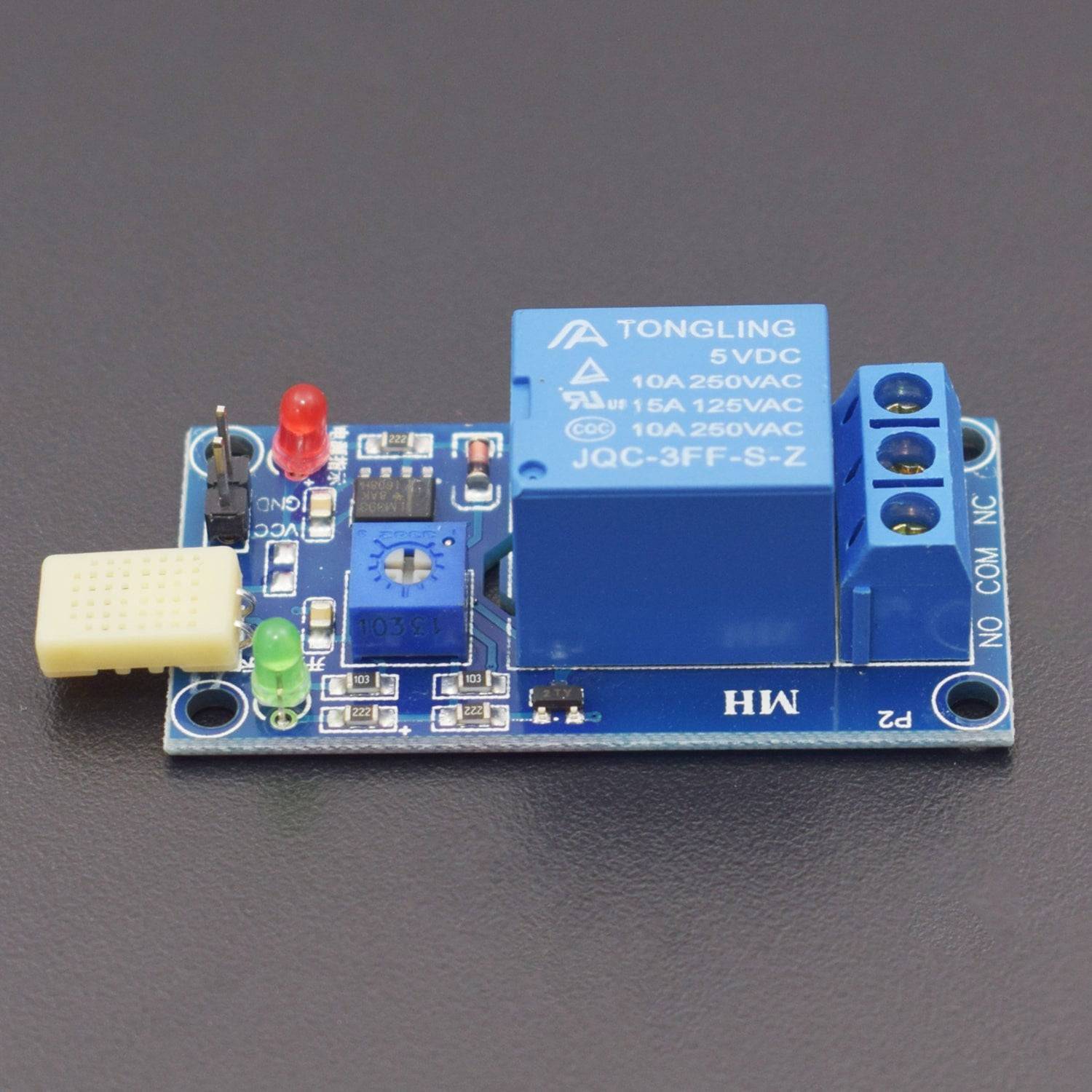

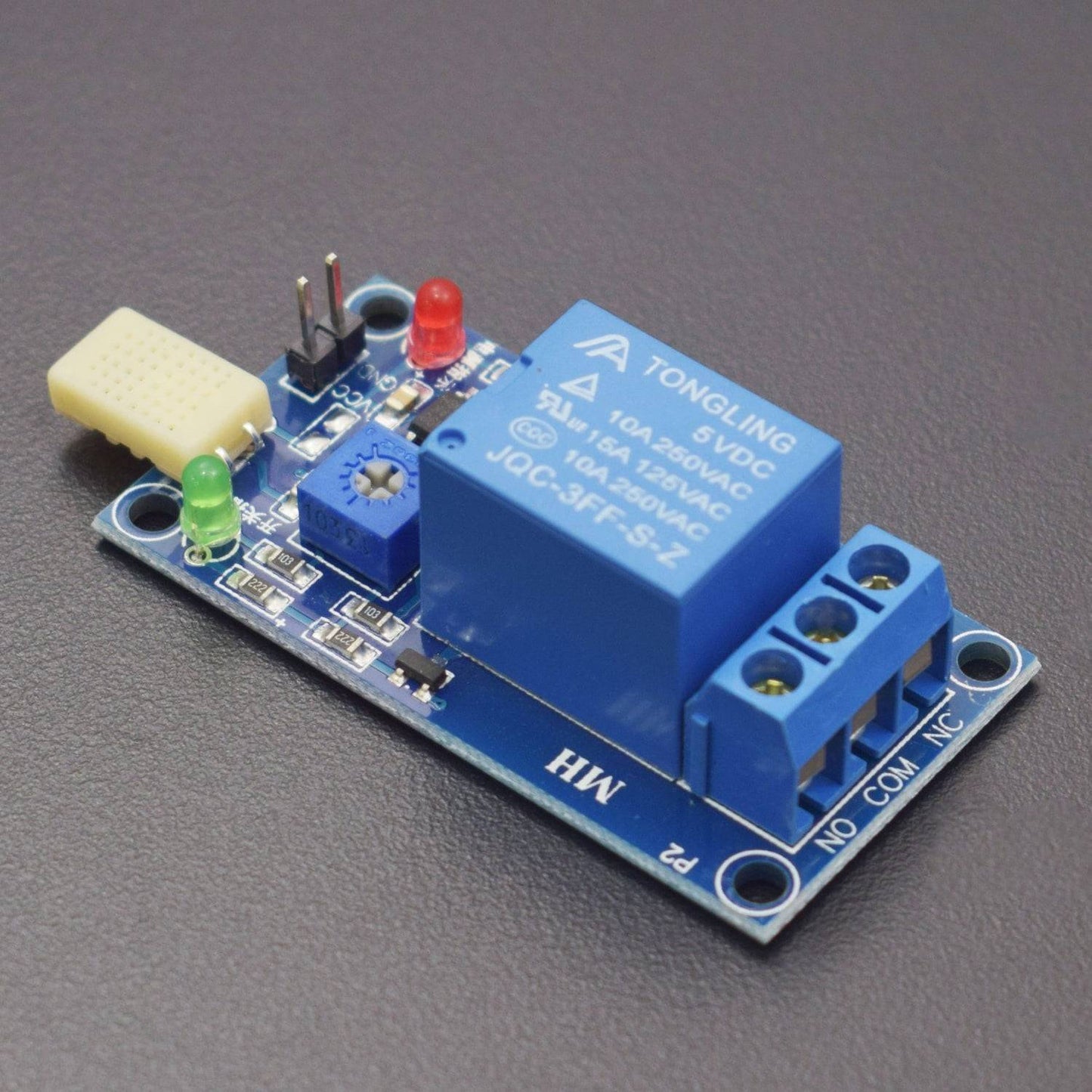

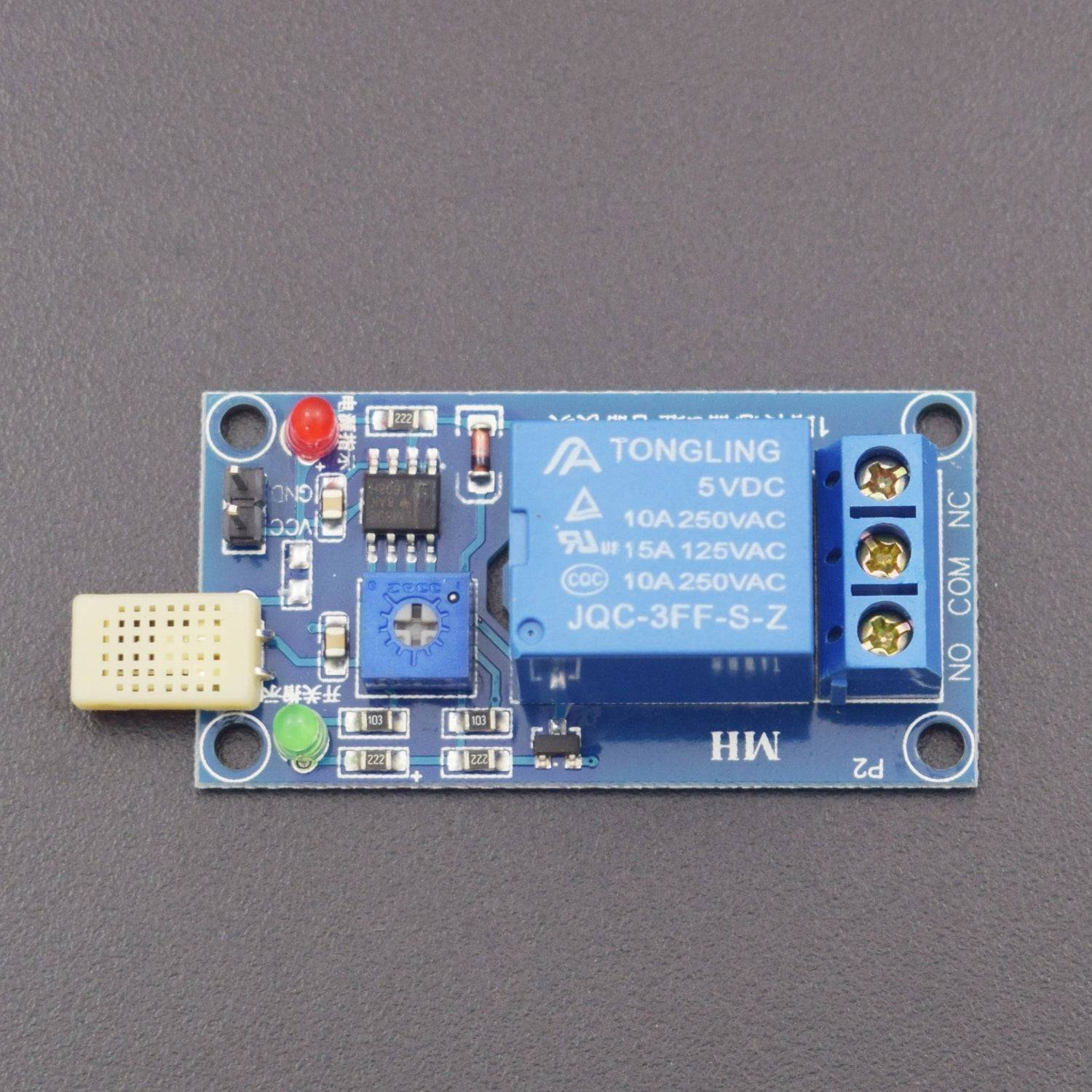

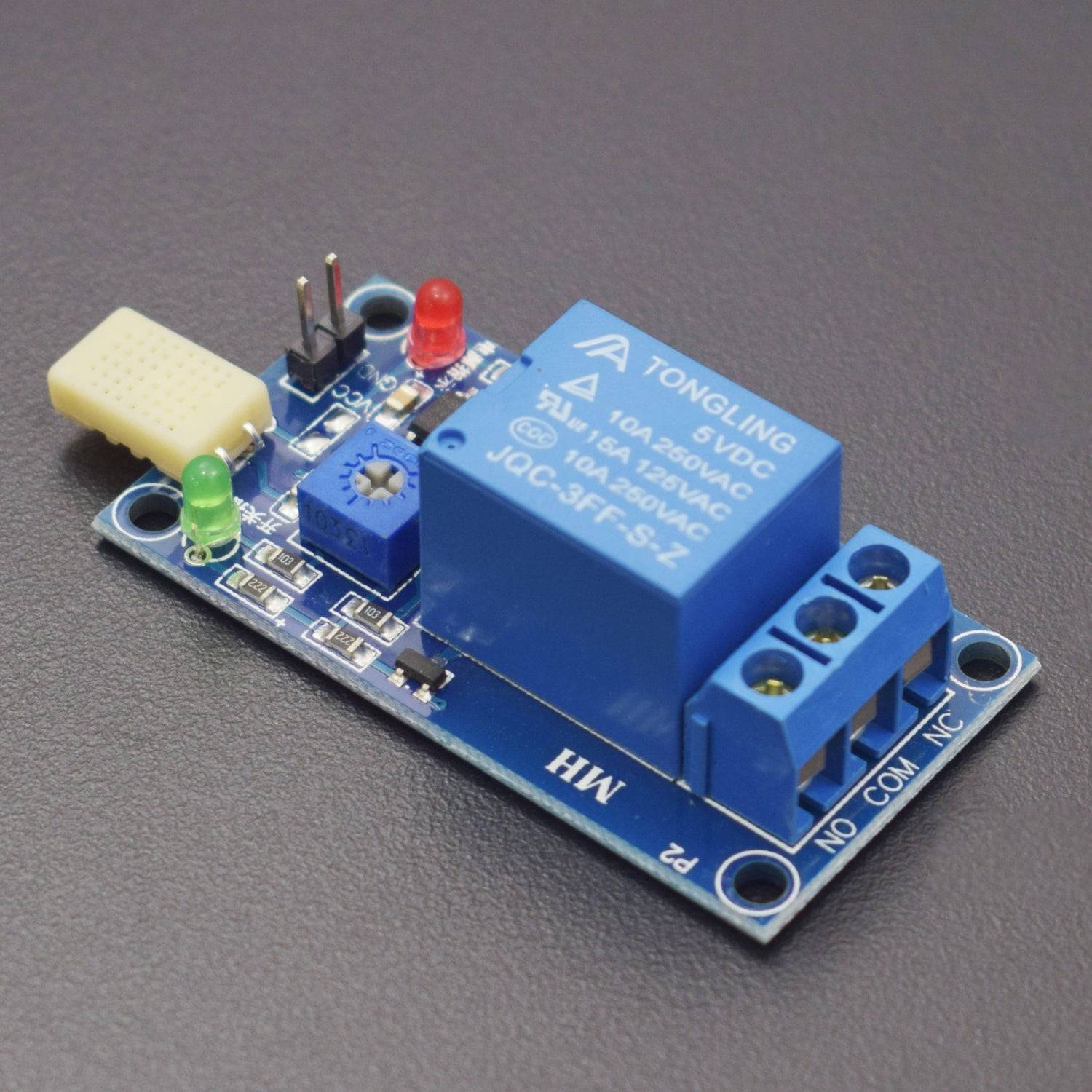

This is XD-75 Humidity Sensitive Switch Relay Module Humidity Regulator Controller HR202 Sensor DC 5V. It is equipped with potentiometer to control temperature detection threshold. The interface of the sensor can install PIN header connector, add moisture sensor with lead wire.

Specification:

  • Power Supply: 5VDC
  • Current: > 150mA
  • Maximum Load: 250V 10A AC or 30V 10A DC, All can be used that is less than the power

Features :

  • Adopt a superior HR202 humidity sensor
  • Comparator output drives the relay directly and connects with 220V AC or other equipment
  • Equipped with the potentiometer to control temperature detection threshold
  • The interface of the sensor can install PIN header connector, add moisture sensor with lead wire
  • Circuit board size: 50x26x19mm (L*W*T)

Application :

  • Humidity examination
  • Humidity sensor
  • Environmental humidity detection
  • With relay output to control related equipment power supply directly

Package Included:

1 X XD-75 Humidity Sensitive Switch Relay Module Humidity Regulator Controller HR202 Sensor DC 5V
