Description:

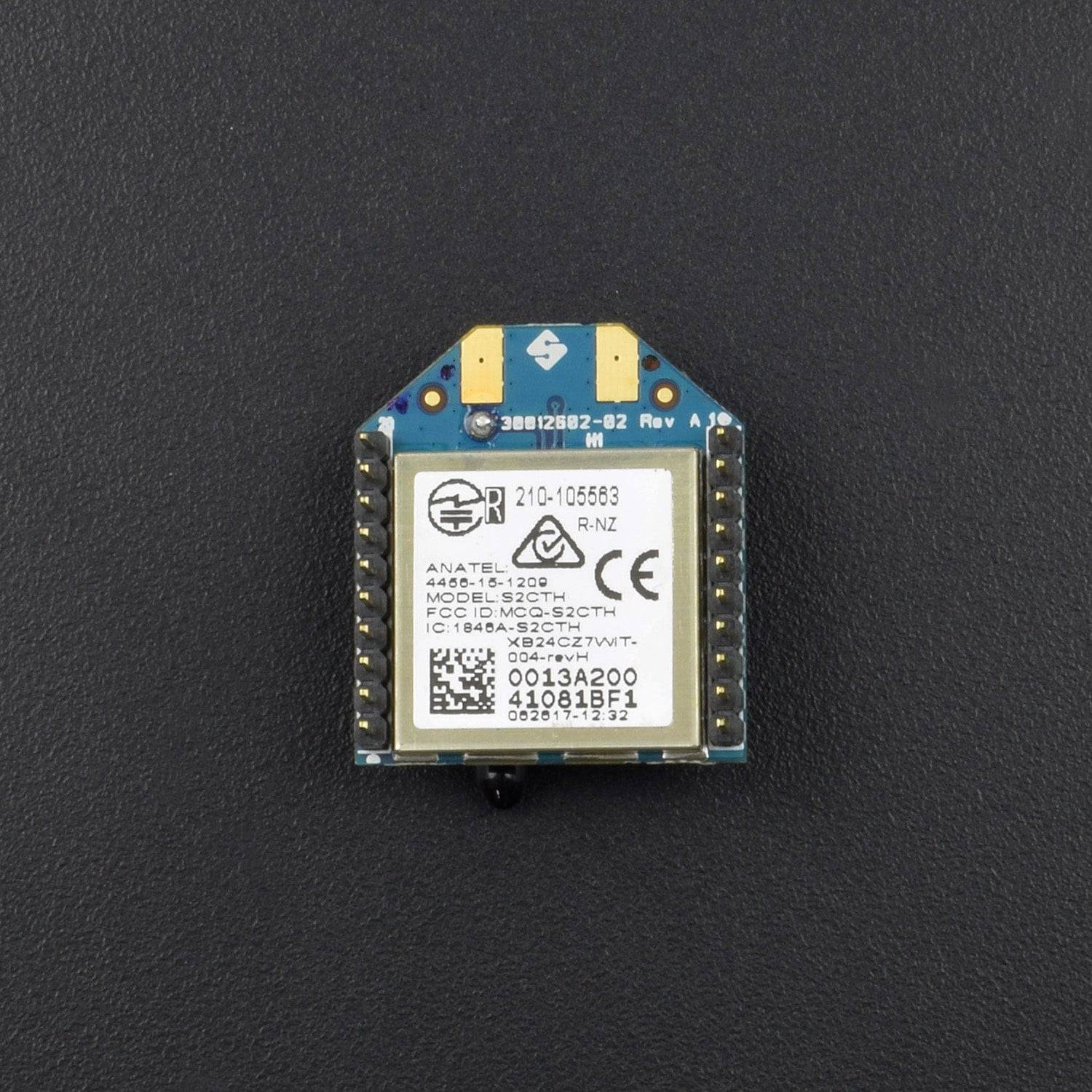

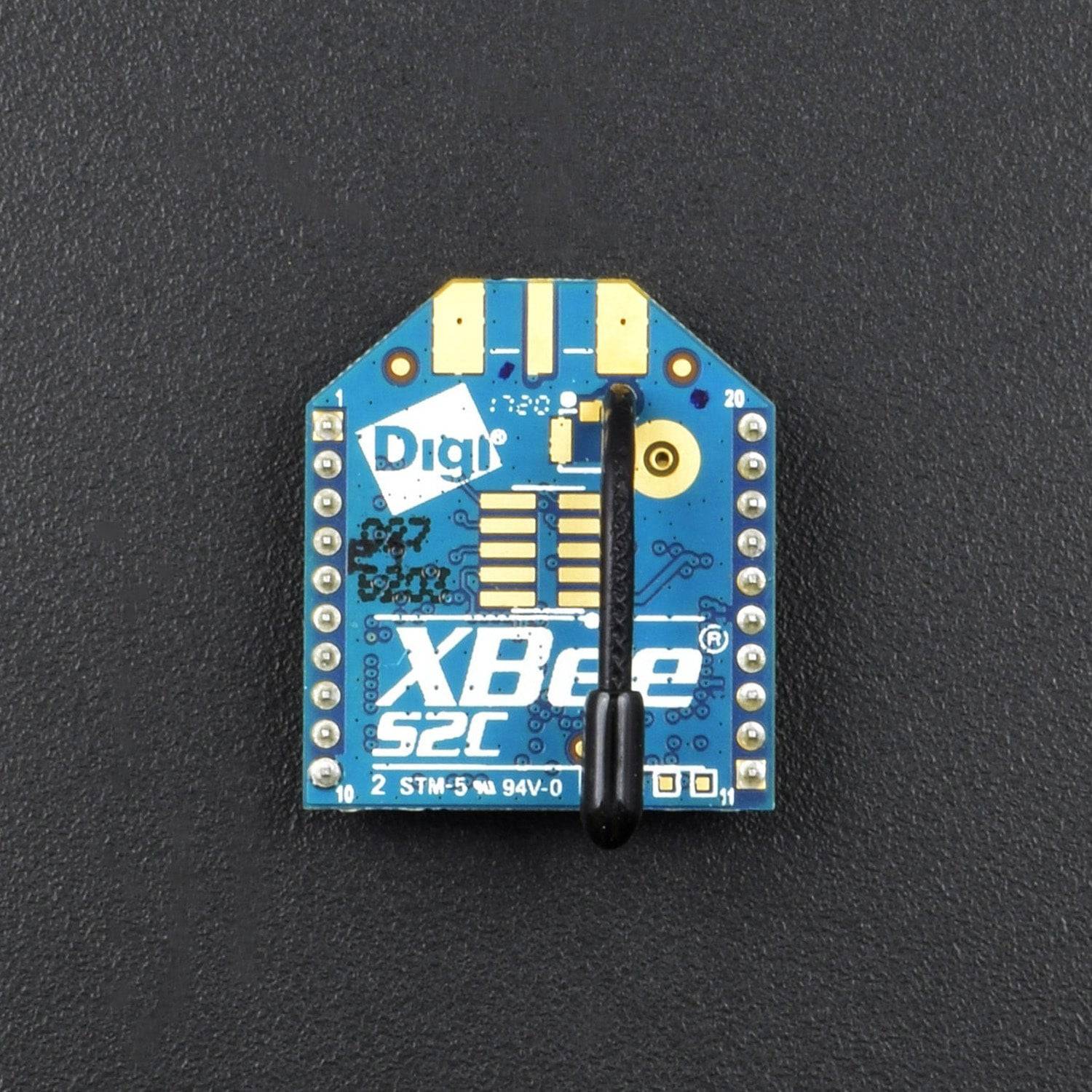

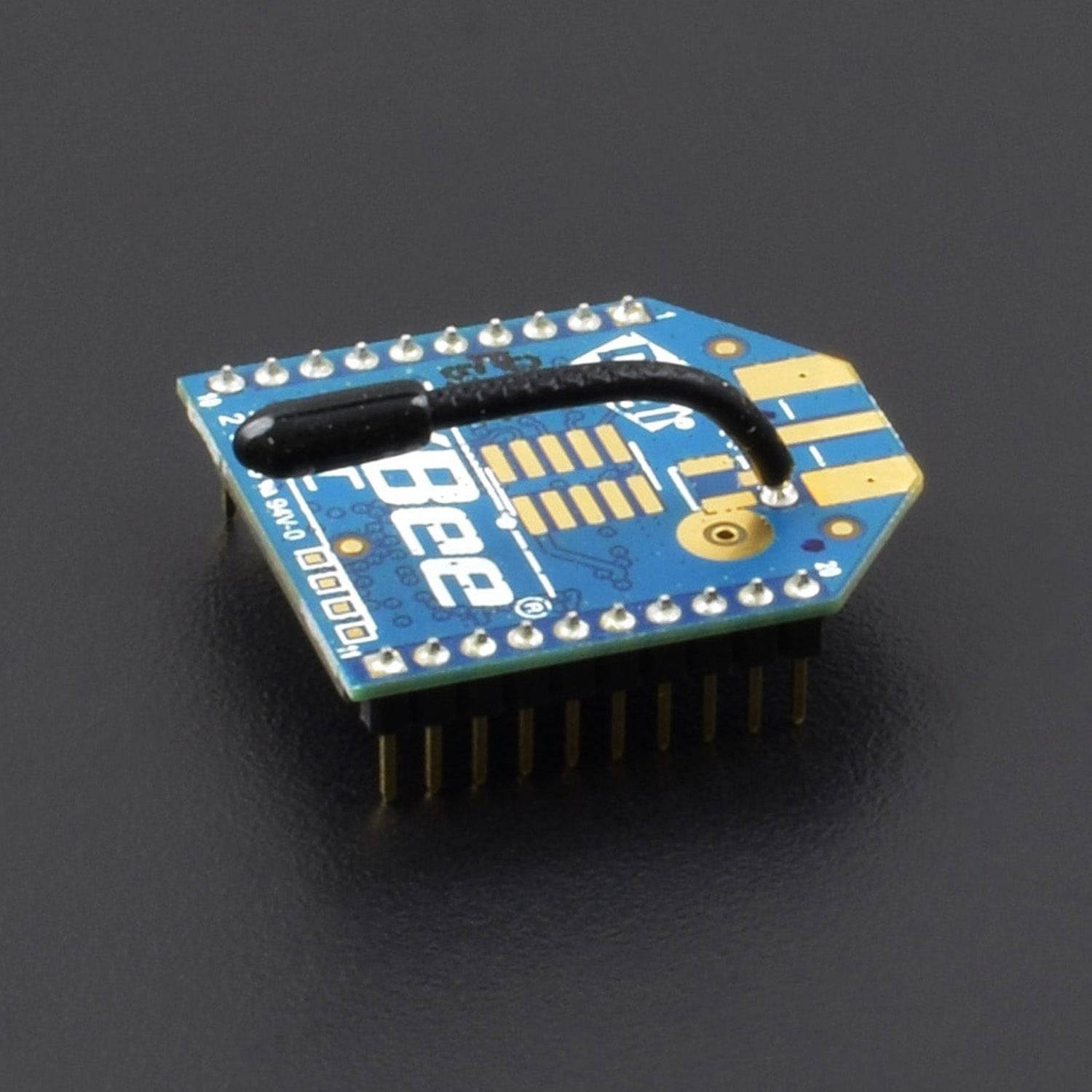

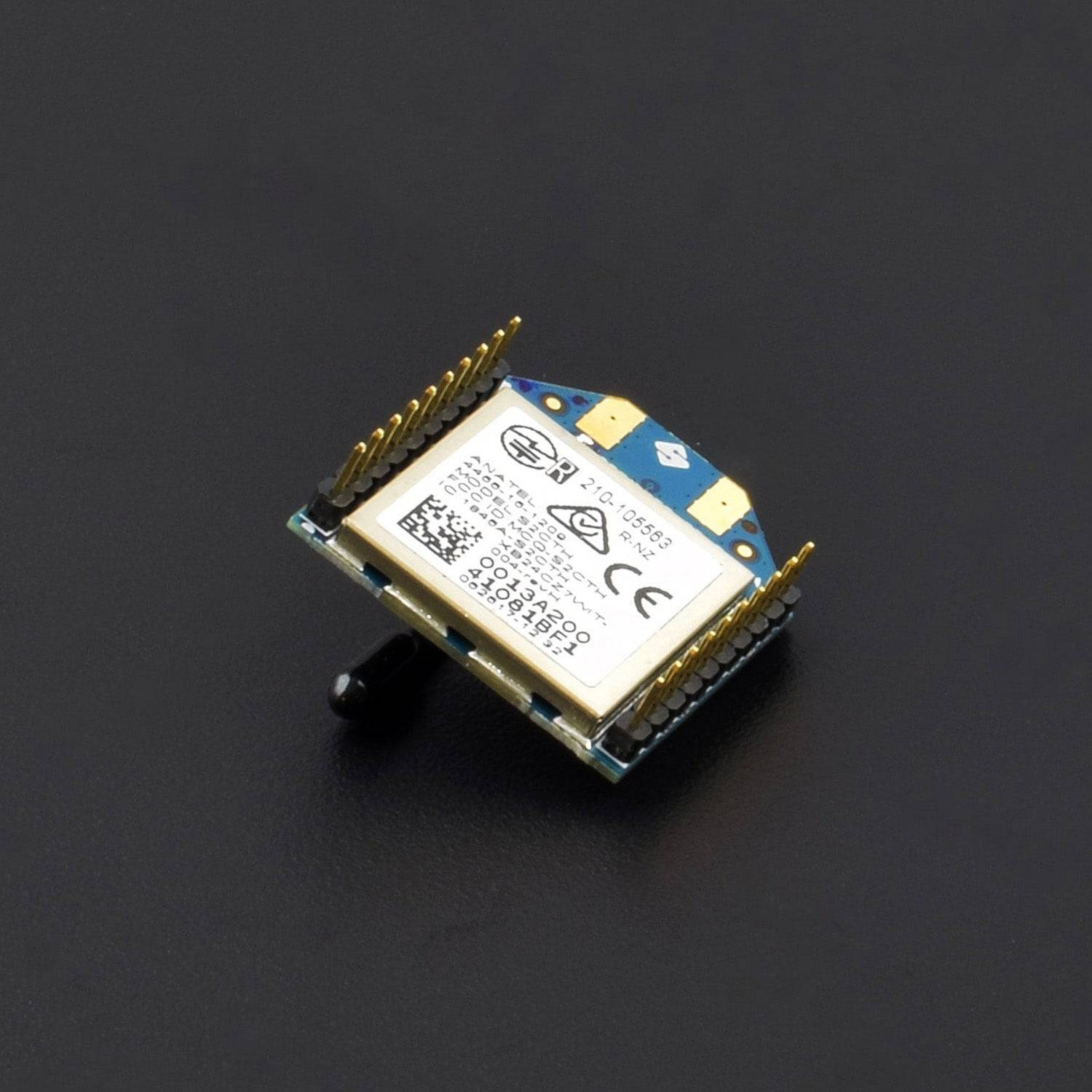

This is the XBee XB24CZ7WIT-004 module from Digi. This is the updated version of the Series 2 (XB24-Z7WIT-004) module. It has an updated firmware which can be configured as router/endpoint/etc. without having to load a different firmware every time. Series 2 modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported. These are essentially the same hardware as the older Series 2 but have updated firmware. They were fully compatible with the Series 2 modules.
Specifications:
- Indoor/Urban Range: Up to 300 ft. (90 m)
- Outdoor RF line-of-sight Range: Up to 2 miles (3200 m)
- Transmit Power Output(maximum): 63mW (+18 dBm)
- RF Data Rate: 250,000 b/s
- Receiver Sensitivity: -101 dBm
- Adjustable Power: Yes
- Supply Voltage: 2.7 - 3.6 V
- Operating Current (Transmit): 120mA @ +3.3 V, +18 dBm
- Operating Current (Receive): 31mA
- Power-down Current: 1 μA @ 25°C
- Operating Frequency Band: ISM 2.4 - 2.5 GHz
- Form Factor: Through-Hole
- Dimensions: .960 x 1.297 in (2.438 x 3.294 cm)
- Operating Temperature: -40 to 85°C (industrial)
- Antenna Option: Integrated wire antenna
- Interface Options: UART SPI
Package Included:
1 x XBee Module With Wire Antenna - S2C
