Description:

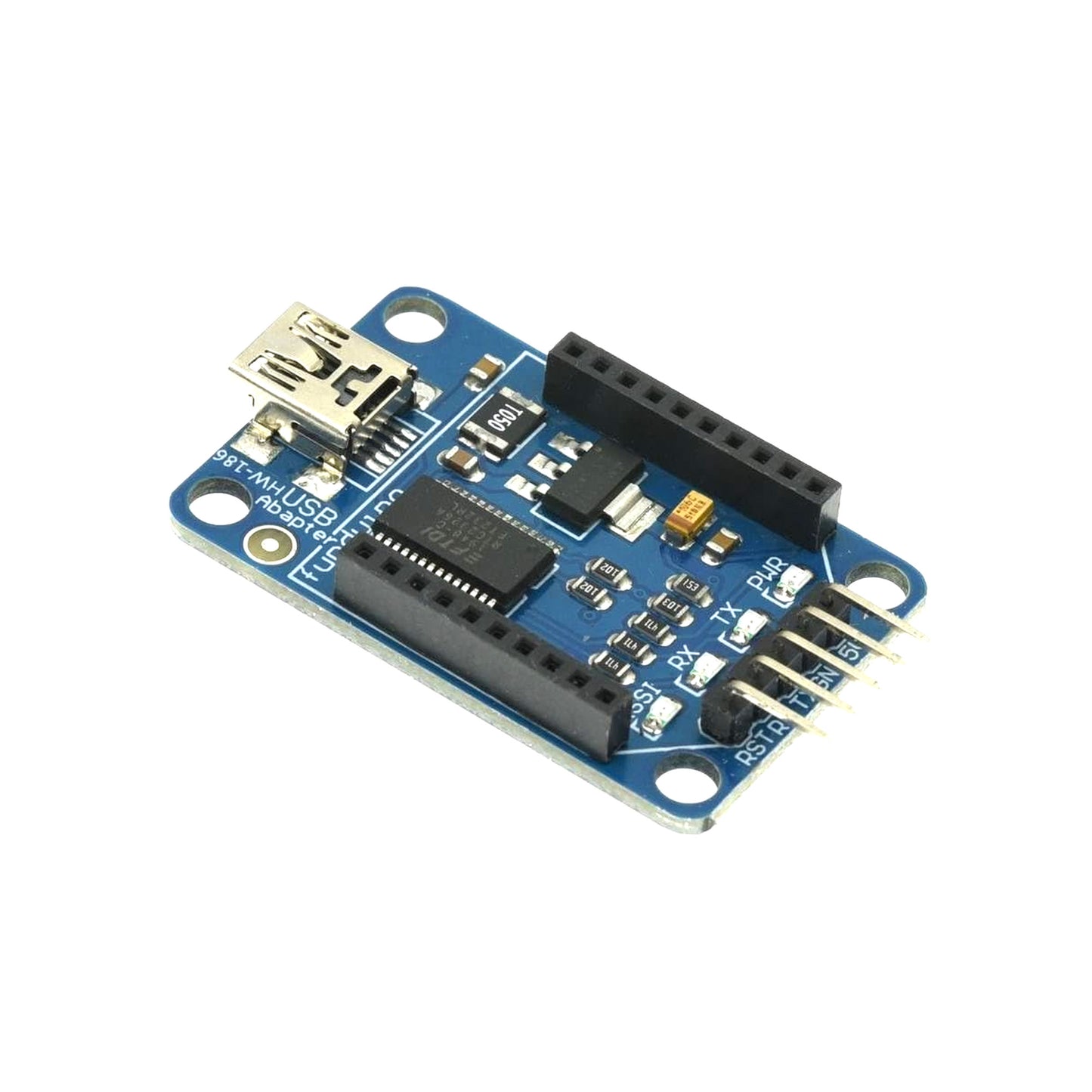

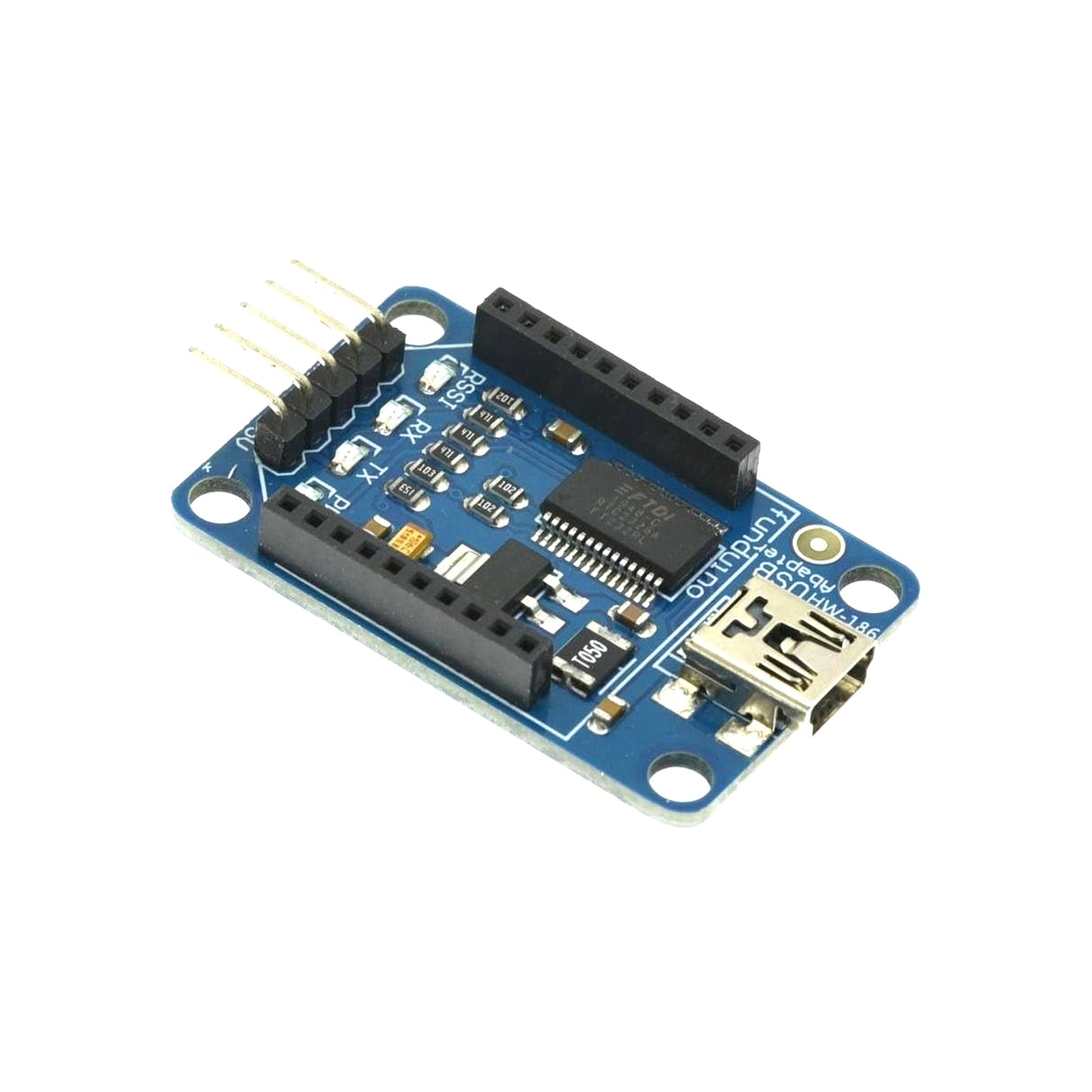

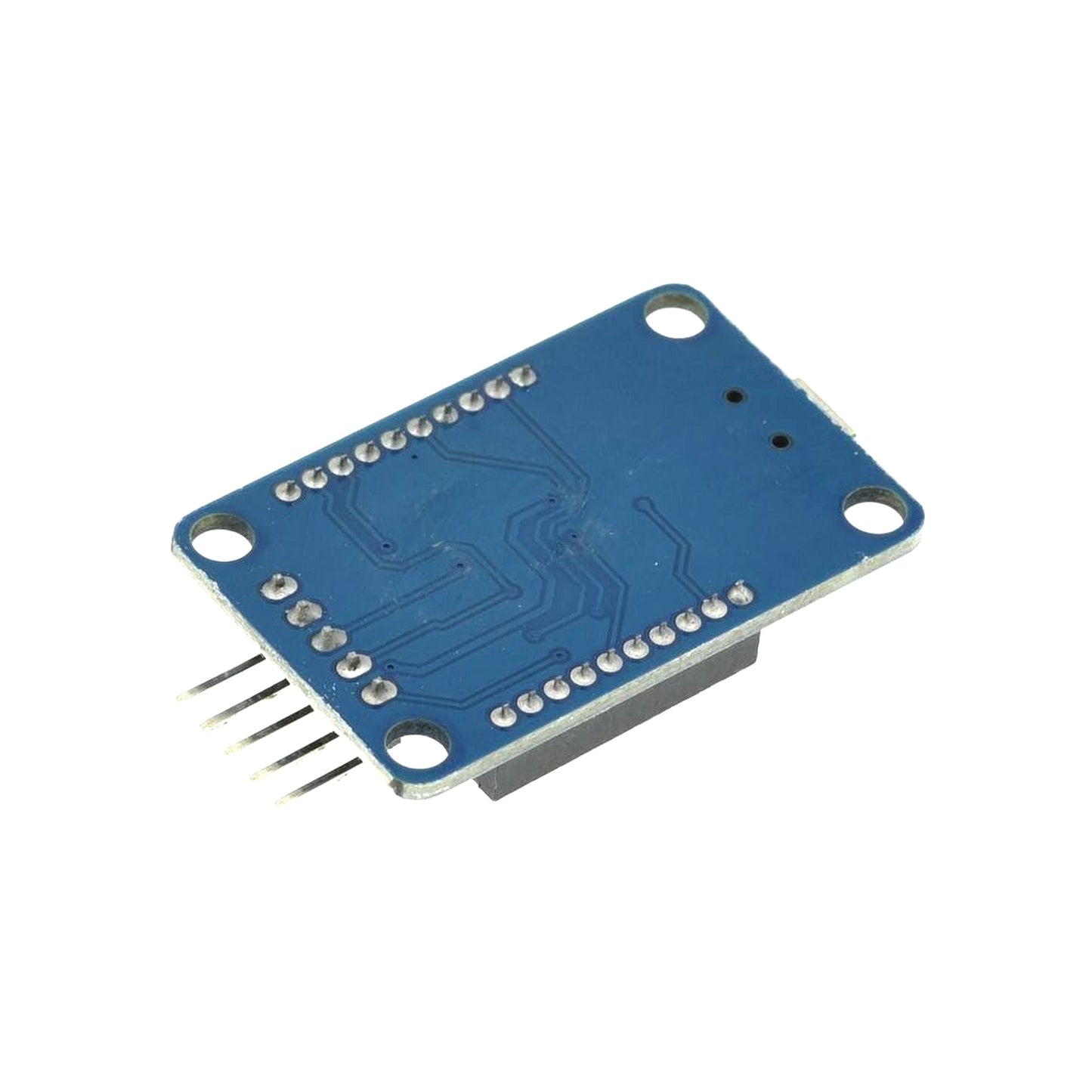

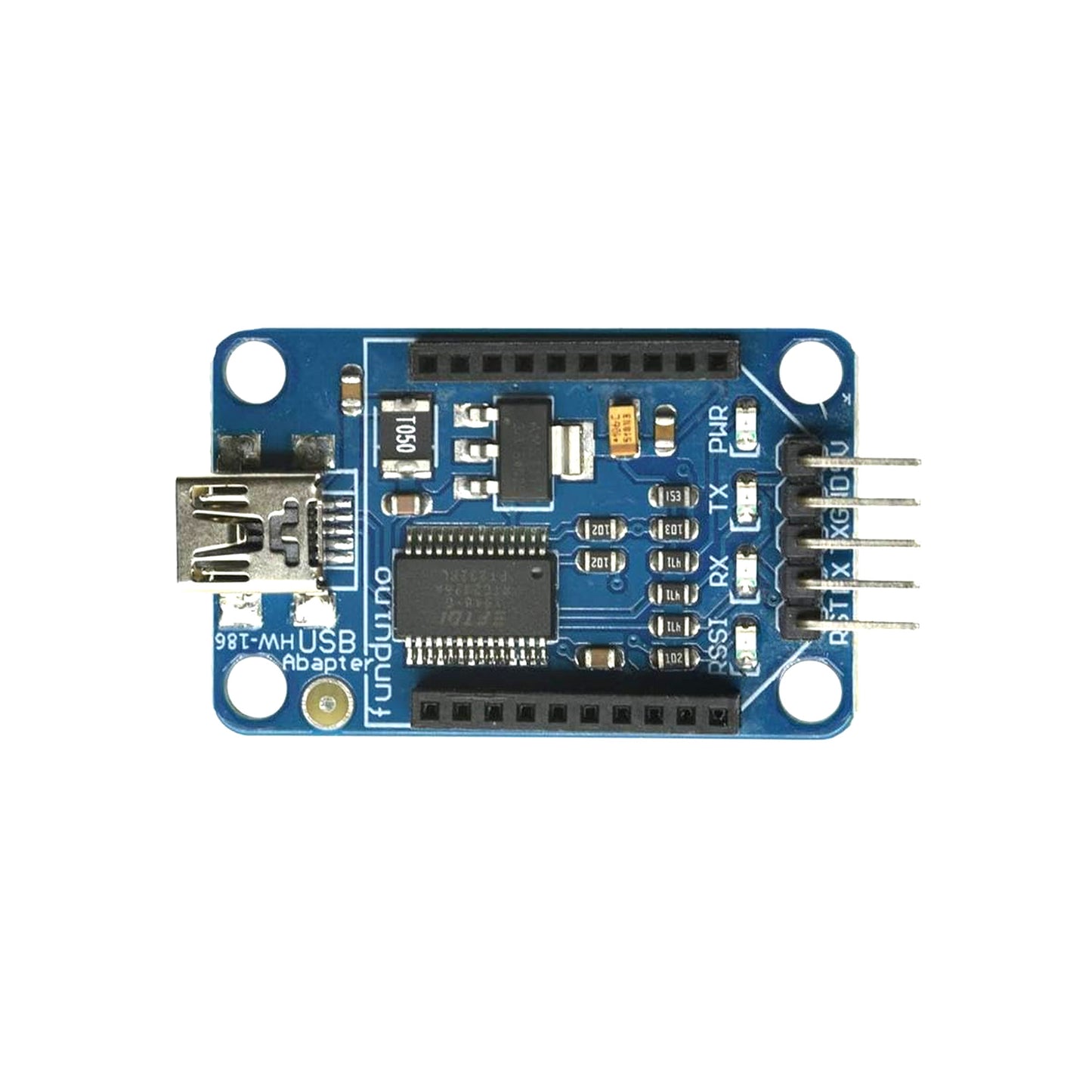

XBee Adapter is a compact USB to serial adapter equipped with BEE (20pin 2.0mm) sockets. With integrated FT232RL IC, It can be used for programming or communicating with a board which is basic For ARDUINO but without a USB interface, like Sniffer Nano. On the other hand, you may connect your PC to various wireless applications via the BEE-compatible modules.
Because XBee modules have 2 mm pin spacing, we recommend one of the adapter boards for each module. The XBee adapter boards provide several advantages to the XBee modules as breadboard-friendly standard 0.1-inch pin spacing, mounting holes, and easy-to-solder connections. Even if you are communicating point-to-point without a PC, we still recommend that you always have at least one XBee USB Adapter Board, so you can easily configure and test each XBee module before putting it in a point-to-point application.
Specifications:
- IC Chip: FT232RL
- Input Supply Voltage: 3.3~5V DC
- Connectivity: USB
- USB Interface: Mini-B (2.54mm pitch pin header)
- Communication Protocol: UART, Bit Bang I/O, SPI
Features:
- 3.3V and 5V dual power output
- 3.3V and 5V IO compatible
- USB 2.0 protocol
- BitBang mode ready
- Easily connected to a PC via a mini USB cable
- XBee-setting support software X-CTU
Usage:
- Usage 1: PC via a USB cable directly connected with XBee adapters.
- Usage 2: Bluetooth Bee configures or uses it as a data transmission.
- Usage 3: For ARDUIN0 BOARD PRO MINI Downloader.
Package Included:

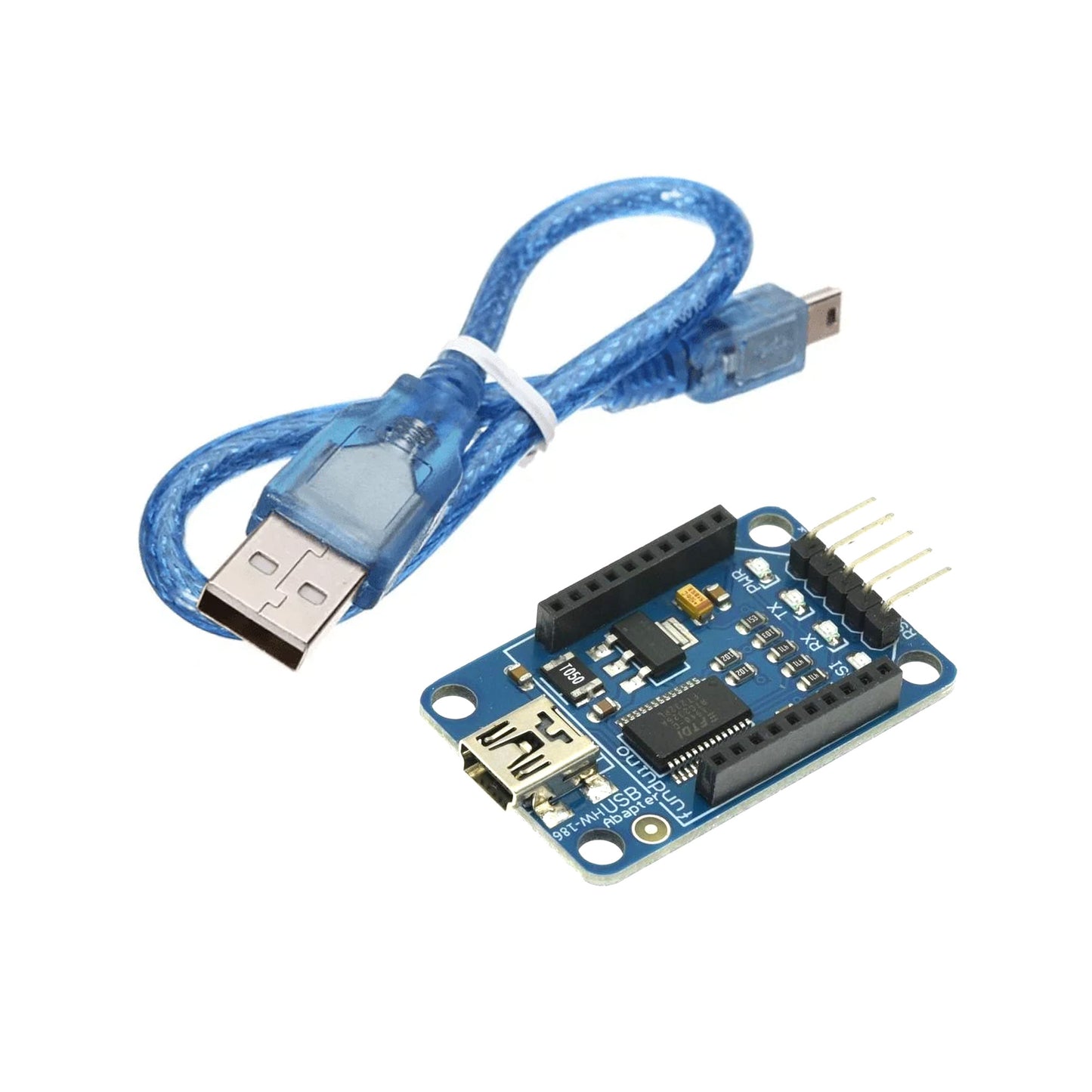

1 x XBee USB Adapter Bluetooth Bee FT232RL USB to Serial Port Module Compatible With Arduino
