Description:

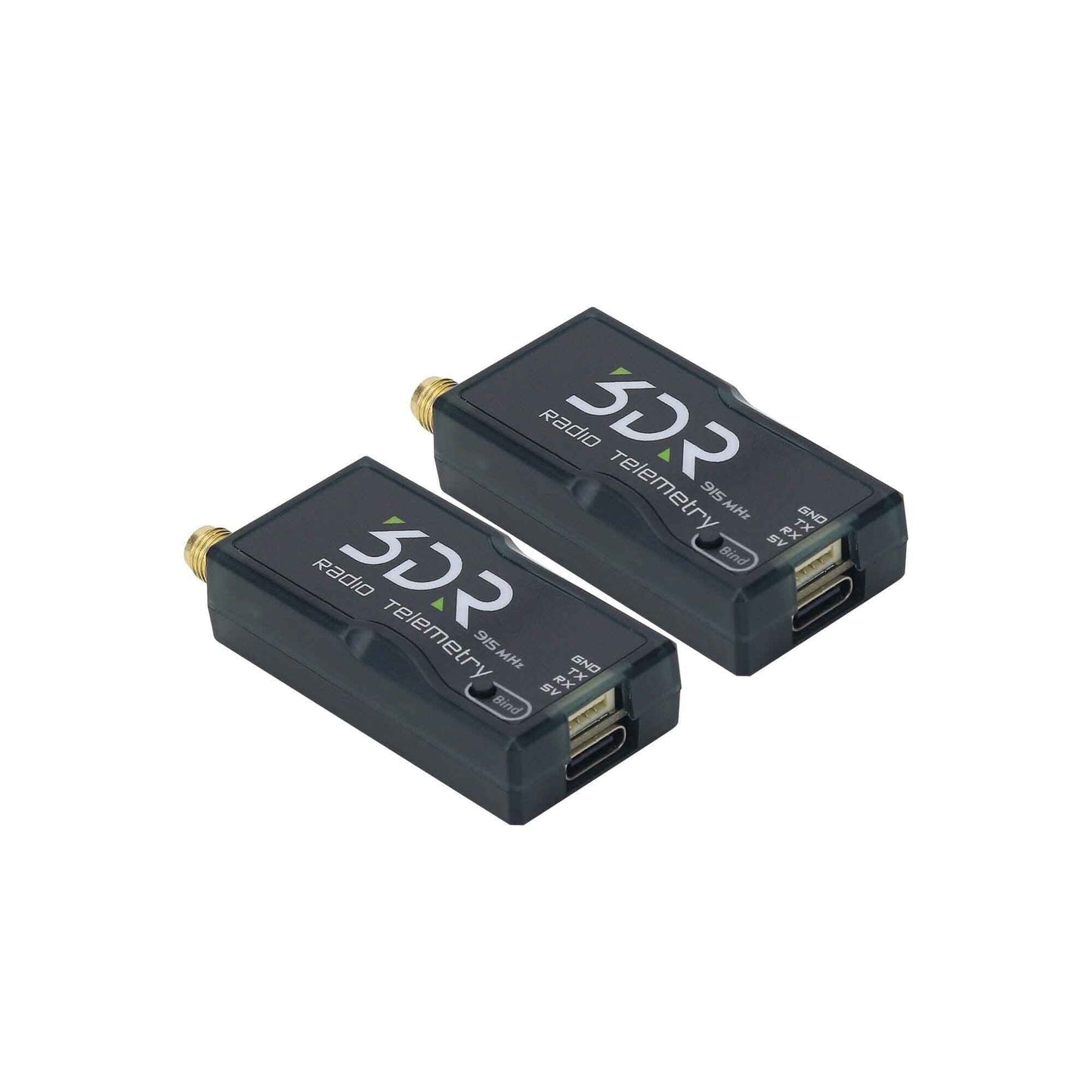

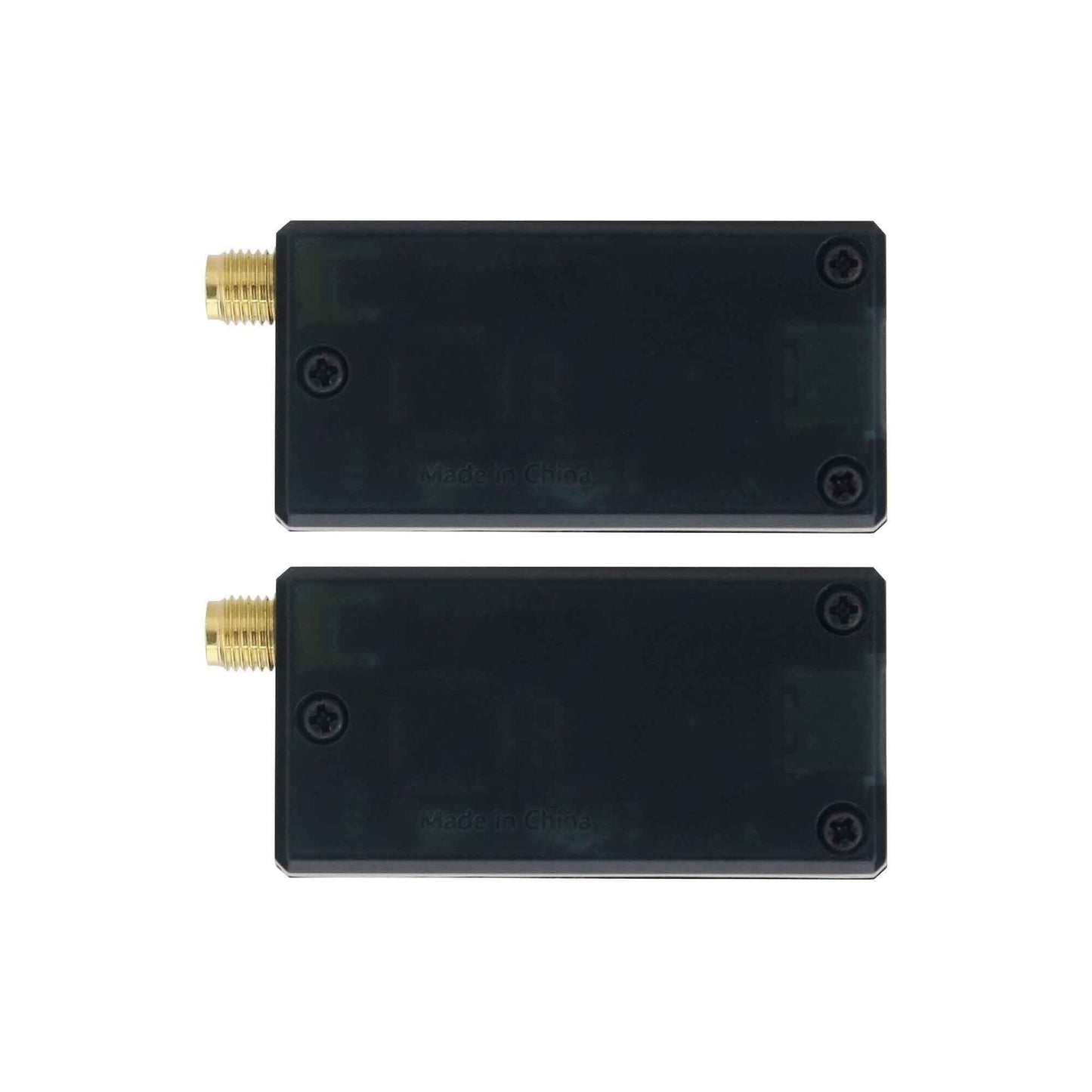

This set of 3DR Radio Telemetry 915 MHz allows you to establish a connection between a flight controller and a USB or UART-enabled device, such as a computer, laptop, or tablet with USB compatibility (OTG).
The latest version 2 radios no longer require a separate Air/Ground module, as both transceivers can now use both UART or USB connections, and support both modes. This X7 3DR Radio Telemetry Set not only allows you to view real-time data, such as live GPS position overlaid on a map, system voltage, heading, waypoint navigation, and even an artificial horizon, but also offers much more.
By using an open-source MAVlink-based ground station software, you can even fly your aircraft with a joystick via your computer and update settings in real-time. Alternatively, you can use X7 3DR Radio Telemetry for your DIY projects that require a wireless Serial interface. This X7 3DR Radio Telemetry Kit is cost-effective, has a longer range, and offers superior performance. The system operates on the 915 MHz band and provides a full-duplex link using HopeRF’s HM-TRP modules running custom, open-source firmware.
Specifications:
- Model: X7 3DR Radio Telemetry
- Transmission Distance :1000mW(5000m)
- Frequency: 915MHz
- Max. Transmitting Power: 1000mW
- Baud Rate: 57600(default)
- Working Temperature: -10℃~60℃
- Humidness: 10% RH~90% RH
- Connector: JST-GH
- Working Voltage: 3.7~6V DC
- Transmitting Current: 10

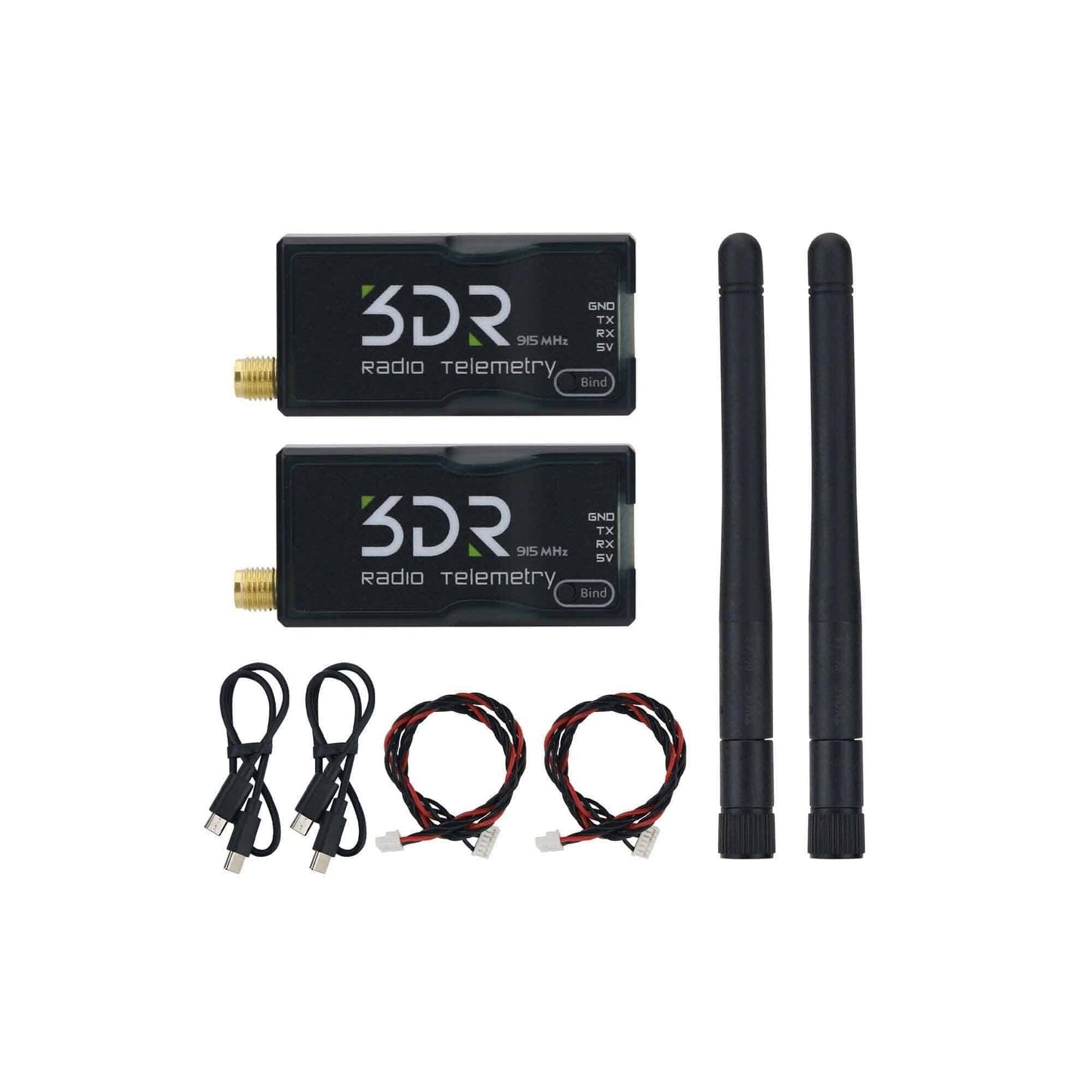

Package Included:
1 x X7 3DR Radio Telemetry Open Source 5KM 1000mW 1W 915MHz for APM Pixhawk Flight Controller - 915MHz
