Description:

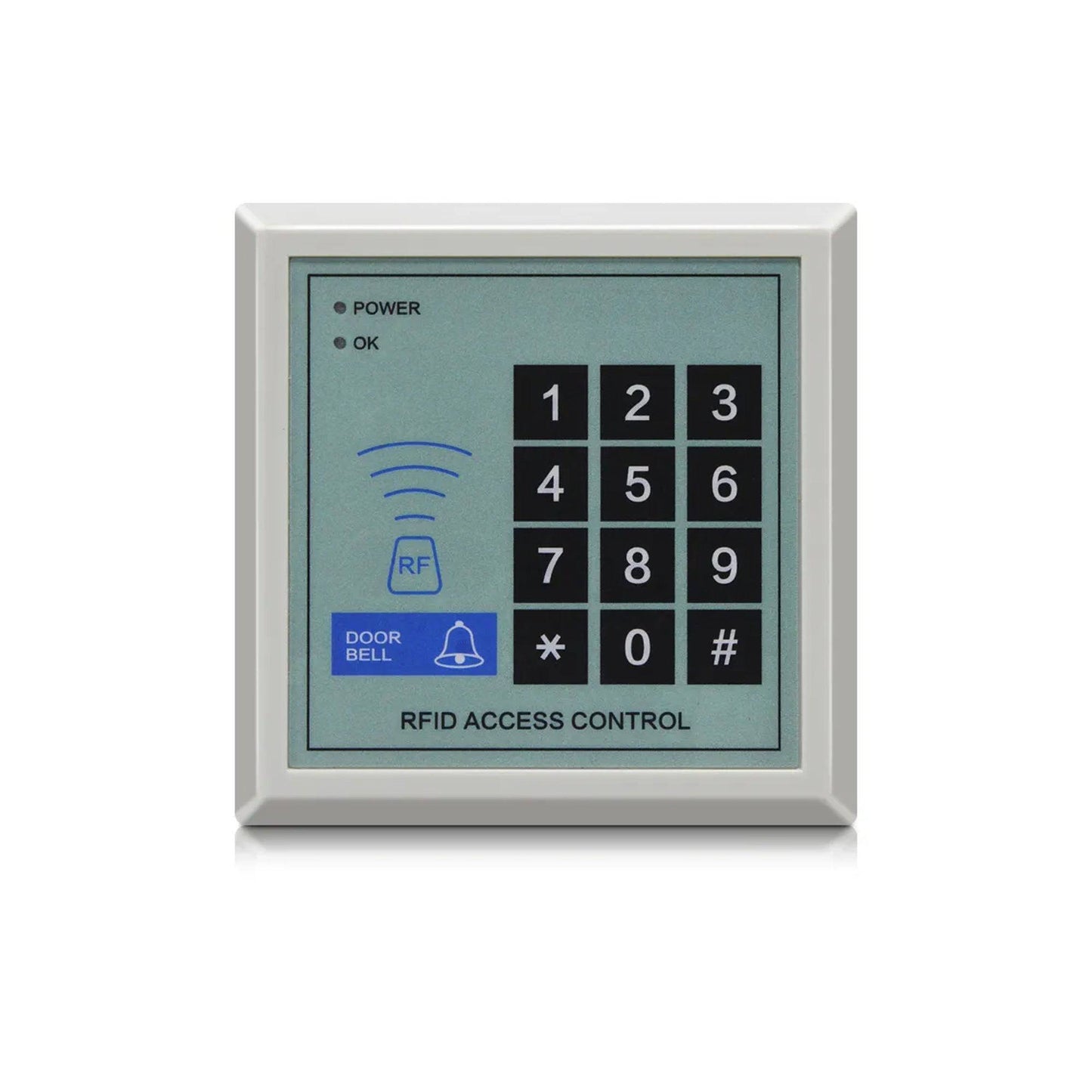

This X1 RFID Access Control works with 125 Khz card only, password only, card + password, or password working in one single door controller. X1 RFID Access Control uses a chip that is up to industrial-grade single chip. With high stability, large capacity, full function, and reaction fast and simple operation. X1 RFID Access Control is best if used in company offices, factories, houses, residential quarters and so on.
Specifications:
- Working voltage: DC 12V
- Unlock current: ≤1000mA
- Static current: ≤60mA
- Memory: 2000 standard users
- Card read distance: 0-10 cm
- RF type: EM card
- Working temperature: -10 ~ 70 C
- Working humidity: 10% to 90%
- Frequency: 125 kHz
Features:
- Storage 2000 card (ID/ IC optional)

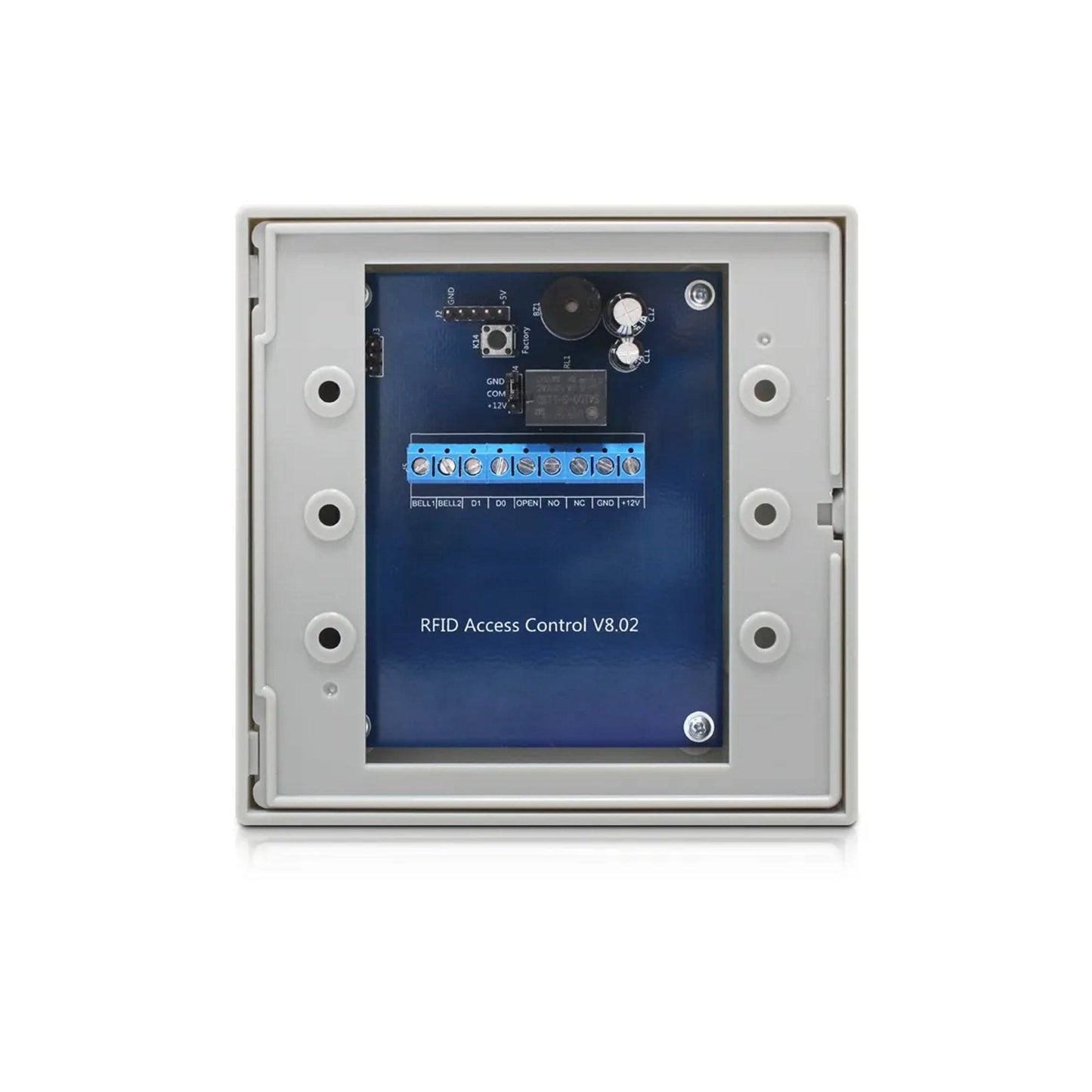

- The signal for opening the door is output by relay control directly (NO / NC optional).
- Three modes for opening the door: Card or PIN, Card + PIN, and Password.
- With these 2 functions: Swipe card for opening the door or Swipe card for closing the door.
- Can be a continuous-read and enrol card, and automatically default the card number and card password.
Package Included:
1 x X1 RFID Access Control X1 RFID Single Door Access Control System with Keypad Supports Password & EM Card Reader
