X Type Cross Holder For 22xx series Brushless Motor - RS3054

X Type Cross Holder For 22xx series Brushless Motor - RS3054

SKU:RS3054

Regular price Rs. 44.00
Regular price Sale price Rs. 44.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Material : Aluminium
  • Color : silver

Descripton :

The X Type Cross Holder For 22xx series Brushless Motor is designed to fit the back of the 22 mm motors and provide a method of mounting the motor to a models firewall.

The 22 mm Cross Mount is made of strong aluminum alloy and finished in a durable and attractive black Electro-Coat finish. The mount comes packaged with four 3 mm machine screws to attach it to the back of your motor.

The mount weighs only 1.5 grams by itself; and with the 4 screws, it weighs 2.4 grams. The hole spacing on the back of the mount measures 16 mm center to center in one direction, and 19 mm center to center on the other.

With this standard hole spacing, the Scorpion 22 mm Cross mount will not only fit the Scorpion Motors; it will also fit the GWS 22mm out-runners, the Hacker A20 series out-runner. The Way point 22 mm Out-runners, the AXI 22 mm out-runners; or any other motor with a 16 or 19mm hole spacing.

Specifications :

  • Material : Aluminium
  • Color : silver

Package Included :

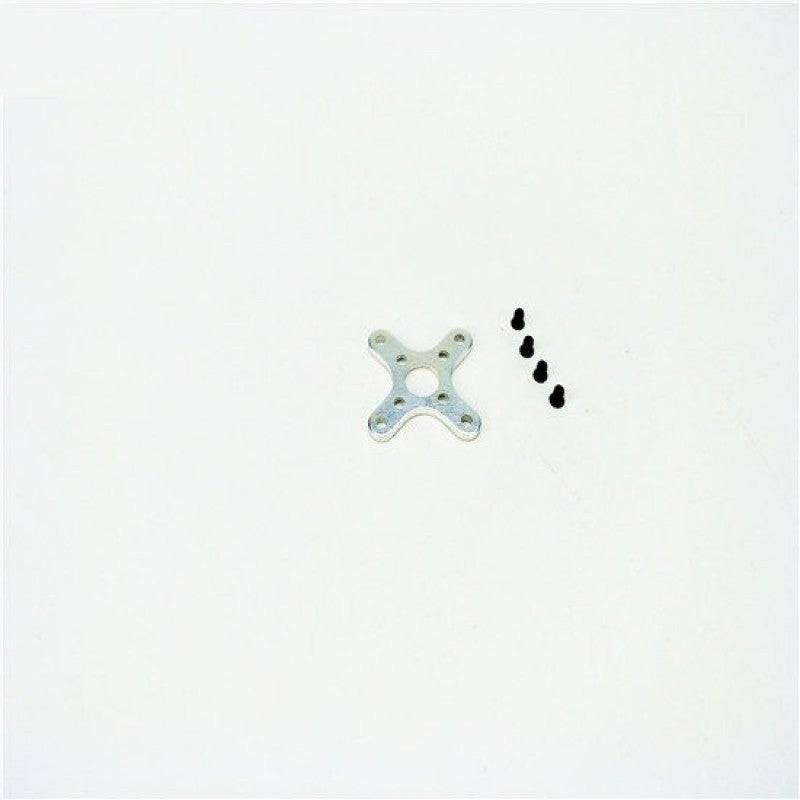

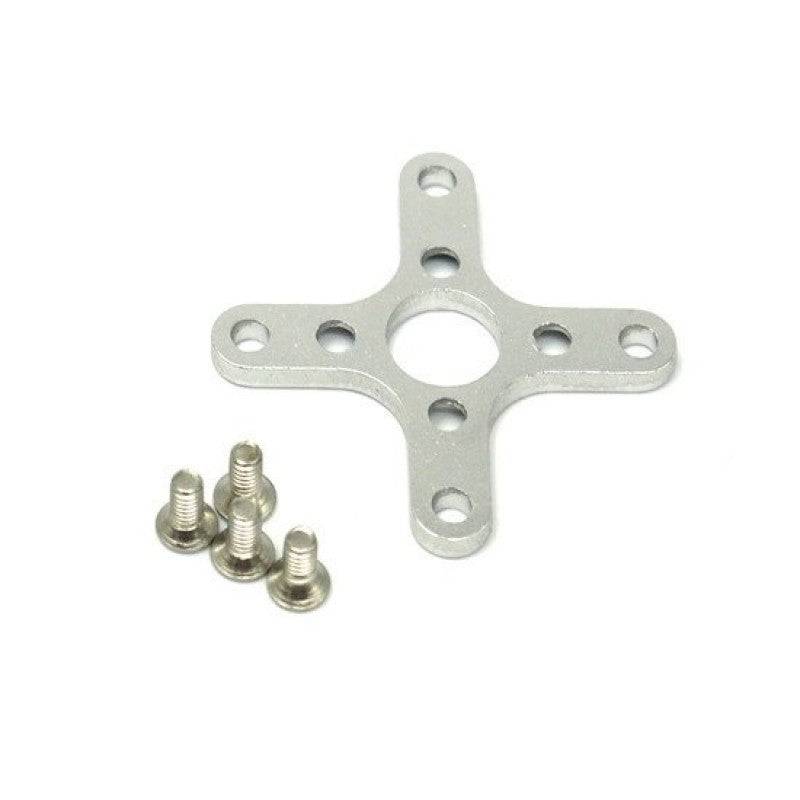

  • 1 x X Type Cross Holder 22mm.
  • 4 x Mounting Bolt.
