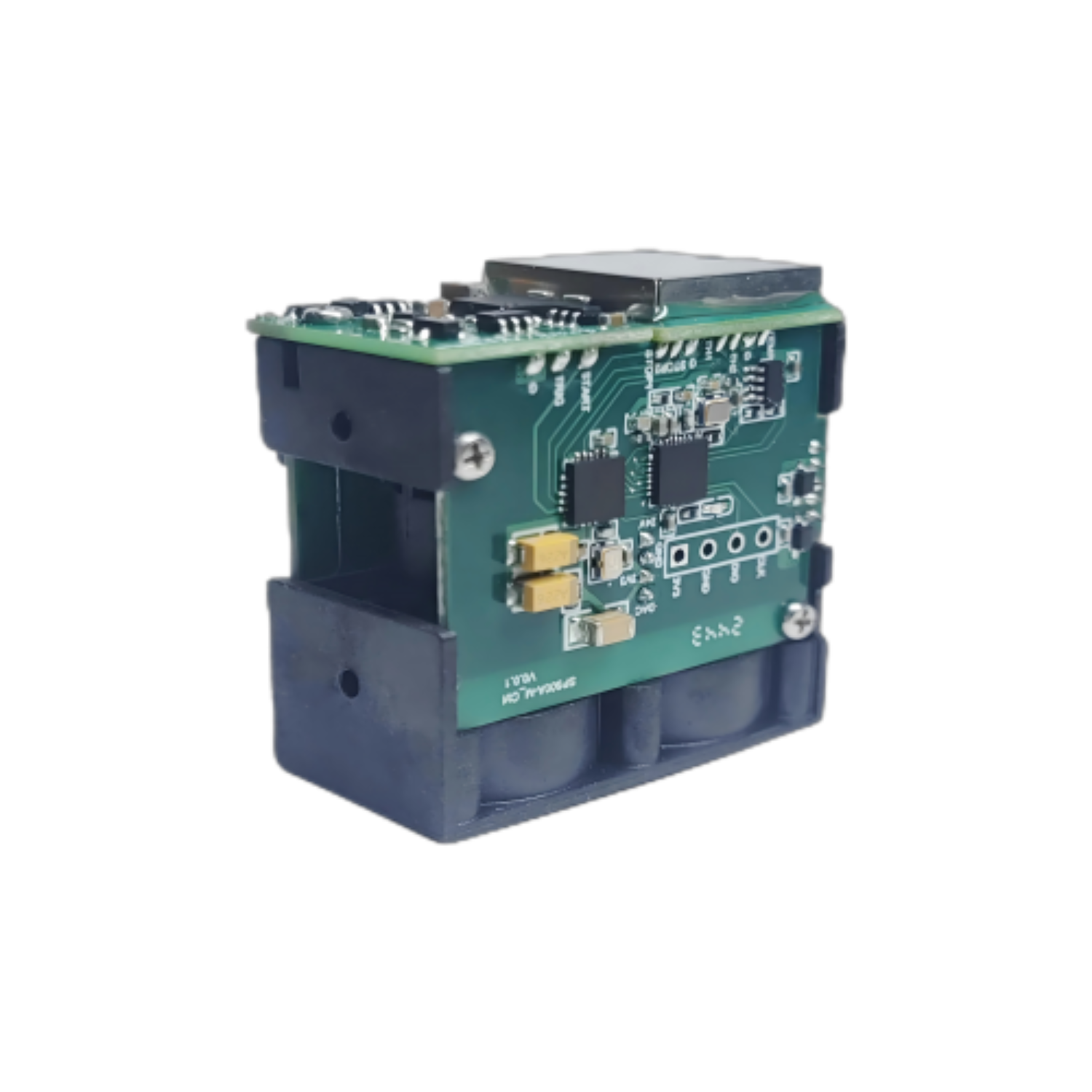

WTT300 TOF LiDAR Sensor Mid-Range Single Point LiDAR Module For Robotics and Drones

WTT300 TOF LiDAR Sensor Mid-Range Single Point LiDAR Module For Robotics and Drones

SKU:

In stock

Regular price Rs. 45,141.00
Regular price Sale price Rs. 45,141.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The WTT300 is a high-accuracy mid-to-long-range LiDAR sensor designed to perform reliably in both indoor and outdoor environments. With a detection range of up to 300 meters at 90% reflectivity and 100 meters at 10% reflectivity, it offers robust performance across diverse applications, including positioning, collision avoidance, and monitoring of land transport vehicles and overhead bridge cranes. Engineered for resilience, the WTT300 features strong resistance to electromagnetic interference and high ambient light immunity up to 100,000 lux, ensuring stable operation in challenging industrial conditions.

The sensor operates at a default frequency of 1 kHz (configurable from 20 Hz to 10 kHz), delivering measurement accuracy of ±10 cm under 10 meters and 1% beyond 10 meters, with excellent repeatability. Utilizing a 905 nm central wavelength laser, the WTT300 complies with Class 1 photobiological safety standards, making it safe for use in populated environments. With a narrow field of view (approximately 4 mrad), compact form factor, and efficient power consumption (average 0.7W), it integrates easily into mobile and stationary systems.

Specifications:

  • Model: WTT300
  • Range: 0.05m~300m (90%reflectivity),   0.05m~100m (10%reflectivity)
  • Frequency: 20Hz~10KHz (Default: 1KHz)
  • Accuracy: ±10cm (<10m), 1% (≥10m)
  • Repeatability: ±5cm (<10m), ±10cm@100m
  • Ambient Light Immunity: 100KLux
  • Central Wavelength: 905nm
  • Photobiological Safety: Class 1
  • FOV: about 4mrad
  • Wavelength for Indication: N/A
  • Photobiological Safety for Indication: N/A
  • Supply Voltage: 9 ~ 36VDC
  • Peak Current: 100mA
  • Average Current: 30mA
  • Average Power Consumption: 0.7W
  • Communication Interface: UART, IIC
  • Protection Level: N/A
  • Operating Temperature: -20℃ ~ +60℃
  • Wire Specification: 1.25mm,5P 50cm stranded wires

Features:

  • Compact size, flexible to install.
  • High resistance to ambient light.
  •  Cost-effective

Applications:

  • Traffic Safety Early Warning.
  • Blade Encroachment Detection.
  • Tower Crane Distance Detection.

Useful Link:

Package Included:

1 x WTT300 TOF LiDAR Sensor
