WT588D-U-32M Voice Module DC2.8V-5.5V Mini USB Interface Sound Module For Arduino Starter Kit With Built-in Voice Module Affordable Mini USB Sound Module For Arduino Projects Affordable Mini USB Sound Module - RS2520

WT588D-U-32M Voice Module DC2.8V-5.5V Mini USB Interface Sound Module For Arduino Starter Kit With Built-in Voice Module Affordable Mini USB Sound Module For Arduino Projects Affordable Mini USB Sound Module - RS2520

RS2520

Low stock: 8 left

Rs. 699.00
Rs. 699.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

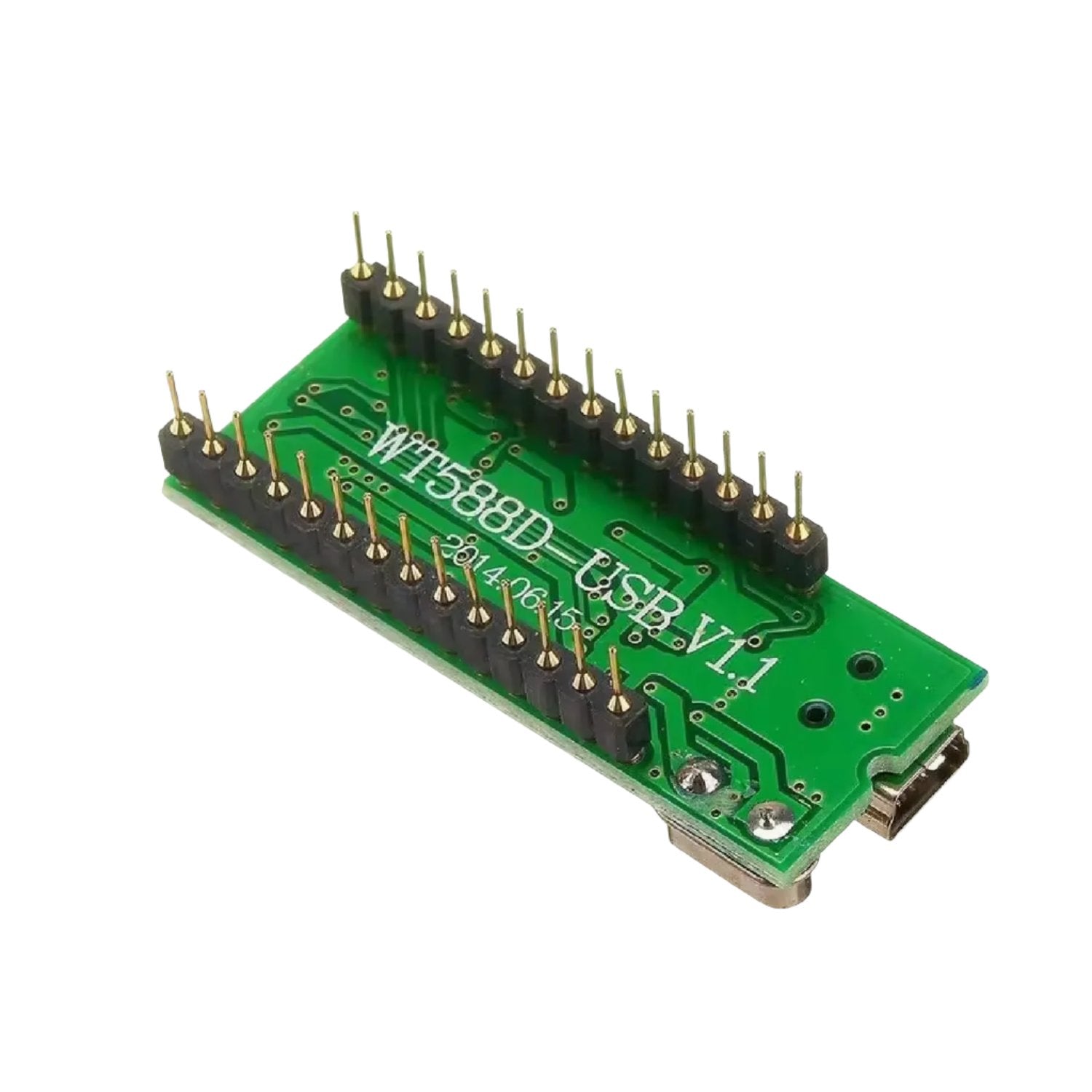

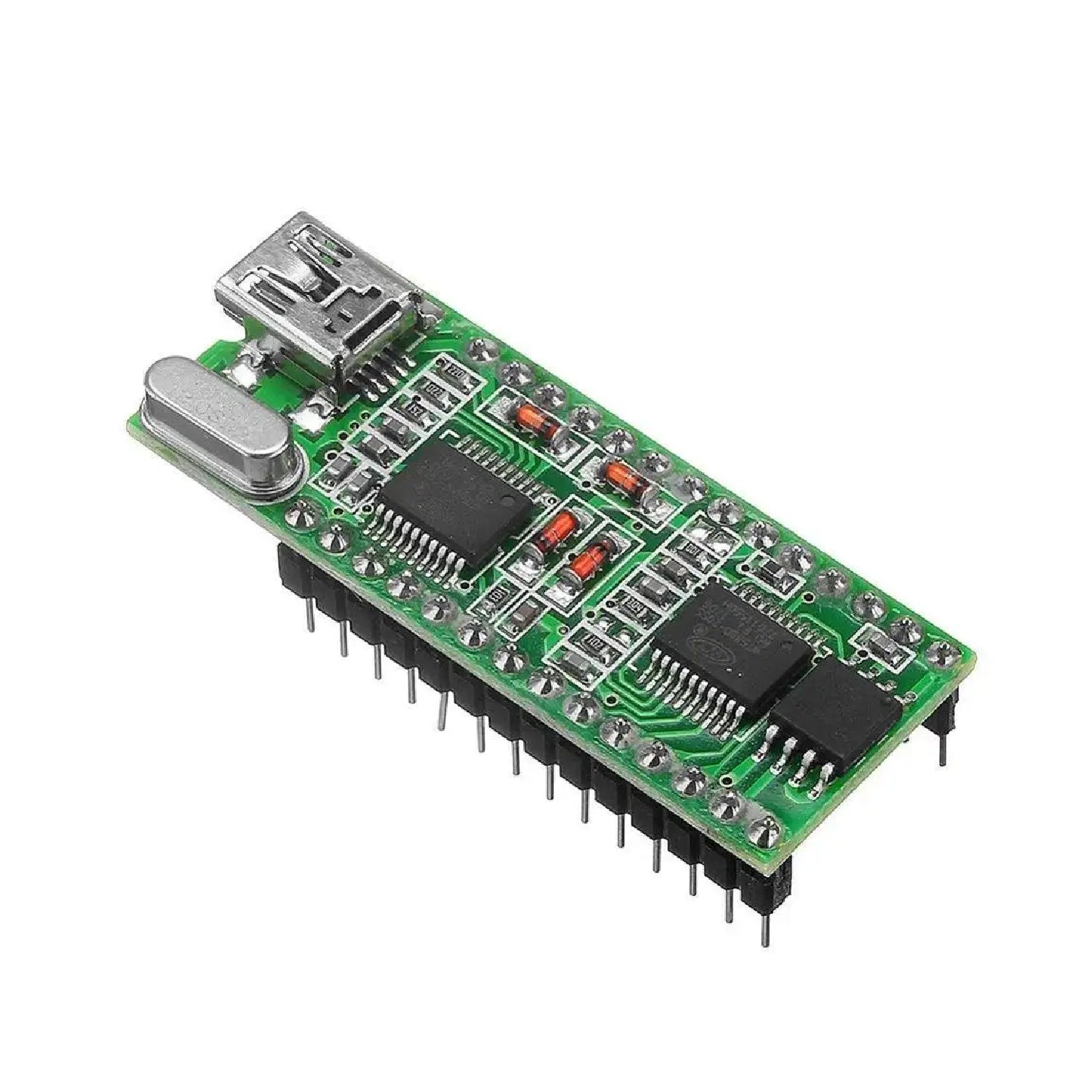

The WT588D-U-32M Voice Modul is a digital recording and playback device. It can operate as a standalone playback device or it can be controlled by a microprocessor such as an Arduino.

DC2.8V-5.5V Mini USB Interface Sound Module exists in several formats, the  -U shows that the board has a USB to allow uploading sound files. The memory storage is shown by 32M (32 m byte) and there are also 16 MB versions.

Specifications:

  • Supply Voltage: DC 2.8V 5.5V
  • Application: Computer
  • Dissipation Power: WT588D-20SS WT588D 20SS

Features:

  • Package of 28 pins module, which can be replaced memory for gaining different lengths of storage time.
  • Supports 2M bit ~ 32M bit capacity SPI-Flash (Note: 1byte = 8bit)
  • WT588D-20SS voice is used as a control core chip.
  • Embedded human voice processor, feels very natural and sweet.
  • Good audio quality output for 13Bit/DA converter and 12Bit/PWM processing of audio.Support for loading 6K ~ 22KHz audio sampling rate.
  • PWM output can directly promote 0.5W/8 speakers and plenty of current.
  • Support DAC / PWM output.
  • Support for loading WAV audio format.
  • Support key control mode, one-wire serial control mode, three-wire serial control mode.
  • A variety of IO trigger ways can be set to button control mode.
  • The way of BUSY signal output can be set randomly.
  • Loading no more than 500 segments of voice for editing.
  • The address bit is controlled by 220 segments of voice, but a single address bit just can load up to 128.
  • Voice player to enter the sleep mode to stop immediately.
  • It is a simple interface and convenient because of using WT588D Voice Chip that benefited to exert its functions.
  • A lot of operations can be finished in software. Such as setup control mode, inserting voice, compositing voice, calling voice, etc.
  • Support online USB download / offline USB download.?Moreover, it also can download data to SPI-Flash even if WT588D-U is working.
  • Dormant current less than 10uA
  • Powerful anti-jamming. Widely used in the industrial field.

Package Included:

1 x WT588D-U-32M Voice Module DC2.8V-5.5V Mini USB Interface Sound Module
